| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T05_9000000058_00383cztM0_level2.evt | modeM0/AS1P01_161T05_9000000058_00383cztM0_level2_quad_clean.evt |
| Size (bytes) | 891,167,040 | 33,281,280 |
| Size | 849.9 MB | 31.7 MB |
| Events in quadrant A | 6,577,955 | 161,739 |
| Events in quadrant B | 5,714,280 | 164,549 |
| Events in quadrant C | 7,228,098 | 194,695 |
| Events in quadrant D | 7,148,563 | 146,352 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23014 | 2 |
| B | 0 | 20389 | 1 |
| C | 0 | 24893 | 1 |
| D | 0 | 24724 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4839 | 221 | 4.567059% |
| B | 4839 | 3 | 0.061996% |
| C | 4839 | 126 | 2.603844% |
| D | 4839 | 374 | 7.728870% |

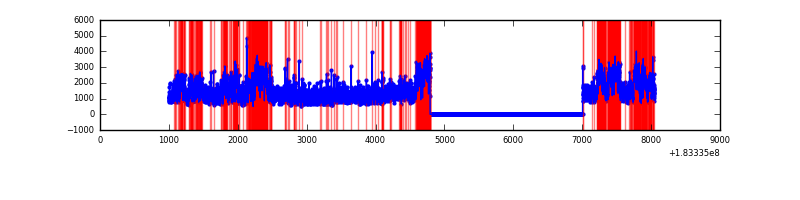

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7054 | 4840 | 509 | 509 | 7.22% | 10.52% |  |
| B | 7054 | 4840 | 74 | 74 | 1.05% | 1.53% |  |
| C | 7054 | 4840 | 943 | 943 | 13.37% | 19.48% |  |
| D | 7054 | 4840 | 744 | 744 | 10.55% | 15.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 69 | 908968 | 2837.79 | 1426 | 1412 | 319.8 |
| A | 0 | 238 | 59690 | 182.22 | 1426 | 1412 | 319.8 |
| A | 12 | 149 | 32031 | 95.74 | 1426 | 1412 | 319.8 |
| B | 7 | 221 | 34653 | 96.14 | 1461 | 1469 | 345.2 |
| B | 0 | 207 | 28692 | 78.87 | 1461 | 1469 | 345.2 |
| B | 0 | 23 | 19462 | 52.13 | 1461 | 1469 | 345.2 |
| C | 1 | 1 | 1934022 | 5261.16 | 1317 | 1362 | 367.3 |
| C | 3 | 159 | 94174 | 252.66 | 1317 | 1362 | 367.3 |
| C | 10 | 19 | 15494 | 38.47 | 1317 | 1362 | 367.3 |
| D | 13 | 7 | 1956772 | 5198.08 | 1262 | 1282 | 376.2 |
| D | 1 | 5 | 104351 | 273.98 | 1262 | 1282 | 376.2 |
| D | 13 | 216 | 48451 | 125.38 | 1262 | 1282 | 376.2 |

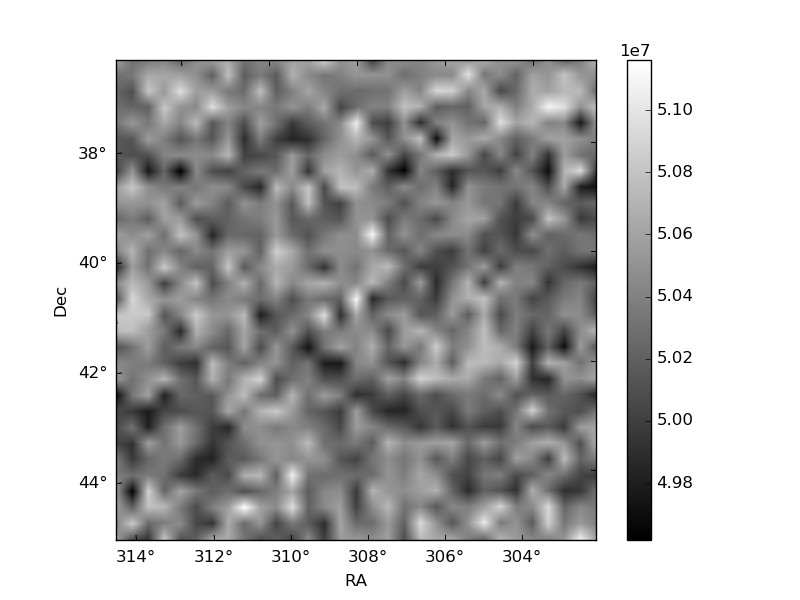

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

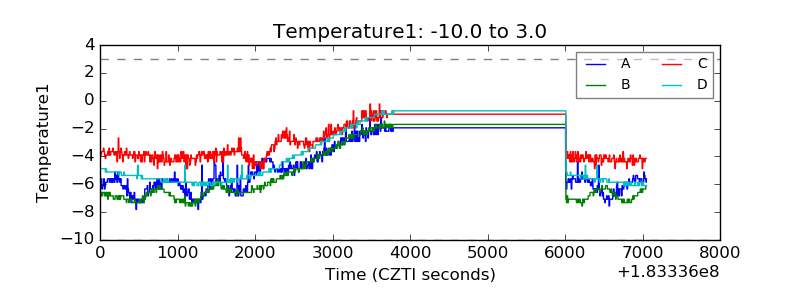

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

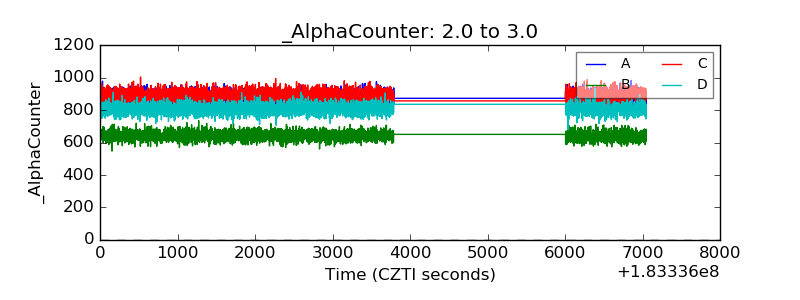

| Alpha Counter |  |
| _CPM_Rate |  |

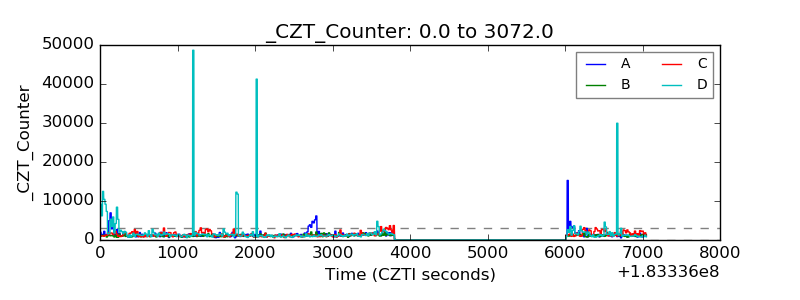

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

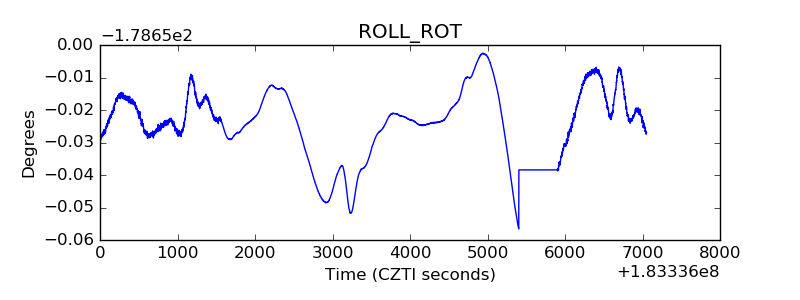

| _ROLL_ROT |  |

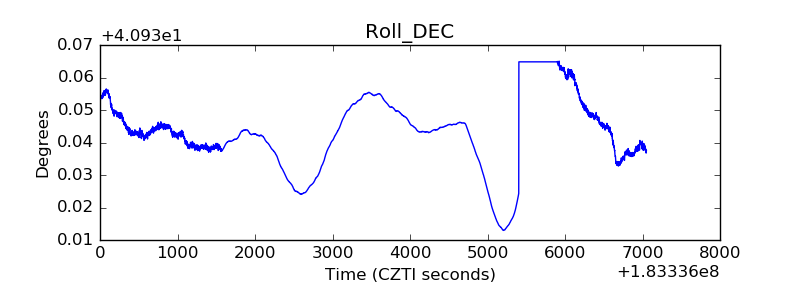

| _Roll_DEC |  |
| _Roll_RA |  |

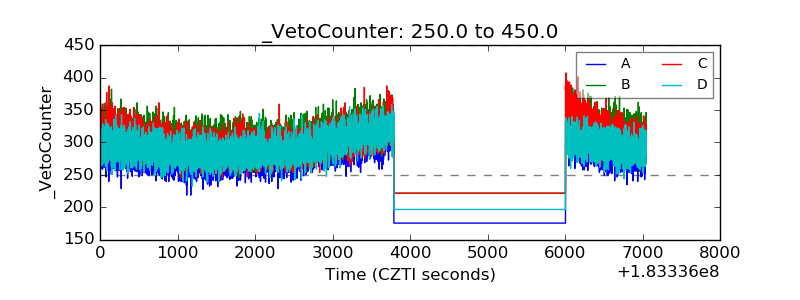

| Veto Counter |  |
