| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T02_9000000066_00400cztM0_level2.evt | modeM0/AS1P01_161T02_9000000066_00400cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,647,680 | 30,196,800 |
| Size | 606.2 MB | 28.8 MB |
| Events in quadrant A | 4,873,966 | 161,381 |
| Events in quadrant B | 4,613,318 | 158,173 |
| Events in quadrant C | 4,682,666 | 164,501 |
| Events in quadrant D | 4,819,658 | 153,112 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17277 | 0 |
| B | 0 | 16455 | 0 |
| C | 0 | 16680 | 0 |
| D | 0 | 17105 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3917 | 5 | 0.127649% |
| B | 3917 | 1 | 0.025530% |
| C | 3917 | 27 | 0.689303% |
| D | 3917 | 30 | 0.765892% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3917 | 3917 | 116 | 116 | 2.96% | 2.96% |  |
| B | 3917 | 3917 | 57 | 57 | 1.46% | 1.46% |  |
| C | 3917 | 3917 | 154 | 154 | 3.93% | 3.93% |  |
| D | 3917 | 3917 | 166 | 166 | 4.24% | 4.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 94667 | 349.35 | 1207 | 1199 | 267.5 |
| A | 12 | 243 | 48432 | 176.54 | 1207 | 1199 | 267.5 |
| A | 12 | 133 | 37205 | 134.58 | 1207 | 1199 | 267.5 |
| B | 0 | 220 | 61192 | 212.37 | 1174 | 1182 | 282.6 |
| B | 15 | 82 | 14471 | 47.03 | 1174 | 1182 | 282.6 |
| B | 4 | 82 | 13964 | 45.23 | 1174 | 1182 | 282.6 |
| C | 2 | 53 | 325021 | 1081.96 | 1066 | 1104 | 299.4 |
| C | 1 | 1 | 107464 | 355.27 | 1066 | 1104 | 299.4 |
| C | 3 | 159 | 51740 | 169.14 | 1066 | 1104 | 299.4 |
| D | 13 | 221 | 365418 | 1101.29 | 1057 | 1099 | 330.8 |
| D | 1 | 5 | 70016 | 208.33 | 1057 | 1099 | 330.8 |
| D | 1 | 4 | 47573 | 140.48 | 1057 | 1099 | 330.8 |

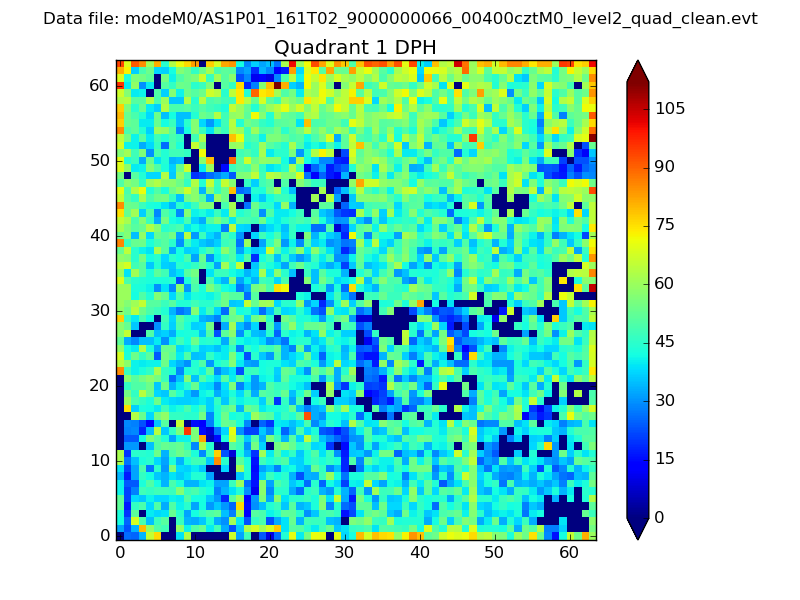

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
