| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T03_9000000070_00408cztM0_level2.evt | modeM0/AS1P01_161T03_9000000070_00408cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,211,200 | 50,742,720 |
| Size | 732.6 MB | 48.4 MB |
| Events in quadrant A | 5,724,099 | 307,267 |
| Events in quadrant B | 5,757,041 | 289,399 |
| Events in quadrant C | 5,488,878 | 302,654 |
| Events in quadrant D | 5,963,593 | 287,460 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20548 | 2 |
| B | 0 | 20632 | 1 |
| C | 0 | 19866 | 1 |
| D | 0 | 21216 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4986 | 5 | 0.100281% |
| B | 4986 | 5 | 0.100281% |
| C | 4986 | 2 | 0.040112% |
| D | 4986 | 18 | 0.361011% |

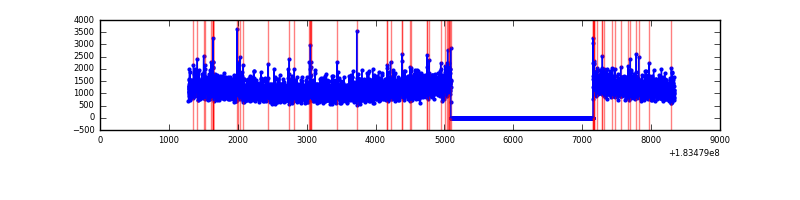

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

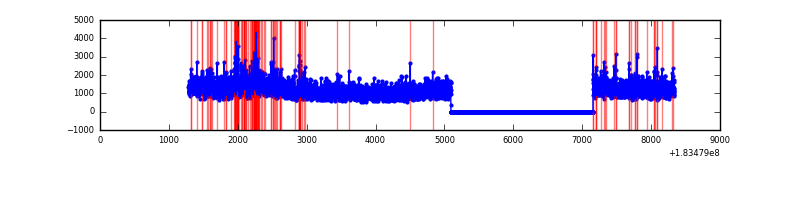

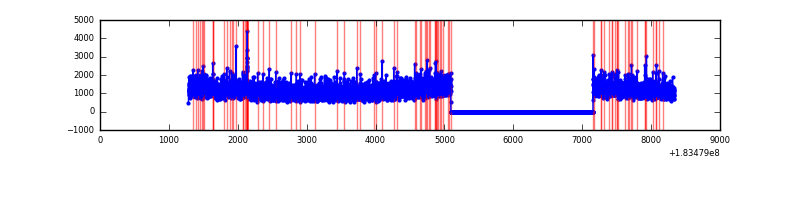

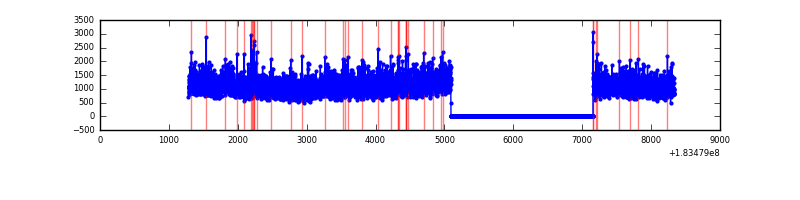

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7051 | 4987 | 94 | 94 | 1.33% | 1.88% |  |
| B | 7051 | 4987 | 61 | 61 | 0.87% | 1.22% |  |
| C | 7051 | 4987 | 40 | 40 | 0.57% | 0.80% |  |
| D | 7051 | 4987 | 147 | 147 | 2.08% | 2.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 103444 | 330.8 | 1420 | 1403 | 308.5 |
| A | 12 | 243 | 44576 | 139.96 | 1420 | 1403 | 308.5 |
| A | 5 | 244 | 32072 | 99.42 | 1420 | 1403 | 308.5 |
| B | 0 | 23 | 57394 | 167.21 | 1436 | 1444 | 334.6 |
| B | 4 | 82 | 45402 | 131.37 | 1436 | 1444 | 334.6 |
| B | 0 | 220 | 41012 | 118.25 | 1436 | 1444 | 334.6 |
| C | 1 | 1 | 230456 | 617.65 | 1331 | 1382 | 370.9 |
| C | 9 | 206 | 12669 | 30.43 | 1331 | 1382 | 370.9 |
| C | 2 | 192 | 9829 | 22.78 | 1331 | 1382 | 370.9 |
| D | 12 | 237 | 248086 | 617.17 | 1277 | 1328 | 399.8 |
| D | 13 | 221 | 223128 | 554.75 | 1277 | 1328 | 399.8 |
| D | 1 | 4 | 170334 | 422.7 | 1277 | 1328 | 399.8 |

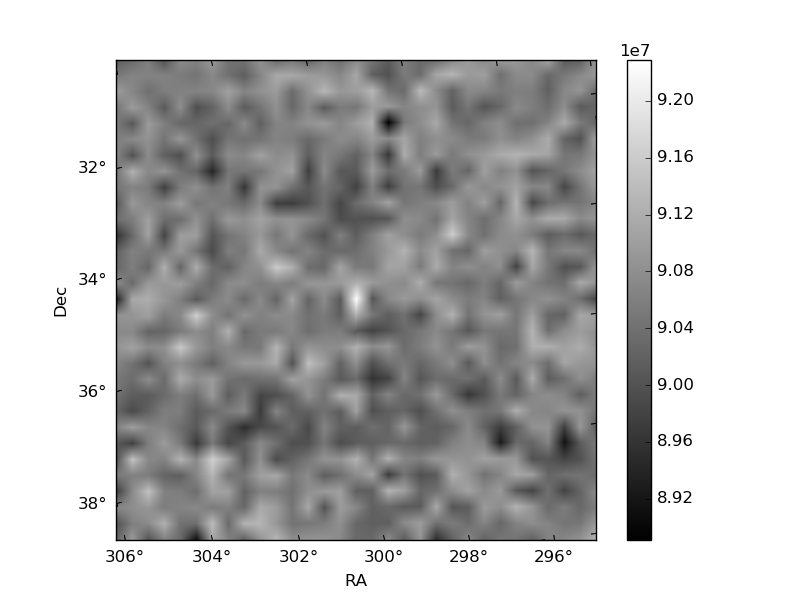

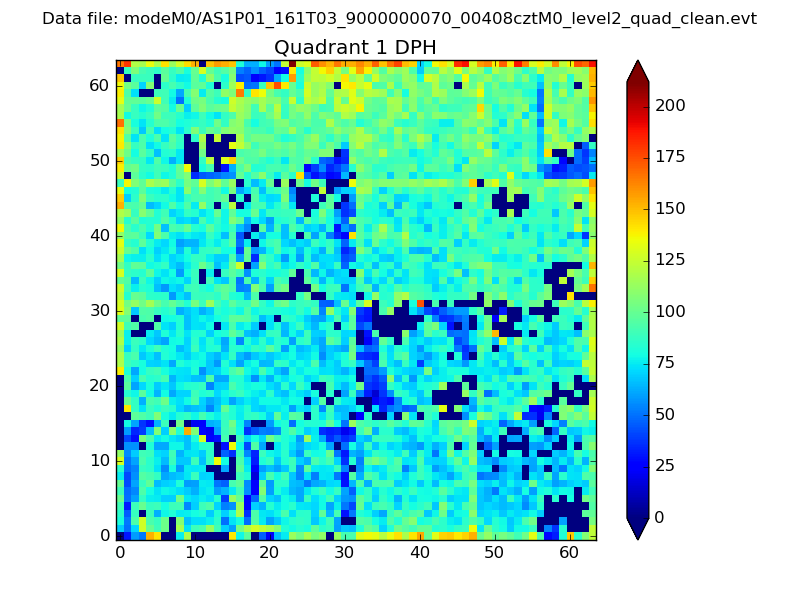

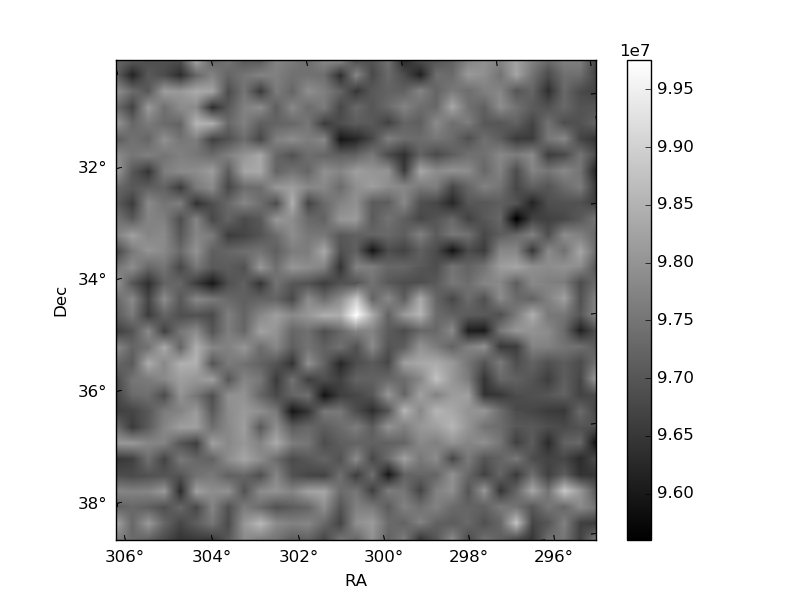

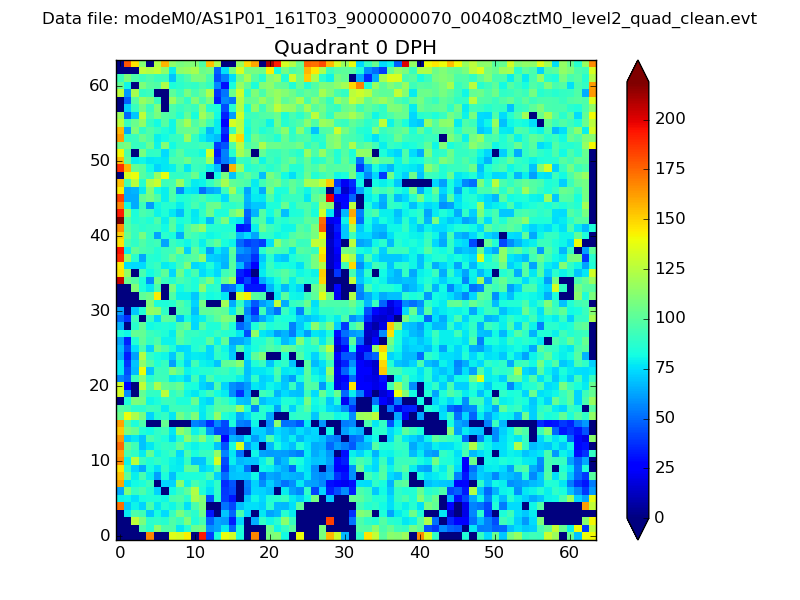

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

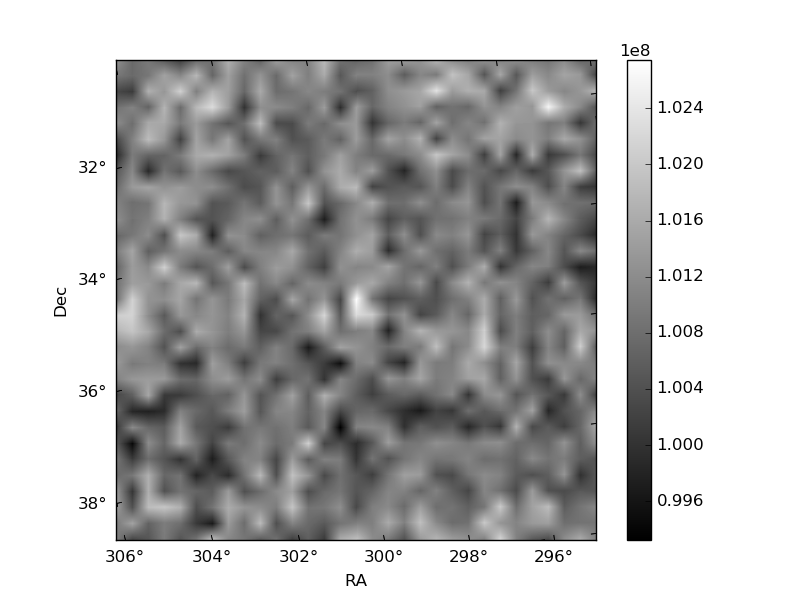

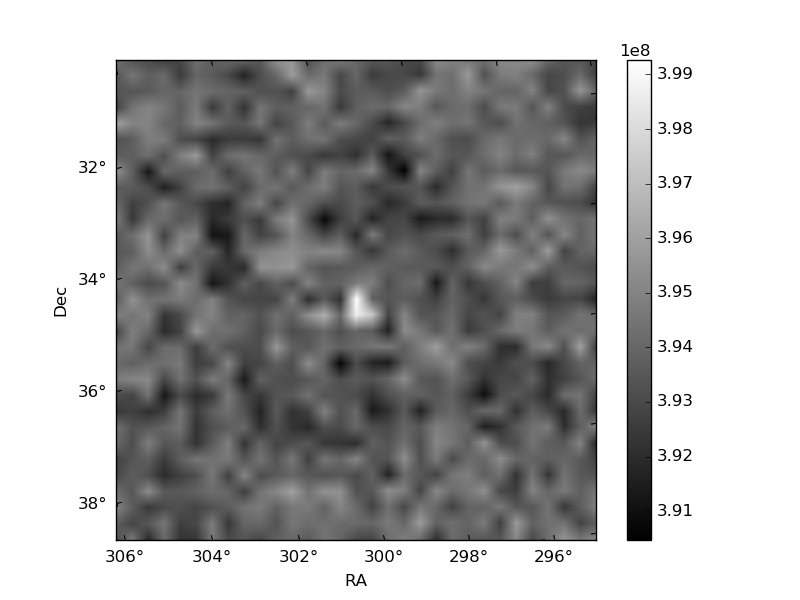

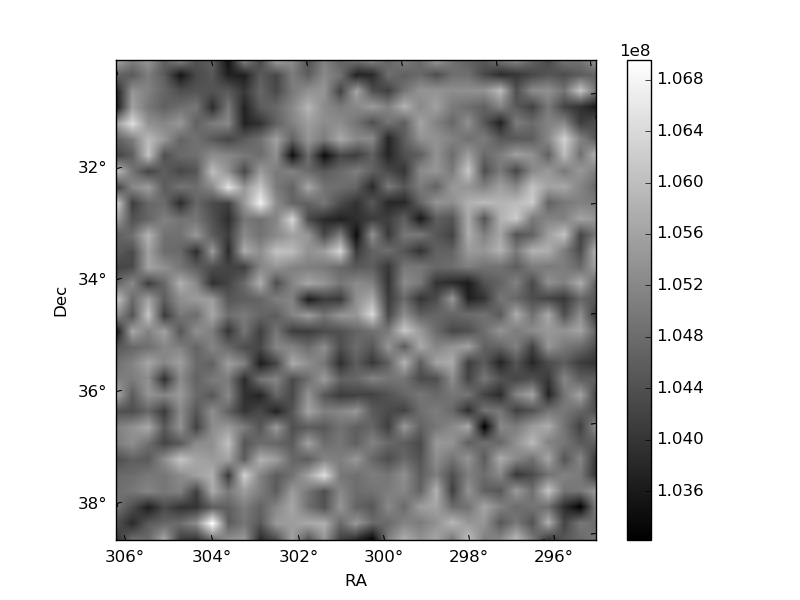

| Plot type | Count rate plots | Images |
|---|---|---|

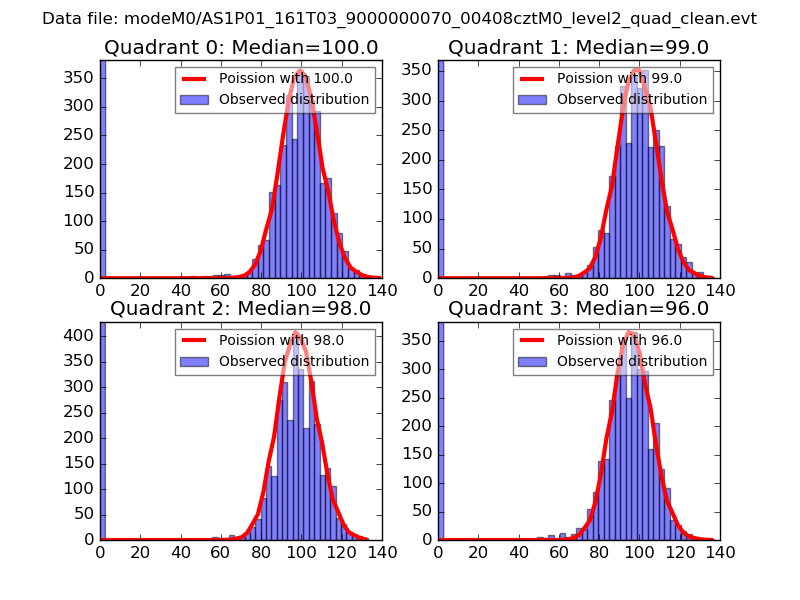

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

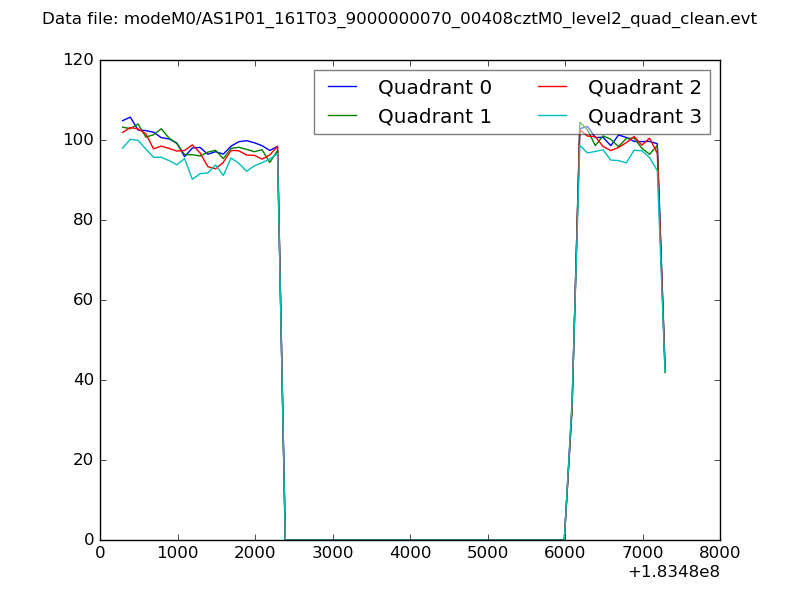

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

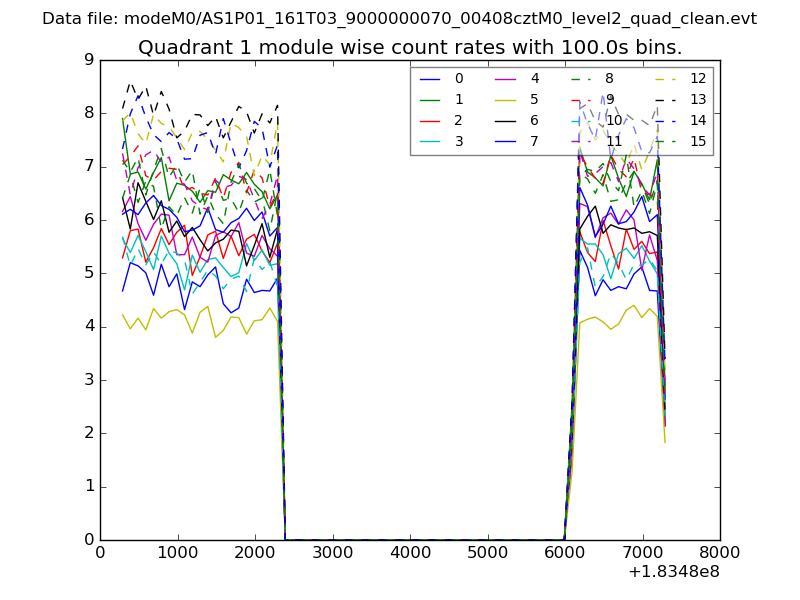

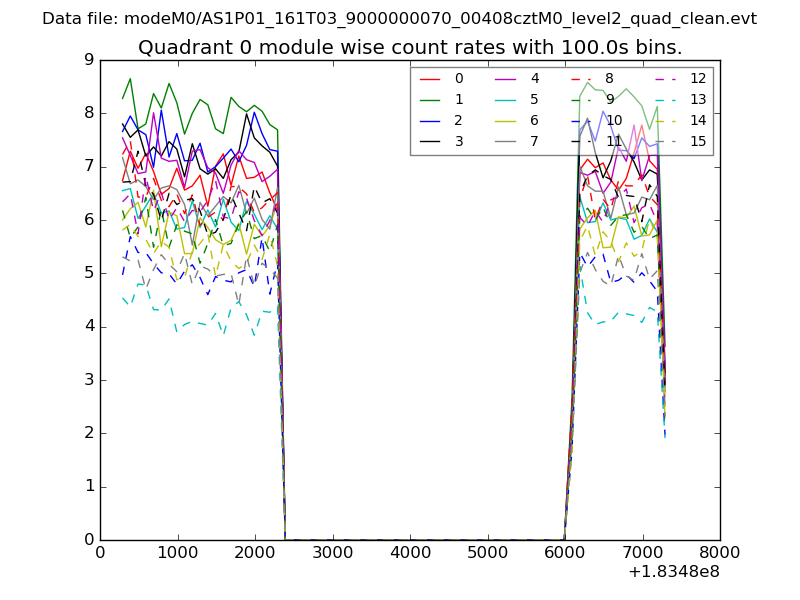

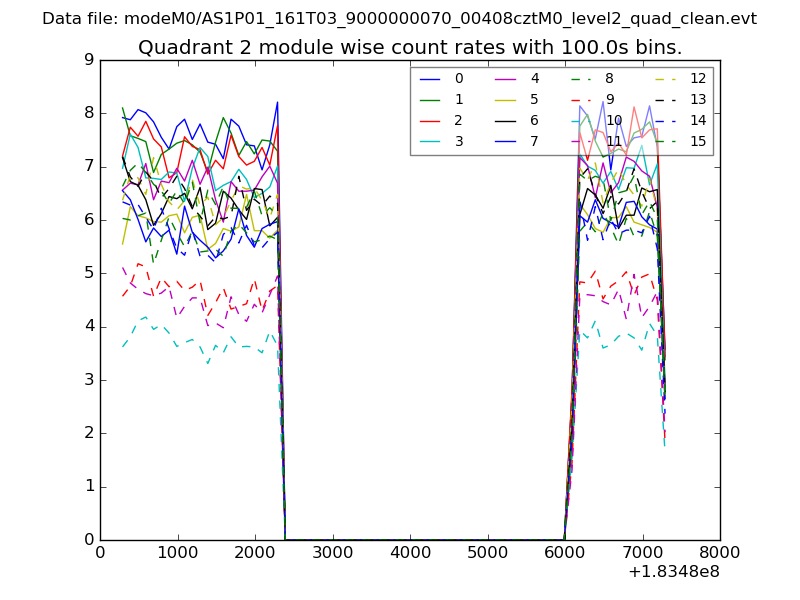

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

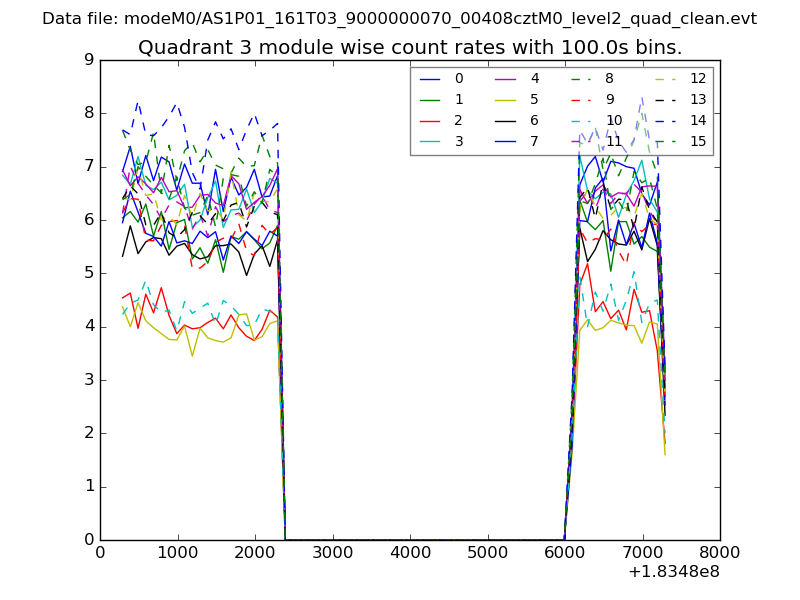

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

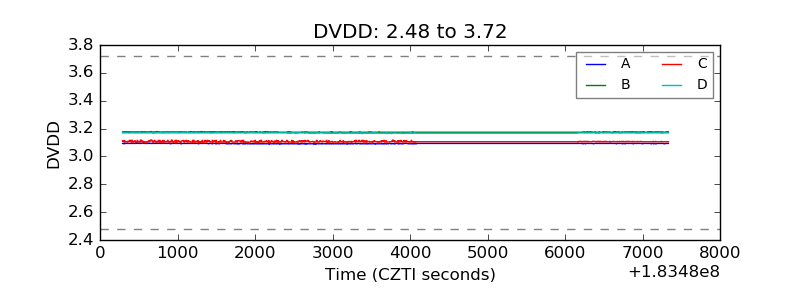

| D_VDD |  |

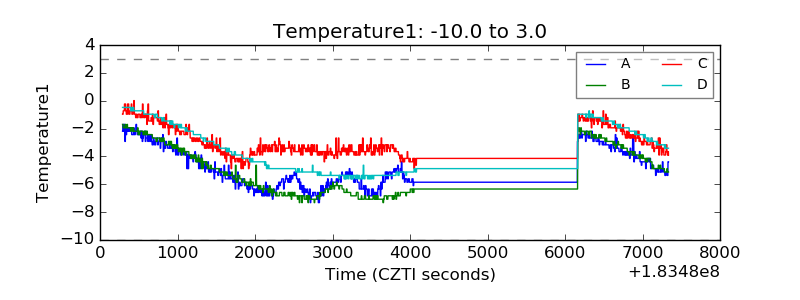

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

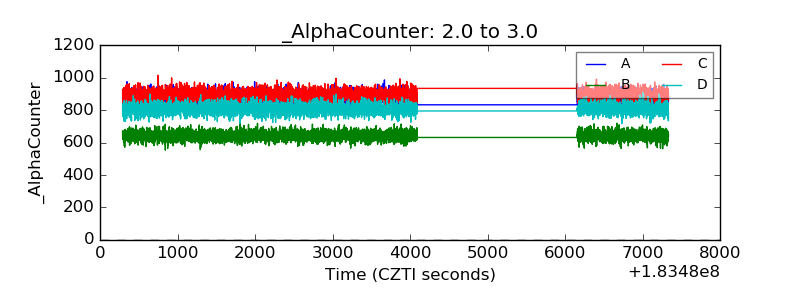

| Alpha Counter |  |

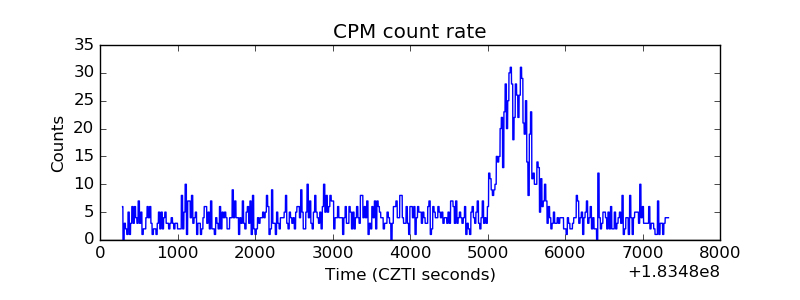

| _CPM_Rate |  |

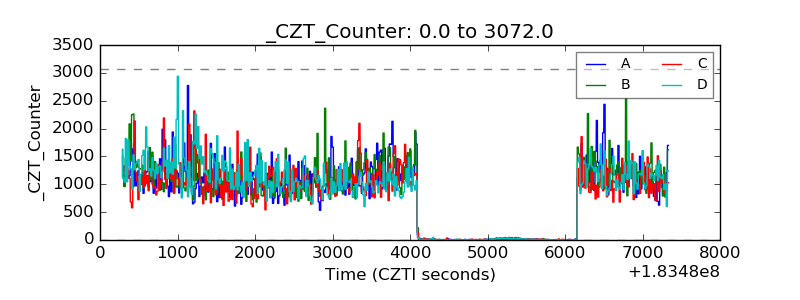

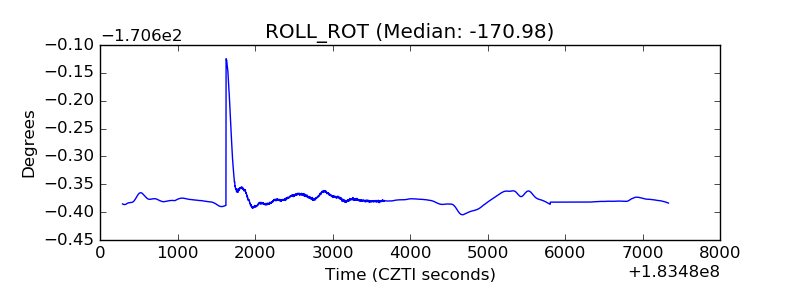

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

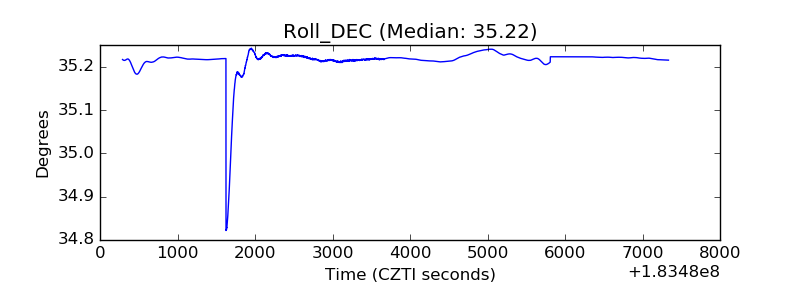

| _Roll_DEC |  |

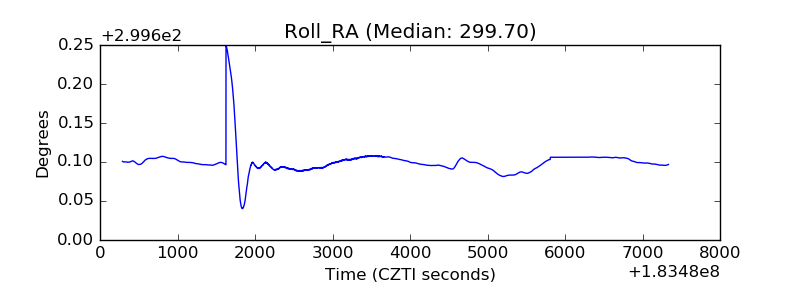

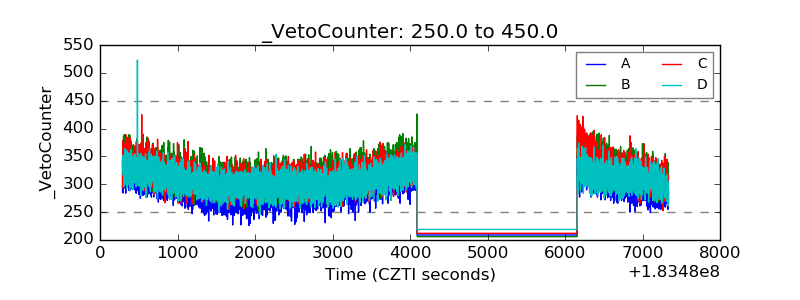

| _Roll_RA |  |
| Veto Counter |  |
