| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T03_9000000070_00410cztM0_level2.evt | modeM0/AS1P01_161T03_9000000070_00410cztM0_level2_quad_clean.evt |
| Size (bytes) | 763,018,560 | 45,112,320 |
| Size | 727.7 MB | 43.0 MB |
| Events in quadrant A | 5,788,196 | 260,924 |
| Events in quadrant B | 5,812,343 | 247,230 |
| Events in quadrant C | 5,520,164 | 257,863 |
| Events in quadrant D | 5,649,952 | 244,613 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20761 | 2 |
| B | 0 | 20854 | 1 |
| C | 0 | 19969 | 1 |
| D | 0 | 20425 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5066 | 7 | 0.138176% |
| B | 5066 | 3 | 0.059218% |
| C | 5066 | 10 | 0.197394% |
| D | 5066 | 21 | 0.414528% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7130 | 5067 | 102 | 102 | 1.43% | 2.01% |  |
| B | 7130 | 5067 | 54 | 54 | 0.76% | 1.07% |  |
| C | 7130 | 5067 | 55 | 55 | 0.77% | 1.09% |  |
| D | 7130 | 5067 | 111 | 111 | 1.56% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 69427 | 210.89 | 1447 | 1431 | 322.4 |
| A | 15 | 4 | 41123 | 123.11 | 1447 | 1431 | 322.4 |
| A | 12 | 133 | 32088 | 95.08 | 1447 | 1431 | 322.4 |
| B | 2 | 32 | 60003 | 168.41 | 1483 | 1490 | 347.4 |
| B | 0 | 23 | 26625 | 72.34 | 1483 | 1490 | 347.4 |
| B | 8 | 4 | 18107 | 47.83 | 1483 | 1490 | 347.4 |
| C | 1 | 1 | 101492 | 261.52 | 1359 | 1411 | 382.7 |
| C | 2 | 53 | 57511 | 146.59 | 1359 | 1411 | 382.7 |
| C | 3 | 159 | 12573 | 29.17 | 1359 | 1411 | 382.7 |
| D | 13 | 7 | 323083 | 801.31 | 1282 | 1333 | 401.5 |
| D | 13 | 221 | 163363 | 403.53 | 1282 | 1333 | 401.5 |
| D | 1 | 5 | 74223 | 181.53 | 1282 | 1333 | 401.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

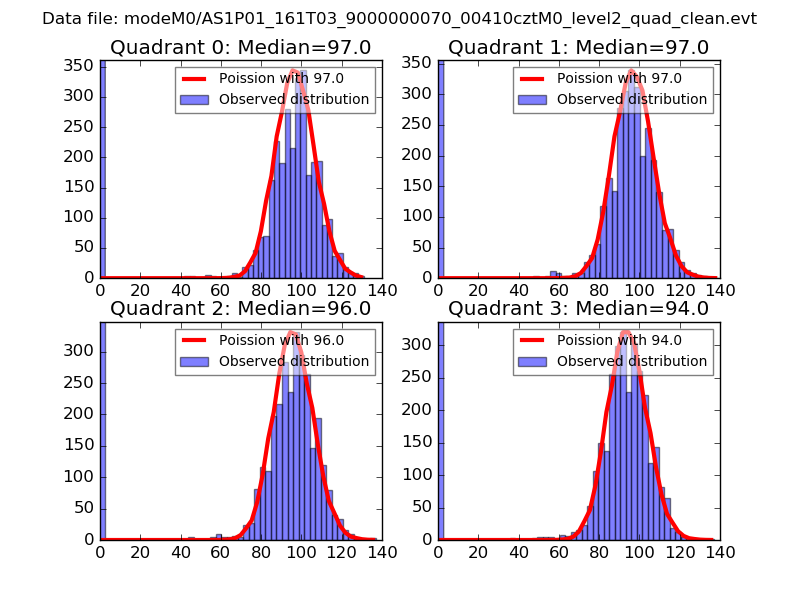

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

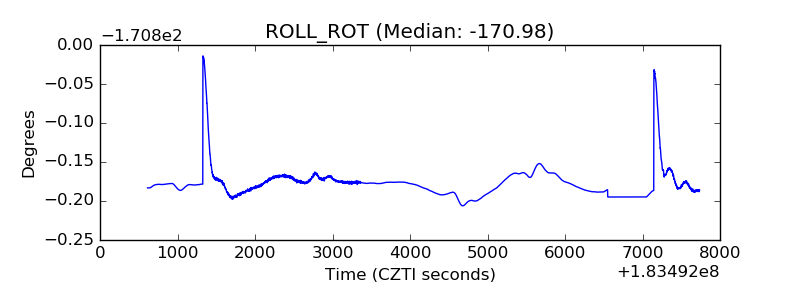

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

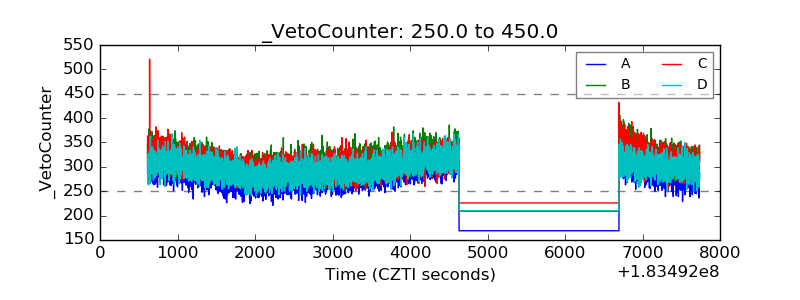

| Veto Counter |  |
