| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_015T01_9000000074_00551cztM0_level2.evt | modeM0/AS1P01_015T01_9000000074_00551cztM0_level2_quad_clean.evt |
| Size (bytes) | 801,455,040 | 41,385,600 |
| Size | 764.3 MB | 39.5 MB |
| Events in quadrant A | 6,292,683 | 230,724 |
| Events in quadrant B | 6,053,148 | 224,202 |
| Events in quadrant C | 5,630,335 | 231,567 |
| Events in quadrant D | 5,967,593 | 219,448 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22249 | 3 |
| B | 0 | 21483 | 2 |
| C | 0 | 20236 | 2 |
| D | 0 | 21265 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4944 | 12 | 0.242718% |
| B | 4944 | 7 | 0.141586% |
| C | 4944 | 20 | 0.404531% |
| D | 4944 | 13 | 0.262945% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7098 | 4945 | 156 | 156 | 2.20% | 3.15% |  |
| B | 7098 | 4945 | 72 | 72 | 1.01% | 1.46% |  |
| C | 7098 | 4945 | 65 | 65 | 0.92% | 1.31% |  |
| D | 7098 | 4945 | 123 | 123 | 1.73% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 100769 | 288.4 | 1562 | 1548 | 344.0 |
| A | 0 | 69 | 97761 | 279.66 | 1562 | 1548 | 344.0 |
| A | 13 | 160 | 37360 | 104.09 | 1562 | 1548 | 344.0 |
| B | 8 | 4 | 64892 | 177.65 | 1531 | 1546 | 356.6 |
| B | 5 | 249 | 23135 | 60.54 | 1531 | 1546 | 356.6 |
| B | 4 | 235 | 20696 | 53.7 | 1531 | 1546 | 356.6 |
| C | 3 | 159 | 42932 | 105.5 | 1404 | 1453 | 393.2 |
| C | 0 | 207 | 35224 | 85.9 | 1404 | 1453 | 393.2 |
| C | 9 | 206 | 20541 | 48.55 | 1404 | 1453 | 393.2 |
| D | 1 | 4 | 269905 | 625.42 | 1382 | 1436 | 429.3 |
| D | 12 | 237 | 87278 | 199.98 | 1382 | 1436 | 429.3 |
| D | 13 | 221 | 80728 | 184.72 | 1382 | 1436 | 429.3 |

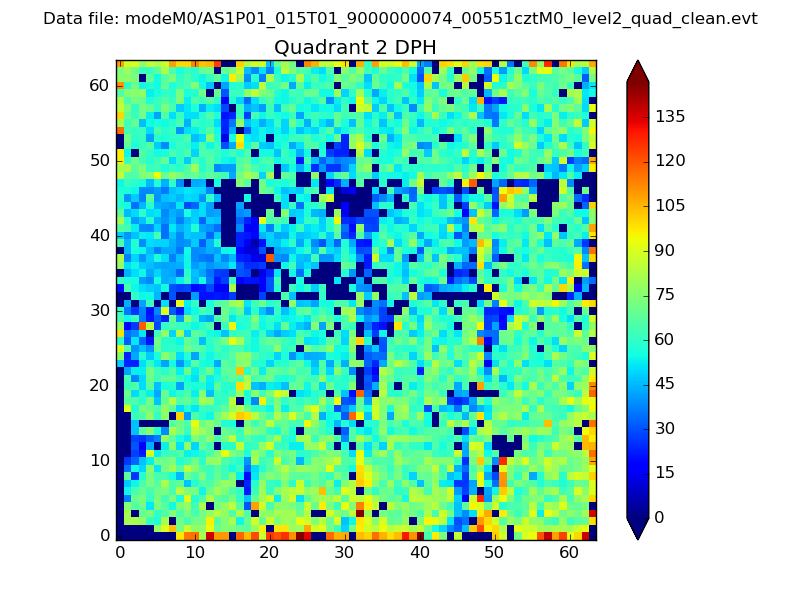

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

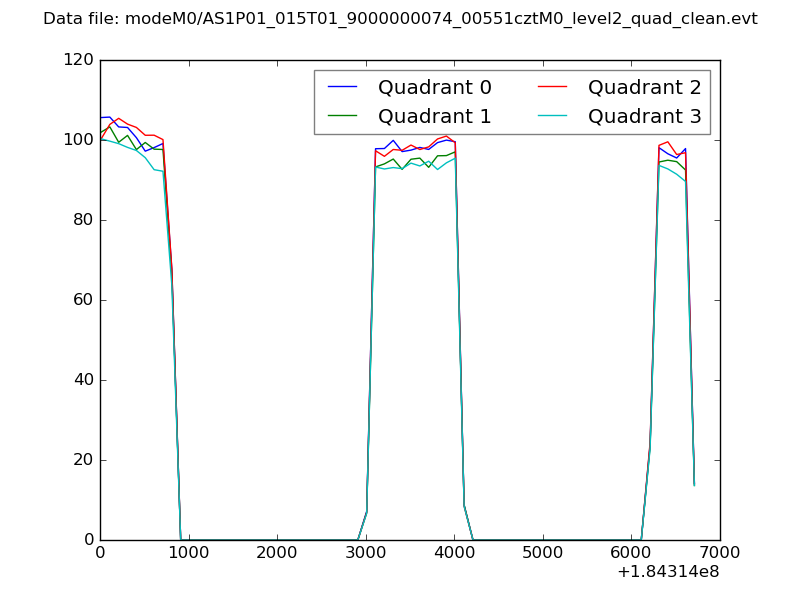

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

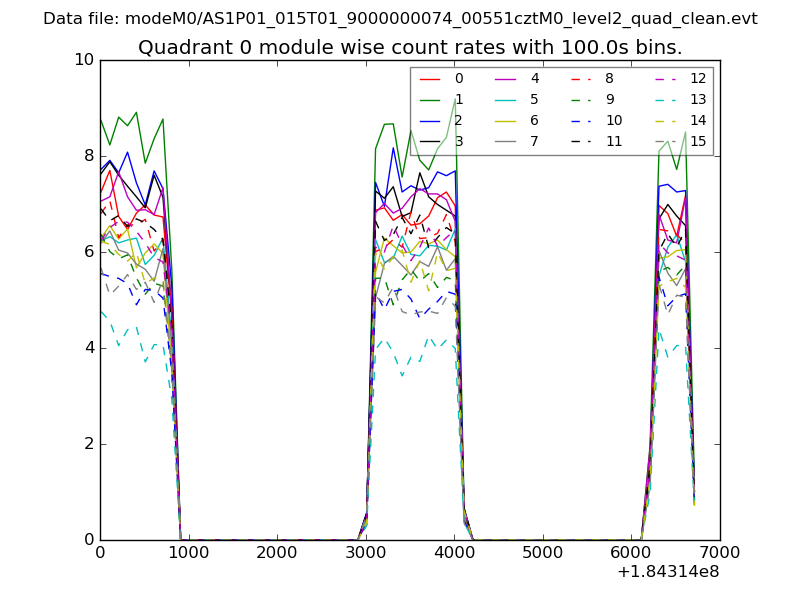

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

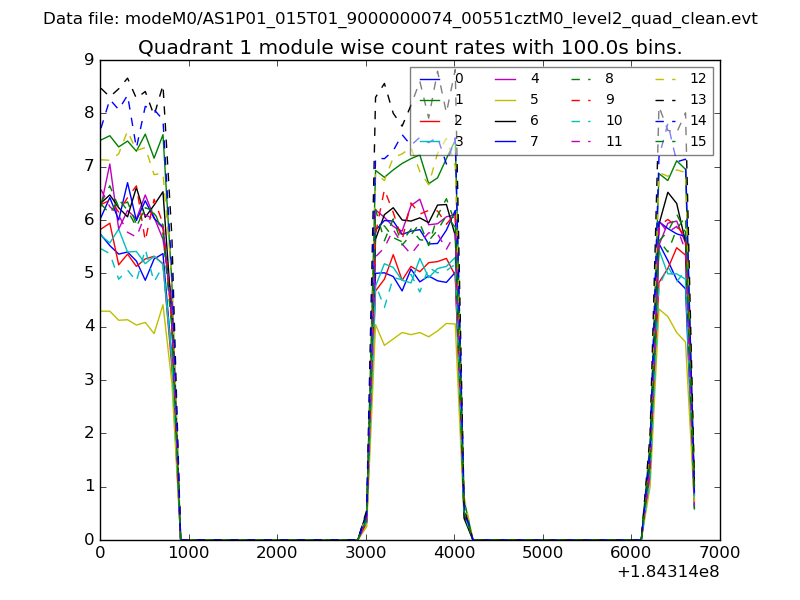

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

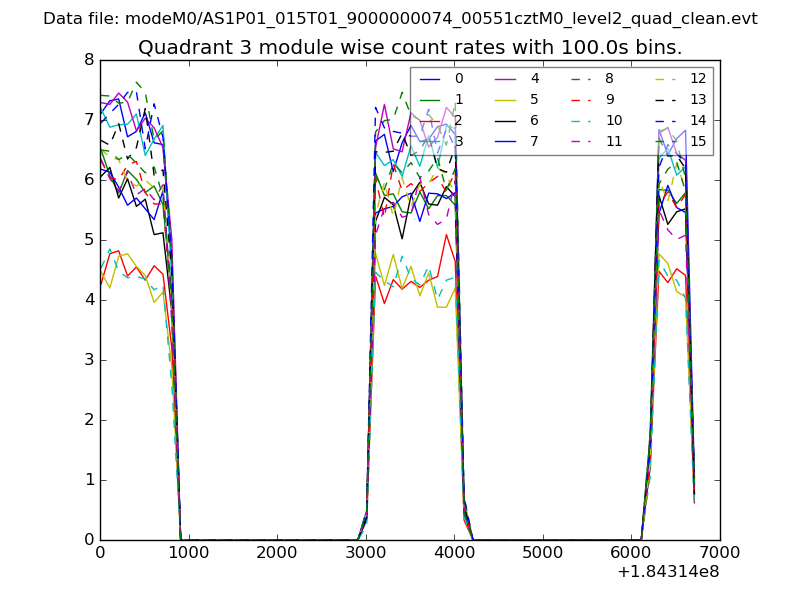

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

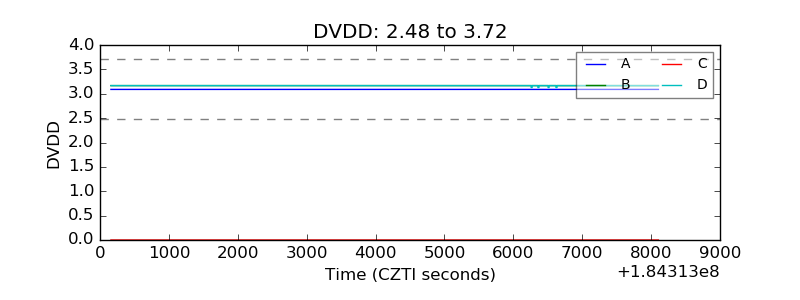

| D_VDD |  |
| Temperature 1 |  |

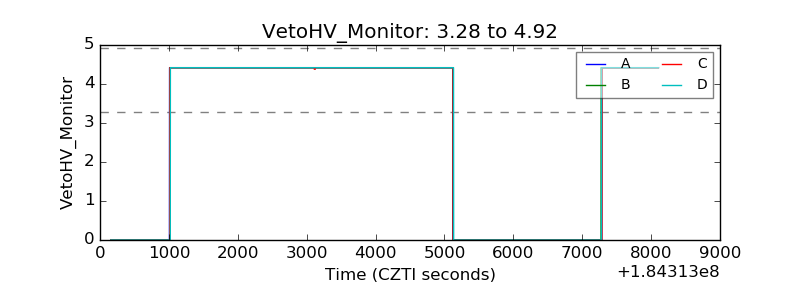

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

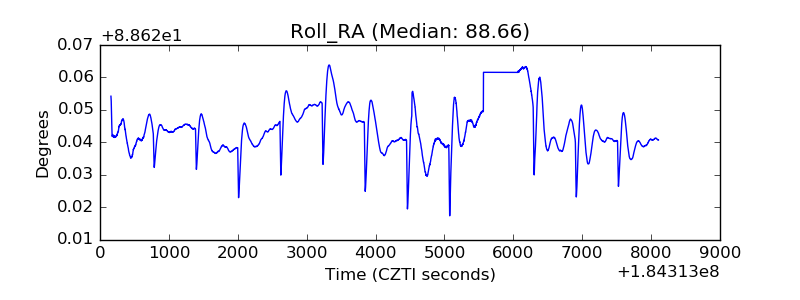

| _Roll_RA |  |
| Veto Counter |  |
