| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_015T01_9000000074_00554cztM0_level2.evt | modeM0/AS1P01_015T01_9000000074_00554cztM0_level2_quad_clean.evt |
| Size (bytes) | 842,636,160 | 41,025,600 |
| Size | 803.6 MB | 39.1 MB |
| Events in quadrant A | 6,527,186 | 219,909 |
| Events in quadrant B | 6,327,662 | 223,290 |
| Events in quadrant C | 6,122,399 | 219,993 |
| Events in quadrant D | 6,197,686 | 215,144 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23061 | 3 |
| B | 0 | 22467 | 2 |
| C | 0 | 21875 | 2 |
| D | 0 | 22131 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5183 | 23 | 0.443758% |
| B | 5183 | 3 | 0.057882% |
| C | 5183 | 40 | 0.771754% |
| D | 5183 | 61 | 1.176925% |

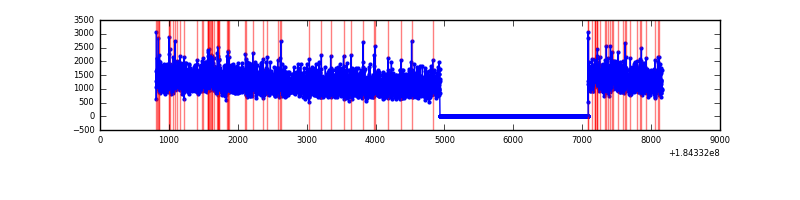

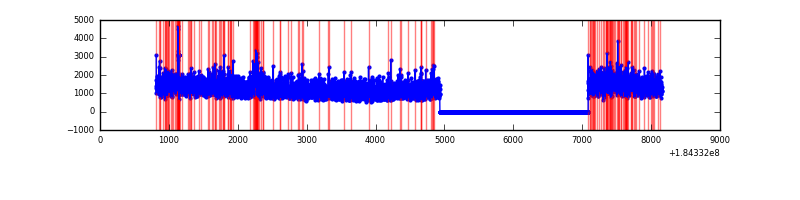

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7338 | 5184 | 192 | 192 | 2.62% | 3.70% |  |
| B | 7338 | 5184 | 84 | 84 | 1.14% | 1.62% |  |
| C | 7338 | 5184 | 137 | 137 | 1.87% | 2.64% |  |
| D | 7338 | 5184 | 200 | 200 | 2.73% | 3.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 77420 | 207.43 | 1611 | 1587 | 365.6 |
| A | 12 | 133 | 54131 | 143.72 | 1611 | 1587 | 365.6 |
| A | 13 | 160 | 53648 | 142.4 | 1611 | 1587 | 365.6 |
| B | 0 | 230 | 45610 | 115.65 | 1605 | 1614 | 380.4 |
| B | 4 | 235 | 35135 | 88.11 | 1605 | 1614 | 380.4 |
| B | 0 | 220 | 20615 | 49.95 | 1605 | 1614 | 380.4 |
| C | 3 | 159 | 280861 | 676.76 | 1468 | 1525 | 412.8 |
| C | 0 | 207 | 23191 | 52.49 | 1468 | 1525 | 412.8 |
| C | 1 | 1 | 14857 | 32.3 | 1468 | 1525 | 412.8 |
| D | 13 | 221 | 212138 | 474.44 | 1412 | 1461 | 444.1 |
| D | 12 | 237 | 168893 | 377.05 | 1412 | 1461 | 444.1 |
| D | 1 | 4 | 137631 | 306.65 | 1412 | 1461 | 444.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

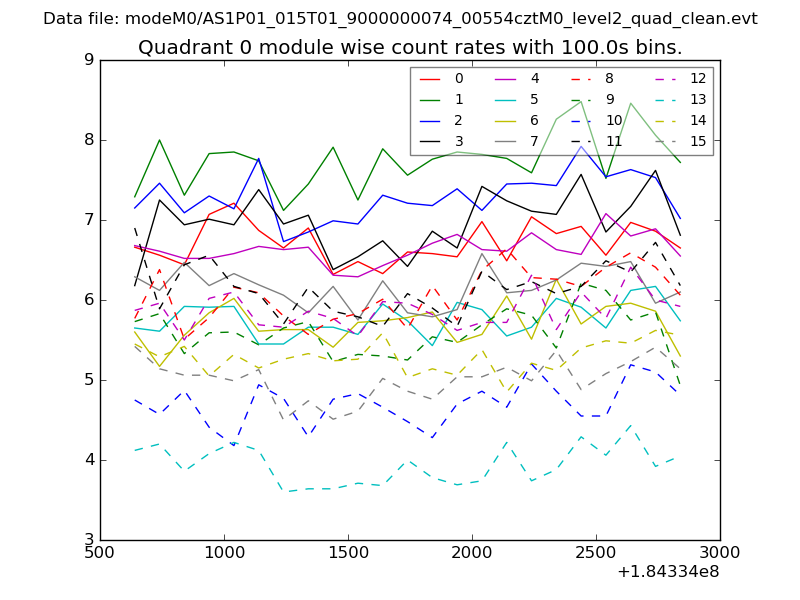

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

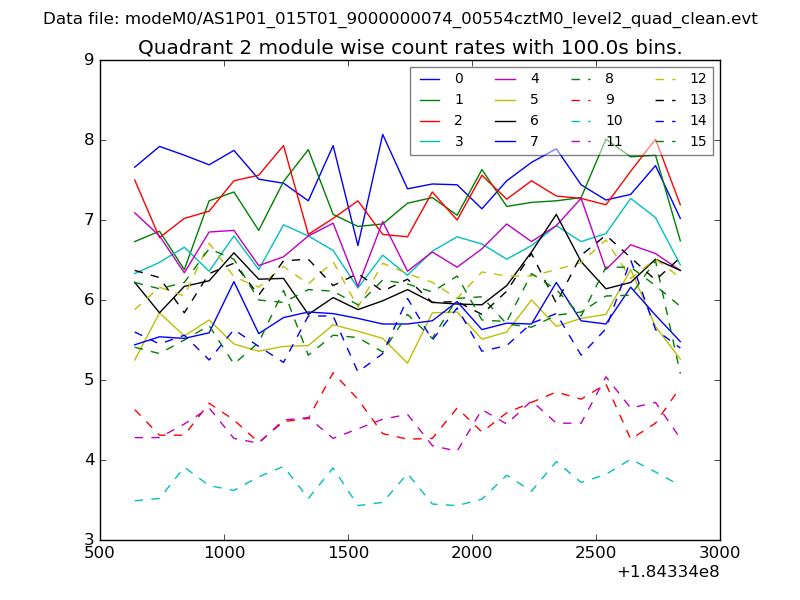

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

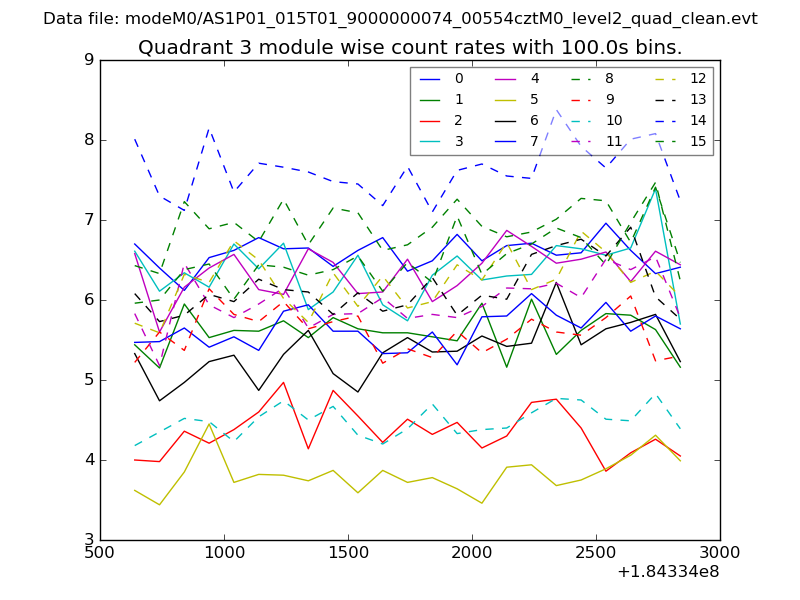

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

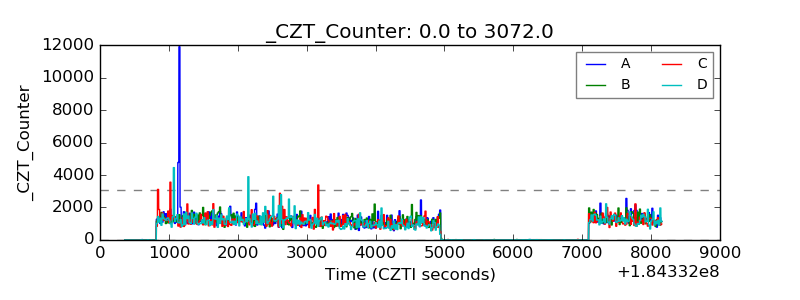

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

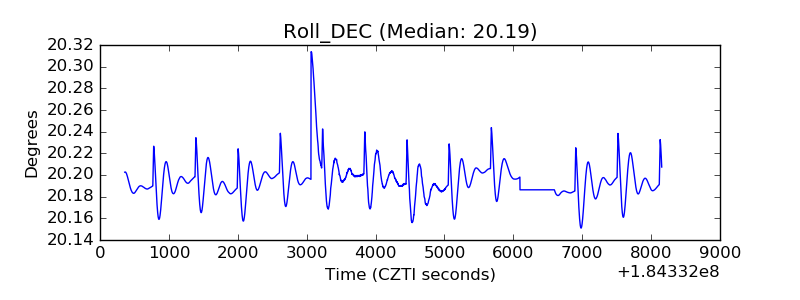

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
