| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_014T01_9000000080_00573cztM0_level2.evt | modeM0/AS1P01_014T01_9000000080_00573cztM0_level2_quad_clean.evt |
| Size (bytes) | 801,947,520 | 70,459,200 |
| Size | 764.8 MB | 67.2 MB |
| Events in quadrant A | 6,375,108 | 436,929 |
| Events in quadrant B | 5,923,544 | 448,409 |
| Events in quadrant C | 5,527,259 | 453,608 |
| Events in quadrant D | 6,120,845 | 436,154 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22598 | 3 |
| B | 0 | 21237 | 2 |
| C | 0 | 20085 | 2 |
| D | 0 | 21857 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5113 | 204 | 3.989830% |
| B | 5113 | 2 | 0.039116% |
| C | 5113 | 7 | 0.136906% |
| D | 5113 | 59 | 1.153921% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7268 | 5114 | 327 | 327 | 4.50% | 6.39% |  |
| B | 7268 | 5114 | 59 | 59 | 0.81% | 1.15% |  |
| C | 7268 | 5114 | 47 | 47 | 0.65% | 0.92% |  |
| D | 7267 | 5113 | 303 | 303 | 4.17% | 5.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 17 | 602067 | 1873.7 | 1460 | 1444 | 320.6 |
| A | 0 | 69 | 37913 | 113.77 | 1460 | 1444 | 320.6 |
| A | 0 | 238 | 33470 | 99.91 | 1460 | 1444 | 320.6 |
| B | 0 | 220 | 57205 | 155.97 | 1514 | 1518 | 357.0 |
| B | 8 | 4 | 33557 | 89.74 | 1514 | 1518 | 357.0 |
| B | 4 | 206 | 12665 | 31.22 | 1514 | 1518 | 357.0 |
| C | 5 | 249 | 31577 | 78.17 | 1386 | 1440 | 385.6 |
| C | 3 | 159 | 21916 | 53.11 | 1386 | 1440 | 385.6 |
| C | 15 | 241 | 13249 | 30.63 | 1386 | 1440 | 385.6 |
| D | 1 | 4 | 378195 | 924.2 | 1302 | 1354 | 407.7 |
| D | 13 | 221 | 360372 | 880.49 | 1302 | 1354 | 407.7 |
| D | 12 | 22 | 134944 | 327.63 | 1302 | 1354 | 407.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

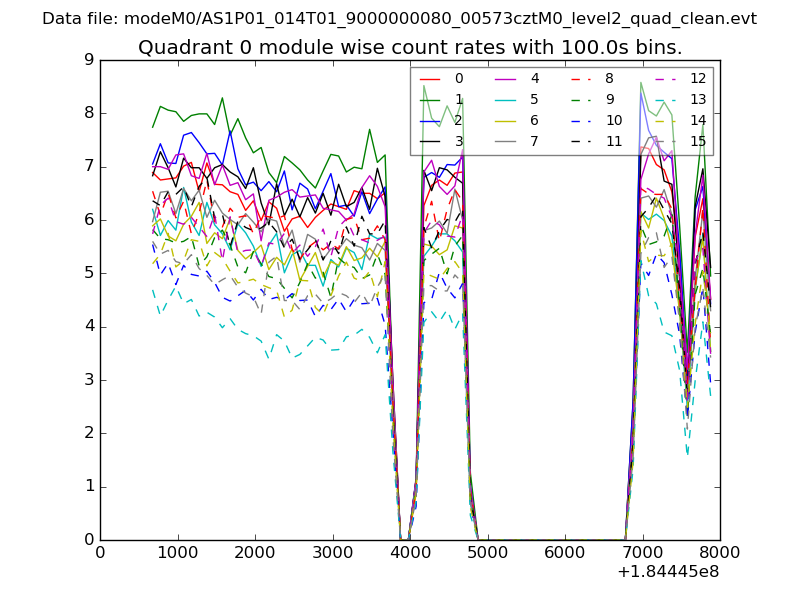

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

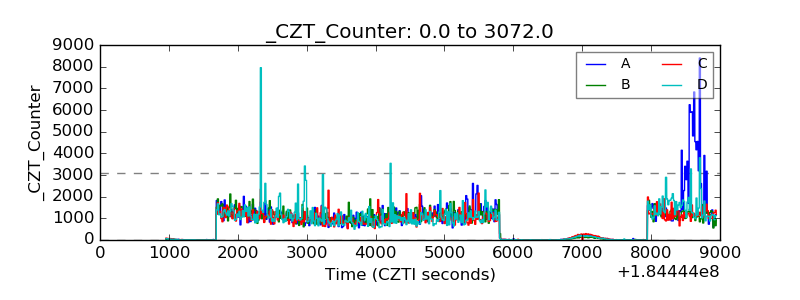

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

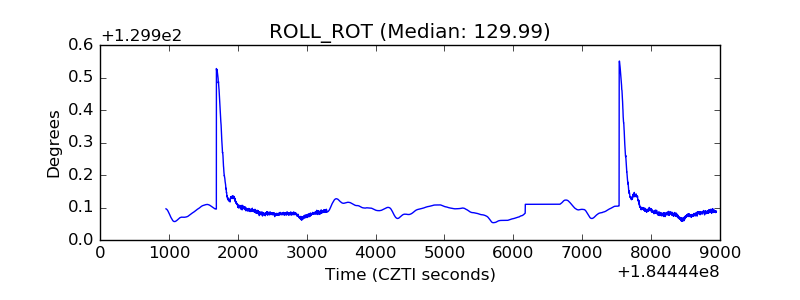

| _ROLL_ROT |  |
| _Roll_DEC |  |

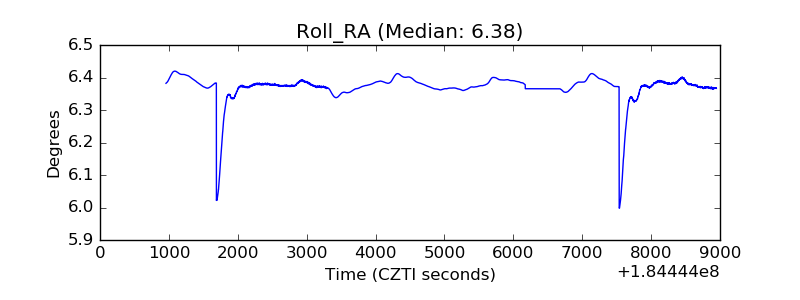

| _Roll_RA |  |
| Veto Counter |  |
