| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_014T06_9000000078_00568cztM0_level2.evt | modeM0/AS1P01_014T06_9000000078_00568cztM0_level2_quad_clean.evt |
| Size (bytes) | 838,964,160 | 70,433,280 |
| Size | 800.1 MB | 67.2 MB |
| Events in quadrant A | 6,037,790 | 451,765 |
| Events in quadrant B | 6,154,617 | 457,071 |
| Events in quadrant C | 5,446,933 | 449,501 |
| Events in quadrant D | 7,434,887 | 421,735 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21502 | 3 |
| B | 0 | 21864 | 2 |
| C | 0 | 19762 | 2 |
| D | 0 | 25688 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5030 | 9 | 0.178926% |
| B | 5030 | 11 | 0.218688% |
| C | 5030 | 3 | 0.059642% |
| D | 5030 | 254 | 5.049702% |

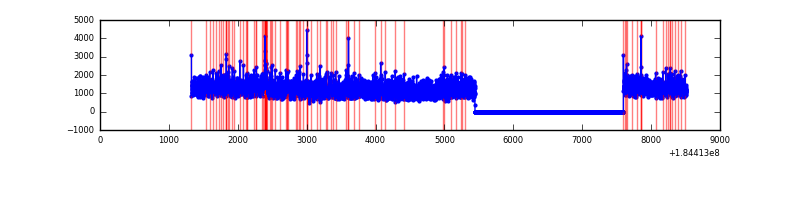

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7187 | 5031 | 119 | 119 | 1.66% | 2.37% |  |
| B | 7187 | 5031 | 99 | 99 | 1.38% | 1.97% |  |
| C | 7187 | 5031 | 34 | 34 | 0.47% | 0.68% |  |
| D | 7187 | 5031 | 797 | 797 | 11.09% | 15.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 64396 | 186.8 | 1526 | 1506 | 336.7 |
| A | 0 | 69 | 40516 | 115.87 | 1526 | 1506 | 336.7 |
| A | 12 | 133 | 17574 | 47.73 | 1526 | 1506 | 336.7 |
| B | 4 | 250 | 223329 | 633.49 | 1485 | 1495 | 350.2 |
| B | 8 | 4 | 57423 | 159.71 | 1485 | 1495 | 350.2 |
| B | 4 | 206 | 43455 | 119.82 | 1485 | 1495 | 350.2 |
| C | 5 | 249 | 85940 | 223.63 | 1358 | 1405 | 378.0 |
| C | 15 | 241 | 15288 | 36.73 | 1358 | 1405 | 378.0 |
| C | 3 | 159 | 10254 | 23.41 | 1358 | 1405 | 378.0 |
| D | 9 | 52 | 742011 | 1777.15 | 1336 | 1390 | 416.7 |
| D | 12 | 237 | 489916 | 1172.24 | 1336 | 1390 | 416.7 |
| D | 1 | 4 | 216863 | 517.04 | 1336 | 1390 | 416.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

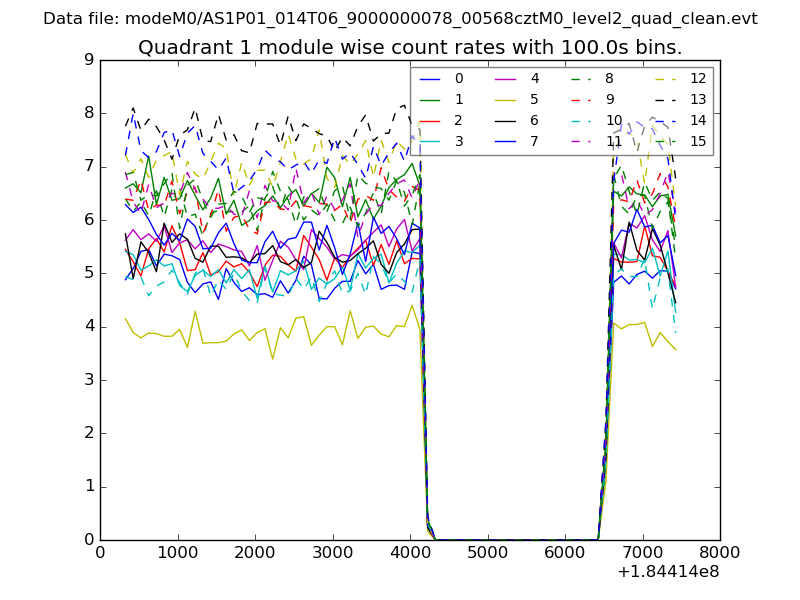

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

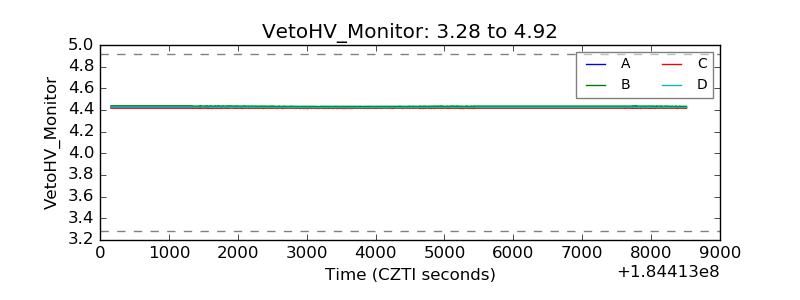

| Veto HV Monitor |  |
| Veto LLD |  |

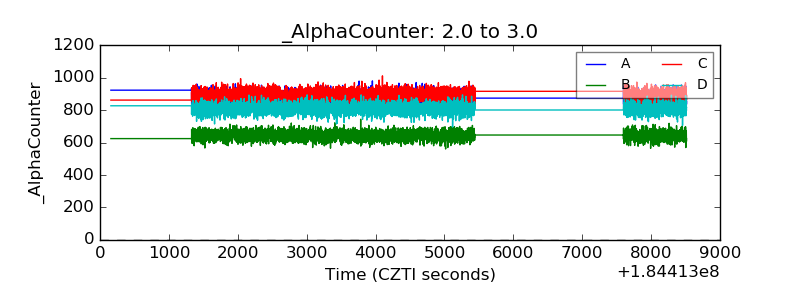

| Alpha Counter |  |
| _CPM_Rate |  |

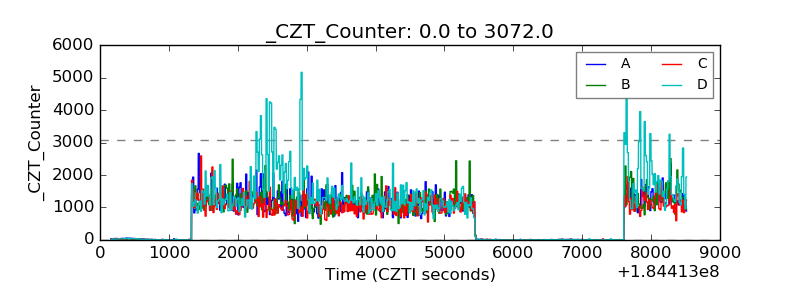

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
