| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_118T02_9000000082_00586cztM0_level2.evt | modeM0/AS1P01_118T02_9000000082_00586cztM0_level2_quad_clean.evt |
| Size (bytes) | 828,780,480 | 59,837,760 |
| Size | 790.4 MB | 57.1 MB |
| Events in quadrant A | 6,174,422 | 363,648 |
| Events in quadrant B | 6,559,841 | 362,215 |
| Events in quadrant C | 5,637,672 | 361,846 |
| Events in quadrant D | 6,372,300 | 349,842 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22170 | 3 |
| B | 0 | 23314 | 2 |
| C | 0 | 20557 | 2 |
| D | 0 | 22748 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5337 | 3 | 0.056211% |
| B | 5337 | 33 | 0.618325% |
| C | 5337 | 3 | 0.056211% |
| D | 5337 | 103 | 1.929923% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

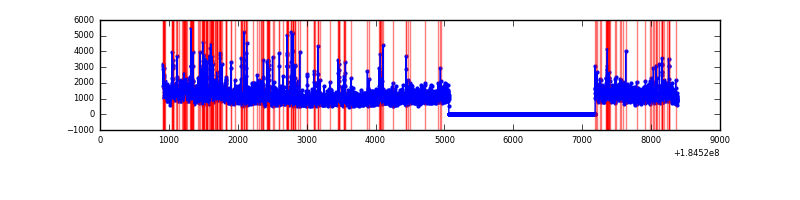

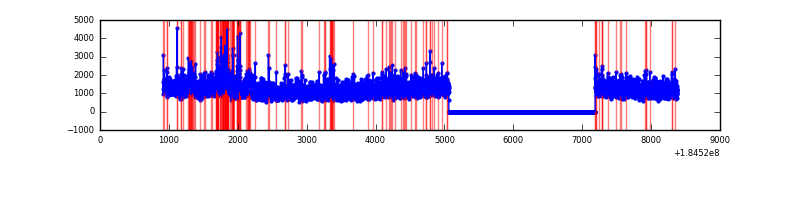

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7463 | 5338 | 88 | 88 | 1.18% | 1.65% |  |
| B | 7463 | 5338 | 191 | 191 | 2.56% | 3.58% |  |
| C | 7463 | 5338 | 40 | 40 | 0.54% | 0.75% |  |
| D | 7463 | 5338 | 264 | 264 | 3.54% | 4.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 160 | 50953 | 143.64 | 1564 | 1551 | 343.9 |
| A | 12 | 133 | 37538 | 104.63 | 1564 | 1551 | 343.9 |
| A | 0 | 238 | 19572 | 52.4 | 1564 | 1551 | 343.9 |
| B | 4 | 250 | 444759 | 1205.92 | 1552 | 1564 | 367.5 |
| B | 0 | 220 | 84321 | 225.18 | 1552 | 1564 | 367.5 |
| B | 4 | 206 | 38810 | 101.35 | 1552 | 1564 | 367.5 |
| C | 3 | 159 | 22876 | 53.79 | 1421 | 1470 | 397.9 |
| C | 15 | 241 | 15287 | 34.72 | 1421 | 1470 | 397.9 |
| C | 1 | 1 | 9611 | 20.46 | 1421 | 1470 | 397.9 |
| D | 1 | 4 | 330950 | 804.07 | 1417 | 1445 | 409.8 |
| D | 13 | 221 | 220769 | 535.2 | 1417 | 1445 | 409.8 |
| D | 13 | 216 | 114478 | 275.83 | 1417 | 1445 | 409.8 |

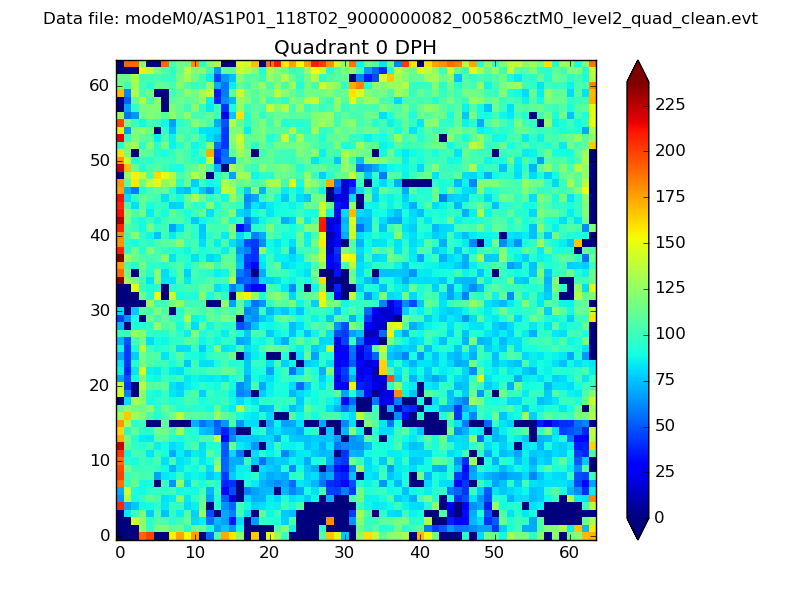

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

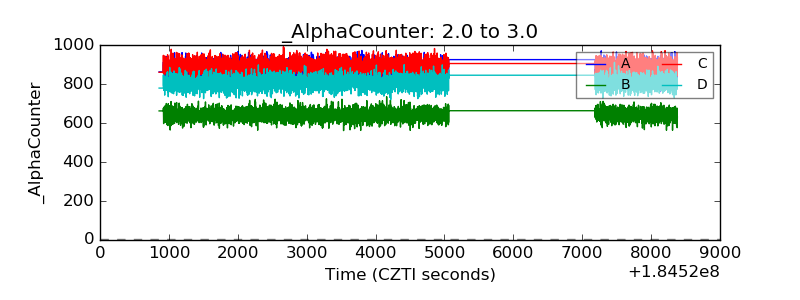

| Alpha Counter |  |

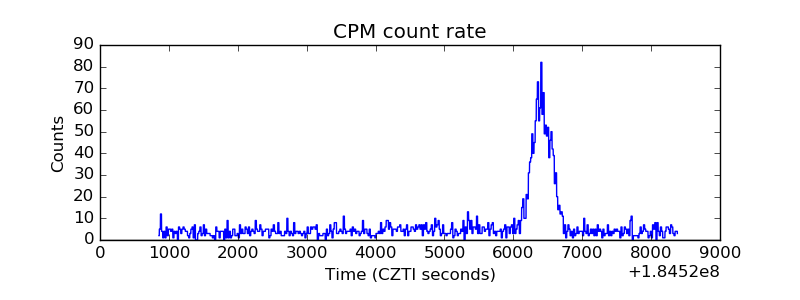

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

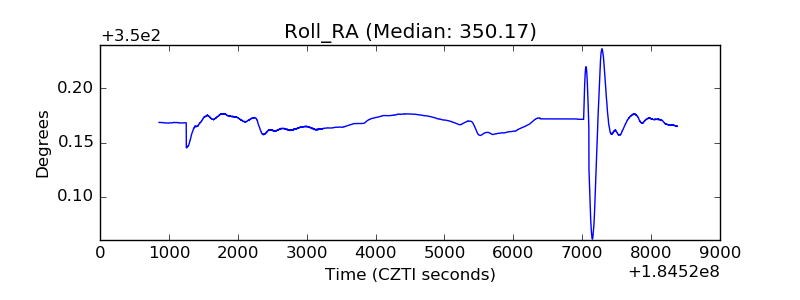

| _Roll_RA |  |
| Veto Counter |  |
