| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_118T02_9000000082_00591cztM0_level2.evt | modeM0/AS1P01_118T02_9000000082_00591cztM0_level2_quad_clean.evt |
| Size (bytes) | 818,213,760 | 44,475,840 |
| Size | 780.3 MB | 42.4 MB |
| Events in quadrant A | 7,302,784 | 247,943 |
| Events in quadrant B | 5,850,065 | 259,482 |
| Events in quadrant C | 5,829,932 | 246,980 |
| Events in quadrant D | 5,465,931 | 242,668 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25277 | 3 |
| B | 0 | 20912 | 2 |
| C | 0 | 20886 | 2 |
| D | 0 | 19806 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 42 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4982 | 400 | 8.028904% |
| B | 4982 | 2 | 0.040145% |
| C | 4982 | 100 | 2.007226% |
| D | 4982 | 15 | 0.301084% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7108 | 4983 | 981 | 981 | 13.80% | 19.69% |  |
| B | 7108 | 4983 | 55 | 55 | 0.77% | 1.10% |  |
| C | 7108 | 4983 | 180 | 180 | 2.53% | 3.61% |  |
| D | 7108 | 4983 | 79 | 79 | 1.11% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 17 | 1565174 | 4920.45 | 1451 | 1440 | 317.8 |
| A | 14 | 79 | 80771 | 249.62 | 1451 | 1440 | 317.8 |
| A | 13 | 160 | 30590 | 91.72 | 1451 | 1440 | 317.8 |
| B | 15 | 82 | 20413 | 54.56 | 1501 | 1512 | 346.4 |
| B | 7 | 221 | 17898 | 47.3 | 1501 | 1512 | 346.4 |
| B | 4 | 206 | 16496 | 43.26 | 1501 | 1512 | 346.4 |
| C | 3 | 159 | 469107 | 1240.72 | 1353 | 1409 | 377.0 |
| C | 9 | 83 | 23693 | 59.12 | 1353 | 1409 | 377.0 |
| C | 15 | 241 | 13517 | 32.12 | 1353 | 1409 | 377.0 |
| D | 1 | 4 | 92555 | 221.91 | 1299 | 1352 | 411.0 |
| D | 13 | 216 | 68141 | 162.51 | 1299 | 1352 | 411.0 |
| D | 2 | 152 | 40341 | 94.87 | 1299 | 1352 | 411.0 |

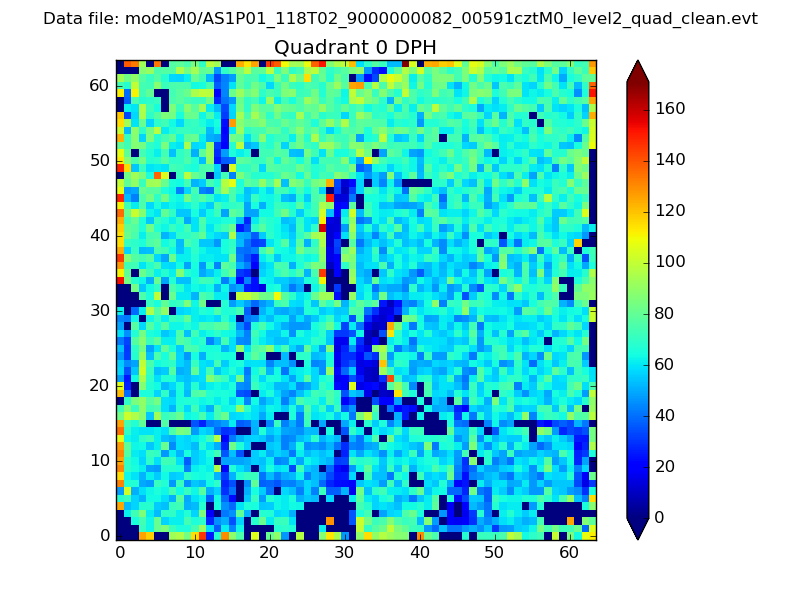

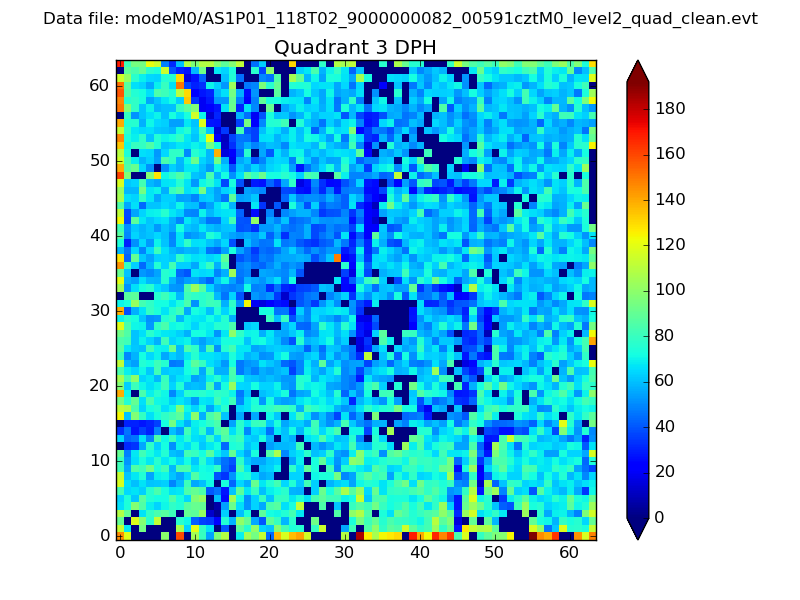

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

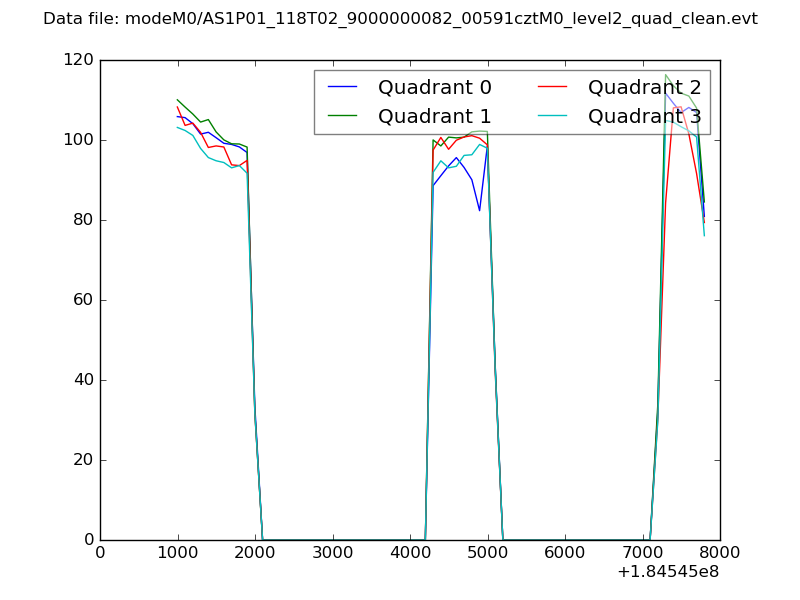

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

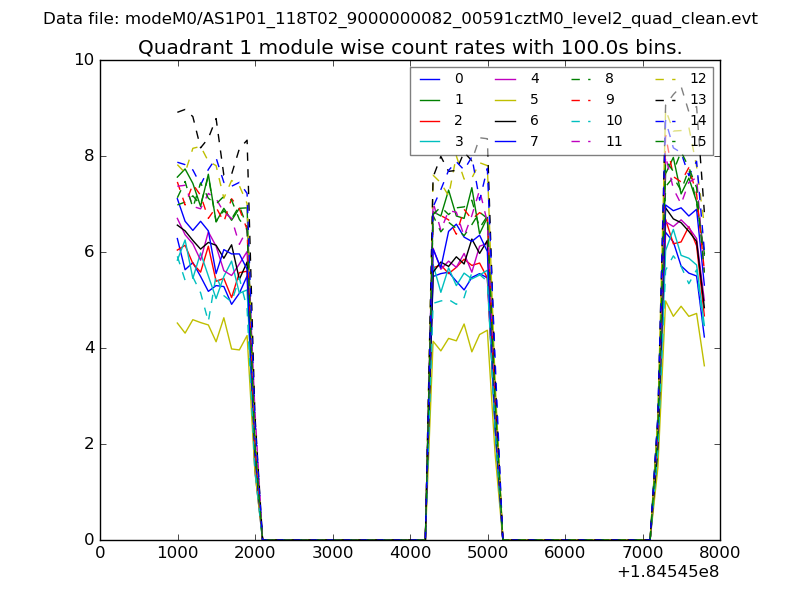

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

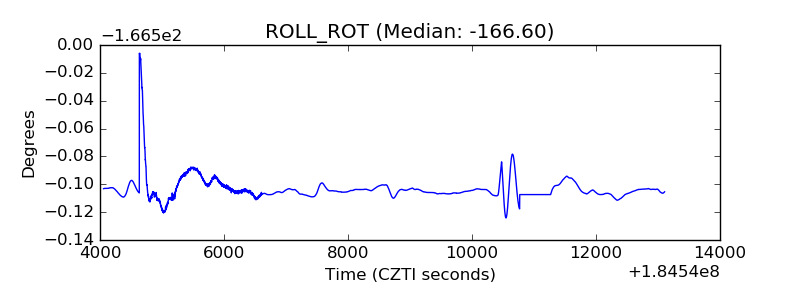

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
