| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T01_9000000084_00594cztM0_level2.evt | modeM0/AS1P01_126T01_9000000084_00594cztM0_level2_quad_clean.evt |
| Size (bytes) | 798,534,720 | 61,937,280 |
| Size | 761.5 MB | 59.1 MB |
| Events in quadrant A | 6,016,216 | 383,546 |
| Events in quadrant B | 6,137,388 | 393,798 |
| Events in quadrant C | 5,577,438 | 383,534 |
| Events in quadrant D | 6,120,772 | 364,436 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21409 | 3 |
| B | 0 | 21774 | 2 |
| C | 0 | 20124 | 2 |
| D | 0 | 21716 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4991 | 3 | 0.060108% |
| B | 4991 | 9 | 0.180325% |
| C | 4991 | 3 | 0.060108% |
| D | 4991 | 65 | 1.302344% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

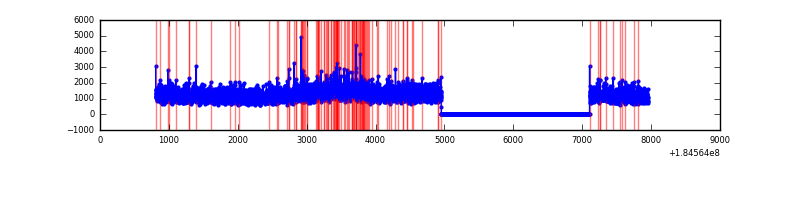

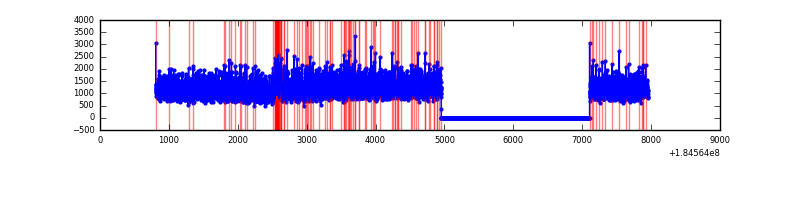

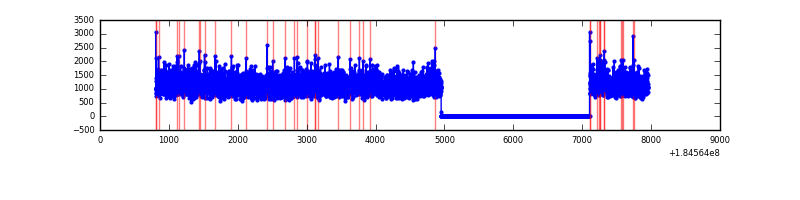

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7146 | 4992 | 123 | 123 | 1.72% | 2.46% |  |
| B | 7146 | 4992 | 123 | 123 | 1.72% | 2.46% |  |
| C | 7146 | 4992 | 40 | 40 | 0.56% | 0.80% |  |
| D | 7146 | 4992 | 212 | 212 | 2.97% | 4.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 149 | 64352 | 185.25 | 1522 | 1500 | 339.3 |
| A | 13 | 160 | 39553 | 112.16 | 1522 | 1500 | 339.3 |
| A | 0 | 69 | 12659 | 32.89 | 1522 | 1500 | 339.3 |
| B | 7 | 221 | 261417 | 733.64 | 1506 | 1514 | 354.3 |
| B | 4 | 250 | 26822 | 71.44 | 1506 | 1514 | 354.3 |
| B | 15 | 82 | 16286 | 41.7 | 1506 | 1514 | 354.3 |
| C | 1 | 1 | 67487 | 171.54 | 1392 | 1441 | 385.0 |
| C | 15 | 241 | 20421 | 49.29 | 1392 | 1441 | 385.0 |
| C | 3 | 159 | 17916 | 42.79 | 1392 | 1441 | 385.0 |
| D | 1 | 4 | 201073 | 471.02 | 1358 | 1412 | 423.9 |
| D | 13 | 216 | 148887 | 347.91 | 1358 | 1412 | 423.9 |
| D | 13 | 221 | 138869 | 324.27 | 1358 | 1412 | 423.9 |

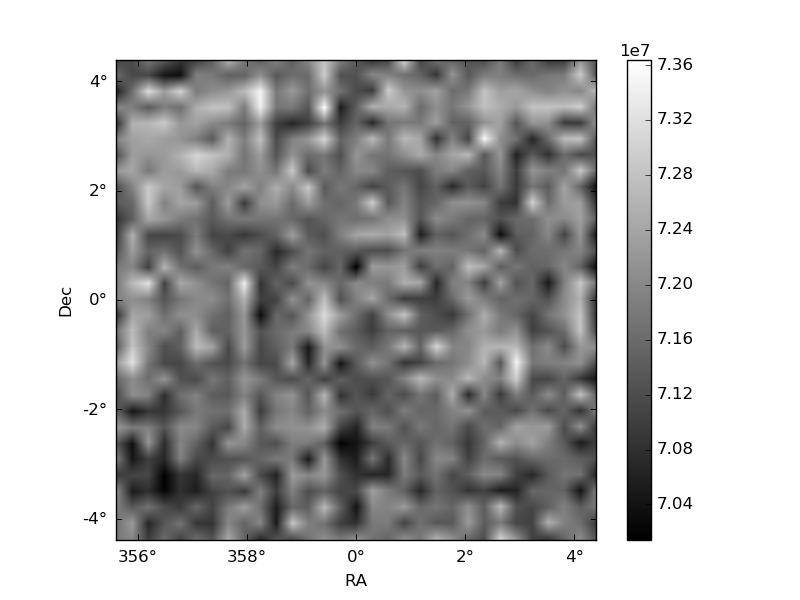

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

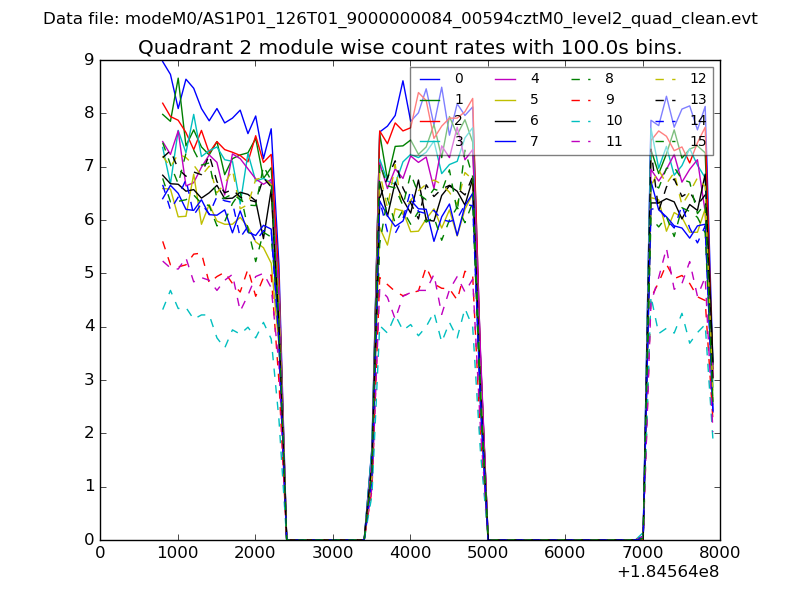

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

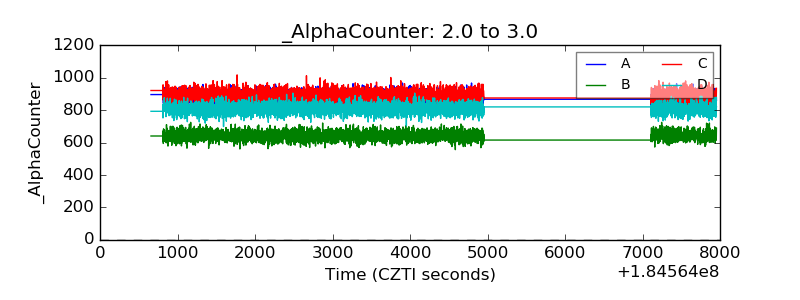

| Alpha Counter |  |

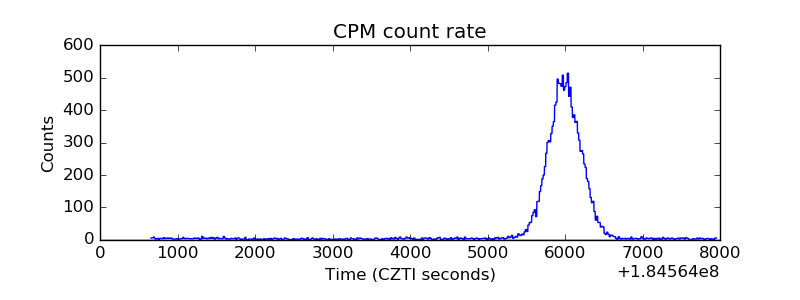

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

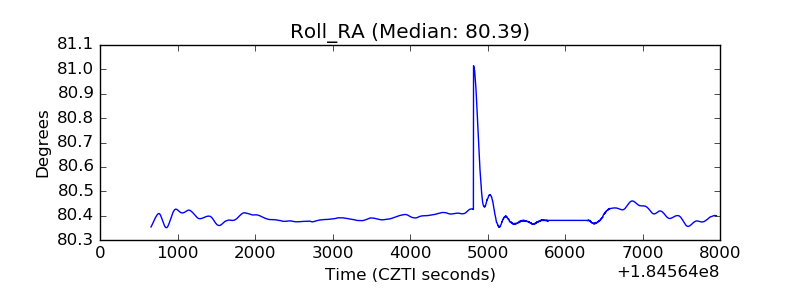

| _Roll_RA |  |
| Veto Counter |  |
