| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T01_9000000084_00599cztM0_level2.evt | modeM0/AS1P01_126T01_9000000084_00599cztM0_level2_quad_clean.evt |
| Size (bytes) | 799,997,760 | 65,361,600 |
| Size | 762.9 MB | 62.3 MB |
| Events in quadrant A | 5,984,471 | 410,073 |
| Events in quadrant B | 6,300,793 | 411,625 |
| Events in quadrant C | 5,238,521 | 411,365 |
| Events in quadrant D | 6,370,437 | 394,167 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21333 | 2 |
| B | 0 | 22282 | 1 |
| C | 0 | 19157 | 1 |
| D | 0 | 22528 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5017 | 1 | 0.019932% |
| B | 5017 | 28 | 0.558102% |
| C | 5017 | 3 | 0.059797% |
| D | 5017 | 170 | 3.388479% |

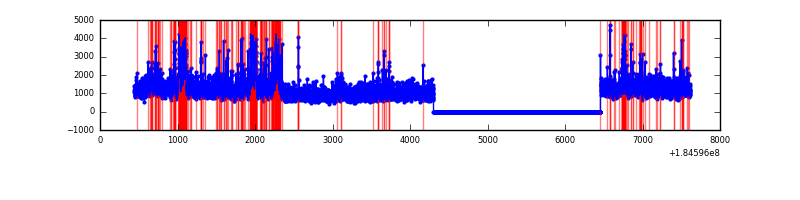

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7173 | 5018 | 111 | 111 | 1.55% | 2.21% |  |
| B | 7173 | 5018 | 201 | 201 | 2.80% | 4.01% |  |
| C | 7173 | 5018 | 26 | 26 | 0.36% | 0.52% |  |
| D | 7173 | 5018 | 405 | 405 | 5.65% | 8.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 160 | 49207 | 139.7 | 1509 | 1492 | 341.6 |
| A | 0 | 238 | 38126 | 107.25 | 1509 | 1492 | 341.6 |
| A | 0 | 69 | 25090 | 69.09 | 1509 | 1492 | 341.6 |
| B | 7 | 221 | 294667 | 816.3 | 1503 | 1514 | 359.1 |
| B | 5 | 191 | 77830 | 212.51 | 1503 | 1514 | 359.1 |
| B | 4 | 250 | 55826 | 151.23 | 1503 | 1514 | 359.1 |
| C | 9 | 83 | 18015 | 44.9 | 1322 | 1370 | 370.7 |
| C | 15 | 241 | 15783 | 38.88 | 1322 | 1370 | 370.7 |
| C | 5 | 234 | 11151 | 26.39 | 1322 | 1370 | 370.7 |
| D | 12 | 237 | 595683 | 1478.43 | 1280 | 1333 | 402.0 |
| D | 1 | 4 | 251155 | 621.43 | 1280 | 1333 | 402.0 |
| D | 13 | 221 | 231367 | 572.2 | 1280 | 1333 | 402.0 |

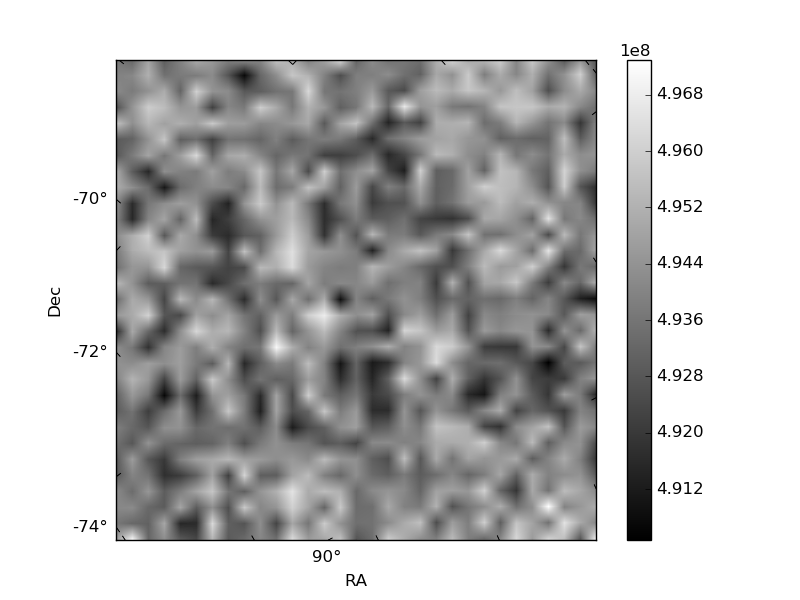

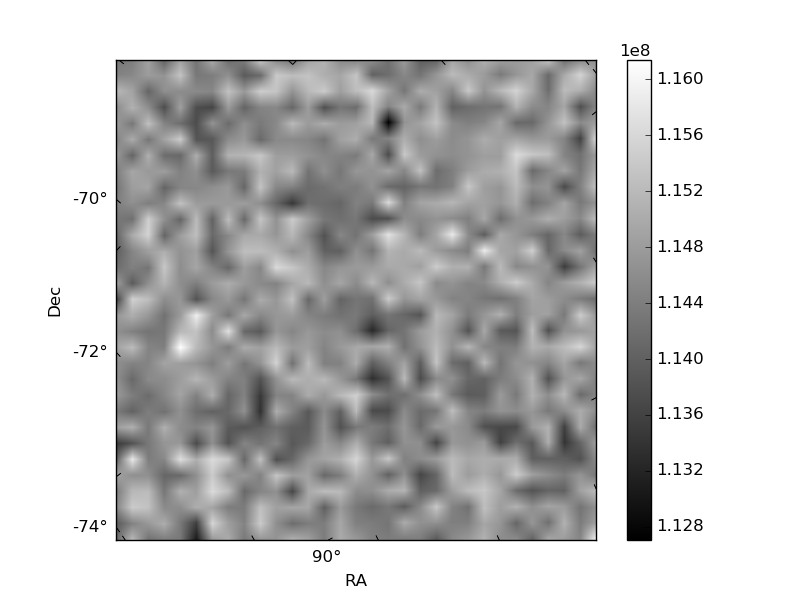

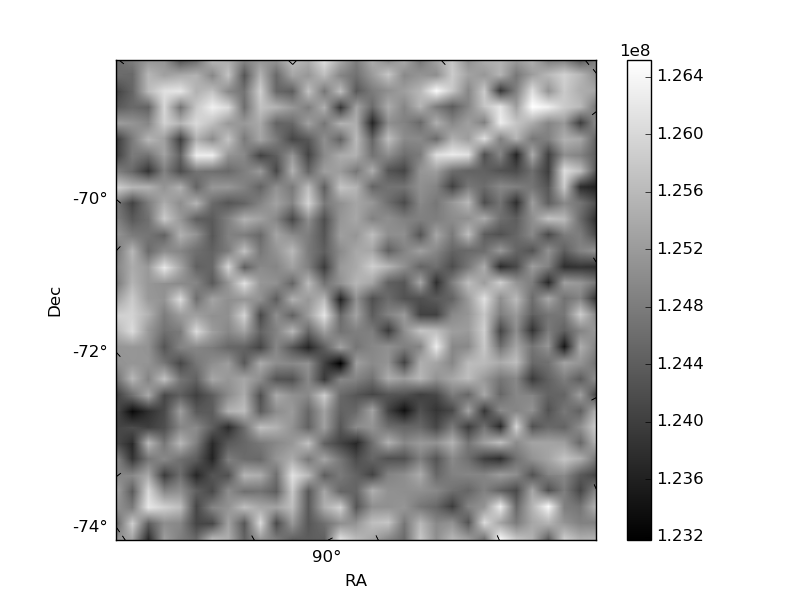

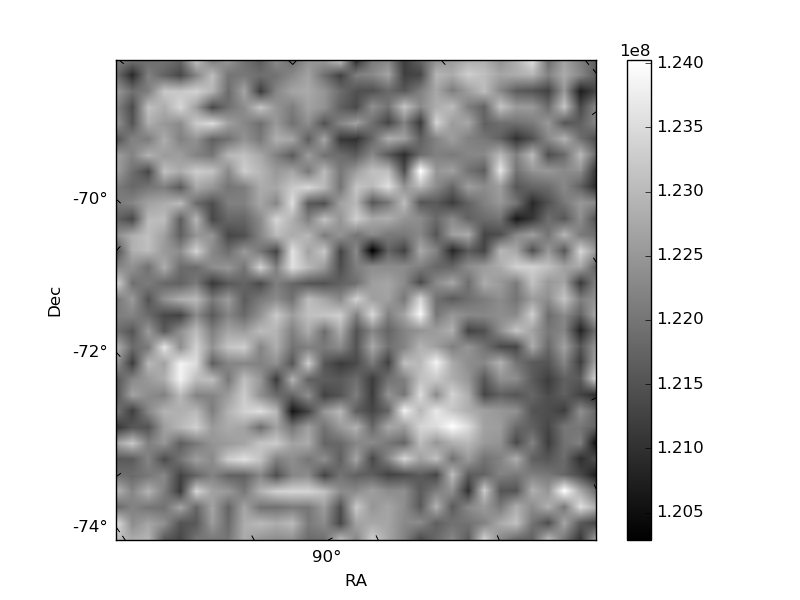

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

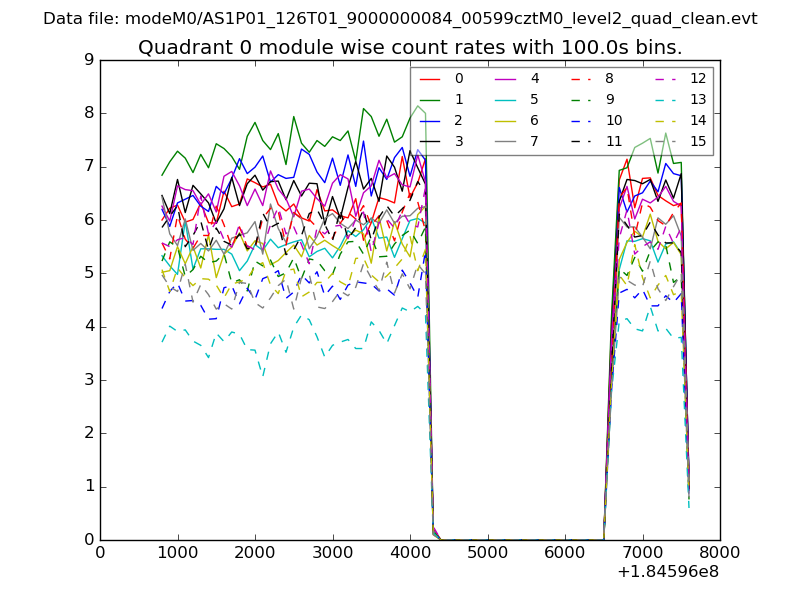

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

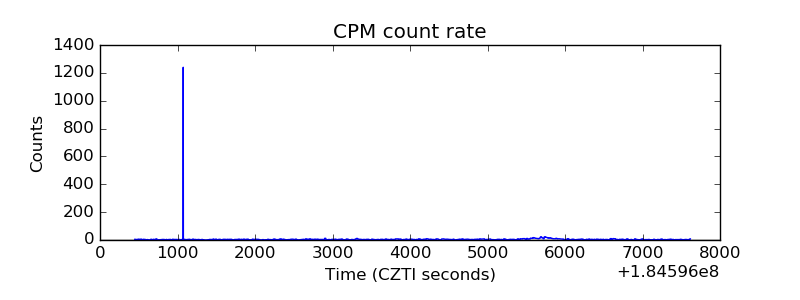

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

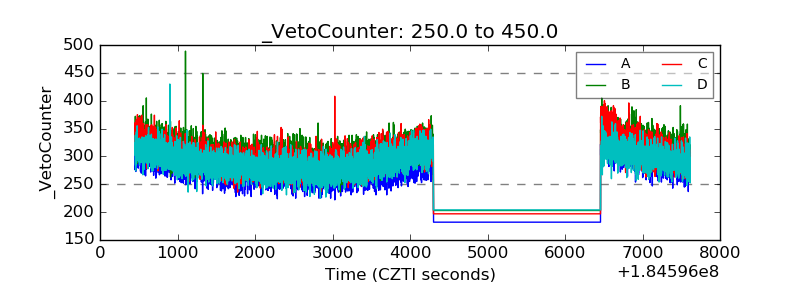

| Veto Counter |  |
