| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_116T01_9000000086_00617cztM0_level2.evt | modeM0/AS1P01_116T01_9000000086_00617cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,067,520 | 71,516,160 |
| Size | 719.1 MB | 68.2 MB |
| Events in quadrant A | 5,821,950 | 456,741 |
| Events in quadrant B | 6,113,297 | 460,233 |
| Events in quadrant C | 5,366,872 | 450,564 |
| Events in quadrant D | 5,194,928 | 440,797 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20929 | 3 |
| B | 0 | 21776 | 2 |
| C | 0 | 19594 | 2 |
| D | 0 | 19091 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5096 | 4 | 0.078493% |
| B | 5096 | 15 | 0.294349% |
| C | 5096 | 2 | 0.039246% |
| D | 5096 | 16 | 0.313972% |

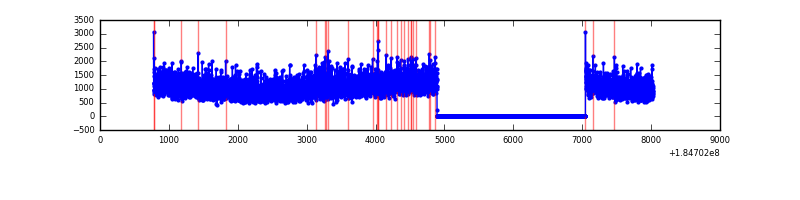

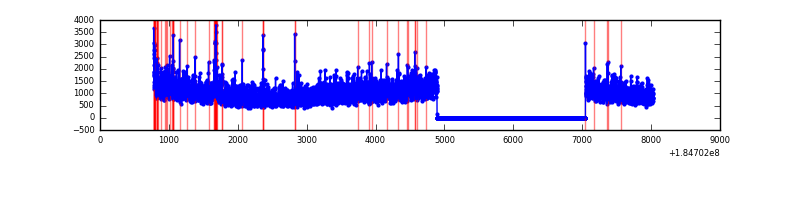

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 5097 | 86 | 86 | 1.19% | 1.69% |  |
| B | 7251 | 5097 | 121 | 121 | 1.67% | 2.37% |  |
| C | 7251 | 5097 | 30 | 30 | 0.41% | 0.59% |  |
| D | 7251 | 5097 | 66 | 66 | 0.91% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 238 | 30622 | 87.23 | 1481 | 1463 | 334.3 |
| A | 15 | 171 | 17341 | 47.5 | 1481 | 1463 | 334.3 |
| A | 13 | 160 | 17010 | 46.51 | 1481 | 1463 | 334.3 |
| B | 5 | 191 | 99204 | 275.81 | 1513 | 1523 | 354.2 |
| B | 0 | 220 | 96102 | 267.05 | 1513 | 1523 | 354.2 |
| B | 8 | 38 | 34808 | 93.98 | 1513 | 1523 | 354.2 |
| C | 15 | 241 | 37145 | 95.19 | 1350 | 1399 | 375.5 |
| C | 9 | 83 | 13612 | 32.52 | 1350 | 1399 | 375.5 |
| C | 7 | 159 | 9461 | 21.47 | 1350 | 1399 | 375.5 |
| D | 13 | 221 | 91757 | 224.77 | 1268 | 1312 | 402.4 |
| D | 13 | 252 | 44422 | 107.13 | 1268 | 1312 | 402.4 |
| D | 13 | 101 | 42583 | 102.56 | 1268 | 1312 | 402.4 |

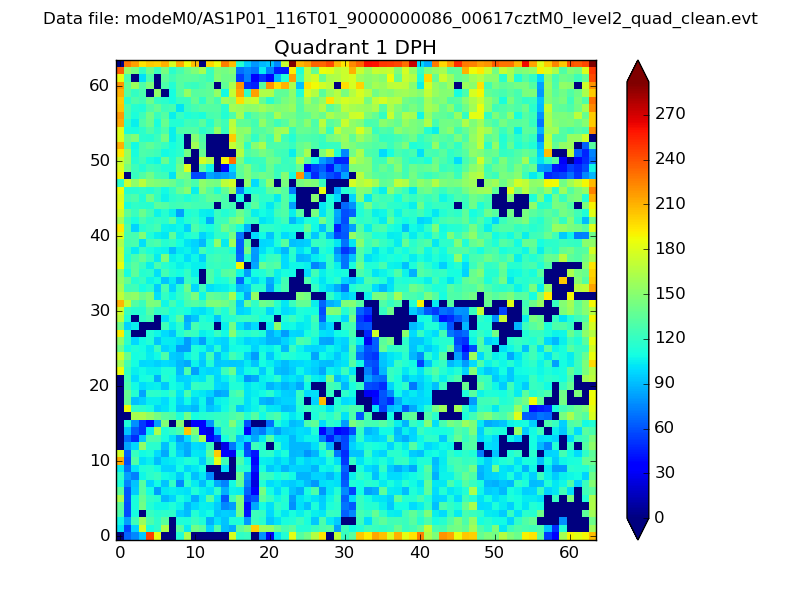

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

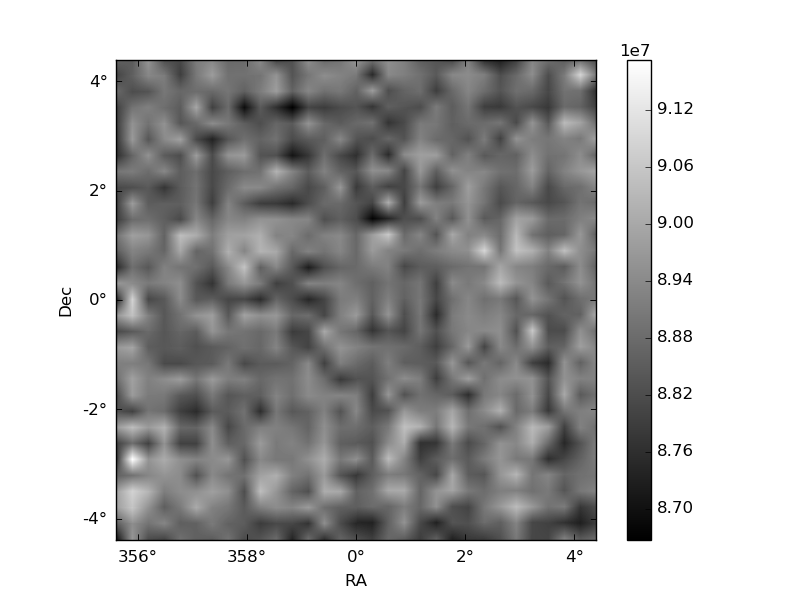

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

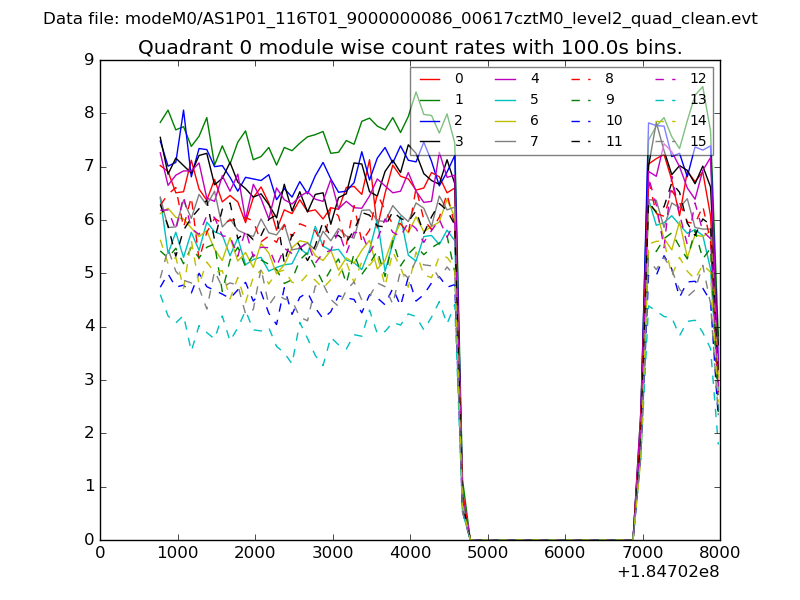

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

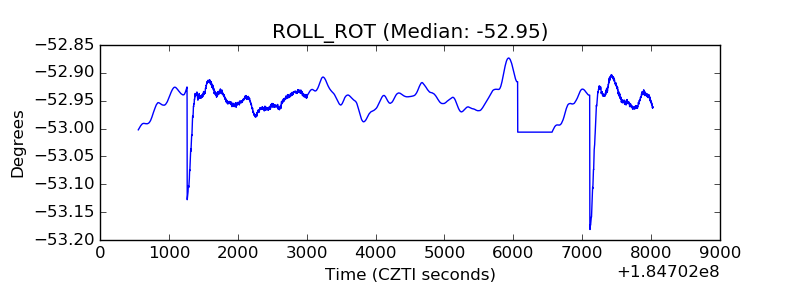

| _ROLL_ROT |  |

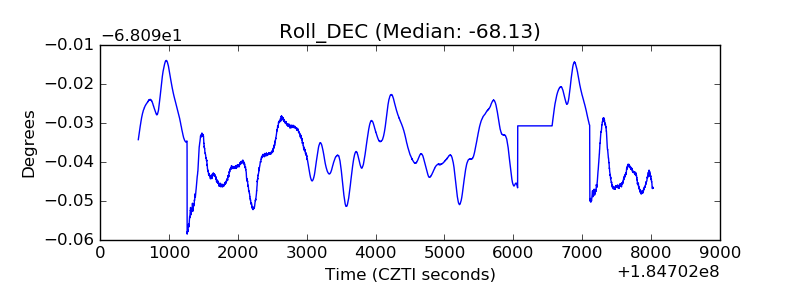

| _Roll_DEC |  |
| _Roll_RA |  |

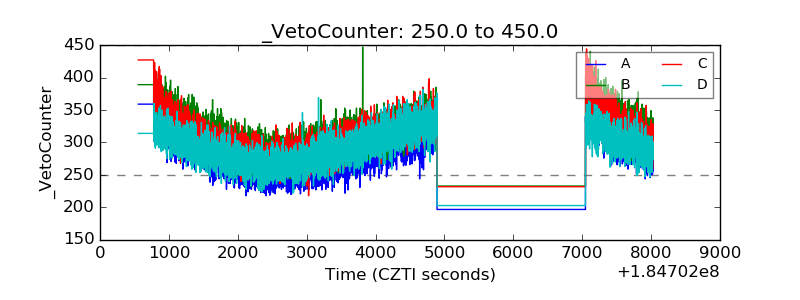

| Veto Counter |  |
