| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T04_9000000092_00653cztM0_level2.evt | modeM0/AS1P01_126T04_9000000092_00653cztM0_level2_quad_clean.evt |
| Size (bytes) | 803,180,160 | 39,574,080 |
| Size | 766.0 MB | 37.7 MB |
| Events in quadrant A | 6,124,339 | 210,177 |
| Events in quadrant B | 6,236,375 | 213,908 |
| Events in quadrant C | 5,511,123 | 214,529 |
| Events in quadrant D | 6,117,092 | 205,263 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21781 | 5 |
| B | 0 | 22117 | 2 |
| C | 0 | 19973 | 2 |
| D | 0 | 21786 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5047 | 14 | 0.277393% |
| B | 5047 | 7 | 0.138696% |
| C | 5047 | 4 | 0.079255% |
| D | 5047 | 106 | 2.100258% |

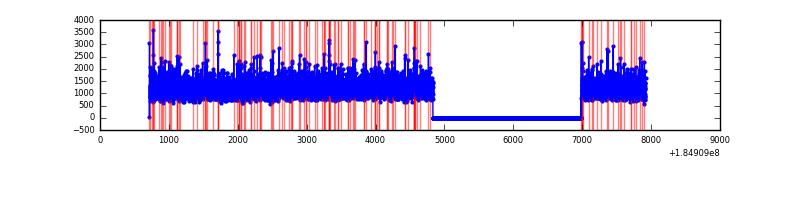

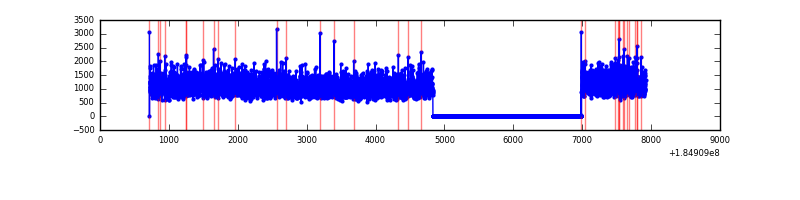

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7203 | 5048 | 137 | 137 | 1.90% | 2.71% |  |
| B | 7203 | 5048 | 124 | 124 | 1.72% | 2.46% |  |
| C | 7203 | 5048 | 32 | 32 | 0.44% | 0.63% |  |
| D | 7203 | 5048 | 263 | 263 | 3.65% | 5.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 69 | 58262 | 165.91 | 1549 | 1536 | 341.9 |
| A | 14 | 79 | 49117 | 139.17 | 1549 | 1536 | 341.9 |
| A | 0 | 238 | 25325 | 69.58 | 1549 | 1536 | 341.9 |
| B | 7 | 221 | 135547 | 368.45 | 1534 | 1547 | 363.7 |
| B | 5 | 191 | 88949 | 240.33 | 1534 | 1547 | 363.7 |
| B | 4 | 172 | 52094 | 138.99 | 1534 | 1547 | 363.7 |
| C | 9 | 52 | 22060 | 52.76 | 1392 | 1436 | 390.9 |
| C | 15 | 241 | 7282 | 14.95 | 1392 | 1436 | 390.9 |
| C | 9 | 188 | 6500 | 12.95 | 1392 | 1436 | 390.9 |
| D | 1 | 4 | 315319 | 743.21 | 1341 | 1393 | 422.4 |
| D | 12 | 237 | 171483 | 402.68 | 1341 | 1393 | 422.4 |
| D | 13 | 221 | 133526 | 312.82 | 1341 | 1393 | 422.4 |

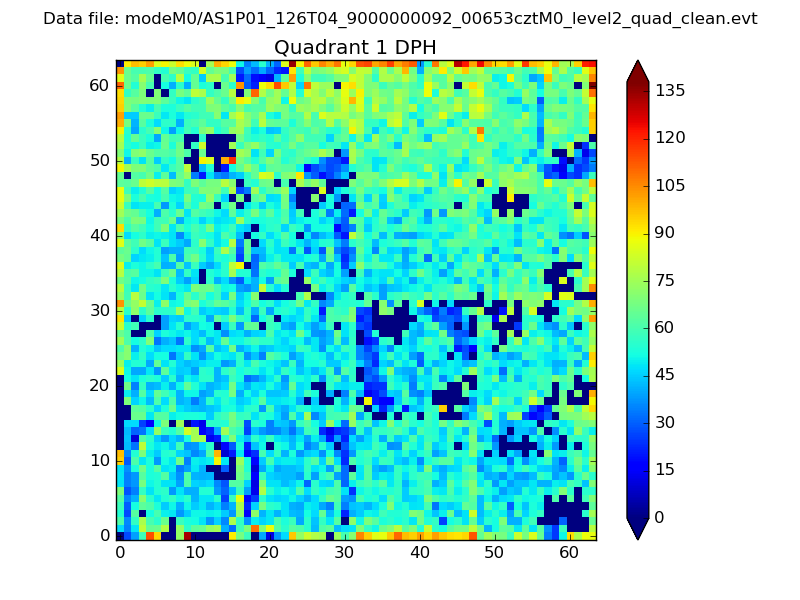

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

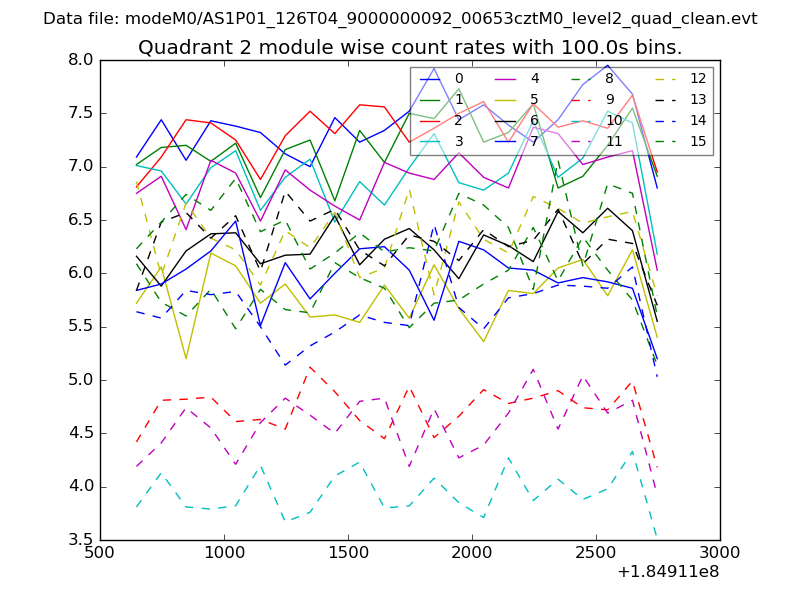

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

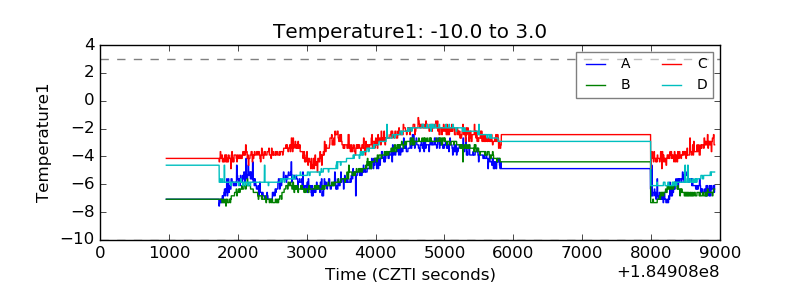

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

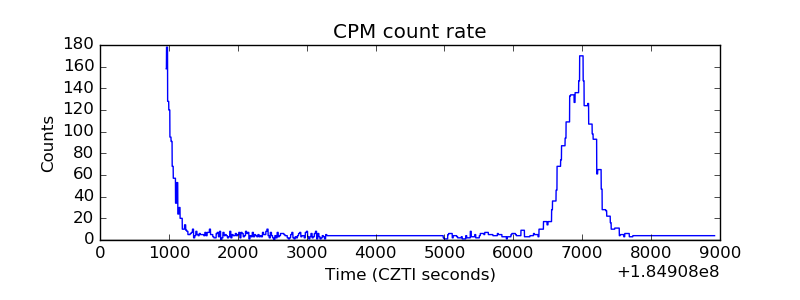

| _CPM_Rate |  |

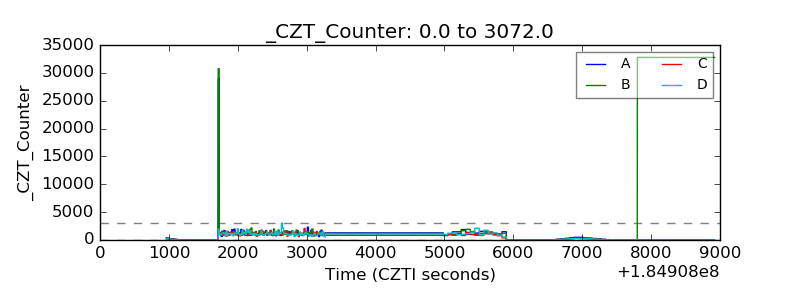

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
