| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_124T01_9000000094_00658cztM0_level2.evt | modeM0/AS1P01_124T01_9000000094_00658cztM0_level2_quad_clean.evt |
| Size (bytes) | 838,128,960 | 67,507,200 |
| Size | 799.3 MB | 64.4 MB |
| Events in quadrant A | 6,128,178 | 429,553 |
| Events in quadrant B | 6,040,945 | 432,402 |
| Events in quadrant C | 6,142,286 | 407,735 |
| Events in quadrant D | 6,723,915 | 408,416 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21902 | 2 |
| B | 0 | 21641 | 2 |
| C | 0 | 21998 | 4 |
| D | 0 | 23720 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5219 | 9 | 0.172447% |
| B | 5219 | 7 | 0.134125% |
| C | 5218 | 263 | 5.040245% |
| D | 5218 | 166 | 3.181296% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

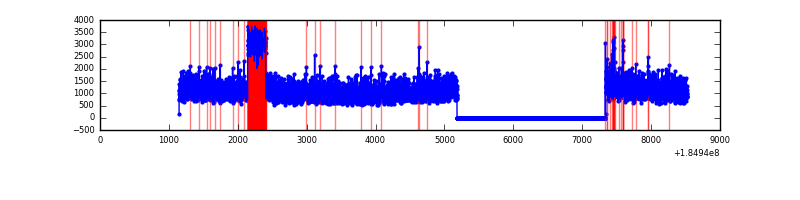

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7375 | 5220 | 118 | 118 | 1.60% | 2.26% |  |
| B | 7375 | 5220 | 63 | 63 | 0.85% | 1.21% |  |
| C | 7374 | 5219 | 304 | 304 | 4.12% | 5.82% |  |
| D | 7374 | 5219 | 401 | 401 | 5.44% | 7.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 69 | 47584 | 132.57 | 1554 | 1531 | 347.4 |
| A | 14 | 79 | 28615 | 77.96 | 1554 | 1531 | 347.4 |
| A | 0 | 238 | 21980 | 58.86 | 1554 | 1531 | 347.4 |
| B | 0 | 220 | 70204 | 189.31 | 1526 | 1535 | 362.7 |
| B | 4 | 172 | 47031 | 125.43 | 1526 | 1535 | 362.7 |
| B | 0 | 230 | 26605 | 69.11 | 1526 | 1535 | 362.7 |
| C | 9 | 83 | 721577 | 1901.56 | 1353 | 1401 | 378.7 |
| C | 3 | 159 | 71509 | 185.11 | 1353 | 1401 | 378.7 |
| C | 9 | 52 | 14320 | 34.11 | 1353 | 1401 | 378.7 |
| D | 1 | 4 | 666653 | 1556.11 | 1372 | 1431 | 427.5 |
| D | 13 | 221 | 177631 | 412.17 | 1372 | 1431 | 427.5 |
| D | 13 | 216 | 175214 | 406.52 | 1372 | 1431 | 427.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

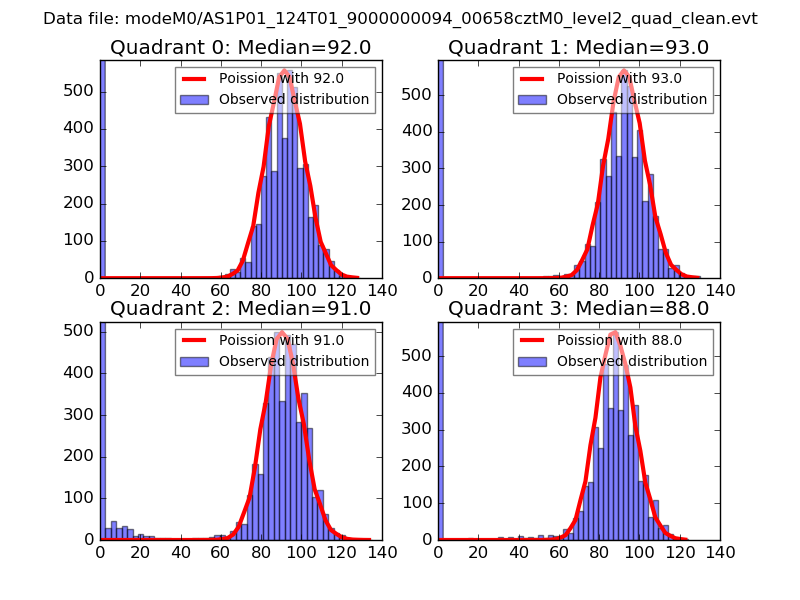

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

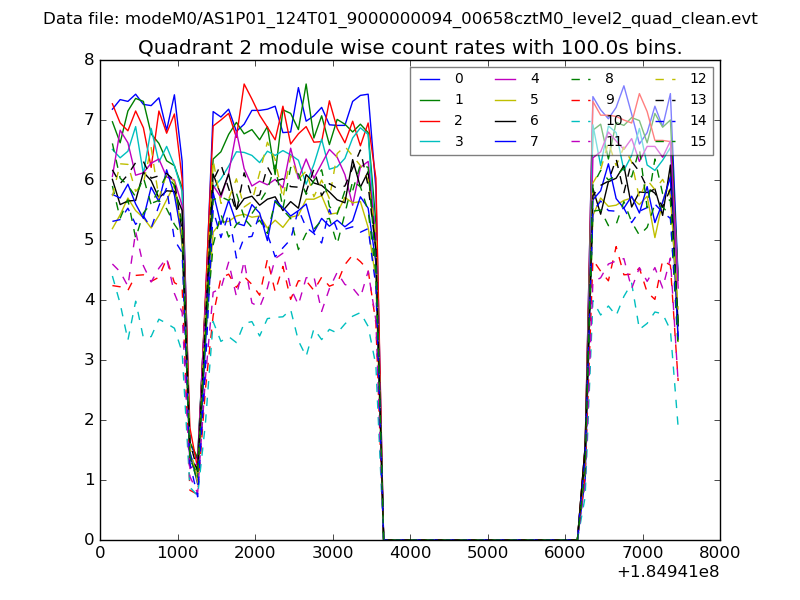

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

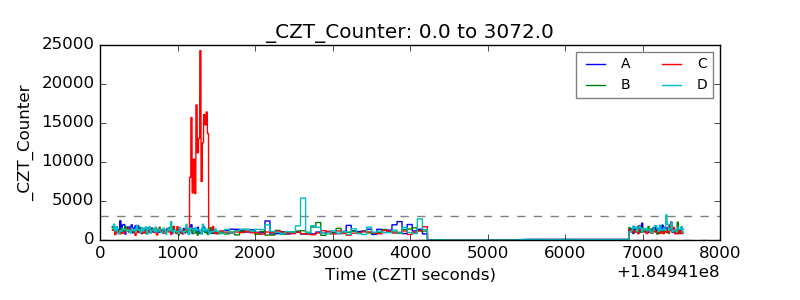

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

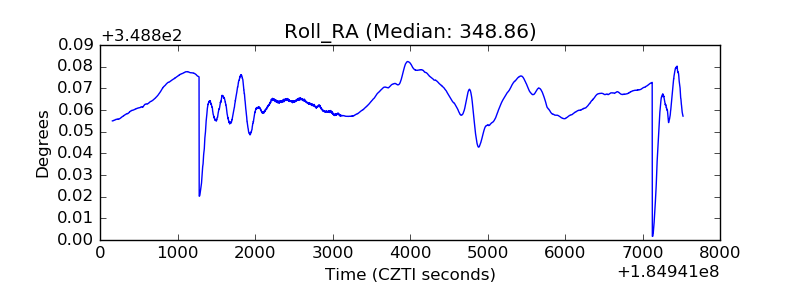

| _Roll_RA |  |
| Veto Counter |  |
