| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_124T01_9000000094_00661cztM0_level2.evt | modeM0/AS1P01_124T01_9000000094_00661cztM0_level2_quad_clean.evt |
| Size (bytes) | 796,533,120 | 52,133,760 |
| Size | 759.6 MB | 49.7 MB |
| Events in quadrant A | 5,796,100 | 311,550 |
| Events in quadrant B | 5,919,469 | 311,391 |
| Events in quadrant C | 5,420,388 | 310,639 |
| Events in quadrant D | 6,649,191 | 288,621 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20847 | 3 |
| B | 0 | 21207 | 2 |
| C | 0 | 19684 | 2 |
| D | 0 | 23403 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5075 | 26 | 0.512315% |
| B | 5075 | 5 | 0.098522% |
| C | 5075 | 3 | 0.059113% |
| D | 5075 | 250 | 4.926108% |

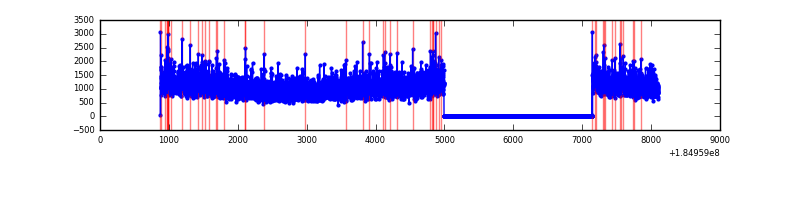

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 5076 | 139 | 139 | 1.92% | 2.74% |  |
| B | 7230 | 5076 | 115 | 115 | 1.59% | 2.27% |  |
| C | 7230 | 5076 | 52 | 52 | 0.72% | 1.02% |  |
| D | 7230 | 5076 | 558 | 558 | 7.72% | 10.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 79 | 88473 | 270.27 | 1447 | 1427 | 322.1 |
| A | 0 | 69 | 40561 | 121.51 | 1447 | 1427 | 322.1 |
| A | 15 | 171 | 39244 | 117.42 | 1447 | 1427 | 322.1 |
| B | 8 | 38 | 151799 | 438.51 | 1468 | 1475 | 342.8 |
| B | 14 | 50 | 58026 | 164.97 | 1468 | 1475 | 342.8 |
| B | 4 | 172 | 25915 | 71.29 | 1468 | 1475 | 342.8 |
| C | 9 | 52 | 26808 | 66.77 | 1357 | 1408 | 380.4 |
| C | 1 | 1 | 25194 | 62.53 | 1357 | 1408 | 380.4 |
| C | 5 | 249 | 11512 | 26.56 | 1357 | 1408 | 380.4 |
| D | 1 | 4 | 767636 | 1934.4 | 1264 | 1312 | 396.2 |
| D | 13 | 221 | 533626 | 1343.69 | 1264 | 1312 | 396.2 |
| D | 1 | 5 | 81486 | 202.38 | 1264 | 1312 | 396.2 |

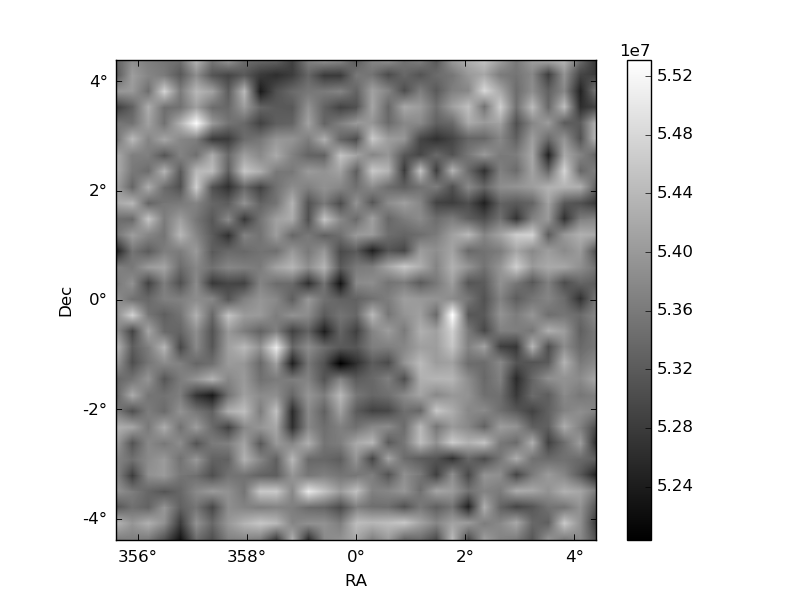

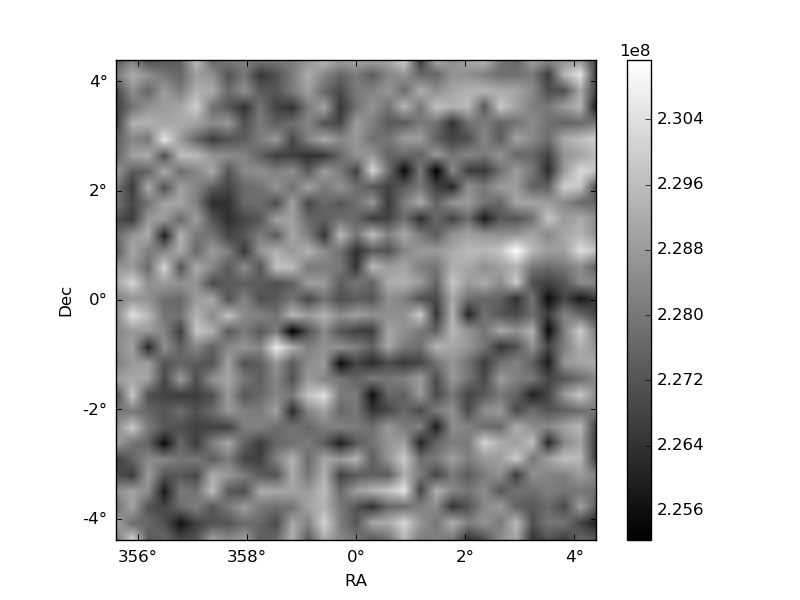

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

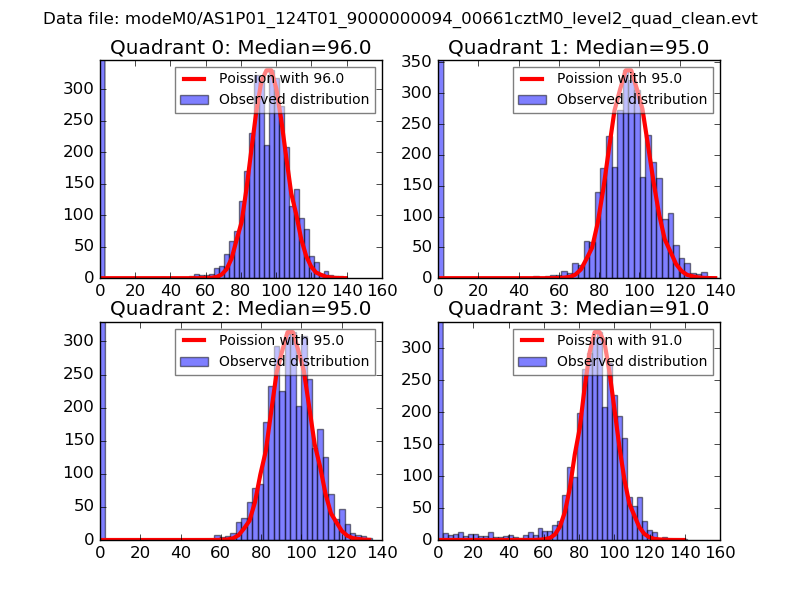

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

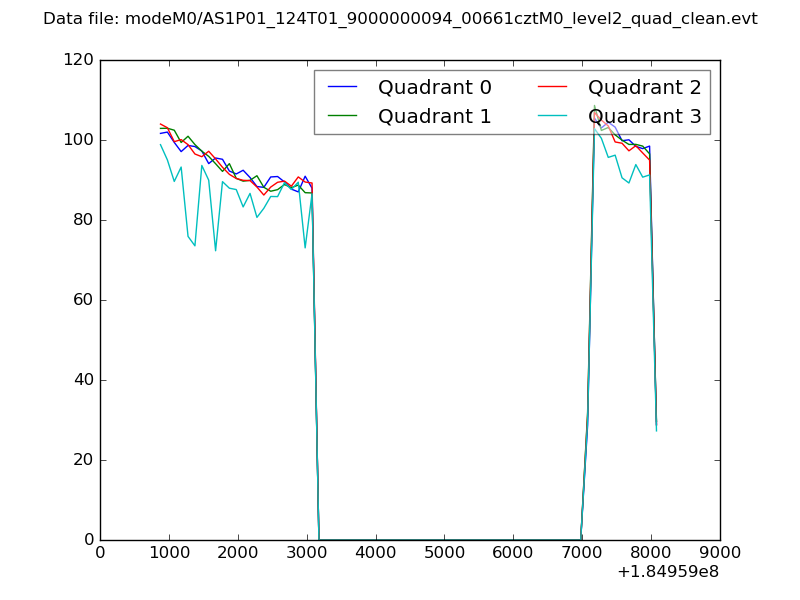

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

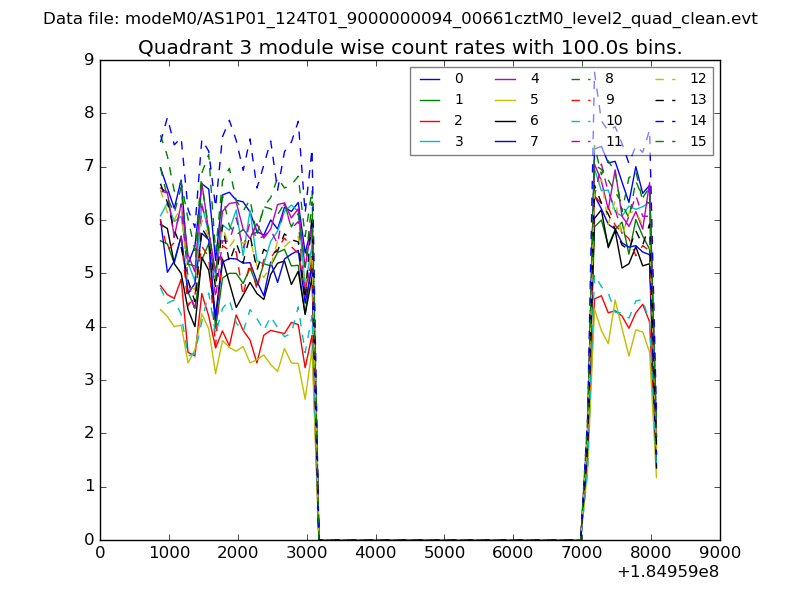

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

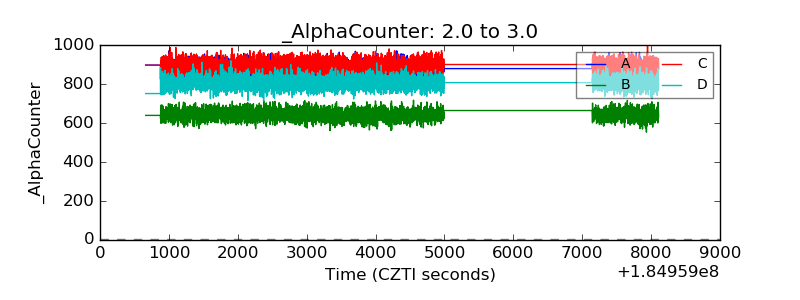

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

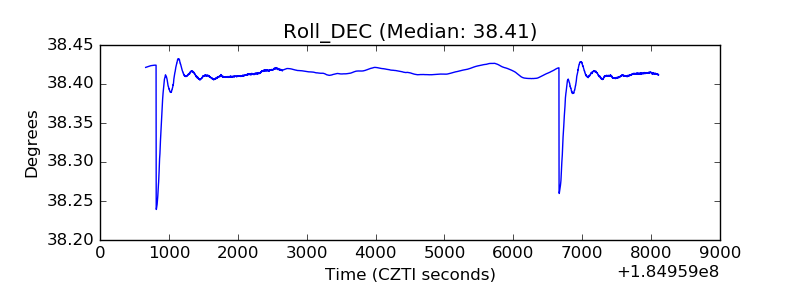

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
