| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_124T01_9000000094_00663cztM0_level2.evt | modeM0/AS1P01_124T01_9000000094_00663cztM0_level2_quad_clean.evt |
| Size (bytes) | 787,412,160 | 49,792,320 |
| Size | 750.9 MB | 47.5 MB |
| Events in quadrant A | 5,752,815 | 293,395 |
| Events in quadrant B | 5,912,949 | 295,373 |
| Events in quadrant C | 5,317,793 | 293,801 |
| Events in quadrant D | 6,530,597 | 274,205 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20687 | 2 |
| B | 0 | 21116 | 2 |
| C | 0 | 19359 | 2 |
| D | 0 | 22978 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4990 | 37 | 0.741483% |
| B | 4990 | 11 | 0.220441% |
| C | 4990 | 4 | 0.080160% |
| D | 4989 | 223 | 4.469834% |

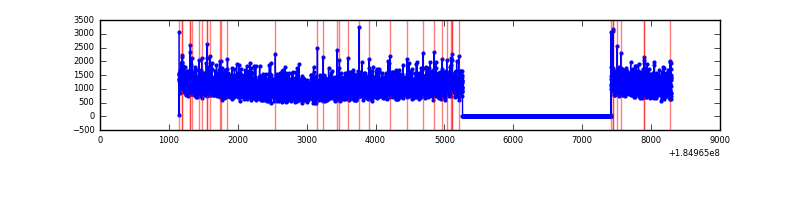

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

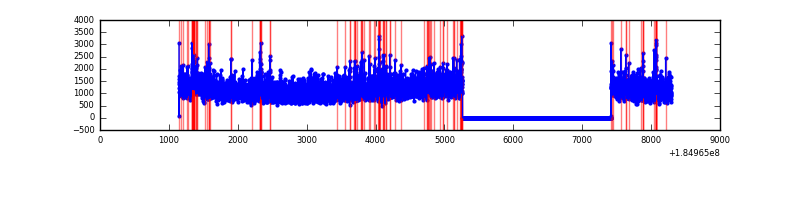

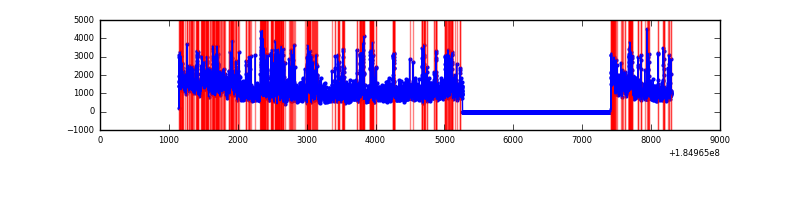

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7146 | 4991 | 154 | 154 | 2.16% | 3.09% |  |
| B | 7146 | 4991 | 122 | 122 | 1.71% | 2.44% |  |
| C | 7146 | 4991 | 40 | 40 | 0.56% | 0.80% |  |
| D | 7145 | 4990 | 547 | 547 | 7.66% | 10.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 79 | 92761 | 292.67 | 1425 | 1412 | 312.1 |
| A | 12 | 236 | 36830 | 113.47 | 1425 | 1412 | 312.1 |
| A | 0 | 69 | 31312 | 95.79 | 1425 | 1412 | 312.1 |
| B | 14 | 50 | 65655 | 188.88 | 1457 | 1463 | 339.9 |
| B | 4 | 172 | 61116 | 175.52 | 1457 | 1463 | 339.9 |
| B | 7 | 221 | 49023 | 139.94 | 1457 | 1463 | 339.9 |
| C | 1 | 1 | 24576 | 62.42 | 1333 | 1383 | 371.6 |
| C | 10 | 38 | 15921 | 39.13 | 1333 | 1383 | 371.6 |
| C | 15 | 241 | 12014 | 28.61 | 1333 | 1383 | 371.6 |
| D | 1 | 4 | 992250 | 2546.04 | 1236 | 1279 | 389.2 |
| D | 13 | 221 | 369172 | 945.21 | 1236 | 1279 | 389.2 |
| D | 12 | 237 | 129948 | 330.58 | 1236 | 1279 | 389.2 |

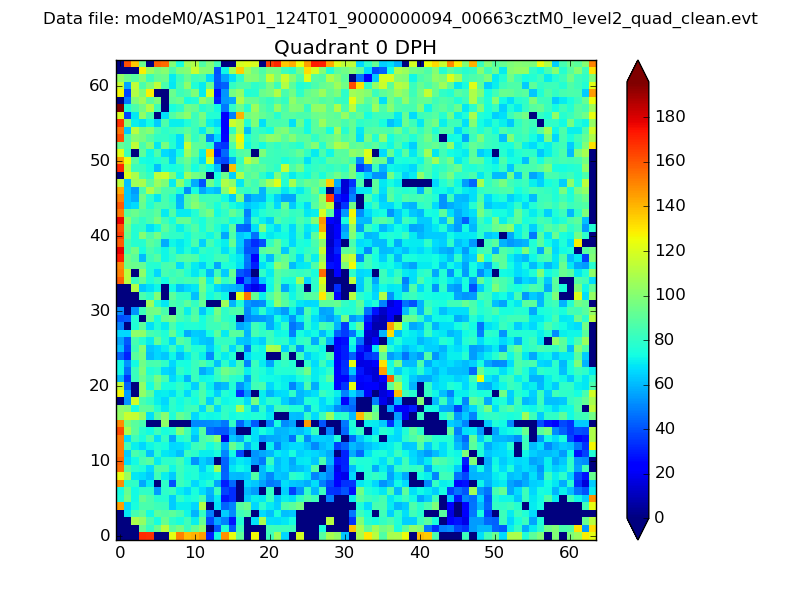

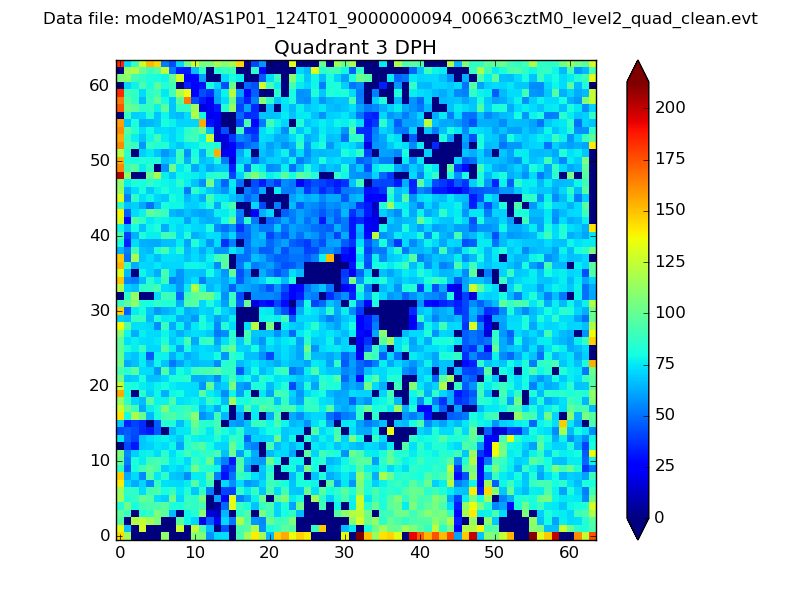

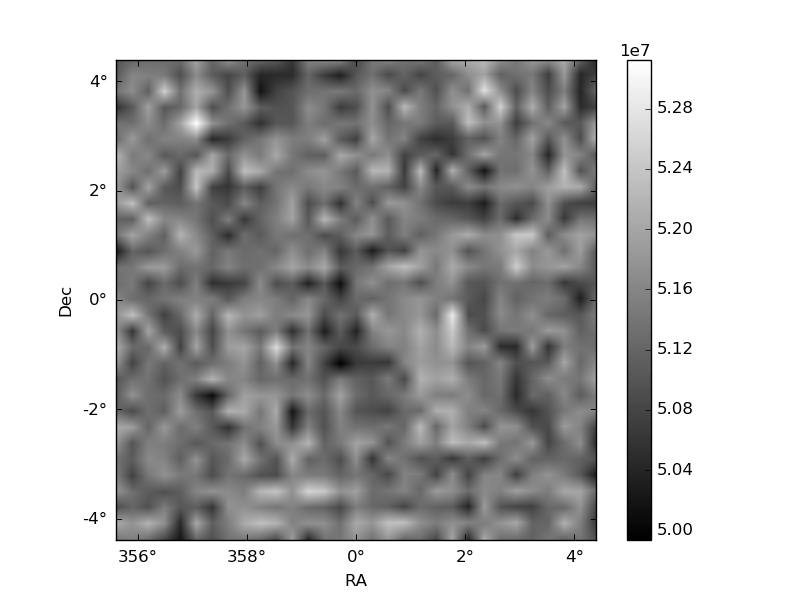

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

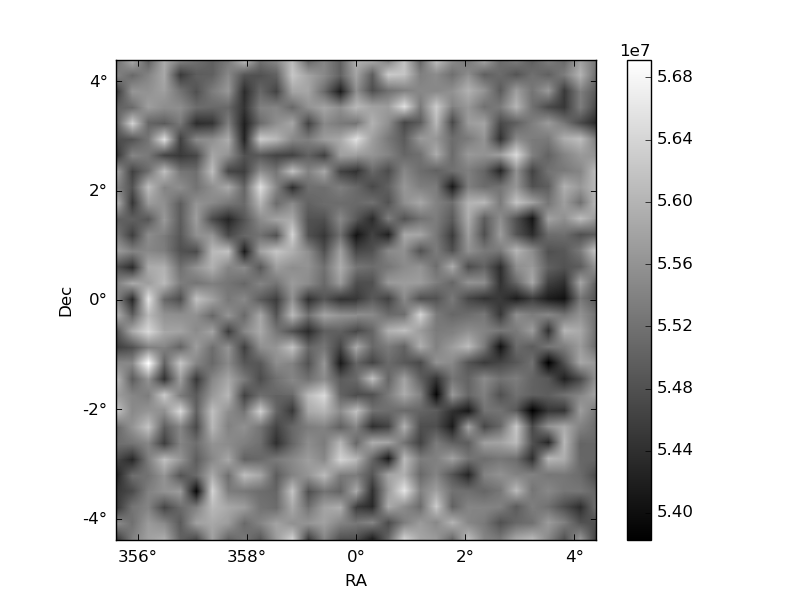

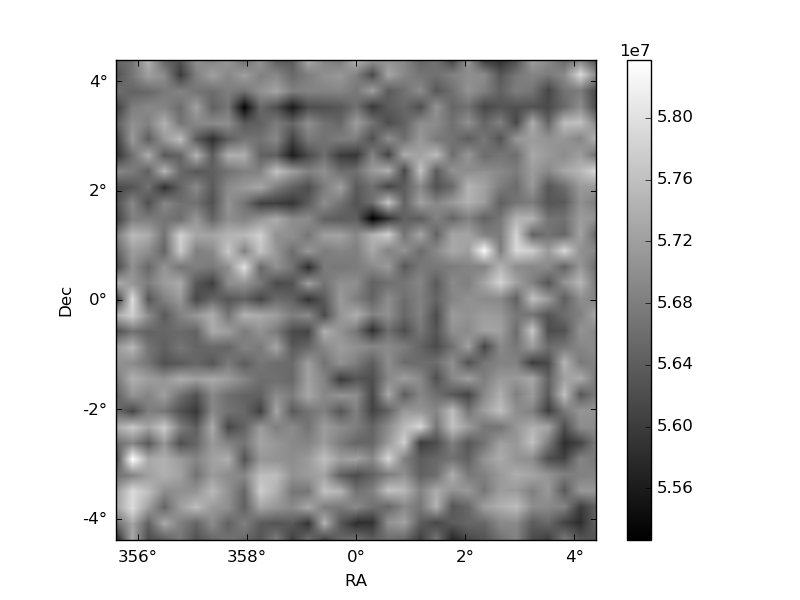

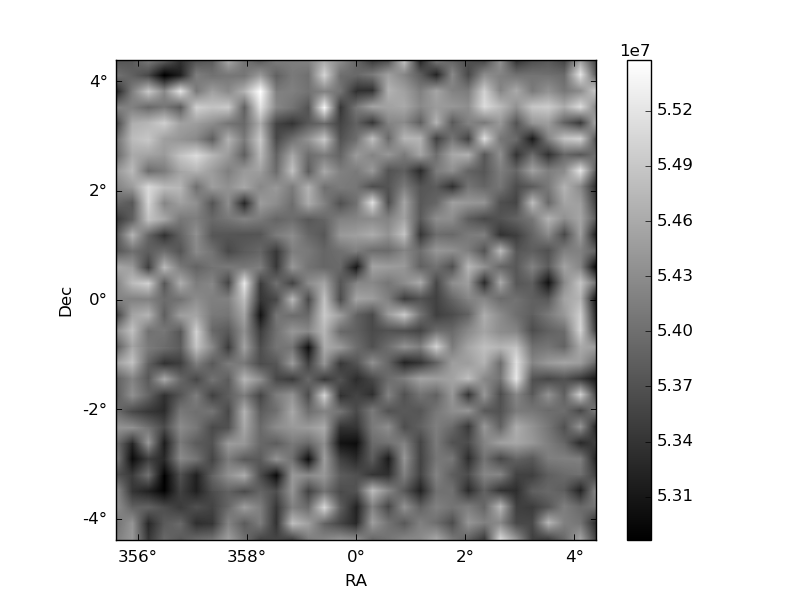

| Plot type | Count rate plots | Images |
|---|---|---|

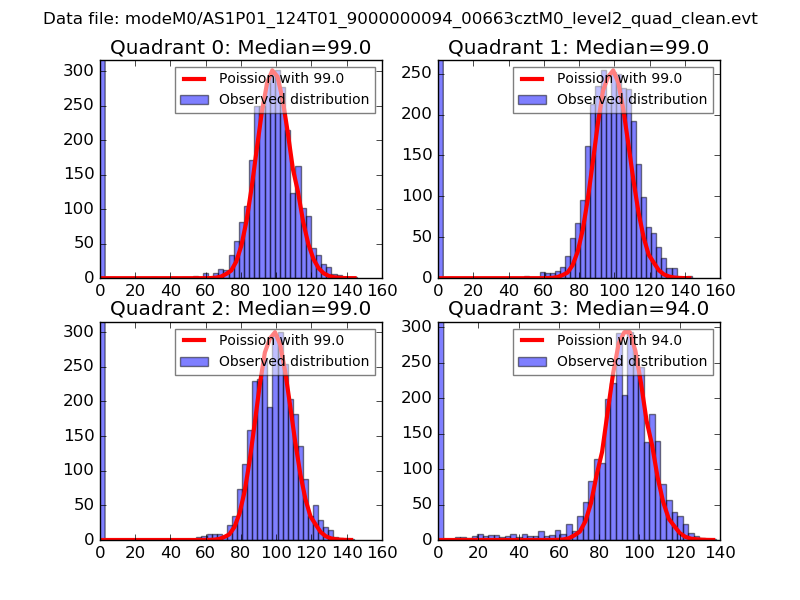

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

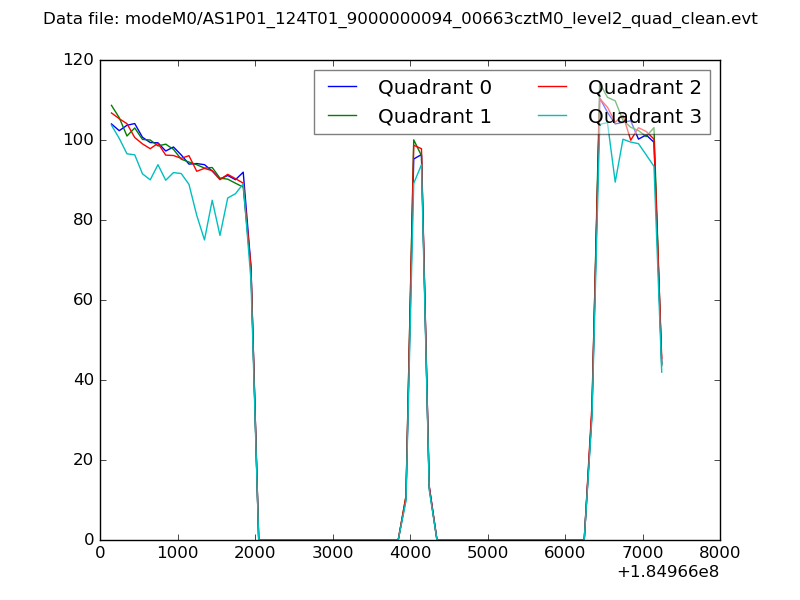

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

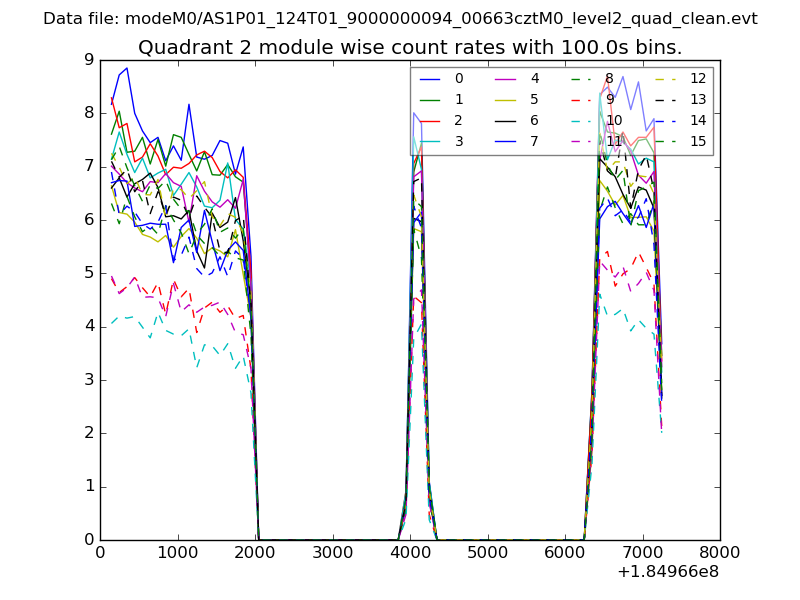

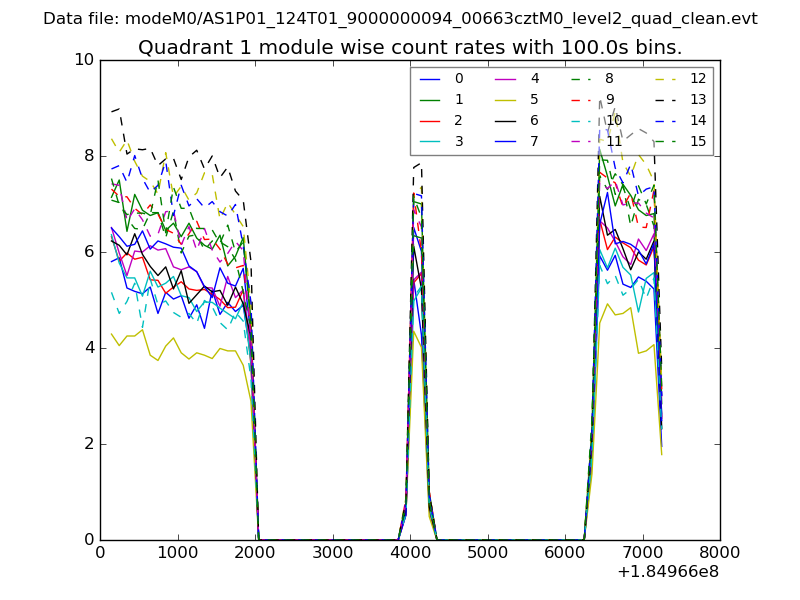

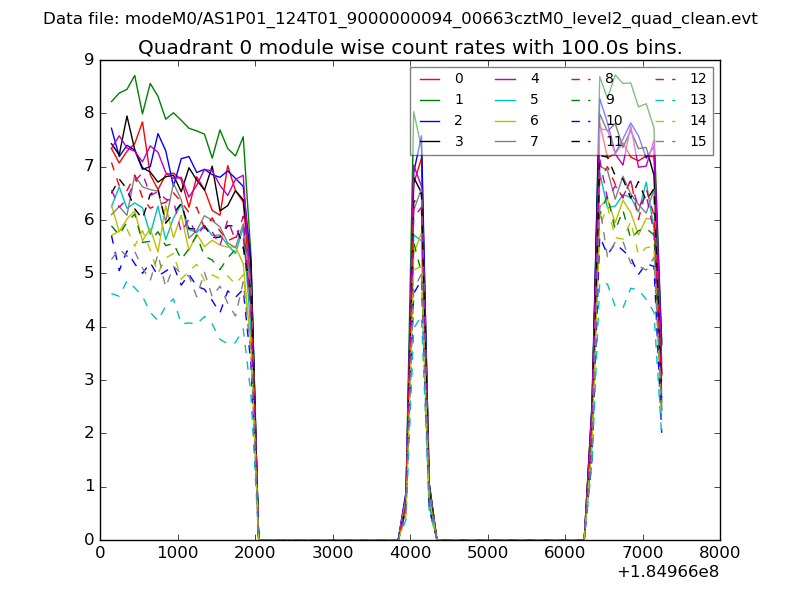

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

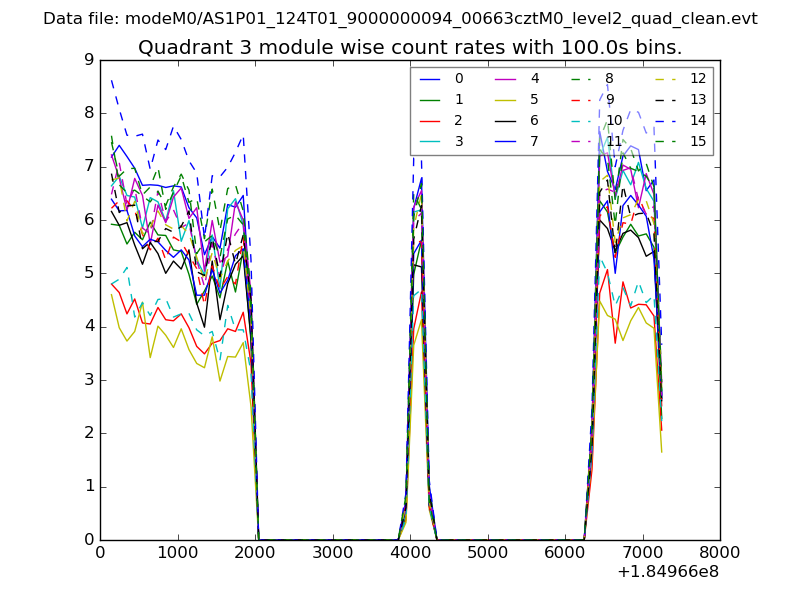

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

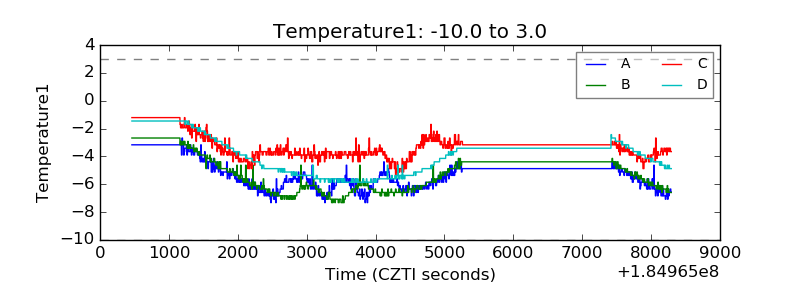

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

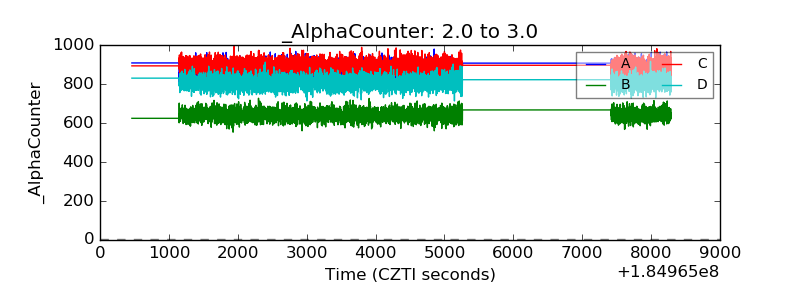

| Alpha Counter |  |

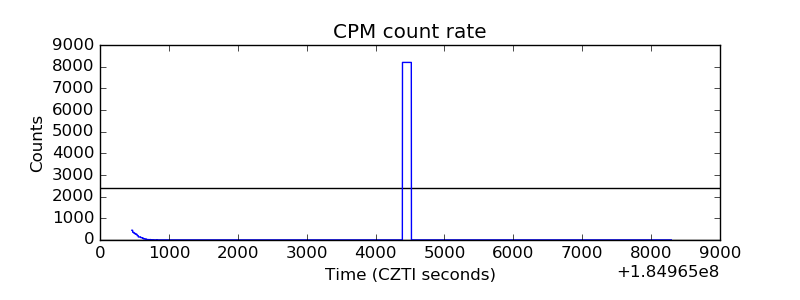

| _CPM_Rate |  |

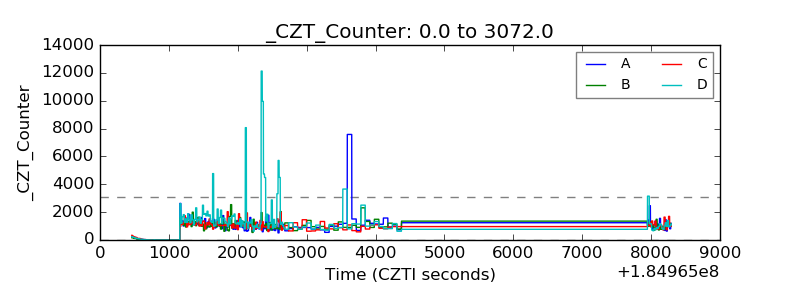

| CZT Counter |  |

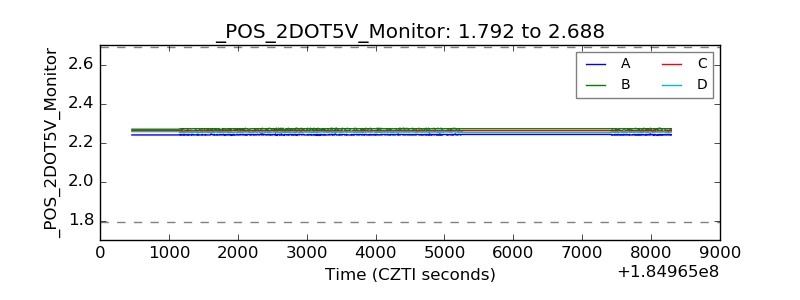

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

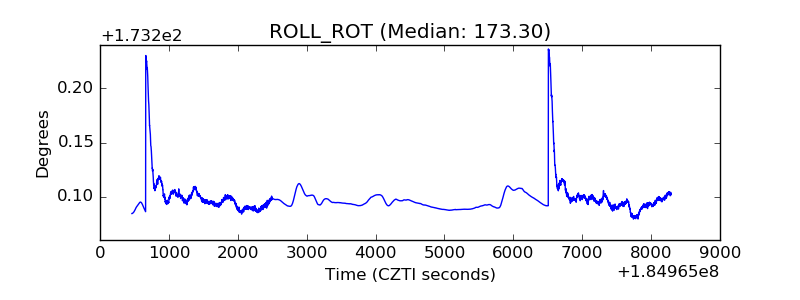

| _ROLL_ROT |  |

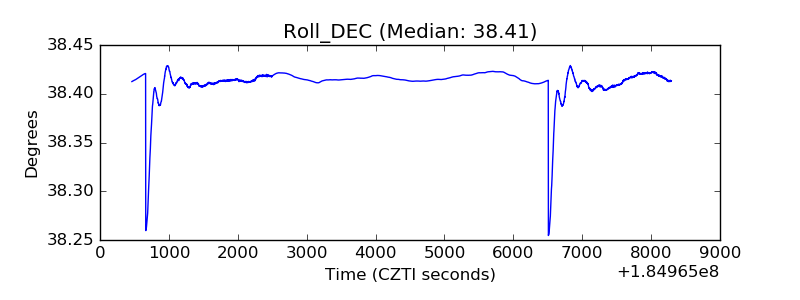

| _Roll_DEC |  |

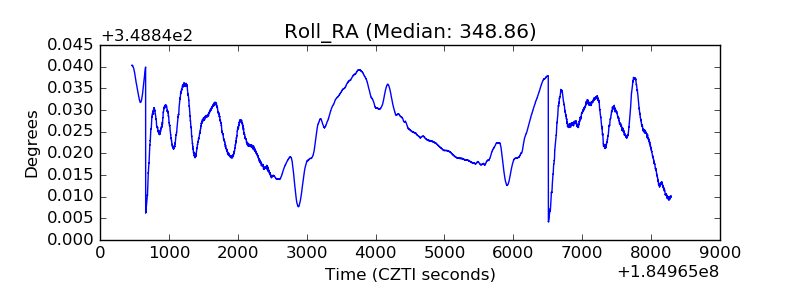

| _Roll_RA |  |

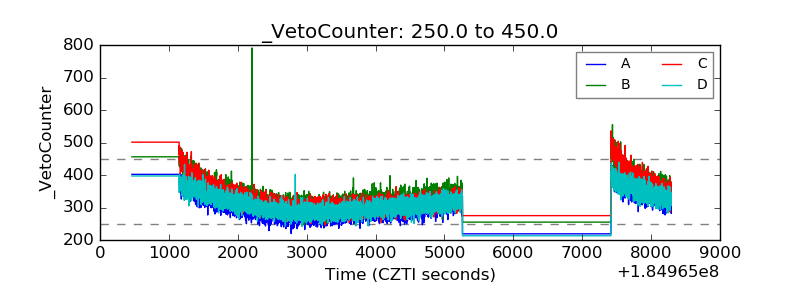

| Veto Counter |  |
