| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_141T01_9000000096_00679cztM0_level2.evt | modeM0/AS1P01_141T01_9000000096_00679cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,030,340,160 | 89,945,280 |
| Size | 982.6 MB | 85.8 MB |
| Events in quadrant A | 7,923,964 | 571,891 |
| Events in quadrant B | 8,419,399 | 578,069 |
| Events in quadrant C | 7,428,987 | 570,249 |
| Events in quadrant D | 6,987,785 | 537,718 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28253 | 2 |
| B | 0 | 29739 | 7 |
| C | 0 | 26799 | 2 |
| D | 0 | 25555 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 8 | 0.119707% |
| B | 6682 | 70 | 1.047591% |
| C | 6682 | 6 | 0.089793% |
| D | 6682 | 32 | 0.478899% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7898 | 6684 | 232 | 232 | 2.94% | 3.47% |  |
| B | 7897 | 6683 | 354 | 354 | 4.48% | 5.30% |  |
| C | 7897 | 6683 | 150 | 150 | 1.90% | 2.24% |  |
| D | 7897 | 6683 | 151 | 151 | 1.91% | 2.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 17 | 7256 | 11.64 | 2067 | 2054 | 446.9 |
| A | 3 | 111 | 6002 | 8.83 | 2067 | 2054 | 446.9 |
| A | 14 | 203 | 5212 | 7.07 | 2067 | 2054 | 446.9 |
| B | 8 | 4 | 169634 | 345.59 | 2087 | 2098 | 484.8 |
| B | 0 | 220 | 154470 | 314.31 | 2087 | 2098 | 484.8 |
| B | 7 | 221 | 109667 | 221.89 | 2087 | 2098 | 484.8 |
| C | 9 | 52 | 37570 | 68.38 | 1881 | 1953 | 520.9 |
| C | 15 | 241 | 36785 | 66.87 | 1881 | 1953 | 520.9 |
| C | -1 | -1 | -1 | -1.0 | 1881 | 1953 | 520.9 |
| D | 1 | 4 | 163194 | 294.93 | 1787 | 1848 | 547.1 |
| D | 12 | 22 | 101634 | 182.4 | 1787 | 1848 | 547.1 |
| D | 9 | 64 | 23888 | 40.29 | 1787 | 1848 | 547.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

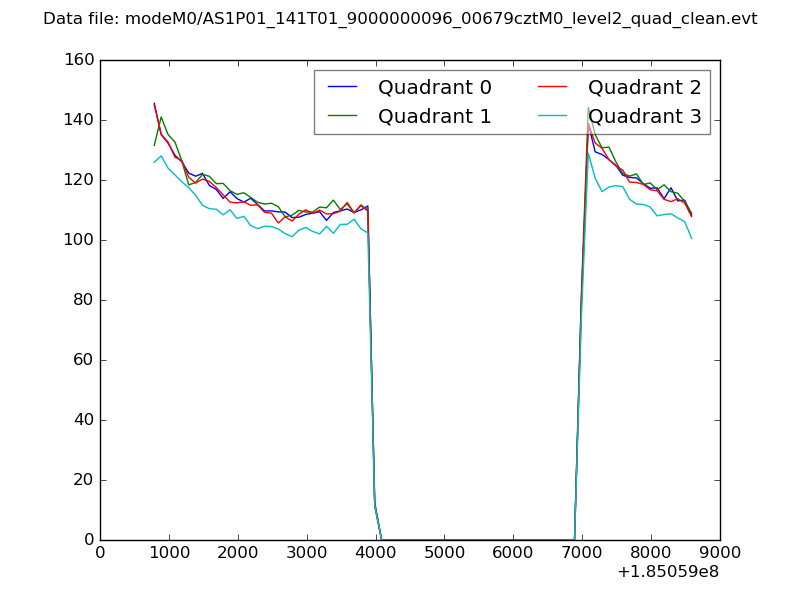

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

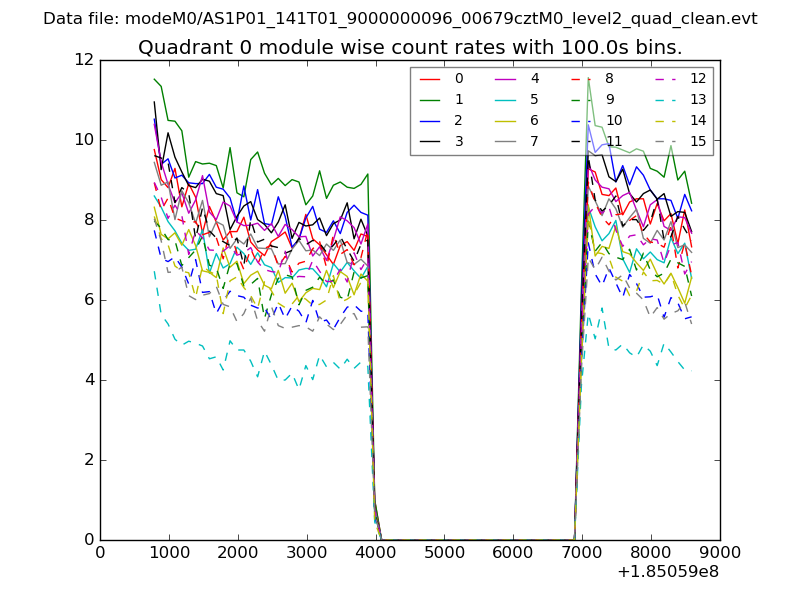

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

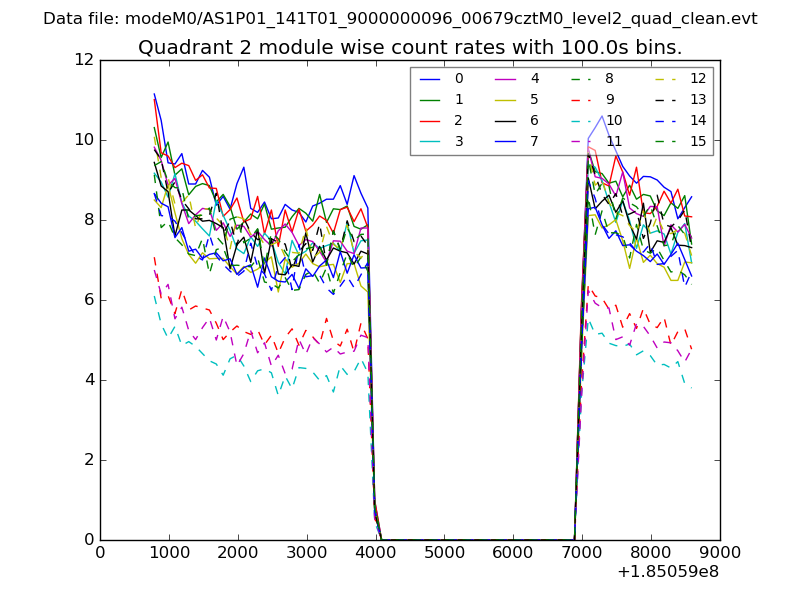

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

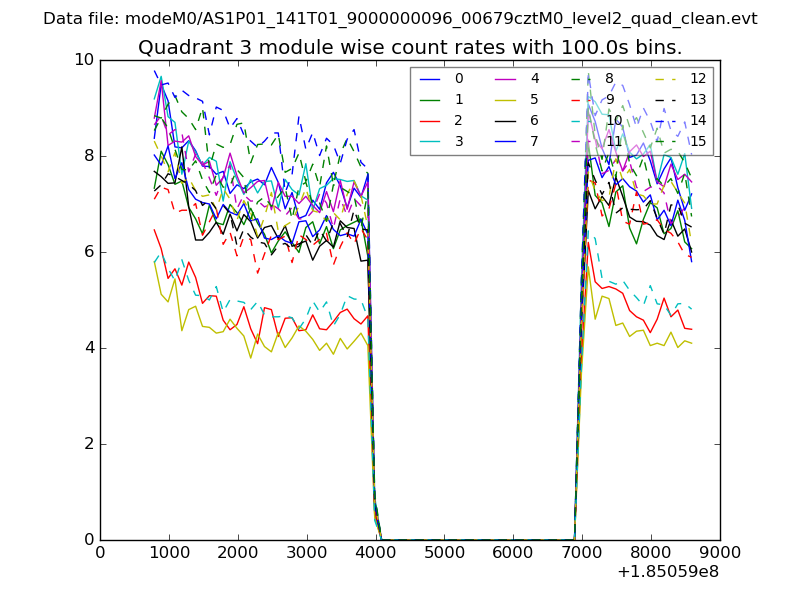

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

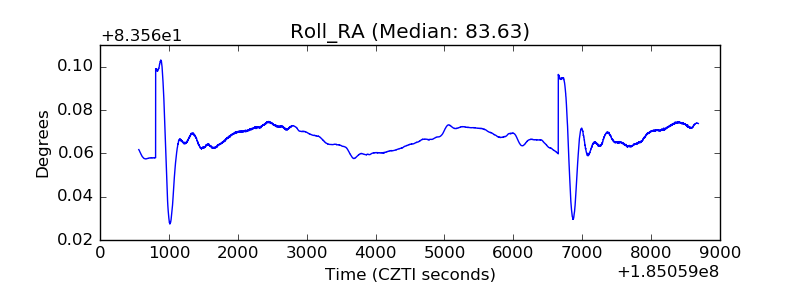

| _Roll_RA |  |
| Veto Counter |  |
