| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_147T02_9000000098_00690cztM0_level2.evt | modeM0/AS1P01_147T02_9000000098_00690cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,059,387,840 | 69,523,200 |
| Size | 1010.3 MB | 66.3 MB |
| Events in quadrant A | 7,042,119 | 427,191 |
| Events in quadrant B | 7,627,326 | 429,001 |
| Events in quadrant C | 9,753,664 | 410,127 |
| Events in quadrant D | 7,251,550 | 406,974 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25309 | 1 |
| B | 0 | 27051 | 1 |
| C | 0 | 33302 | 1 |
| D | 0 | 25941 | 17 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 5 | 0.080841% |
| B | 6185 | 20 | 0.323363% |
| C | 6185 | 28 | 0.452708% |
| D | 6181 | 24 | 0.388287% |

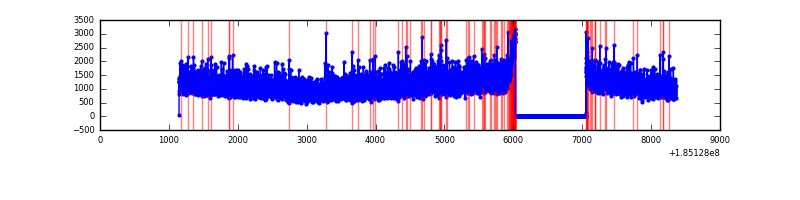

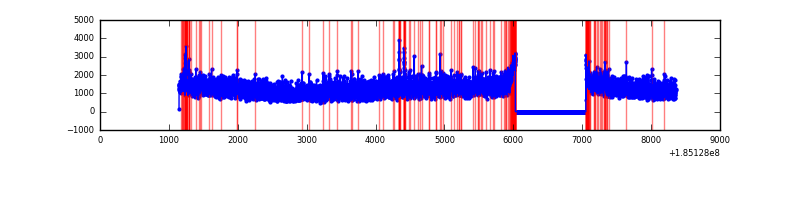

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7210 | 6186 | 127 | 127 | 1.76% | 2.05% |  |
| B | 7210 | 6186 | 202 | 202 | 2.80% | 3.27% |  |
| C | 7210 | 6186 | 503 | 503 | 6.98% | 8.13% |  |
| D | 7209 | 6184 | 178 | 178 | 2.47% | 2.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 57905 | 128.26 | 1816 | 1826 | 437.2 |
| A | 11 | 79 | 7262 | 12.43 | 1816 | 1826 | 437.2 |
| A | 3 | 111 | 5536 | 8.49 | 1816 | 1826 | 437.2 |
| B | 5 | 247 | 147382 | 325.42 | 1899 | 1908 | 447.0 |
| B | 0 | 220 | 69771 | 151.8 | 1899 | 1908 | 447.0 |
| B | 8 | 38 | 64178 | 139.29 | 1899 | 1908 | 447.0 |
| C | 3 | 127 | 1130765 | 2317.79 | 1747 | 1815 | 487.1 |
| C | 3 | 31 | 374722 | 765.59 | 1747 | 1815 | 487.1 |
| C | 3 | 15 | 365751 | 747.18 | 1747 | 1815 | 487.1 |
| D | 0 | 25 | 453354 | 868.58 | 1689 | 1752 | 519.9 |
| D | 14 | 52 | 206390 | 393.59 | 1689 | 1752 | 519.9 |
| D | 1 | 4 | 163304 | 310.72 | 1689 | 1752 | 519.9 |

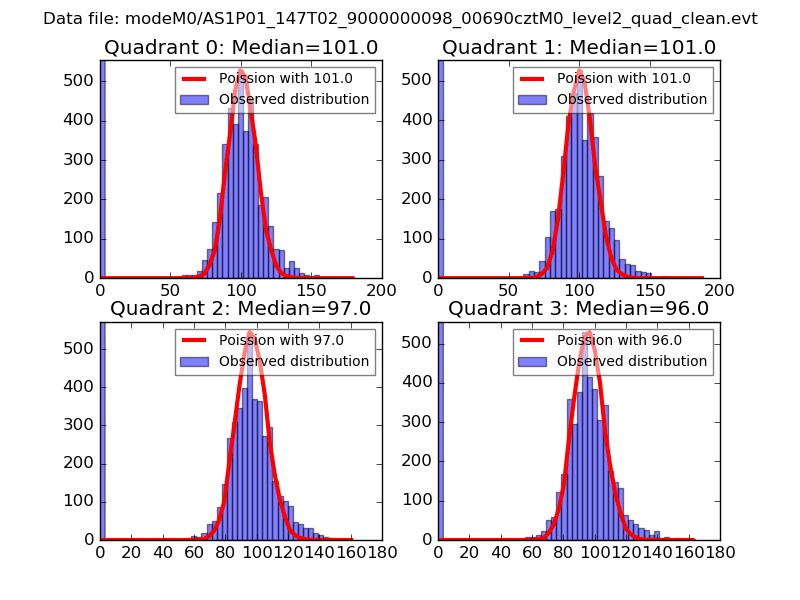

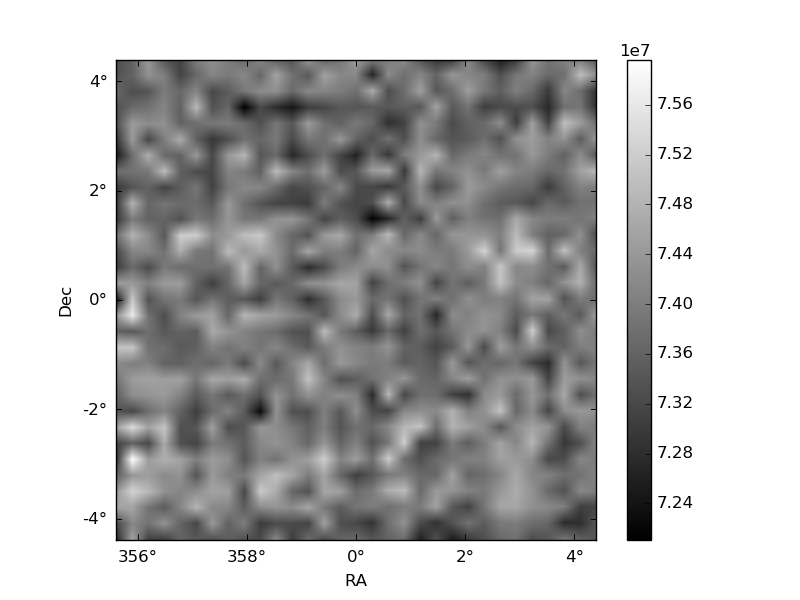

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

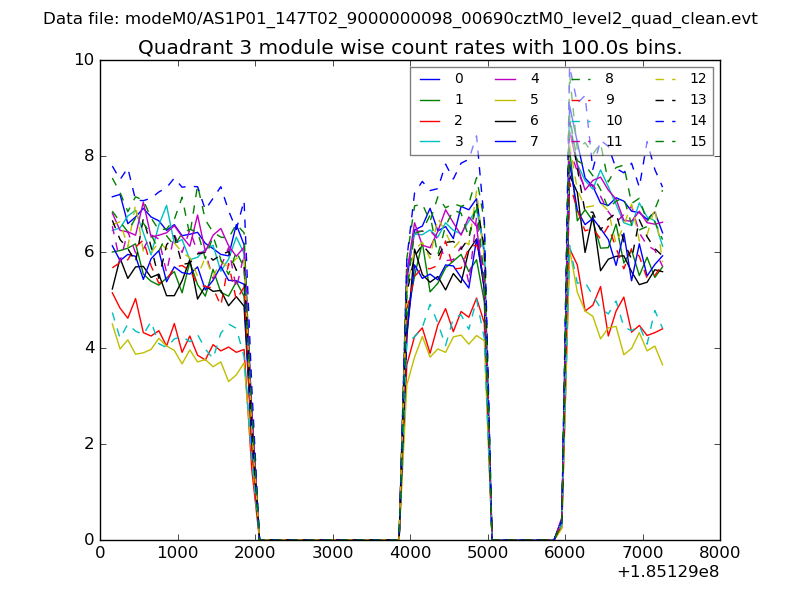

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

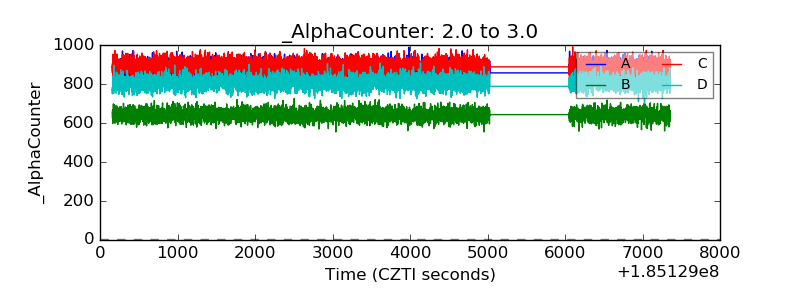

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

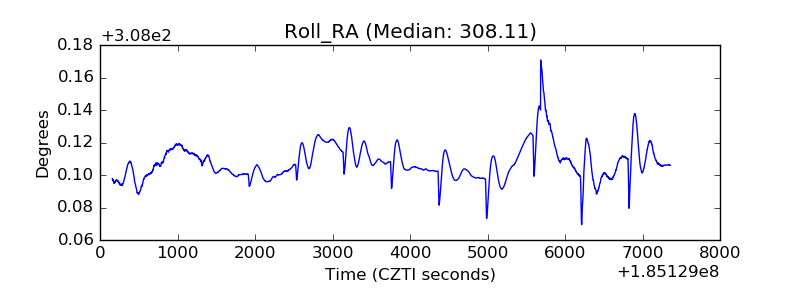

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

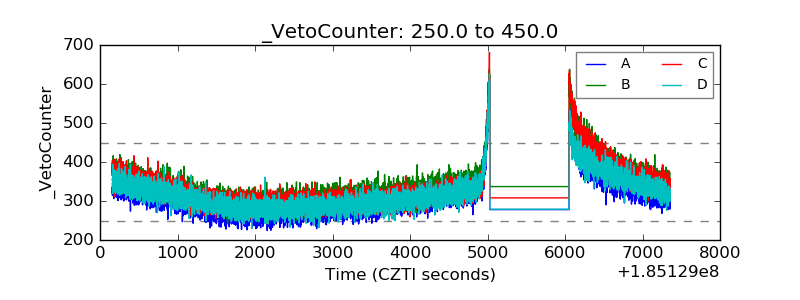

| Veto Counter |  |
