| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_147T02_9000000098_00696cztM0_level2.evt | modeM0/AS1P01_147T02_9000000098_00696cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,142,490,240 | 56,151,360 |
| Size | 1.1 GB | 53.6 MB |
| Events in quadrant A | 7,942,081 | 312,185 |
| Events in quadrant B | 8,435,530 | 315,327 |
| Events in quadrant C | 9,939,456 | 302,000 |
| Events in quadrant D | 7,835,389 | 298,506 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28367 | 2 |
| B | 0 | 29866 | 2 |
| C | 0 | 34271 | 2 |
| D | 0 | 28179 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6764 | 25 | 0.369604% |
| B | 6765 | 37 | 0.546933% |
| C | 6765 | 28 | 0.413895% |
| D | 6764 | 316 | 4.671792% |

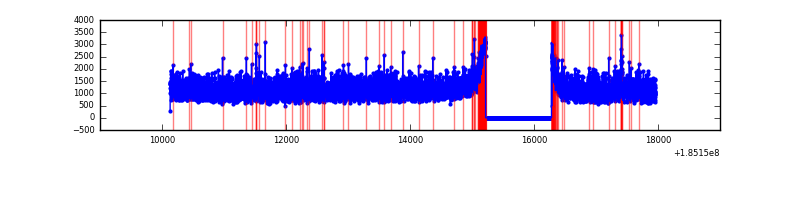

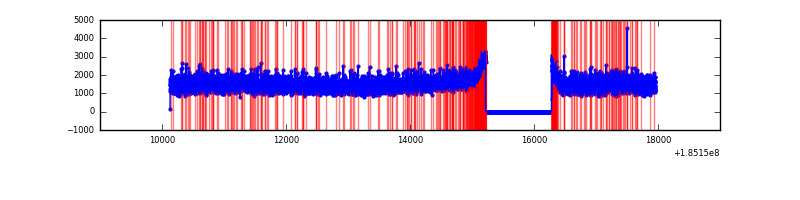

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 6765 | 186 | 186 | 2.38% | 2.75% |  |
| B | 7830 | 6766 | 248 | 248 | 3.17% | 3.67% |  |
| C | 7830 | 6766 | 424 | 424 | 5.42% | 6.27% |  |
| D | 7829 | 6765 | 420 | 420 | 5.36% | 6.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 49699 | 95.05 | 2056 | 2072 | 501.1 |
| A | 11 | 79 | 9322 | 14.47 | 2056 | 2072 | 501.1 |
| A | 3 | 111 | 6514 | 8.87 | 2056 | 2072 | 501.1 |
| B | 7 | 221 | 143978 | 280.1 | 2157 | 2170 | 506.3 |
| B | 0 | 220 | 48983 | 92.47 | 2157 | 2170 | 506.3 |
| B | 8 | 4 | 23724 | 42.57 | 2157 | 2170 | 506.3 |
| C | 3 | 127 | 1114770 | 2045.88 | 1941 | 2008 | 543.9 |
| C | 3 | 31 | 270366 | 493.39 | 1941 | 2008 | 543.9 |
| C | 3 | 15 | 255560 | 466.17 | 1941 | 2008 | 543.9 |
| D | 9 | 64 | 878285 | 1572.5 | 1801 | 1865 | 557.3 |
| D | 0 | 25 | 102278 | 180.16 | 1801 | 1865 | 557.3 |
| D | 1 | 4 | 75957 | 132.94 | 1801 | 1865 | 557.3 |

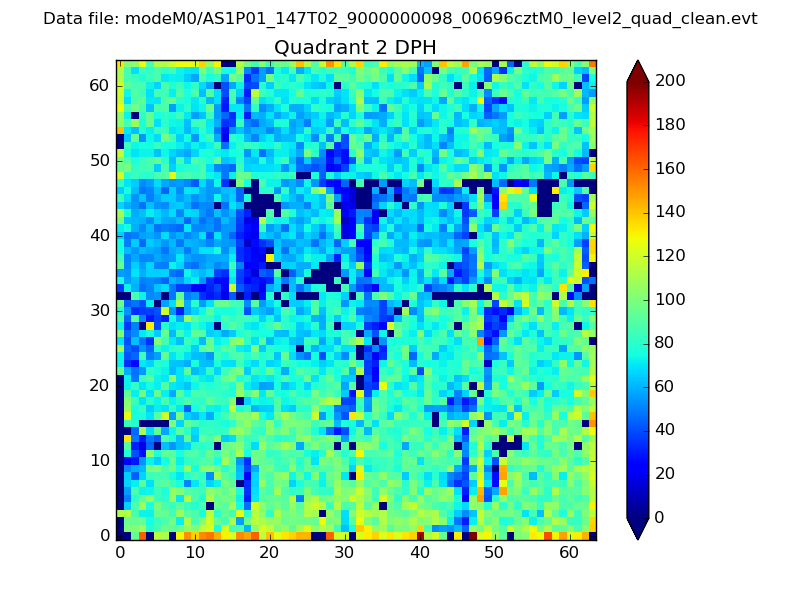

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

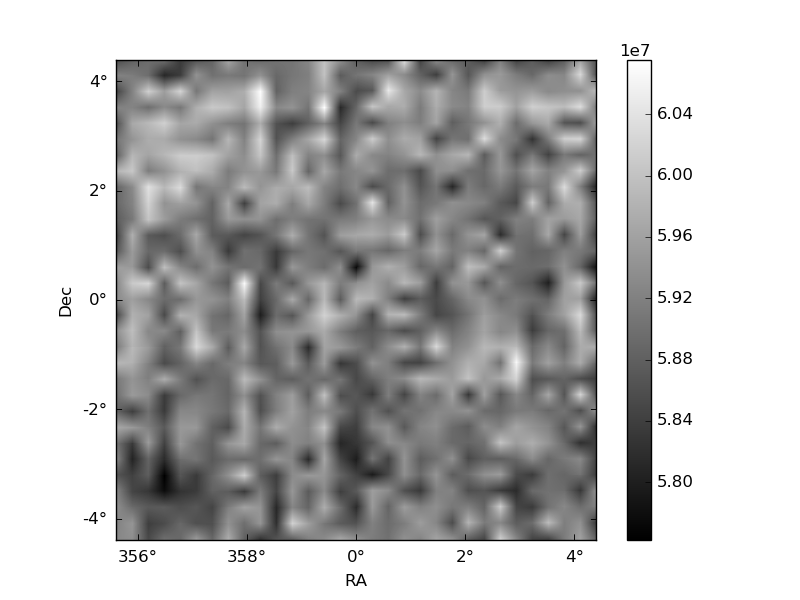

| Plot type | Count rate plots | Images |
|---|---|---|

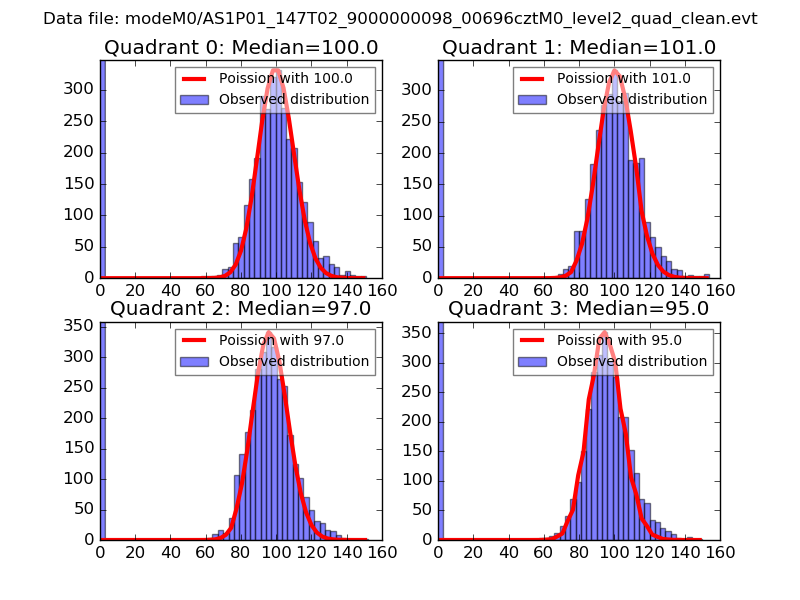

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

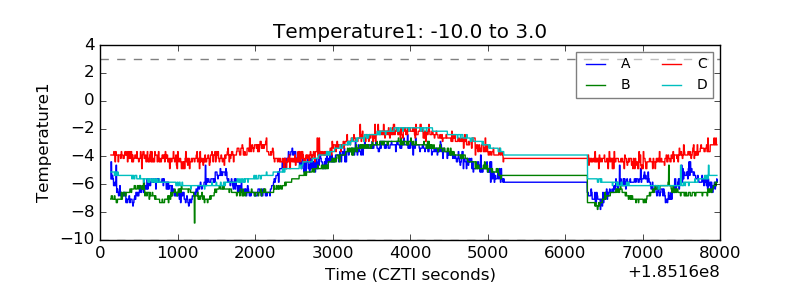

| Temperature 1 |  |

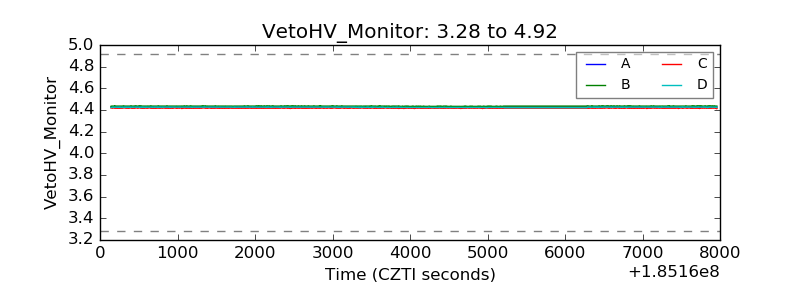

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

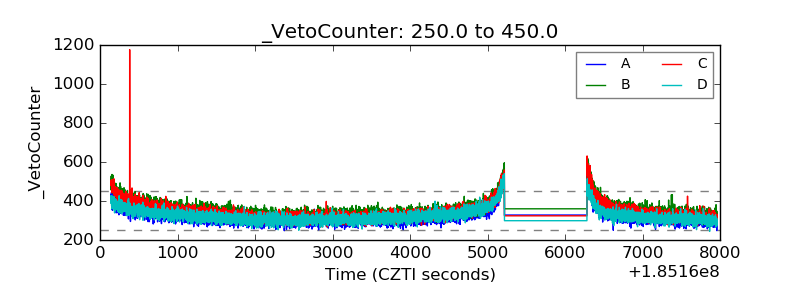

| Veto Counter |  |
