| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_141T01_9000000104_00704cztM0_level2.evt | modeM0/AS1P01_141T01_9000000104_00704cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,760,640 | 22,507,200 |
| Size | 450.9 MB | 21.5 MB |
| Events in quadrant A | 3,210,855 | 128,924 |
| Events in quadrant B | 3,589,537 | 129,561 |
| Events in quadrant C | 3,685,761 | 126,505 |
| Events in quadrant D | 3,671,221 | 122,972 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11250 | 1 |
| B | 0 | 12379 | 1 |
| C | 0 | 12652 | 1 |
| D | 0 | 12627 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2402 | 10 | 0.416320% |
| B | 2402 | 34 | 1.415487% |
| C | 2402 | 22 | 0.915903% |
| D | 2402 | 108 | 4.496253% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3397 | 2403 | 119 | 119 | 3.50% | 4.95% |  |
| B | 3397 | 2403 | 311 | 311 | 9.16% | 12.94% |  |
| C | 3397 | 2403 | 208 | 208 | 6.12% | 8.66% |  |
| D | 3397 | 2403 | 363 | 363 | 10.69% | 15.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 3927 | 15.19 | 834 | 841 | 203.1 |
| A | 13 | 8 | 3476 | 12.97 | 834 | 841 | 203.1 |
| A | 12 | 236 | 2929 | 10.28 | 834 | 841 | 203.1 |
| B | 5 | 247 | 167701 | 806.48 | 864 | 869 | 206.9 |
| B | 5 | 191 | 98518 | 472.04 | 864 | 869 | 206.9 |
| B | 0 | 220 | 15511 | 70.78 | 864 | 869 | 206.9 |
| C | 3 | 31 | 126722 | 569.03 | 785 | 816 | 221.3 |
| C | 3 | 95 | 115960 | 520.4 | 785 | 816 | 221.3 |
| C | 3 | 15 | 115075 | 516.4 | 785 | 816 | 221.3 |
| D | 0 | 25 | 327007 | 1382.65 | 760 | 789 | 235.9 |
| D | 6 | 226 | 173630 | 732.57 | 760 | 789 | 235.9 |
| D | 9 | 52 | 156807 | 661.27 | 760 | 789 | 235.9 |

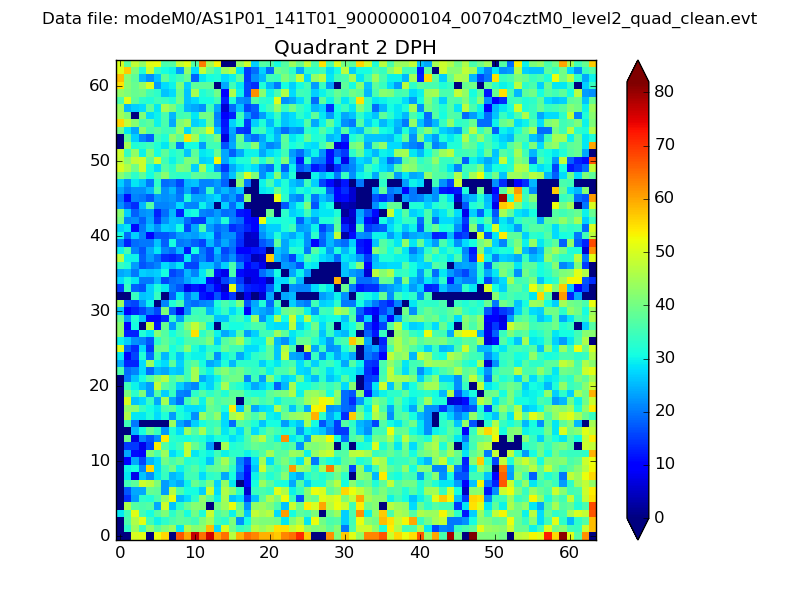

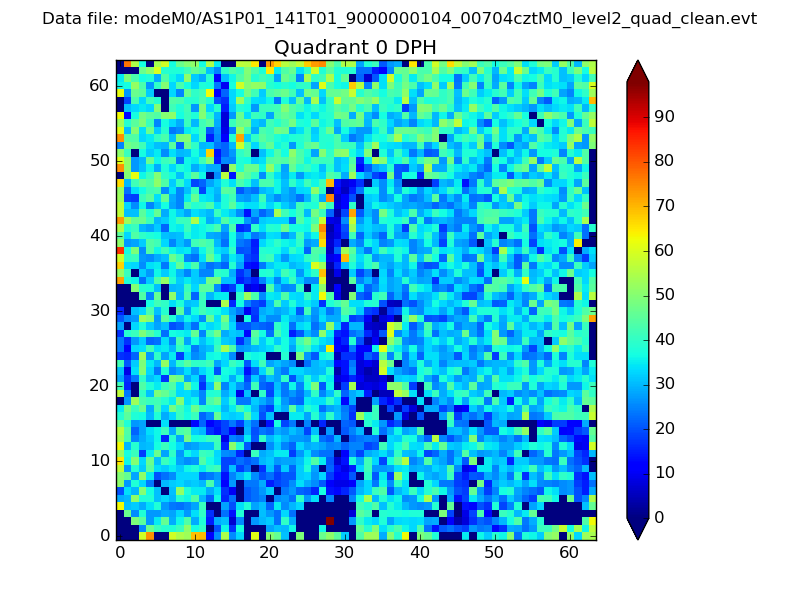

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

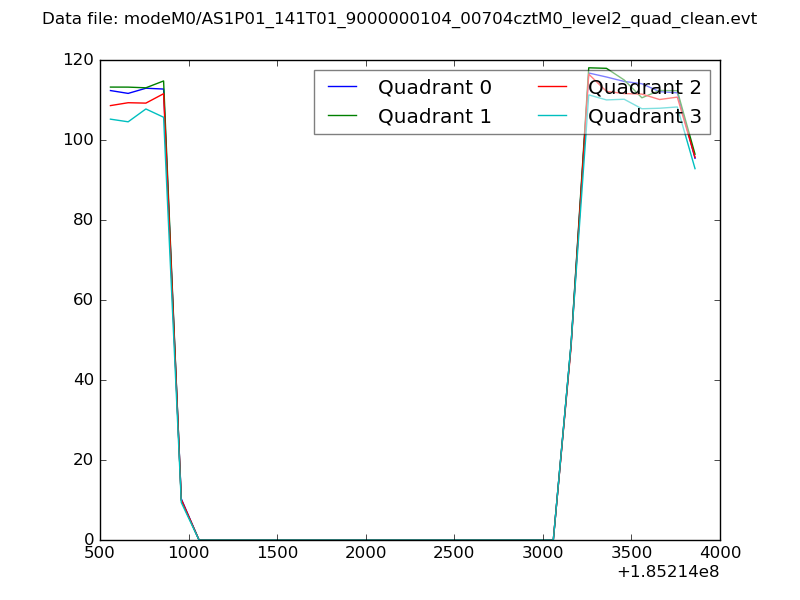

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

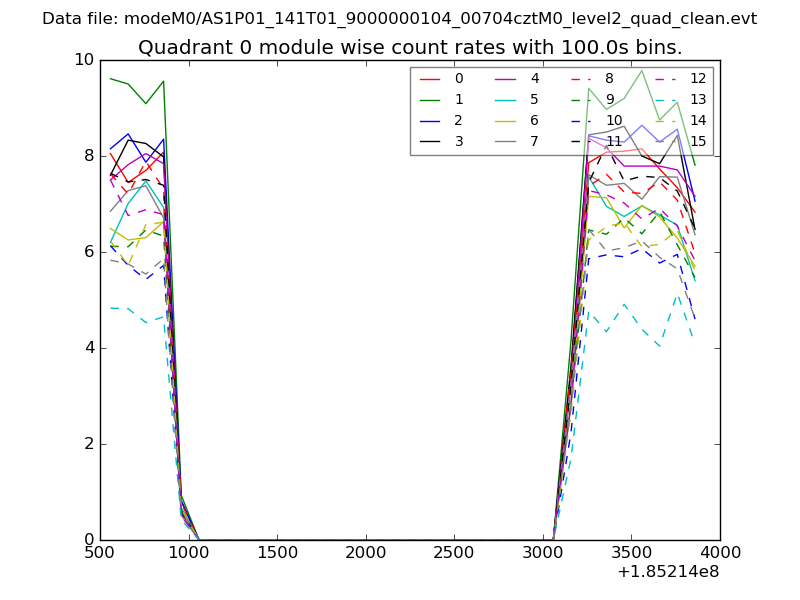

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

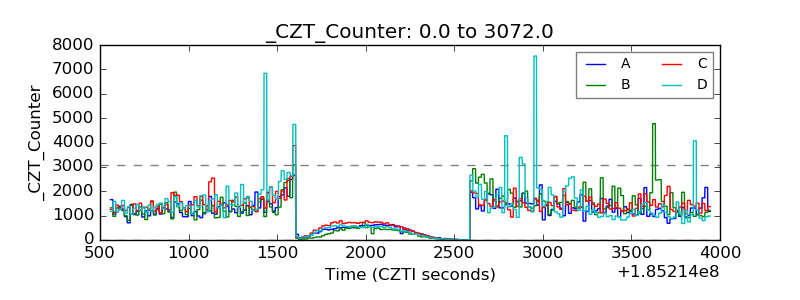

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

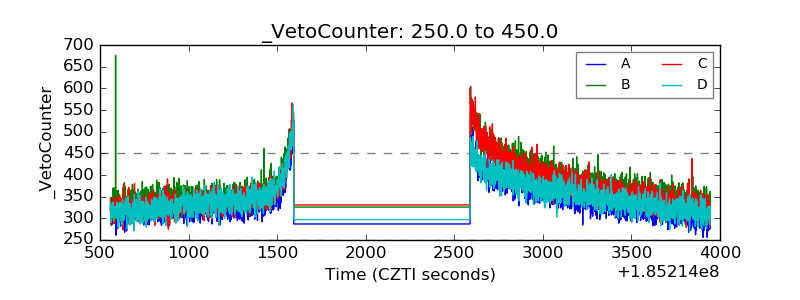

| Veto Counter |  |
