| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_141T01_9000000104_00709cztM0_level2.evt | modeM0/AS1P01_141T01_9000000104_00709cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,044,201,600 | 81,463,680 |
| Size | 995.8 MB | 77.7 MB |
| Events in quadrant A | 7,458,118 | 510,373 |
| Events in quadrant B | 7,926,517 | 522,340 |
| Events in quadrant C | 8,443,966 | 504,115 |
| Events in quadrant D | 7,368,620 | 480,998 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26682 | 1 |
| B | 0 | 28085 | 1 |
| C | 0 | 29666 | 3 |
| D | 0 | 26475 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 16 | 0.248524% |
| B | 6438 | 41 | 0.636844% |
| C | 6437 | 22 | 0.341774% |
| D | 6437 | 56 | 0.869970% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7638 | 6439 | 207 | 207 | 2.71% | 3.21% |  |
| B | 7638 | 6439 | 292 | 292 | 3.82% | 4.53% |  |
| C | 7637 | 6438 | 337 | 337 | 4.41% | 5.23% |  |
| D | 7637 | 6438 | 304 | 304 | 3.98% | 4.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 76776 | 161.67 | 1921 | 1941 | 462.9 |
| A | 15 | 69 | 12791 | 23.44 | 1921 | 1941 | 462.9 |
| A | 11 | 79 | 10314 | 18.09 | 1921 | 1941 | 462.9 |
| B | 5 | 247 | 53291 | 108.75 | 2024 | 2040 | 471.3 |
| B | 5 | 191 | 36932 | 74.04 | 2024 | 2040 | 471.3 |
| B | 0 | 207 | 36916 | 74.01 | 2024 | 2040 | 471.3 |
| C | 3 | 31 | 292781 | 580.39 | 1810 | 1882 | 501.2 |
| C | 3 | 15 | 249123 | 493.29 | 1810 | 1882 | 501.2 |
| C | 3 | 175 | 238685 | 472.46 | 1810 | 1882 | 501.2 |
| D | 6 | 226 | 353117 | 659.1 | 1735 | 1797 | 533.0 |
| D | 13 | 37 | 169795 | 315.17 | 1735 | 1797 | 533.0 |
| D | 0 | 25 | 138780 | 256.99 | 1735 | 1797 | 533.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

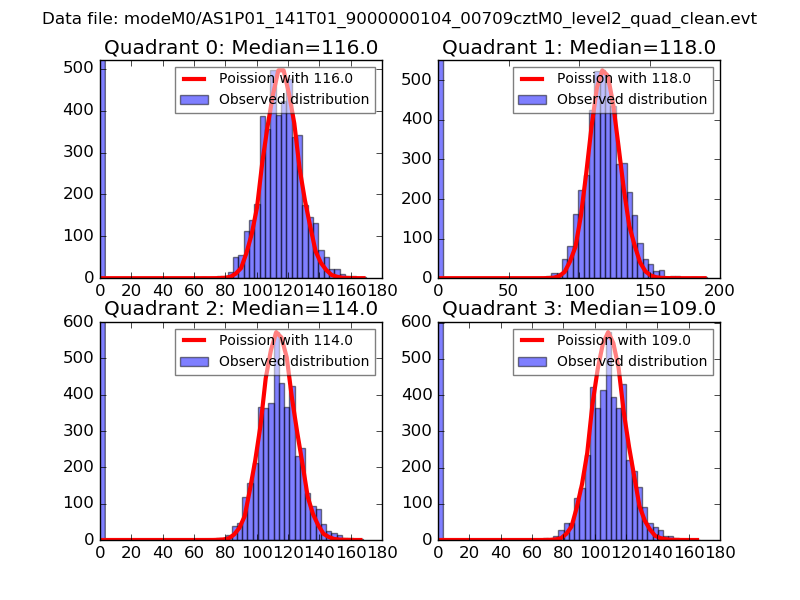

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

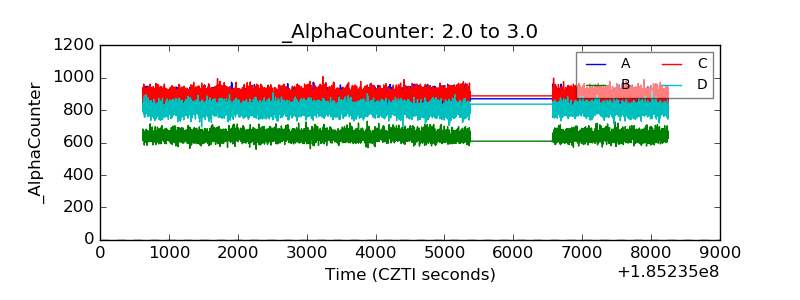

| Alpha Counter |  |
| _CPM_Rate |  |

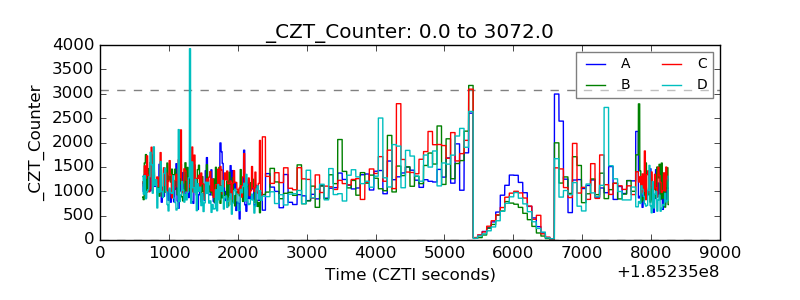

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

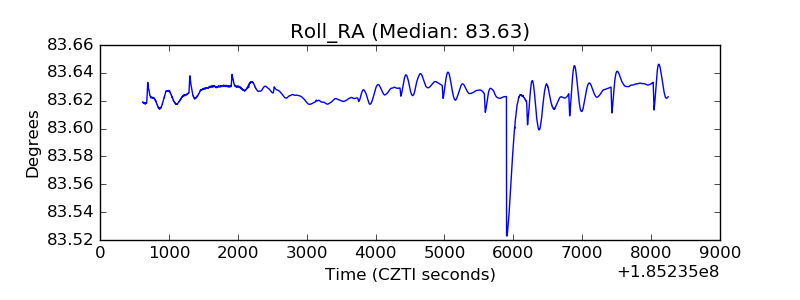

| _Roll_RA |  |
| Veto Counter |  |
