| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00729cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00729cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,278,786,240 | 91,267,200 |
| Size | 1.2 GB | 87.0 MB |
| Events in quadrant A | 8,790,418 | 580,868 |
| Events in quadrant B | 9,174,836 | 585,782 |
| Events in quadrant C | 8,446,428 | 582,403 |
| Events in quadrant D | 11,857,112 | 529,382 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31118 | 2 |
| B | 0 | 32218 | 2 |
| C | 0 | 30068 | 2 |
| D | 0 | 40311 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6962 | 194 | 2.786556% |
| B | 6962 | 192 | 2.757828% |
| C | 6962 | 145 | 2.082735% |
| D | 6962 | 984 | 14.133870% |

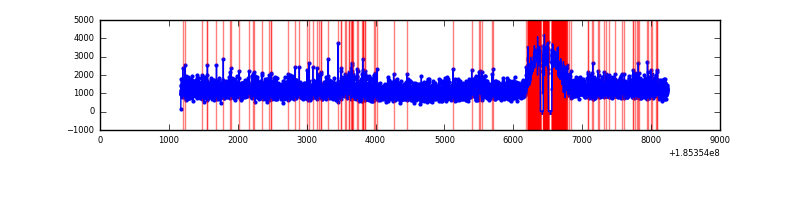

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7062 | 6964 | 467 | 467 | 6.61% | 6.71% |  |
| B | 7062 | 6964 | 500 | 500 | 7.08% | 7.18% |  |
| C | 7062 | 6964 | 398 | 398 | 5.64% | 5.72% |  |
| D | 7062 | 6964 | 1945 | 1945 | 27.54% | 27.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 141712 | 252.83 | 2246 | 2259 | 551.6 |
| A | 12 | 189 | 15818 | 24.58 | 2246 | 2259 | 551.6 |
| A | 11 | 79 | 11220 | 16.25 | 2246 | 2259 | 551.6 |
| B | 7 | 221 | 141895 | 252.42 | 2318 | 2325 | 552.9 |
| B | 5 | 249 | 111935 | 198.24 | 2318 | 2325 | 552.9 |
| B | 15 | 185 | 39401 | 67.05 | 2318 | 2325 | 552.9 |
| C | 9 | 52 | 65866 | 106.94 | 2117 | 2197 | 595.4 |
| C | 15 | 241 | 41785 | 66.49 | 2117 | 2197 | 595.4 |
| C | 3 | 111 | 35530 | 55.99 | 2117 | 2197 | 595.4 |
| D | 9 | 52 | 2812492 | 4504.07 | 2000 | 2068 | 624.0 |
| D | 6 | 226 | 659238 | 1053.2 | 2000 | 2068 | 624.0 |
| D | 12 | 22 | 527462 | 842.01 | 2000 | 2068 | 624.0 |

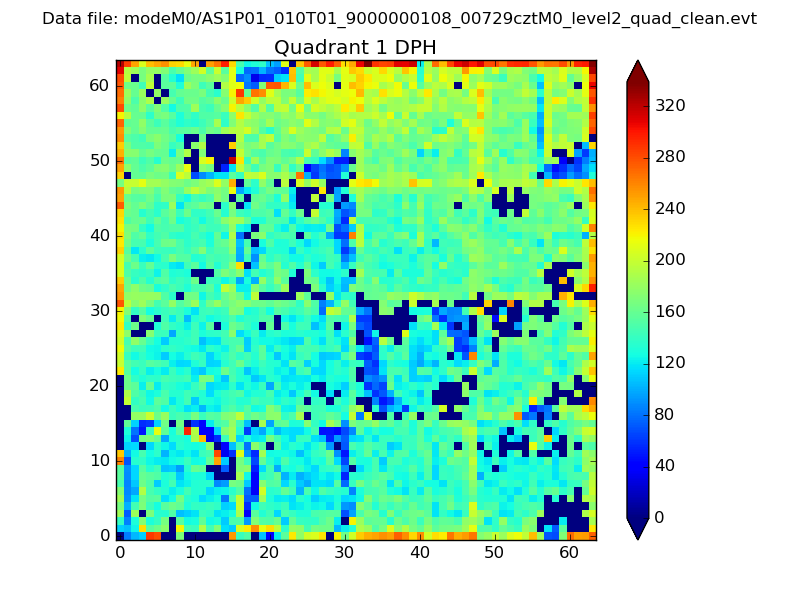

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

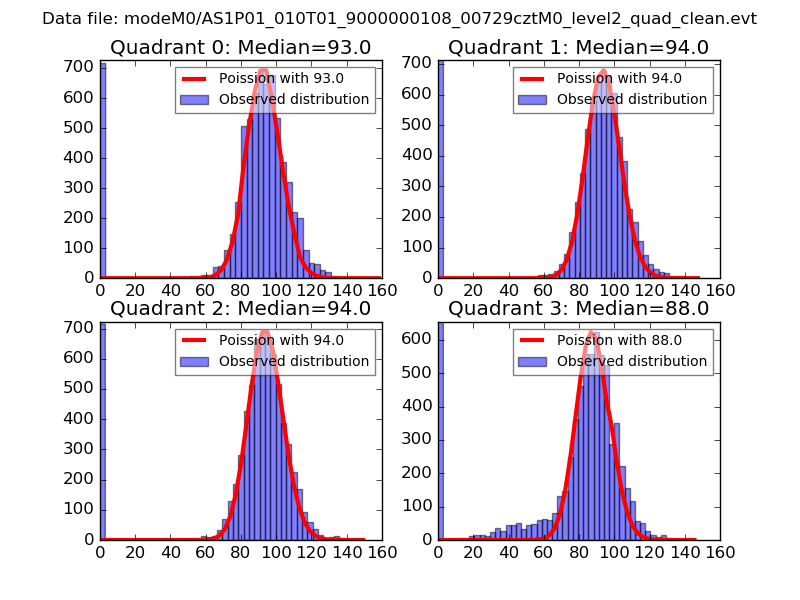

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

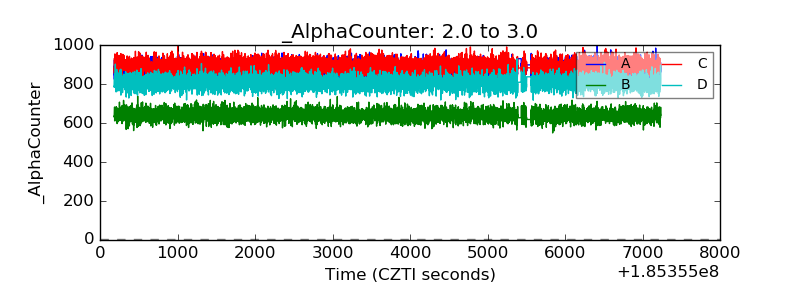

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

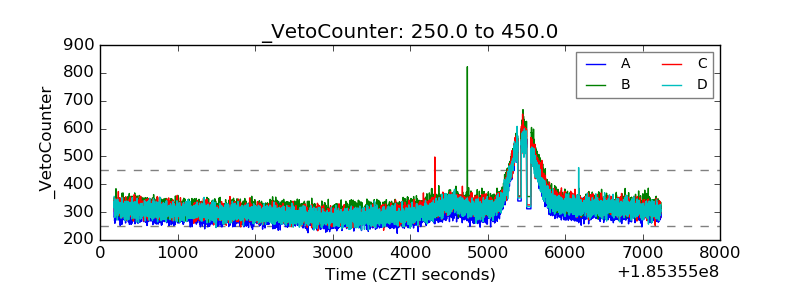

| Veto Counter |  |
