| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00735cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00735cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,109,952,000 | 76,619,520 |
| Size | 1.0 GB | 73.1 MB |
| Events in quadrant A | 6,639,442 | 514,823 |
| Events in quadrant B | 9,939,085 | 468,335 |
| Events in quadrant C | 6,380,009 | 498,491 |
| Events in quadrant D | 10,273,380 | 432,619 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23879 | 0 |
| B | 0 | 33715 | 0 |
| C | 0 | 23070 | 0 |
| D | 0 | 34844 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5791 | 15 | 0.259023% |
| B | 5791 | 900 | 15.541357% |
| C | 5791 | 3 | 0.051805% |
| D | 5791 | 1227 | 21.188050% |

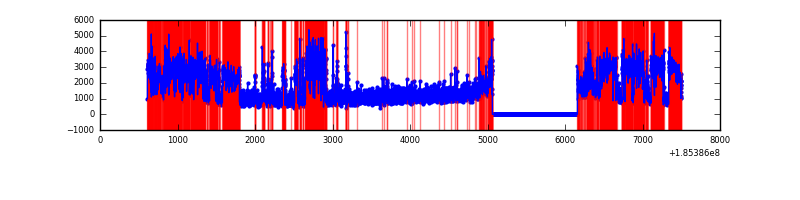

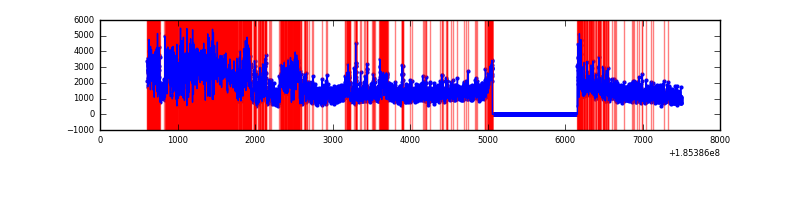

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6891 | 5792 | 129 | 129 | 1.87% | 2.23% |  |
| B | 6891 | 5792 | 1564 | 1564 | 22.70% | 27.00% |  |
| C | 6891 | 5792 | 97 | 97 | 1.41% | 1.67% |  |
| D | 6891 | 5792 | 2071 | 2071 | 30.05% | 35.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 52847 | 122.82 | 1714 | 1727 | 416.2 |
| A | 15 | 17 | 9698 | 19.15 | 1714 | 1727 | 416.2 |
| A | 11 | 79 | 8196 | 15.54 | 1714 | 1727 | 416.2 |
| B | 8 | 38 | 3339322 | 8390.51 | 1702 | 1709 | 397.8 |
| B | 7 | 221 | 69368 | 170.09 | 1702 | 1709 | 397.8 |
| B | 0 | 220 | 29564 | 70.03 | 1702 | 1709 | 397.8 |
| C | 15 | 241 | 34395 | 74.06 | 1601 | 1656 | 442.1 |
| C | 3 | 111 | 27640 | 58.78 | 1601 | 1656 | 442.1 |
| C | 3 | 79 | 19208 | 39.7 | 1601 | 1656 | 442.1 |
| D | 13 | 25 | 2795836 | 6291.44 | 1433 | 1482 | 444.2 |
| D | 9 | 52 | 1024449 | 2303.19 | 1433 | 1482 | 444.2 |
| D | 10 | 85 | 341727 | 766.05 | 1433 | 1482 | 444.2 |

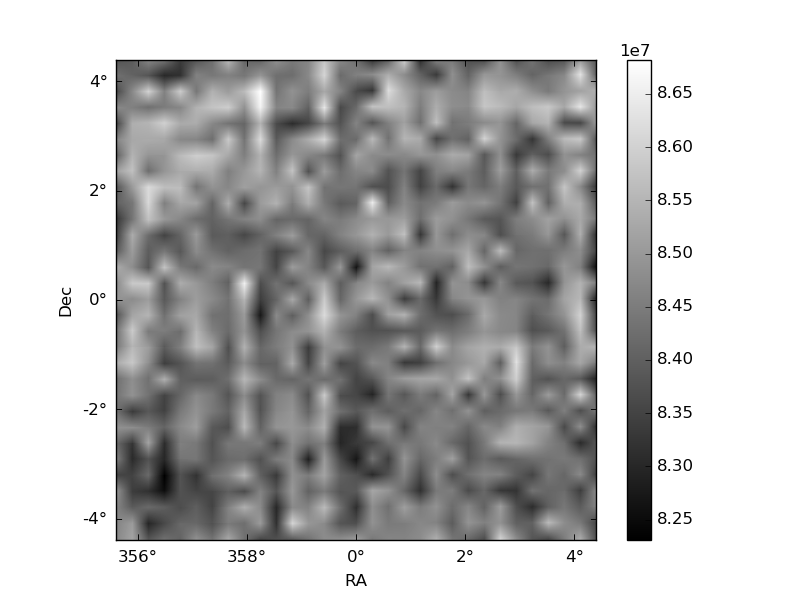

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

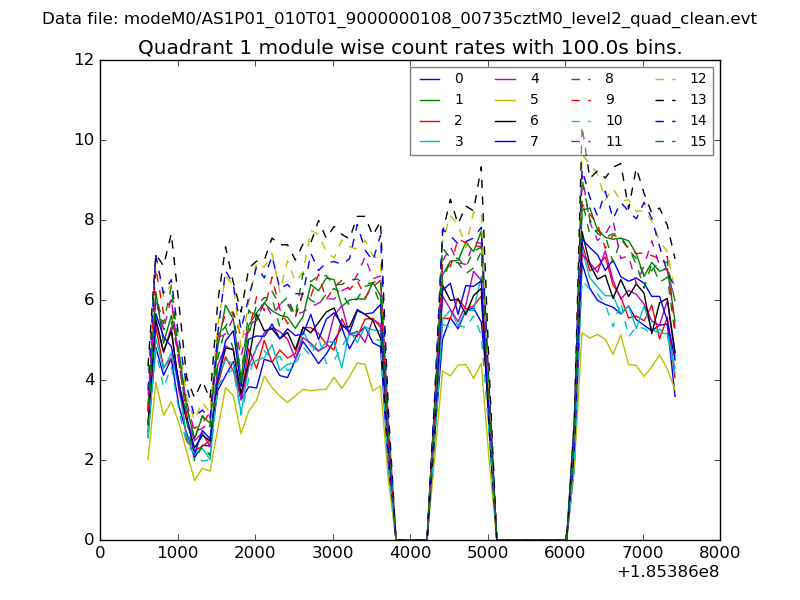

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

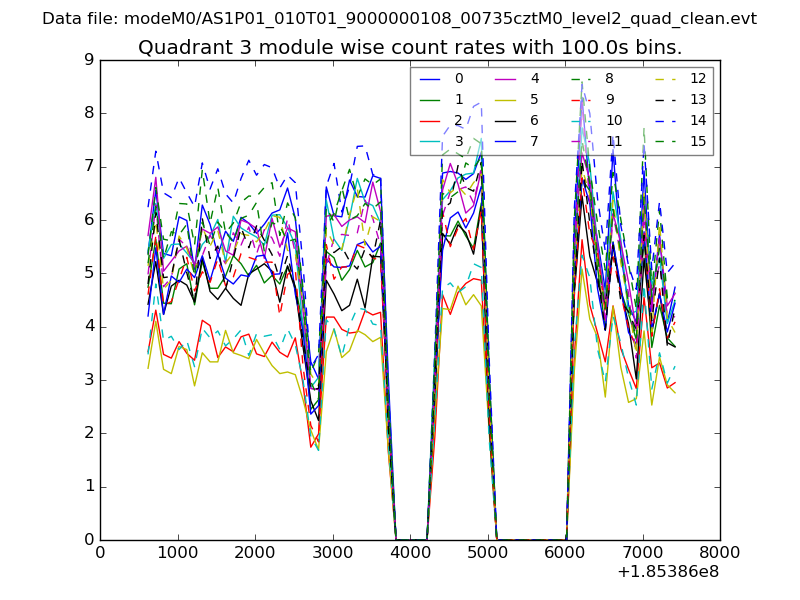

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

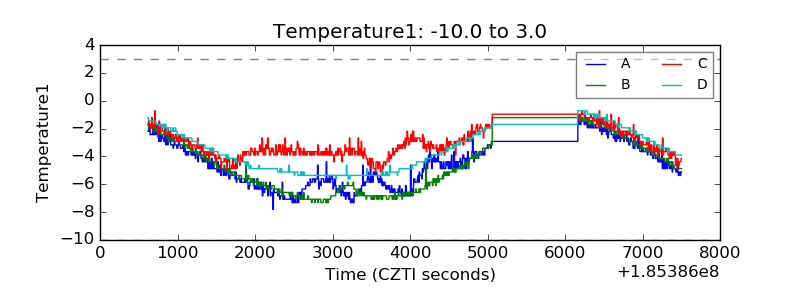

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

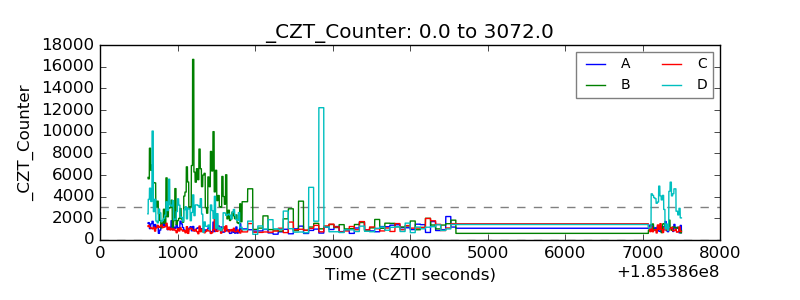

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

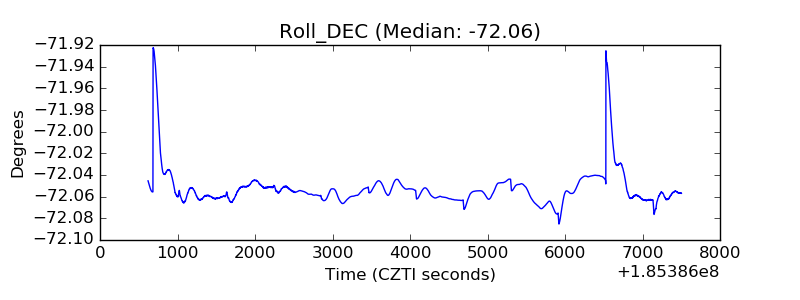

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
