| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00748cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00748cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,031,394,240 | 85,392,000 |
| Size | 983.6 MB | 81.4 MB |
| Events in quadrant A | 7,120,512 | 557,212 |
| Events in quadrant B | 7,836,990 | 557,014 |
| Events in quadrant C | 6,761,110 | 544,439 |
| Events in quadrant D | 9,114,229 | 502,557 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25477 | 0 |
| B | 0 | 27578 | 0 |
| C | 0 | 24439 | 0 |
| D | 0 | 31565 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6080 | 30 | 0.493421% |
| B | 6080 | 71 | 1.167763% |
| C | 6080 | 16 | 0.263158% |
| D | 6080 | 1000 | 16.447368% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7105 | 6081 | 189 | 189 | 2.66% | 3.11% |  |
| B | 7105 | 6081 | 350 | 350 | 4.93% | 5.76% |  |
| C | 7105 | 6081 | 119 | 119 | 1.67% | 1.96% |  |
| D | 7105 | 6081 | 1505 | 1505 | 21.18% | 24.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 57721 | 125.81 | 1831 | 1843 | 444.1 |
| A | 12 | 189 | 13550 | 26.36 | 1831 | 1843 | 444.1 |
| A | 15 | 249 | 11449 | 21.63 | 1831 | 1843 | 444.1 |
| B | 8 | 38 | 352190 | 778.11 | 1913 | 1926 | 450.1 |
| B | 7 | 221 | 115779 | 252.92 | 1913 | 1926 | 450.1 |
| B | 0 | 214 | 14791 | 28.58 | 1913 | 1926 | 450.1 |
| C | 15 | 241 | 49318 | 101.05 | 1693 | 1746 | 470.8 |
| C | 3 | 111 | 38474 | 78.02 | 1693 | 1746 | 470.8 |
| C | 3 | 79 | 33195 | 66.8 | 1693 | 1746 | 470.8 |
| D | 13 | 25 | 2414912 | 4904.51 | 1587 | 1640 | 492.1 |
| D | 6 | 226 | 324647 | 656.45 | 1587 | 1640 | 492.1 |
| D | 12 | 22 | 132826 | 266.61 | 1587 | 1640 | 492.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

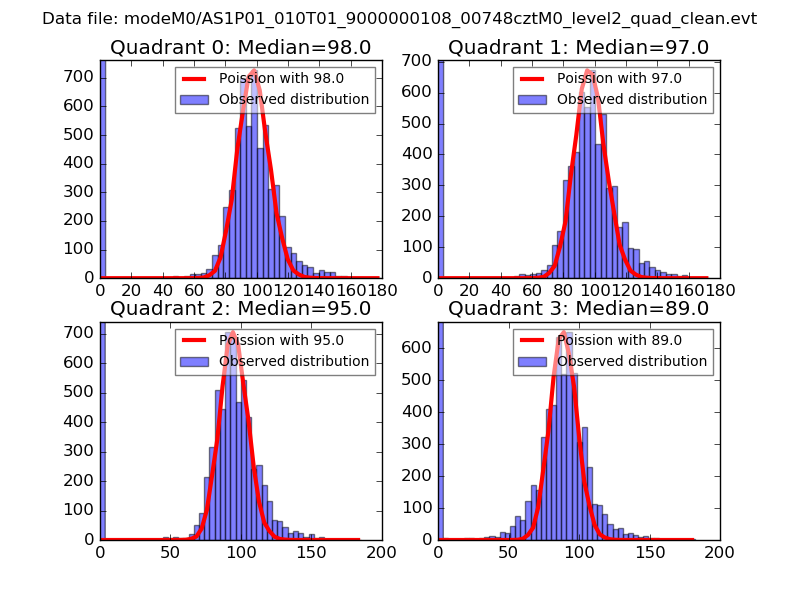

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

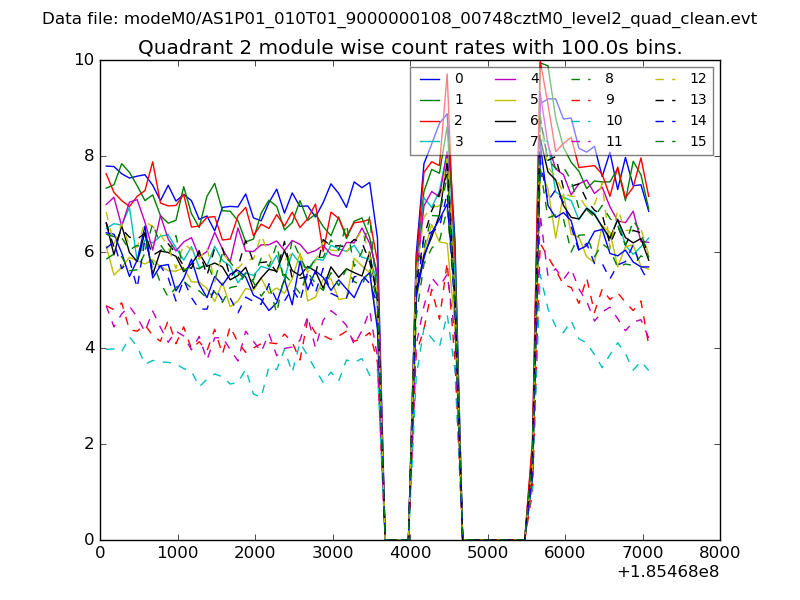

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

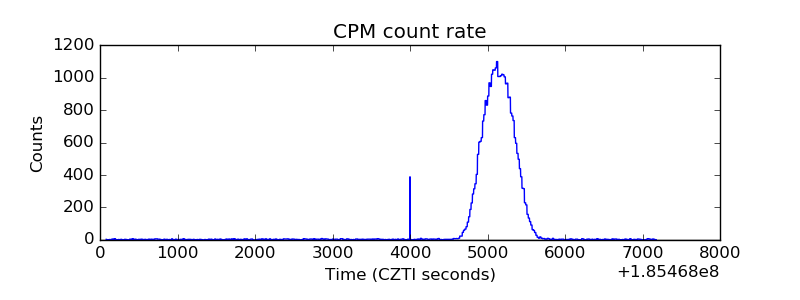

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

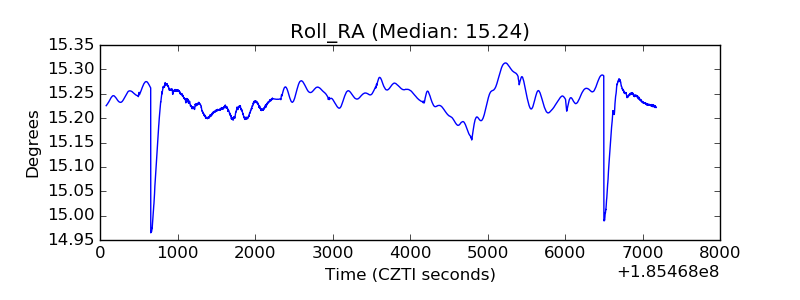

| _Roll_RA |  |
| Veto Counter |  |
