| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00753cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00753cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,083,651,840 | 98,392,320 |
| Size | 1.0 GB | 93.8 MB |
| Events in quadrant A | 7,485,008 | 641,162 |
| Events in quadrant B | 7,965,836 | 654,673 |
| Events in quadrant C | 7,540,934 | 631,390 |
| Events in quadrant D | 9,386,480 | 589,436 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26936 | 0 |
| B | 0 | 28376 | 0 |
| C | 0 | 27134 | 0 |
| D | 0 | 32593 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6639 | 6 | 0.090375% |
| B | 6639 | 2 | 0.030125% |
| C | 6639 | 4 | 0.060250% |
| D | 6639 | 292 | 4.398253% |

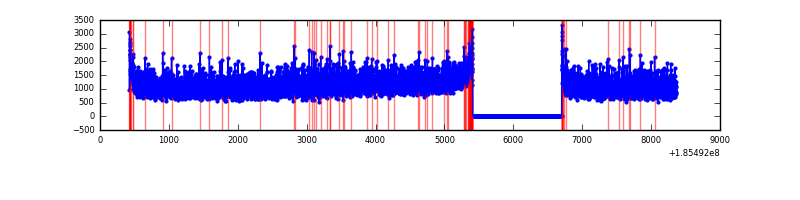

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7934 | 6640 | 128 | 128 | 1.61% | 1.93% |  |
| B | 7934 | 6640 | 168 | 168 | 2.12% | 2.53% |  |
| C | 7934 | 6640 | 96 | 96 | 1.21% | 1.45% |  |
| D | 7934 | 6640 | 1059 | 1059 | 13.35% | 15.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 35645 | 72.64 | 1936 | 1951 | 463.8 |
| A | 12 | 189 | 11996 | 21.66 | 1936 | 1951 | 463.8 |
| A | 13 | 17 | 8119 | 13.3 | 1936 | 1951 | 463.8 |
| B | 0 | 220 | 21024 | 39.4 | 2077 | 2087 | 480.6 |
| B | 0 | 190 | 20561 | 38.44 | 2077 | 2087 | 480.6 |
| B | 14 | 51 | 17709 | 32.51 | 2077 | 2087 | 480.6 |
| C | 5 | 234 | 70038 | 130.52 | 1885 | 1946 | 521.7 |
| C | 15 | 241 | 46605 | 85.6 | 1885 | 1946 | 521.7 |
| C | 3 | 111 | 28679 | 51.24 | 1885 | 1946 | 521.7 |
| D | 13 | 25 | 2241574 | 4148.94 | 1761 | 1815 | 539.8 |
| D | 2 | 107 | 123325 | 225.09 | 1761 | 1815 | 539.8 |
| D | 1 | 4 | 95830 | 174.15 | 1761 | 1815 | 539.8 |

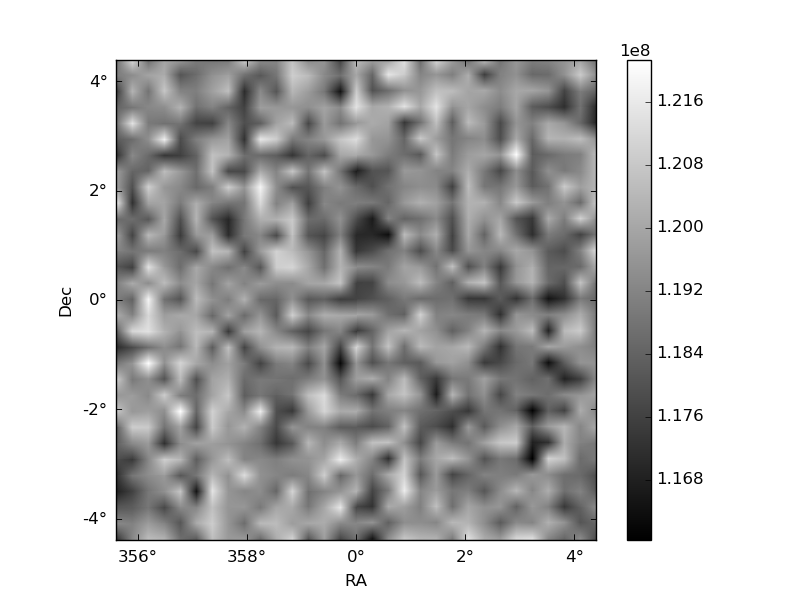

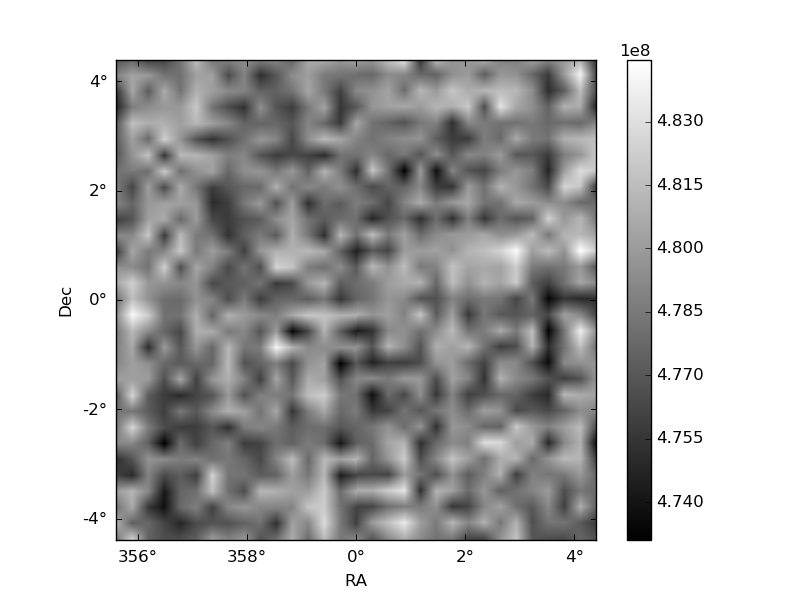

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

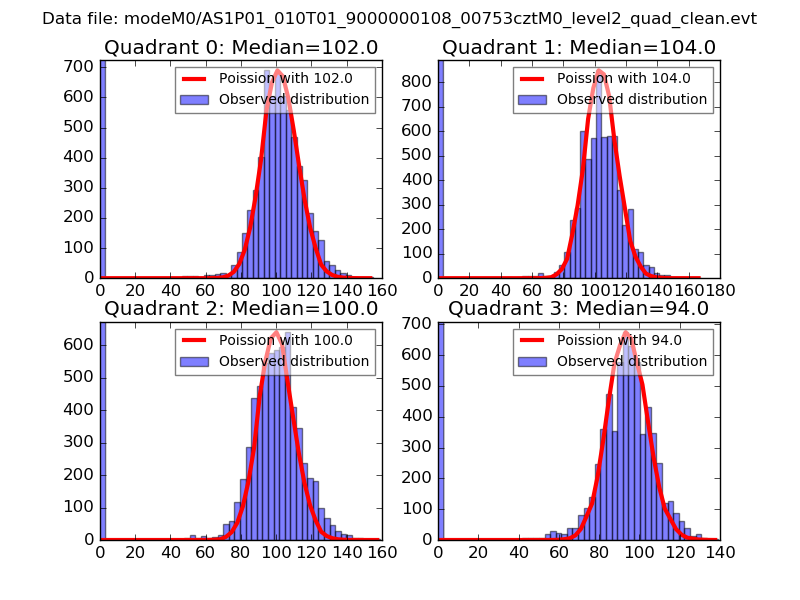

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

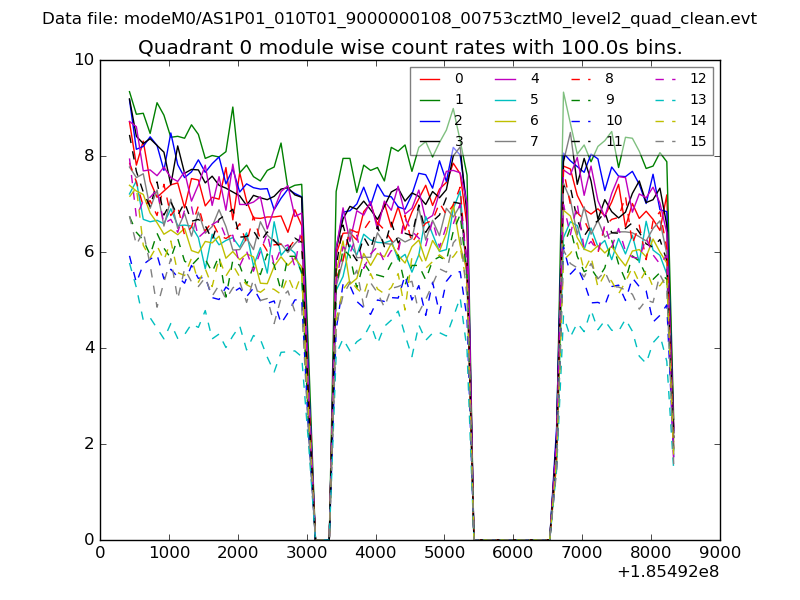

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

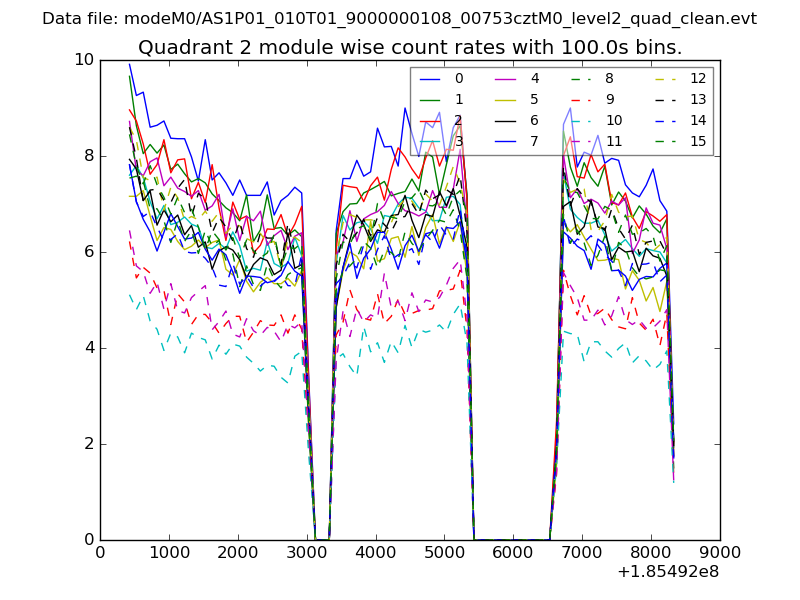

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

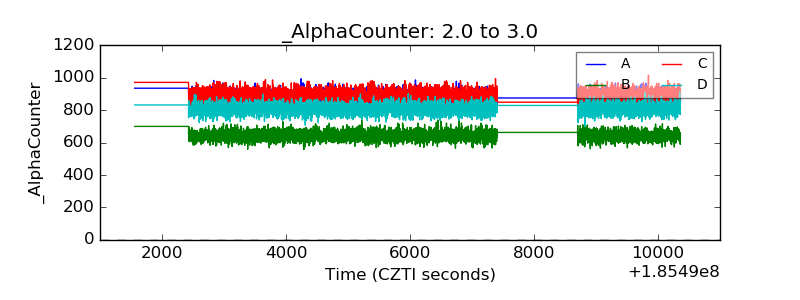

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

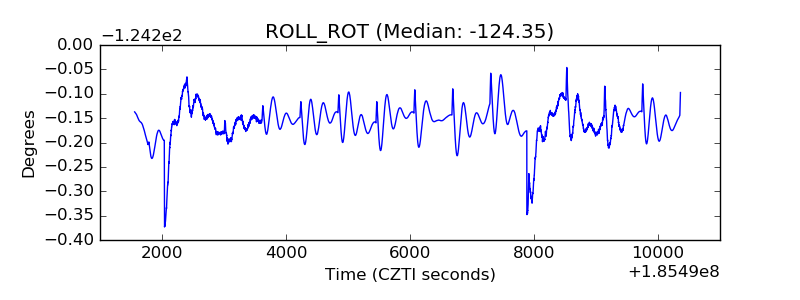

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
