| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00765cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00765cztM0_level2_quad_clean.evt |
| Size (bytes) | 999,144,000 | 93,804,480 |
| Size | 952.9 MB | 89.5 MB |
| Events in quadrant A | 8,272,404 | 614,254 |
| Events in quadrant B | 7,493,280 | 626,866 |
| Events in quadrant C | 6,832,169 | 603,973 |
| Events in quadrant D | 7,261,250 | 574,215 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28846 | 0 |
| B | 0 | 26558 | 0 |
| C | 0 | 24614 | 0 |
| D | 0 | 25926 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6030 | 112 | 1.857380% |
| B | 6029 | 52 | 0.862498% |
| C | 6029 | 25 | 0.414662% |
| D | 6029 | 321 | 5.324266% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7260 | 6031 | 772 | 772 | 10.63% | 12.80% |  |
| B | 7259 | 6030 | 274 | 274 | 3.77% | 4.54% |  |
| C | 7259 | 6030 | 151 | 151 | 2.08% | 2.50% |  |
| D | 7259 | 6030 | 487 | 487 | 6.71% | 8.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 117 | 1186678 | 2781.84 | 1779 | 1793 | 425.9 |
| A | 15 | 233 | 159240 | 369.65 | 1779 | 1793 | 425.9 |
| A | 15 | 249 | 80655 | 185.15 | 1779 | 1793 | 425.9 |
| B | 5 | 171 | 216559 | 491.65 | 1882 | 1891 | 436.6 |
| B | 0 | 220 | 50556 | 111.46 | 1882 | 1891 | 436.6 |
| B | 0 | 23 | 28709 | 61.42 | 1882 | 1891 | 436.6 |
| C | 10 | 17 | 203846 | 438.64 | 1667 | 1718 | 460.8 |
| C | 15 | 241 | 32148 | 66.04 | 1667 | 1718 | 460.8 |
| C | 3 | 111 | 32073 | 65.87 | 1667 | 1718 | 460.8 |
| D | 2 | 53 | 472250 | 957.9 | 1662 | 1678 | 491.3 |
| D | 10 | 85 | 172076 | 346.86 | 1662 | 1678 | 491.3 |
| D | 13 | 25 | 129594 | 260.39 | 1662 | 1678 | 491.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

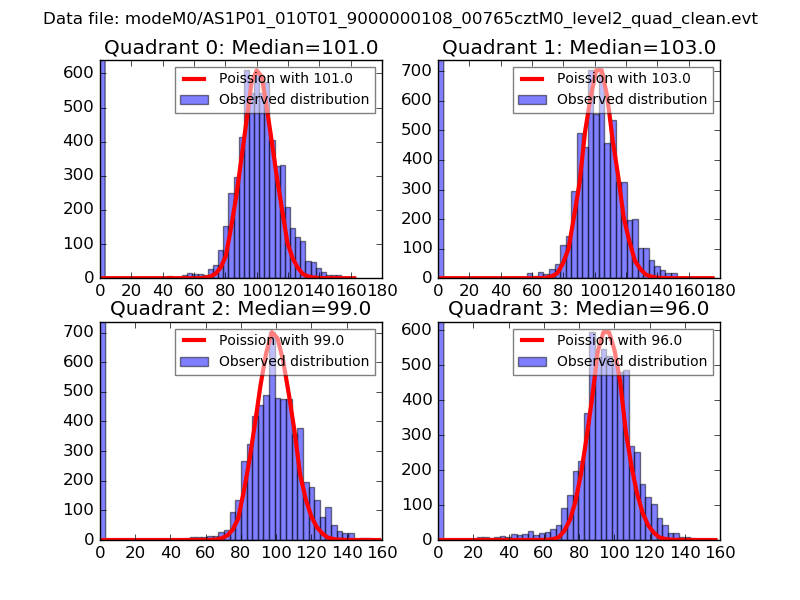

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

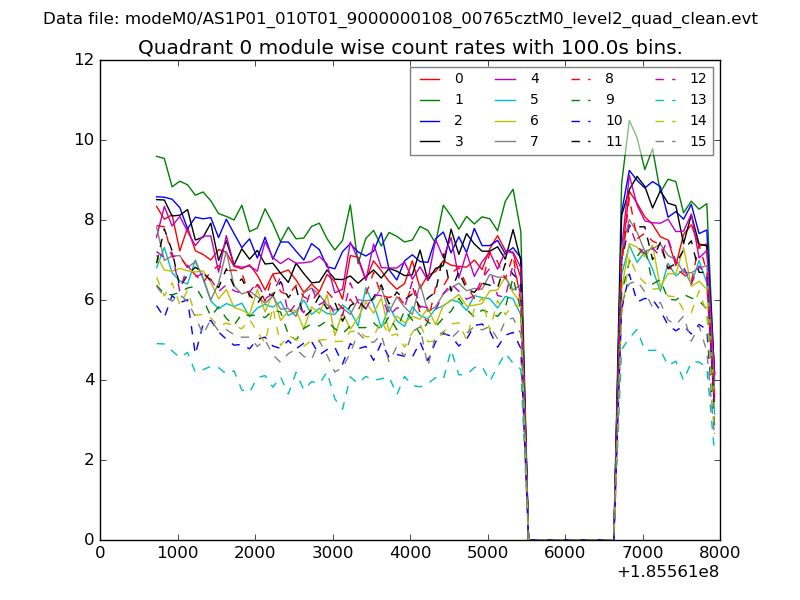

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

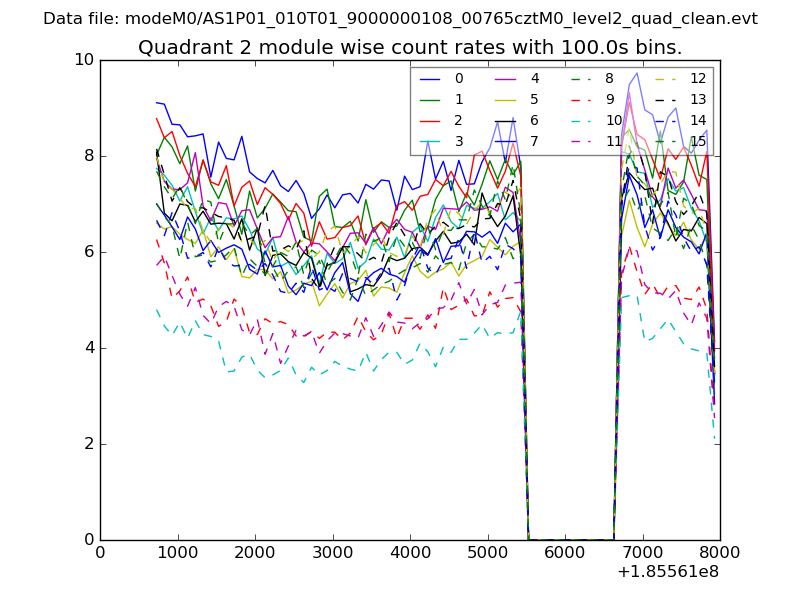

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

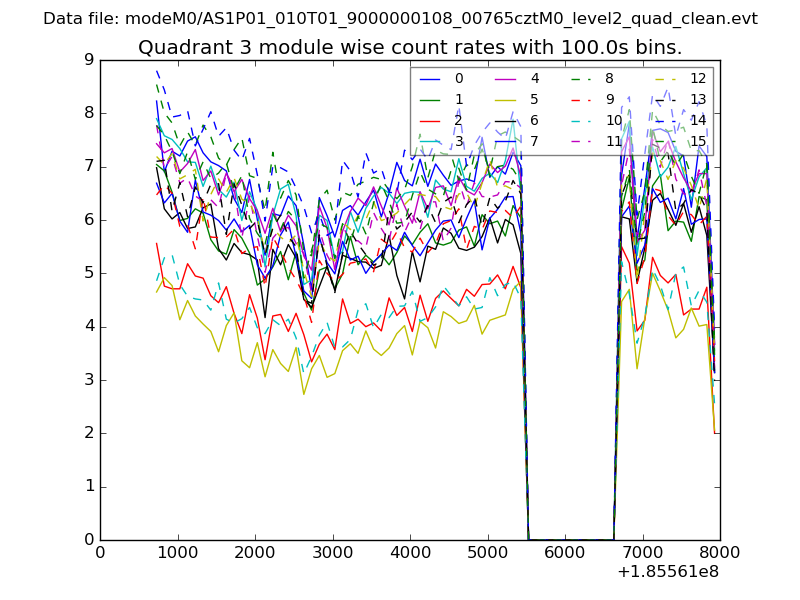

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

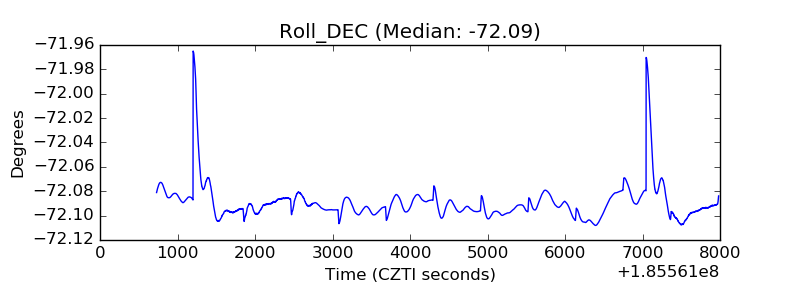

| _Roll_DEC |  |

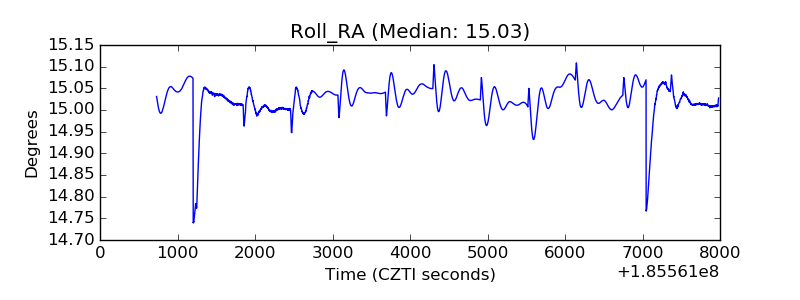

| _Roll_RA |  |

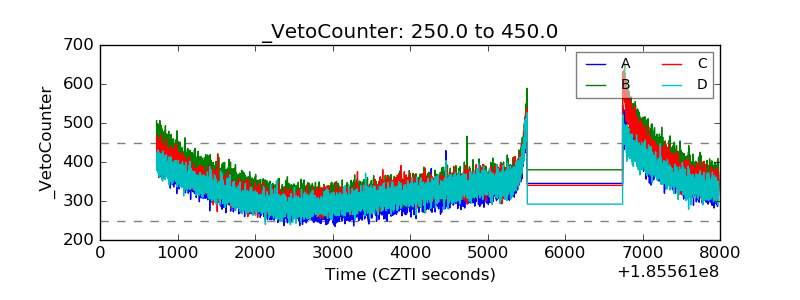

| Veto Counter |  |
