| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00781cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00781cztM0_level2_quad_clean.evt |
| Size (bytes) | 934,107,840 | 95,489,280 |
| Size | 890.8 MB | 91.1 MB |
| Events in quadrant A | 6,890,129 | 628,063 |
| Events in quadrant B | 7,456,878 | 638,316 |
| Events in quadrant C | 7,057,001 | 613,372 |
| Events in quadrant D | 6,486,216 | 592,406 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24732 | 0 |
| B | 0 | 26404 | 0 |
| C | 0 | 25236 | 0 |
| D | 0 | 23603 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6004 | 6 | 0.099933% |
| B | 6004 | 25 | 0.416389% |
| C | 6003 | 11 | 0.183242% |
| D | 6003 | 32 | 0.533067% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7270 | 6006 | 159 | 159 | 2.19% | 2.65% |  |
| B | 7270 | 6006 | 234 | 234 | 3.22% | 3.90% |  |
| C | 7269 | 6005 | 186 | 186 | 2.56% | 3.10% |  |
| D | 7269 | 6005 | 141 | 141 | 1.94% | 2.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 22821 | 49.26 | 1782 | 1795 | 426.8 |
| A | 8 | 192 | 20045 | 42.76 | 1782 | 1795 | 426.8 |
| A | 15 | 17 | 10962 | 21.48 | 1782 | 1795 | 426.8 |
| B | 5 | 191 | 130104 | 292.93 | 1886 | 1897 | 437.7 |
| B | 4 | 232 | 65337 | 144.95 | 1886 | 1897 | 437.7 |
| B | 11 | 51 | 24660 | 52.01 | 1886 | 1897 | 437.7 |
| C | 10 | 207 | 238426 | 510.34 | 1685 | 1738 | 463.8 |
| C | 10 | 17 | 125966 | 267.86 | 1685 | 1738 | 463.8 |
| C | 15 | 241 | 63528 | 133.23 | 1685 | 1738 | 463.8 |
| D | 12 | 188 | 166754 | 337.63 | 1606 | 1662 | 489.0 |
| D | 13 | 25 | 95290 | 191.48 | 1606 | 1662 | 489.0 |
| D | 1 | 4 | 83931 | 168.25 | 1606 | 1662 | 489.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

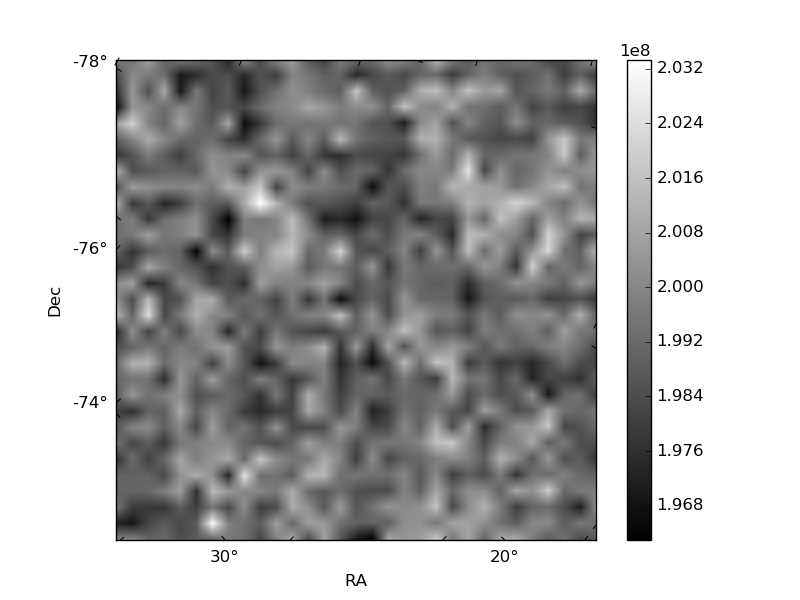

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

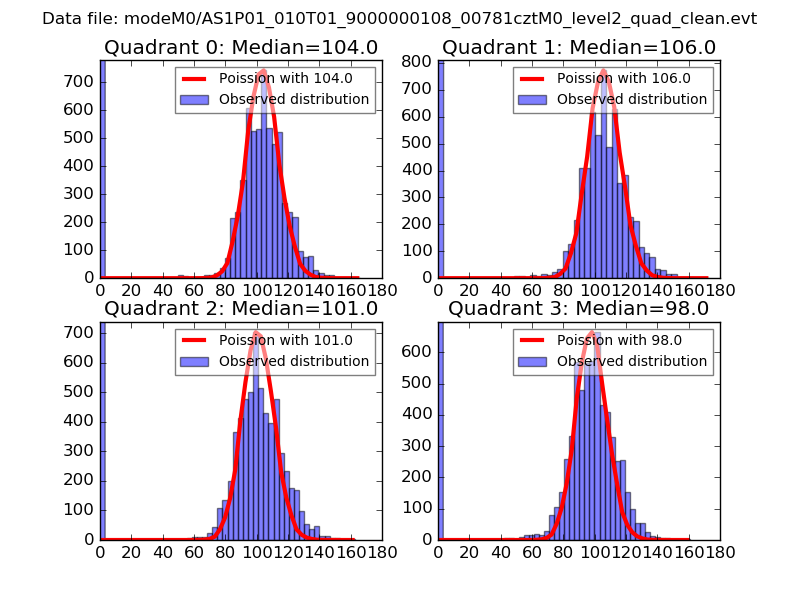

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

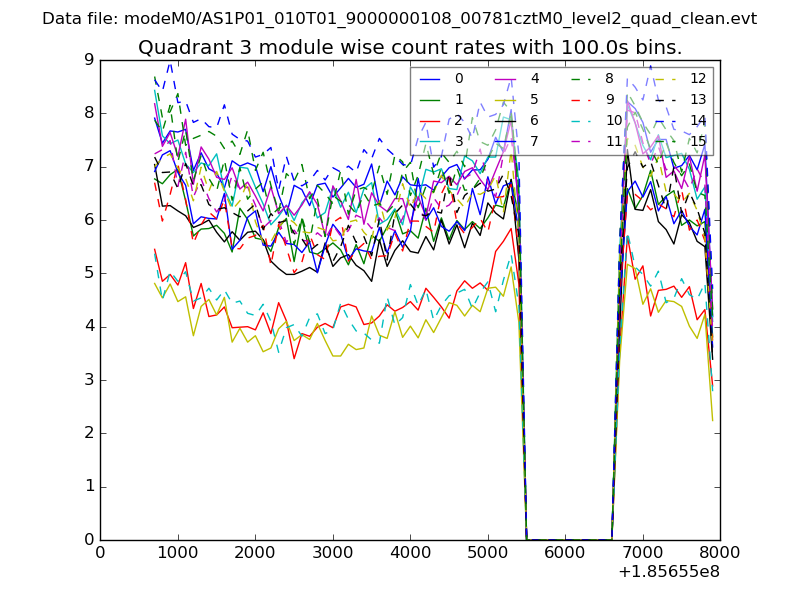

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

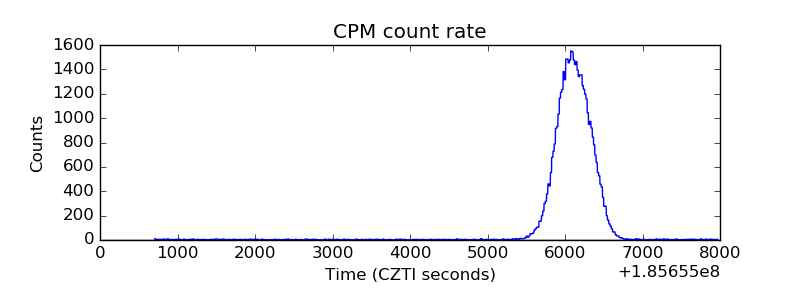

| _CPM_Rate |  |

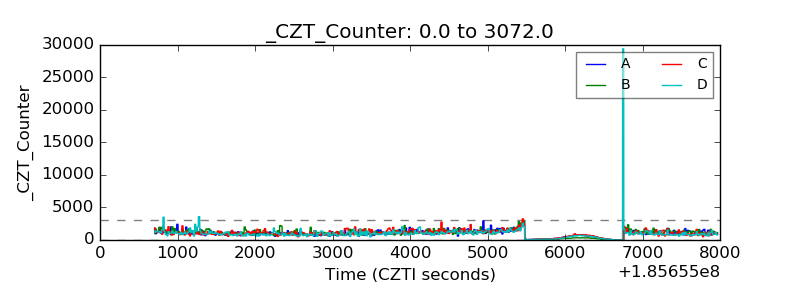

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

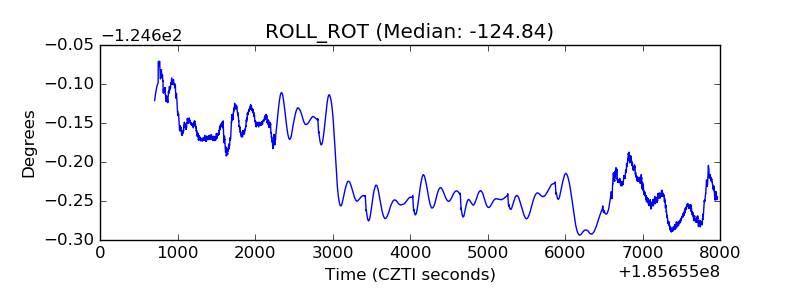

| _ROLL_ROT |  |

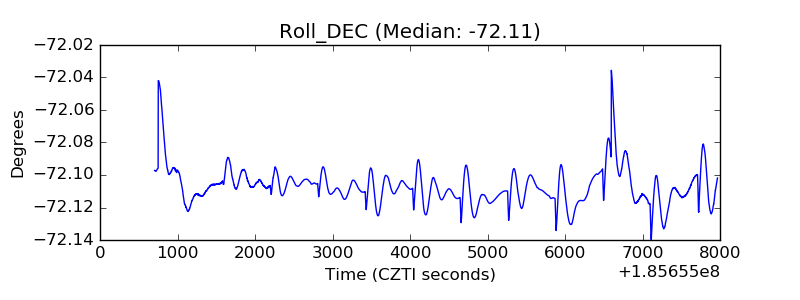

| _Roll_DEC |  |
| _Roll_RA |  |

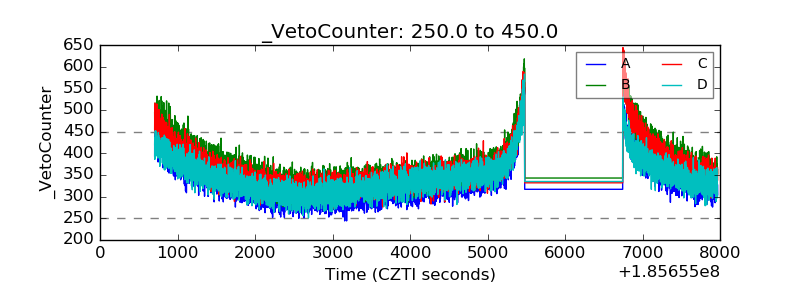

| Veto Counter |  |
