| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000108_00784cztM0_level2.evt | modeM0/AS1P01_010T01_9000000108_00784cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,197,429,120 | 105,736,320 |
| Size | 1.1 GB | 100.8 MB |
| Events in quadrant A | 8,319,046 | 692,221 |
| Events in quadrant B | 8,770,404 | 697,917 |
| Events in quadrant C | 10,666,694 | 652,915 |
| Events in quadrant D | 8,033,730 | 660,149 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29798 | 0 |
| B | 0 | 31161 | 0 |
| C | 0 | 36823 | 0 |
| D | 0 | 28959 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7163 | 52 | 0.725953% |
| B | 7163 | 64 | 0.893480% |
| C | 7163 | 457 | 6.380008% |
| D | 7163 | 70 | 0.977244% |

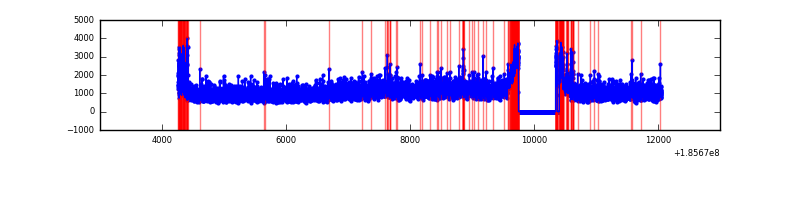

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7798 | 7165 | 235 | 235 | 3.01% | 3.28% |  |
| B | 7798 | 7165 | 298 | 298 | 3.82% | 4.16% |  |
| C | 7798 | 7165 | 1235 | 1235 | 15.84% | 17.24% |  |
| D | 7798 | 7165 | 284 | 284 | 3.64% | 3.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 79 | 35076 | 63.82 | 2150 | 2171 | 515.6 |
| A | 15 | 17 | 18846 | 32.34 | 2150 | 2171 | 515.6 |
| A | 11 | 79 | 9203 | 13.64 | 2150 | 2171 | 515.6 |
| B | 5 | 191 | 67793 | 122.54 | 2272 | 2278 | 534.6 |
| B | 4 | 170 | 20627 | 34.32 | 2272 | 2278 | 534.6 |
| B | 0 | 187 | 16810 | 27.18 | 2272 | 2278 | 534.6 |
| C | 10 | 17 | 2499263 | 4381.13 | 2046 | 2121 | 570.0 |
| C | 9 | 52 | 61693 | 104.52 | 2046 | 2121 | 570.0 |
| C | 3 | 111 | 36900 | 61.02 | 2046 | 2121 | 570.0 |
| D | 1 | 4 | 281155 | 452.95 | 1989 | 2065 | 616.2 |
| D | 13 | 25 | 145149 | 232.22 | 1989 | 2065 | 616.2 |
| D | 10 | 154 | 95976 | 152.41 | 1989 | 2065 | 616.2 |

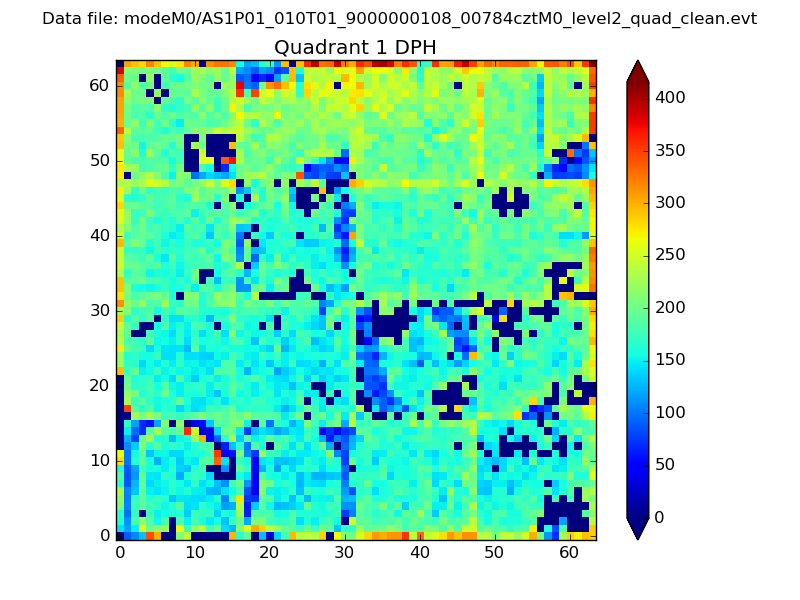

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

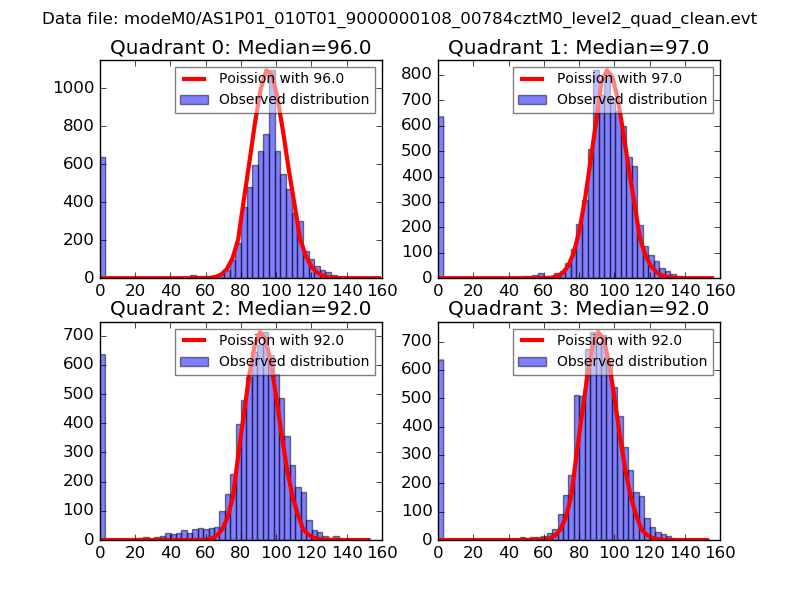

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

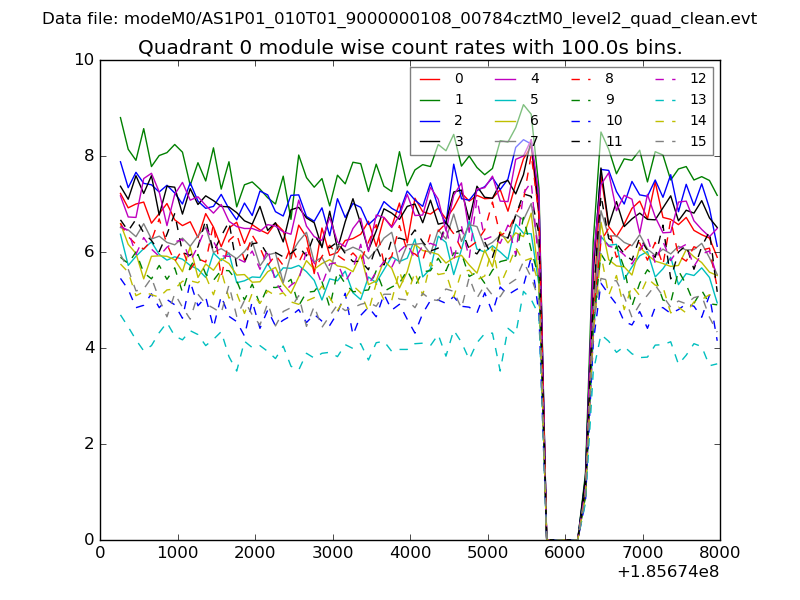

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

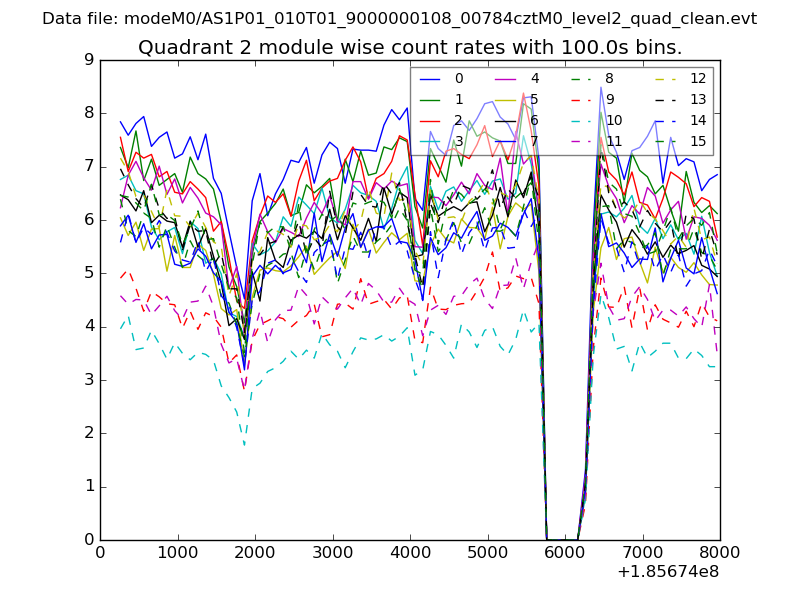

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

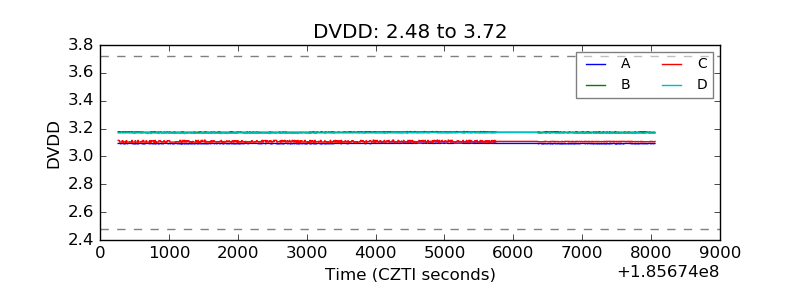

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

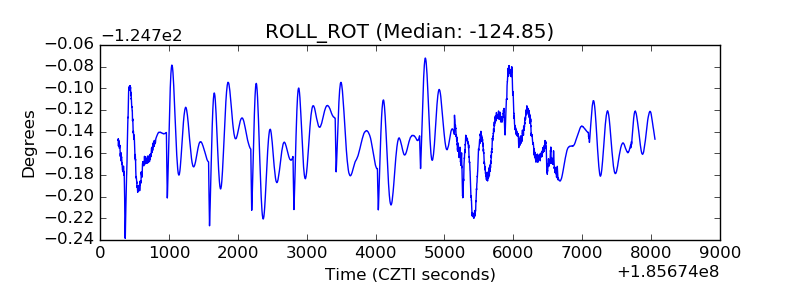

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

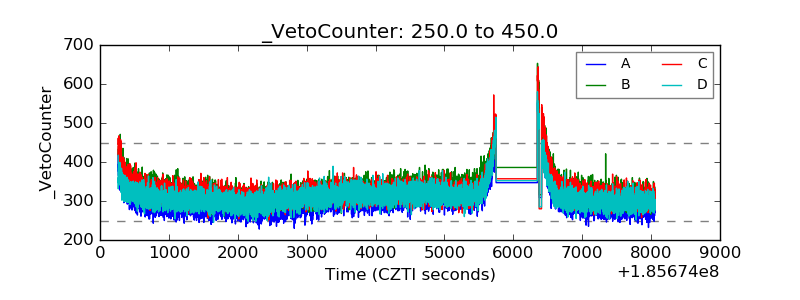

| Veto Counter |  |
