| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000112_00810cztM0_level2.evt | modeM0/AS1P01_010T01_9000000112_00810cztM0_level2_quad_clean.evt |
| Size (bytes) | 962,231,040 | 100,779,840 |
| Size | 917.7 MB | 96.1 MB |
| Events in quadrant A | 7,207,341 | 666,471 |
| Events in quadrant B | 7,702,426 | 675,310 |
| Events in quadrant C | 7,082,490 | 647,493 |
| Events in quadrant D | 6,735,315 | 628,288 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25857 | 0 |
| B | 0 | 27281 | 0 |
| C | 0 | 25484 | 0 |
| D | 0 | 24474 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6229 | 8 | 0.128432% |
| B | 6229 | 22 | 0.353187% |
| C | 6228 | 12 | 0.192678% |
| D | 6228 | 20 | 0.321130% |

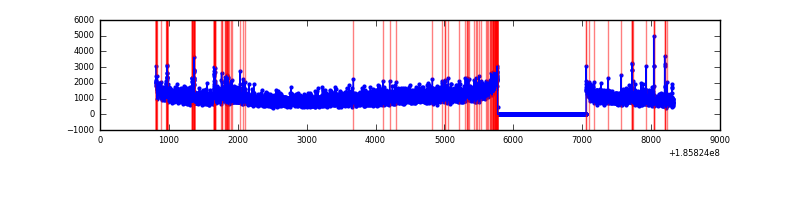

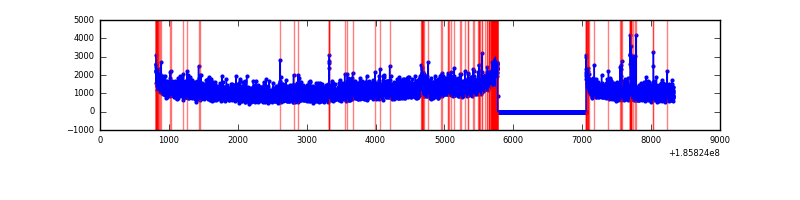

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7514 | 6230 | 199 | 199 | 2.65% | 3.19% |  |
| B | 7514 | 6230 | 231 | 231 | 3.07% | 3.71% |  |
| C | 7513 | 6229 | 170 | 170 | 2.26% | 2.73% |  |
| D | 7513 | 6229 | 142 | 142 | 1.89% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 28012 | 58.75 | 1870 | 1886 | 444.7 |
| A | 11 | 79 | 7998 | 13.74 | 1870 | 1886 | 444.7 |
| A | 15 | 17 | 5804 | 8.81 | 1870 | 1886 | 444.7 |
| B | 0 | 23 | 70284 | 148.99 | 1976 | 1984 | 458.4 |
| B | 0 | 220 | 22160 | 44.01 | 1976 | 1984 | 458.4 |
| B | 11 | 51 | 21971 | 43.6 | 1976 | 1984 | 458.4 |
| C | 9 | 52 | 104743 | 212.54 | 1760 | 1818 | 484.3 |
| C | 15 | 241 | 30305 | 58.83 | 1760 | 1818 | 484.3 |
| C | 3 | 111 | 26769 | 51.52 | 1760 | 1818 | 484.3 |
| D | 13 | 58 | 222877 | 428.71 | 1681 | 1736 | 515.8 |
| D | 1 | 4 | 89879 | 170.88 | 1681 | 1736 | 515.8 |
| D | 2 | 16 | 50835 | 95.18 | 1681 | 1736 | 515.8 |

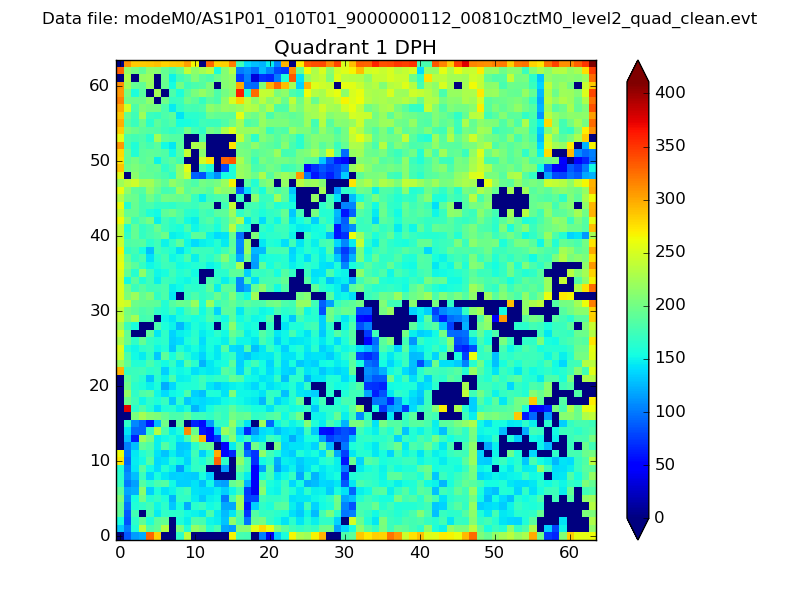

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

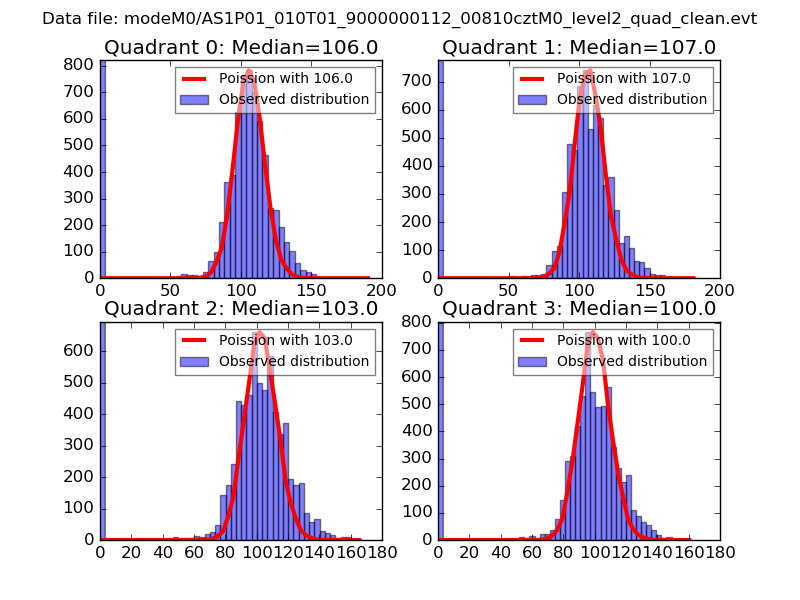

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

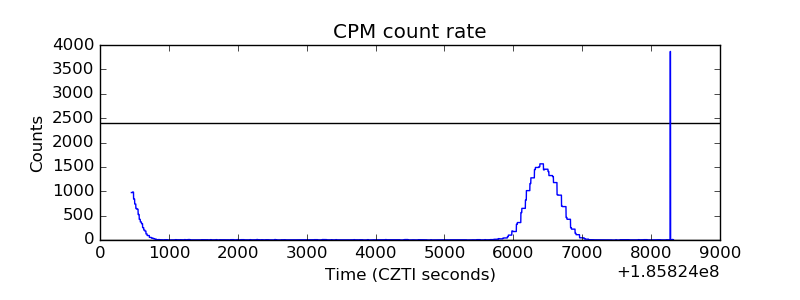

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

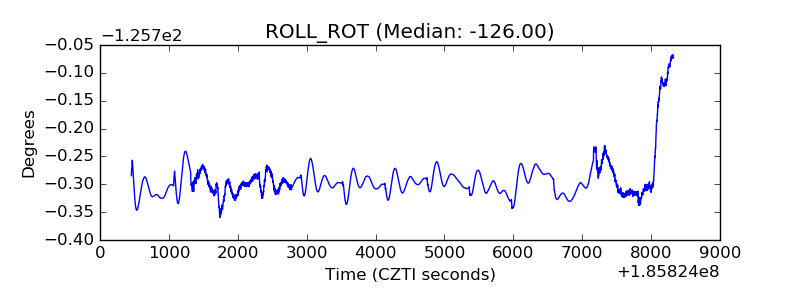

| _ROLL_ROT |  |

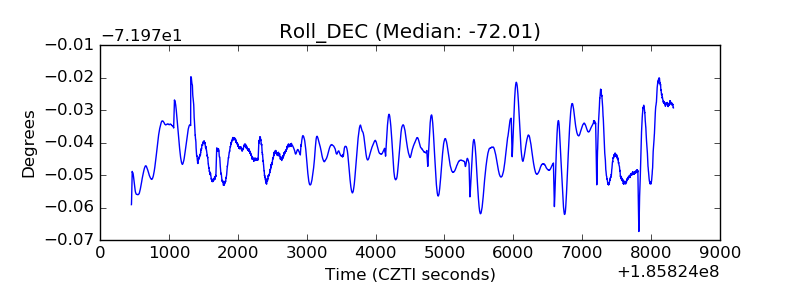

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
