| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000112_00812cztM0_level2.evt | modeM0/AS1P01_010T01_9000000112_00812cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,028,240,640 | 99,276,480 |
| Size | 980.6 MB | 94.7 MB |
| Events in quadrant A | 7,458,048 | 650,866 |
| Events in quadrant B | 8,030,065 | 657,737 |
| Events in quadrant C | 7,424,062 | 636,963 |
| Events in quadrant D | 7,795,351 | 606,238 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26782 | 0 |
| B | 0 | 28521 | 0 |
| C | 0 | 26667 | 0 |
| D | 0 | 27808 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6522 | 5 | 0.076664% |
| B | 6522 | 27 | 0.413983% |
| C | 6522 | 6 | 0.091996% |
| D | 6522 | 269 | 4.124502% |

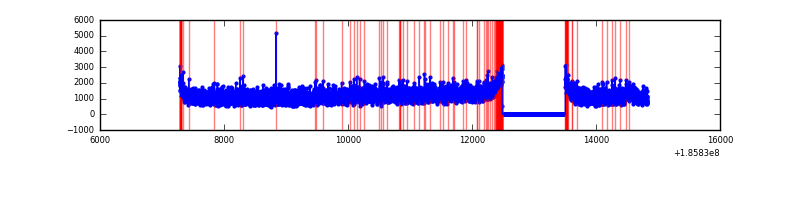

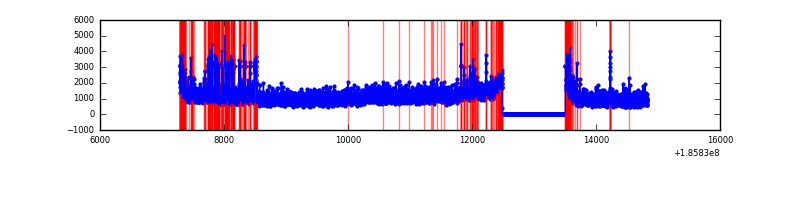

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7542 | 6523 | 170 | 170 | 2.25% | 2.61% |  |
| B | 7542 | 6523 | 256 | 256 | 3.39% | 3.92% |  |
| C | 7542 | 6523 | 148 | 148 | 1.96% | 2.27% |  |
| D | 7542 | 6523 | 453 | 453 | 6.01% | 6.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 17 | 27068 | 53.83 | 1932 | 1940 | 466.8 |
| A | 15 | 233 | 13082 | 23.87 | 1932 | 1940 | 466.8 |
| A | 11 | 79 | 9006 | 15.14 | 1932 | 1940 | 466.8 |
| B | 0 | 23 | 48083 | 96.27 | 2048 | 2045 | 478.2 |
| B | 0 | 190 | 42471 | 84.53 | 2048 | 2045 | 478.2 |
| B | 2 | 209 | 37677 | 74.51 | 2048 | 2045 | 478.2 |
| C | 9 | 52 | 79187 | 149.6 | 1860 | 1925 | 516.5 |
| C | 3 | 111 | 26043 | 46.7 | 1860 | 1925 | 516.5 |
| C | 15 | 241 | 24329 | 43.38 | 1860 | 1925 | 516.5 |
| D | 13 | 25 | 613114 | 1137.06 | 1744 | 1809 | 537.6 |
| D | 2 | 216 | 323682 | 598.7 | 1744 | 1809 | 537.6 |
| D | 11 | 131 | 189821 | 349.71 | 1744 | 1809 | 537.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

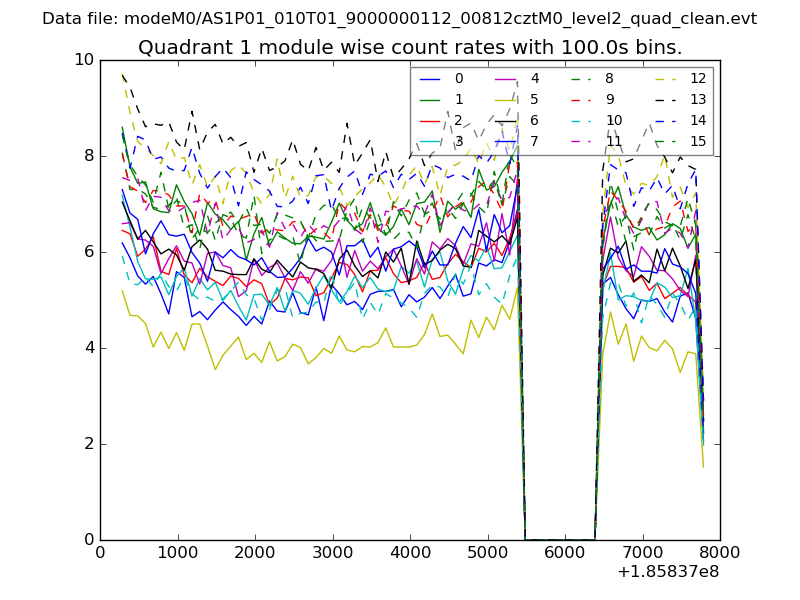

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

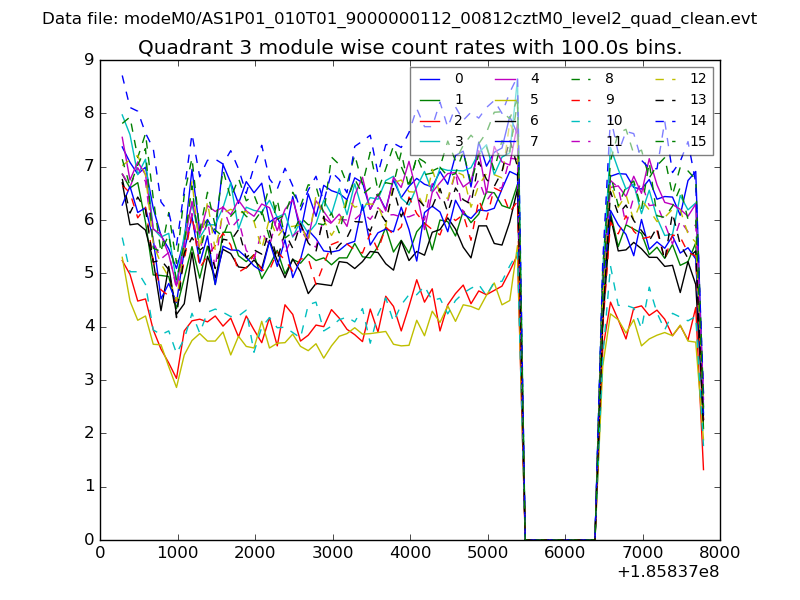

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

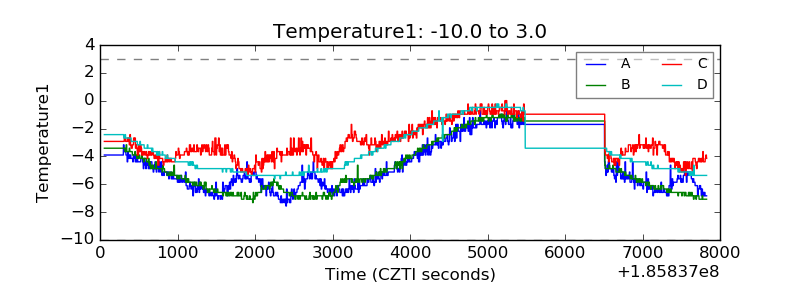

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

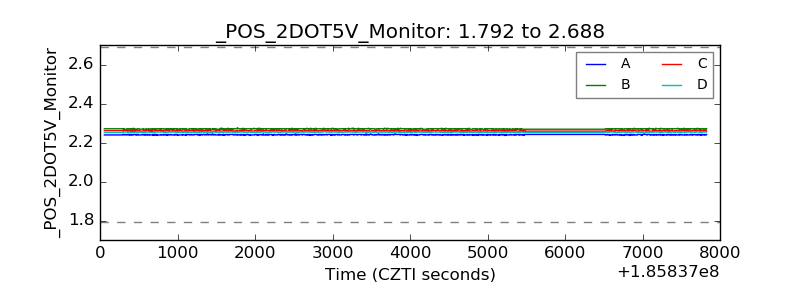

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

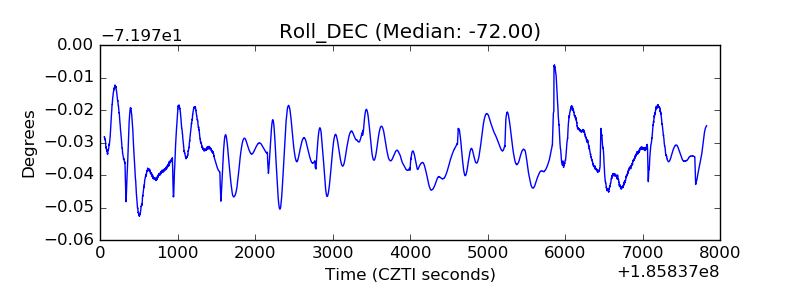

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
