| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000112_00813cztM0_level2.evt | modeM0/AS1P01_010T01_9000000112_00813cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,127,315,520 | 108,302,400 |
| Size | 1.0 GB | 103.3 MB |
| Events in quadrant A | 8,388,741 | 705,220 |
| Events in quadrant B | 8,978,531 | 710,464 |
| Events in quadrant C | 8,462,348 | 686,890 |
| Events in quadrant D | 7,828,521 | 670,957 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30114 | 0 |
| B | 0 | 31797 | 0 |
| C | 0 | 30292 | 0 |
| D | 0 | 28468 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7281 | 18 | 0.247219% |
| B | 7281 | 33 | 0.453234% |
| C | 7281 | 25 | 0.343359% |
| D | 7281 | 62 | 0.851531% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

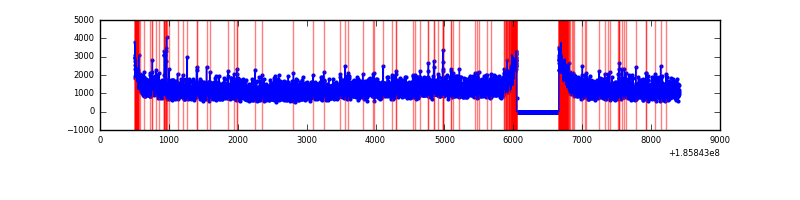

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7896 | 7282 | 248 | 248 | 3.14% | 3.41% |  |
| B | 7896 | 7282 | 305 | 305 | 3.86% | 4.19% |  |
| C | 7896 | 7282 | 213 | 213 | 2.70% | 2.93% |  |
| D | 7896 | 7282 | 249 | 249 | 3.15% | 3.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 17 | 23405 | 40.19 | 2178 | 2188 | 527.9 |
| A | 11 | 79 | 10289 | 15.35 | 2178 | 2188 | 527.9 |
| A | 3 | 111 | 6767 | 8.67 | 2178 | 2188 | 527.9 |
| B | 7 | 221 | 60271 | 108.47 | 2306 | 2314 | 534.3 |
| B | 0 | 23 | 34797 | 60.8 | 2306 | 2314 | 534.3 |
| B | 0 | 182 | 33373 | 58.13 | 2306 | 2314 | 534.3 |
| C | 9 | 52 | 154432 | 259.86 | 2103 | 2176 | 585.9 |
| C | 3 | 111 | 32300 | 51.41 | 2103 | 2176 | 585.9 |
| C | 15 | 241 | 28621 | 45.13 | 2103 | 2176 | 585.9 |
| D | 2 | 216 | 181199 | 288.15 | 2002 | 2073 | 621.6 |
| D | 1 | 4 | 39405 | 60.05 | 2002 | 2073 | 621.6 |
| D | 2 | 63 | 27408 | 40.75 | 2002 | 2073 | 621.6 |

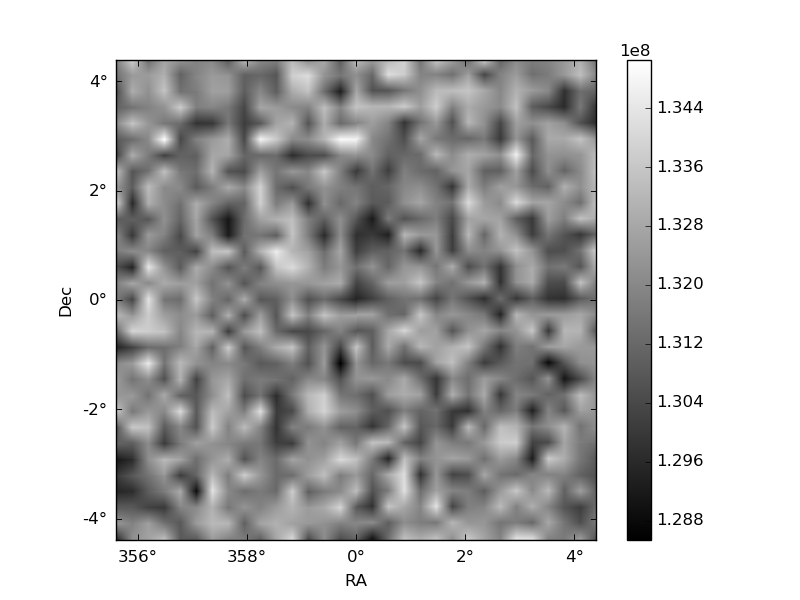

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

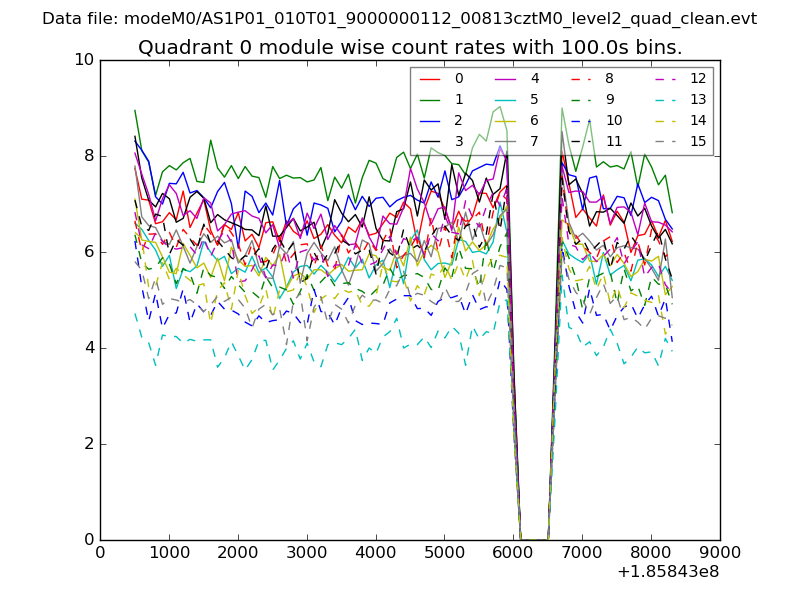

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

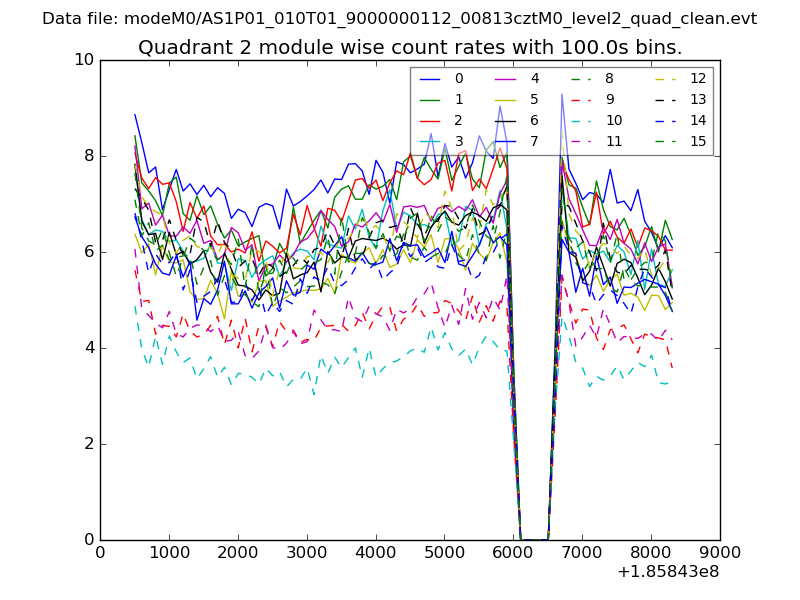

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

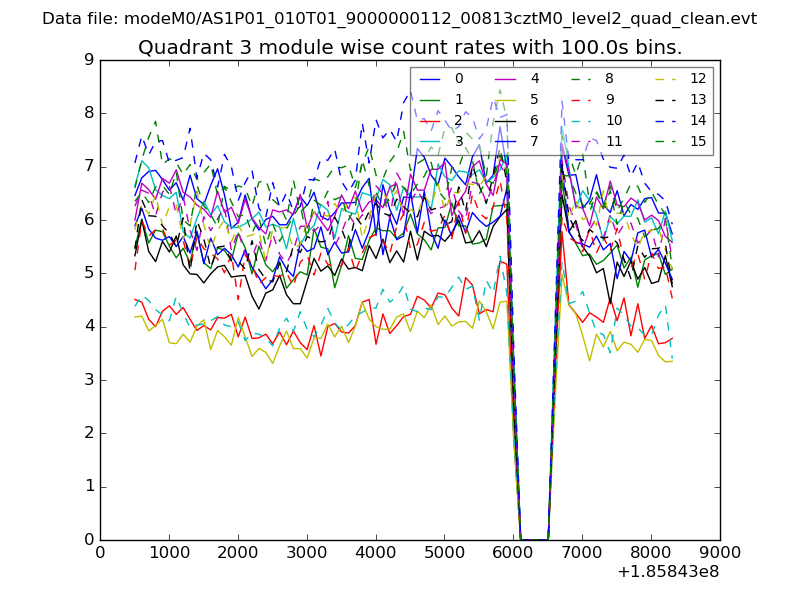

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

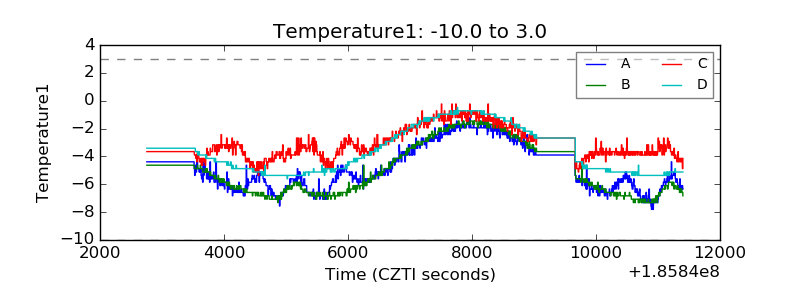

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

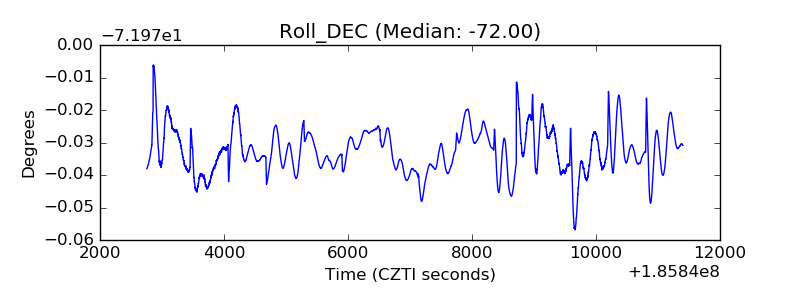

| _Roll_DEC |  |
| _Roll_RA |  |

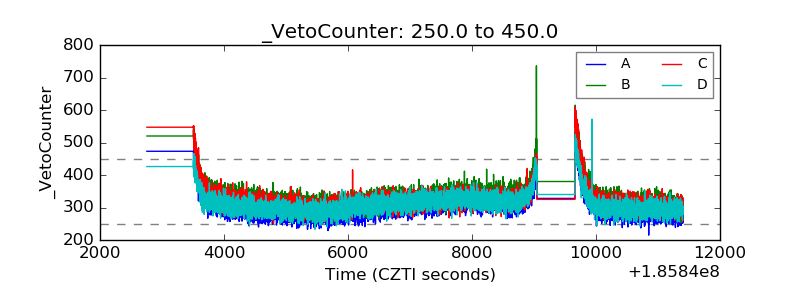

| Veto Counter |  |
