| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000112_00817cztM0_level2.evt | modeM0/AS1P01_010T01_9000000112_00817cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,132,954,560 | 99,017,280 |
| Size | 1.1 GB | 94.4 MB |
| Events in quadrant A | 8,801,542 | 633,245 |
| Events in quadrant B | 8,642,126 | 643,683 |
| Events in quadrant C | 8,238,764 | 635,254 |
| Events in quadrant D | 8,181,315 | 614,934 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30944 | 0 |
| B | 0 | 30475 | 0 |
| C | 0 | 29281 | 0 |
| D | 0 | 29145 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6762 | 150 | 2.218279% |
| B | 6761 | 115 | 1.700932% |
| C | 6761 | 112 | 1.656560% |
| D | 6761 | 180 | 2.662328% |

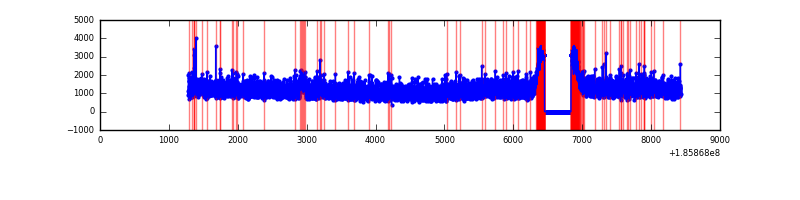

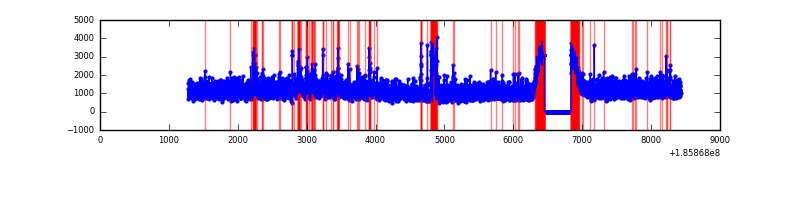

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

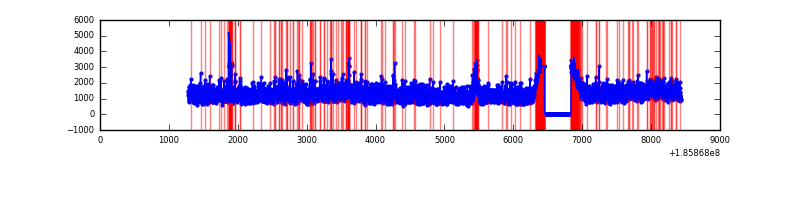

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7147 | 6762 | 408 | 408 | 5.71% | 6.03% |  |
| B | 7146 | 6761 | 320 | 320 | 4.48% | 4.73% |  |
| C | 7146 | 6761 | 283 | 283 | 3.96% | 4.19% |  |
| D | 7146 | 6761 | 384 | 384 | 5.37% | 5.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 328535 | 636.62 | 2121 | 2138 | 512.7 |
| A | 8 | 192 | 313743 | 607.77 | 2121 | 2138 | 512.7 |
| A | 14 | 79 | 14146 | 23.42 | 2121 | 2138 | 512.7 |
| B | 7 | 221 | 98023 | 182.44 | 2205 | 2213 | 525.2 |
| B | 0 | 220 | 31888 | 56.51 | 2205 | 2213 | 525.2 |
| B | 0 | 182 | 27619 | 48.38 | 2205 | 2213 | 525.2 |
| C | 15 | 241 | 151669 | 262.34 | 2028 | 2105 | 570.1 |
| C | 10 | 207 | 51311 | 86.31 | 2028 | 2105 | 570.1 |
| C | 3 | 111 | 38644 | 64.09 | 2028 | 2105 | 570.1 |
| D | 13 | 169 | 209341 | 336.26 | 1977 | 2045 | 616.5 |
| D | 13 | 13 | 200359 | 321.69 | 1977 | 2045 | 616.5 |
| D | 1 | 4 | 137340 | 219.46 | 1977 | 2045 | 616.5 |

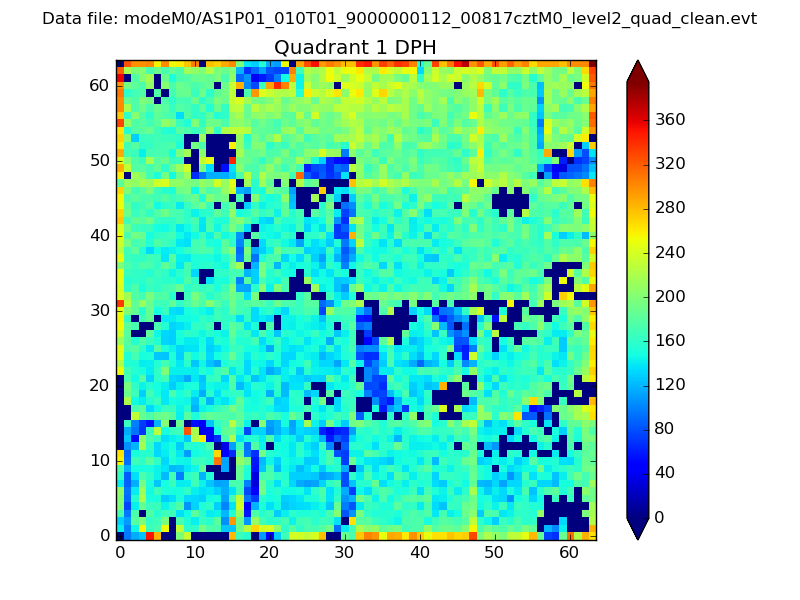

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

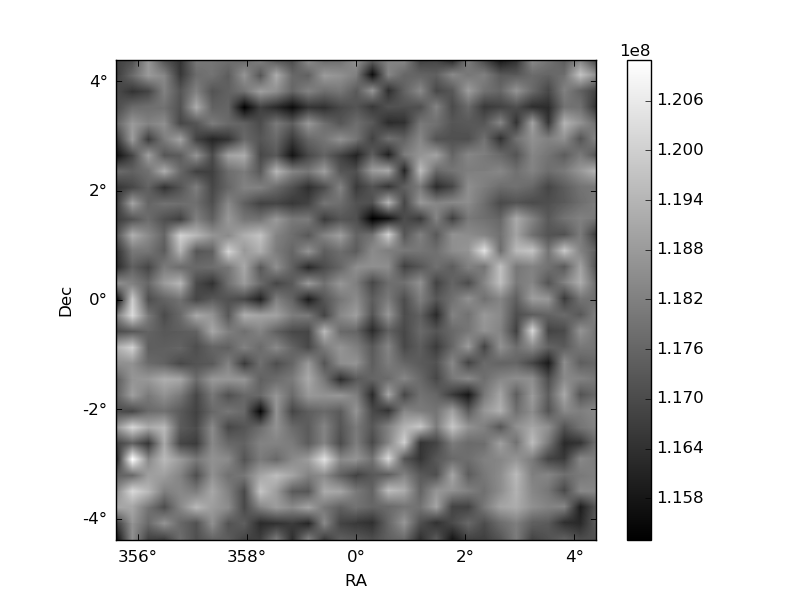

| Quadrant D |  |
 |
Quadrant C |

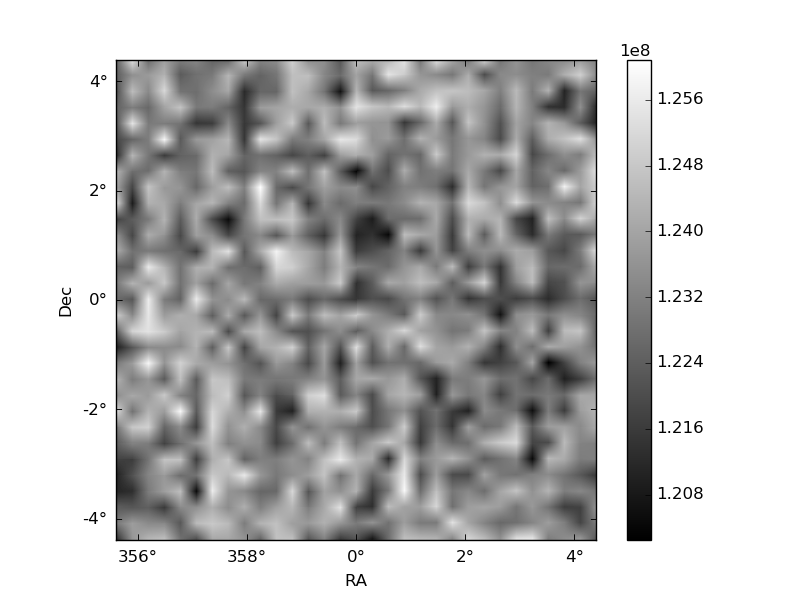

| Plot type | Count rate plots | Images |
|---|---|---|

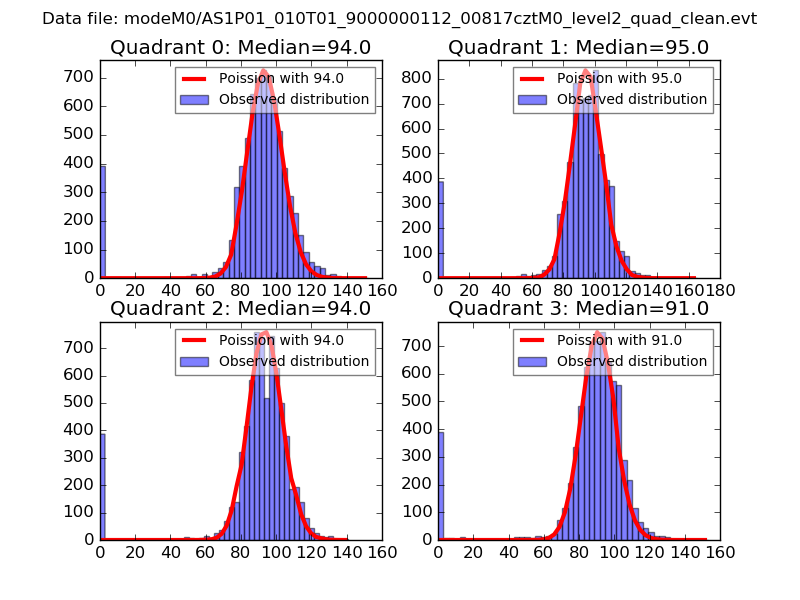

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

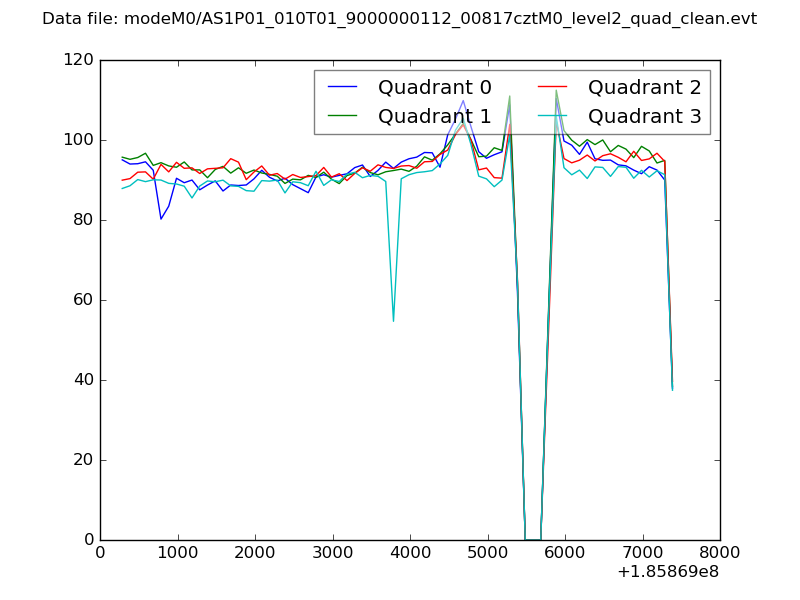

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

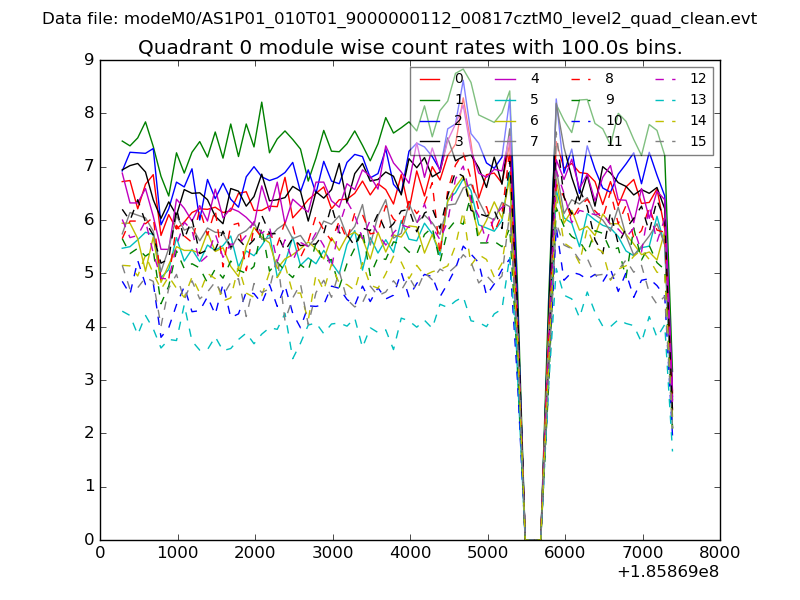

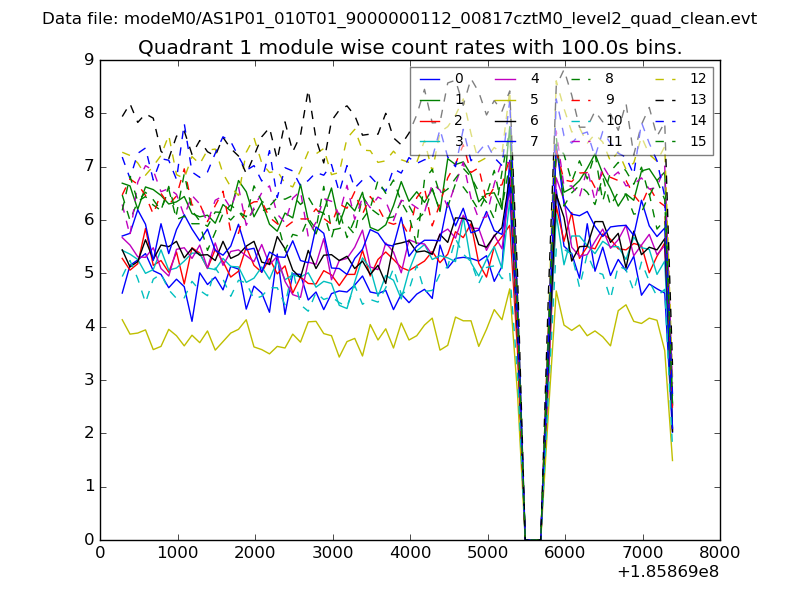

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

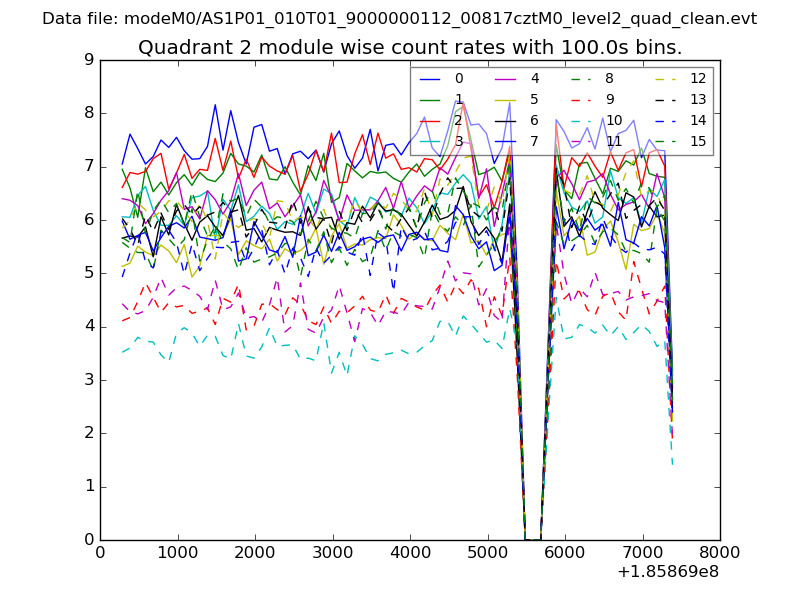

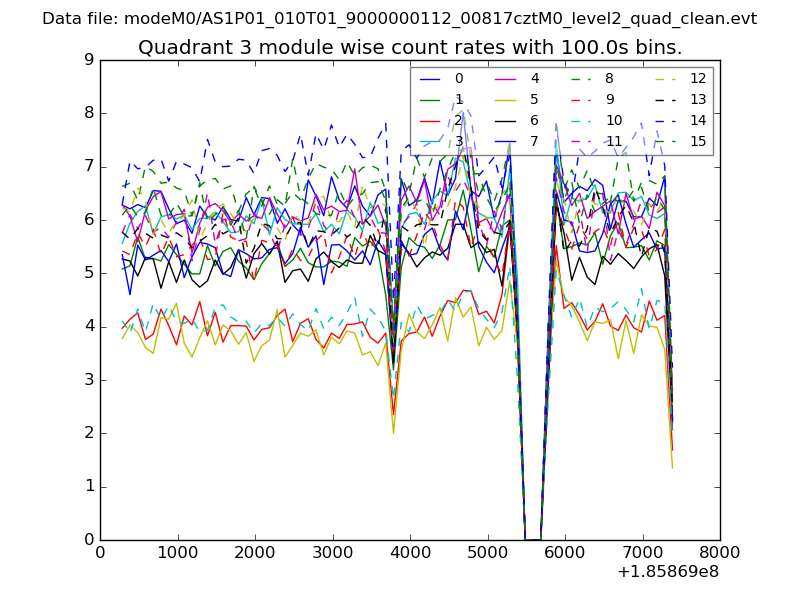

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

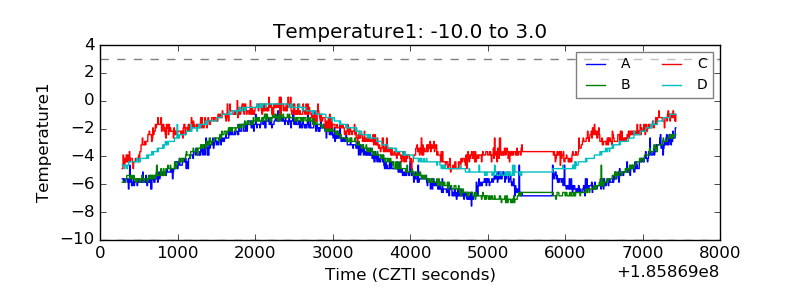

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

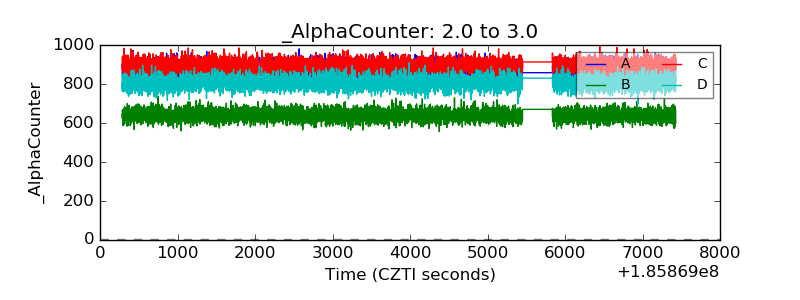

| Alpha Counter |  |

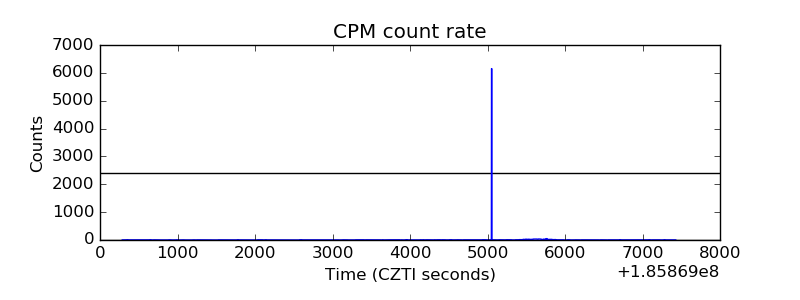

| _CPM_Rate |  |

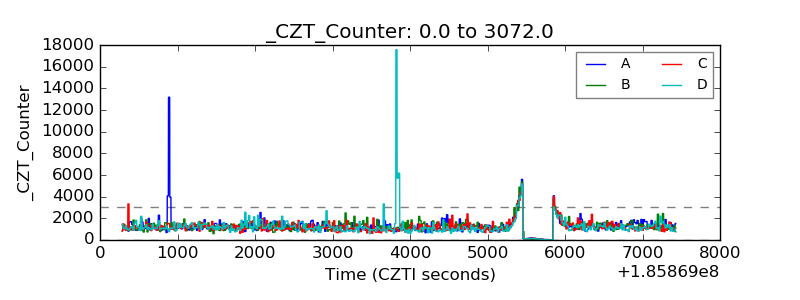

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

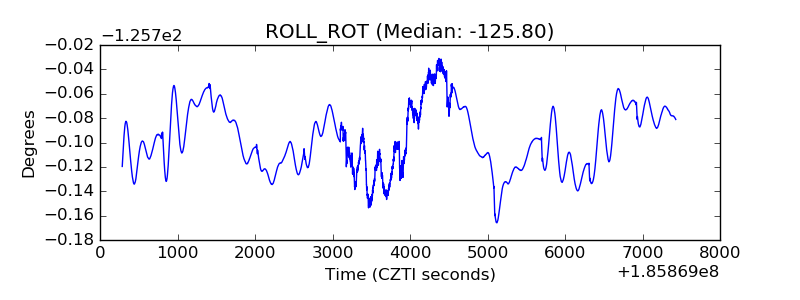

| _ROLL_ROT |  |

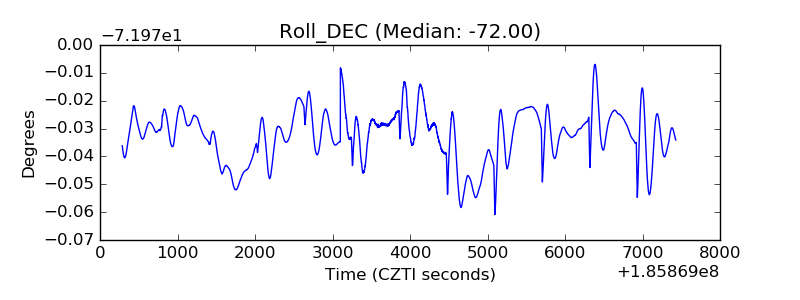

| _Roll_DEC |  |

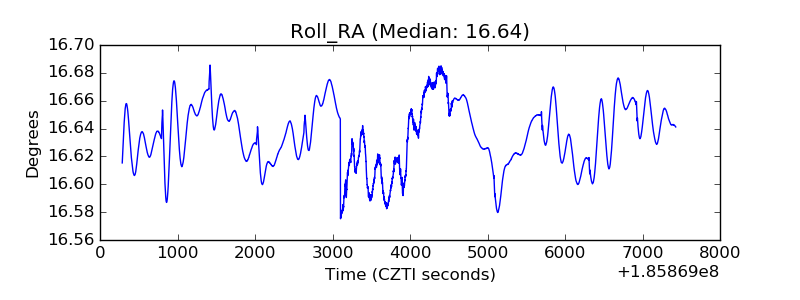

| _Roll_RA |  |

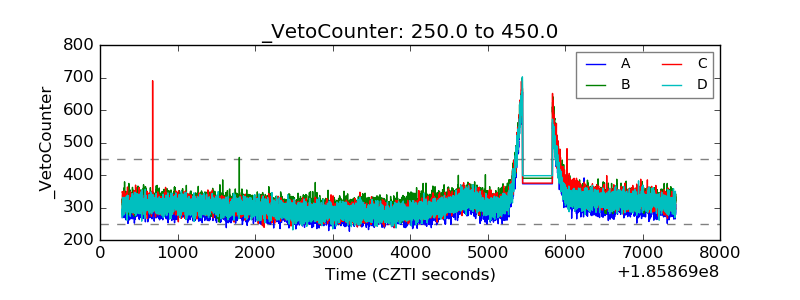

| Veto Counter |  |
