| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000112_00825cztM0_level2.evt | modeM0/AS1P01_010T01_9000000112_00825cztM0_level2_quad_clean.evt |
| Size (bytes) | 985,881,600 | 98,899,200 |
| Size | 940.2 MB | 94.3 MB |
| Events in quadrant A | 7,170,251 | 654,351 |
| Events in quadrant B | 8,148,155 | 654,135 |
| Events in quadrant C | 6,966,530 | 639,403 |
| Events in quadrant D | 7,161,611 | 615,171 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25737 | 0 |
| B | 0 | 28616 | 0 |
| C | 0 | 25112 | 0 |
| D | 0 | 25708 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 7 | 0.113086% |
| B | 6190 | 155 | 2.504039% |
| C | 6190 | 10 | 0.161551% |
| D | 6189 | 27 | 0.436258% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 6192 | 162 | 162 | 2.16% | 2.62% |  |
| B | 7505 | 6192 | 494 | 494 | 6.58% | 7.98% |  |
| C | 7505 | 6192 | 131 | 131 | 1.75% | 2.12% |  |
| D | 7504 | 6191 | 213 | 213 | 2.84% | 3.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 49942 | 108.09 | 1852 | 1864 | 444.8 |
| A | 8 | 192 | 8502 | 14.92 | 1852 | 1864 | 444.8 |
| A | 7 | 16 | 8072 | 13.96 | 1852 | 1864 | 444.8 |
| B | 7 | 221 | 515286 | 1146.64 | 1942 | 1950 | 447.7 |
| B | 0 | 23 | 74702 | 162.51 | 1942 | 1950 | 447.7 |
| B | 5 | 191 | 67620 | 146.69 | 1942 | 1950 | 447.7 |
| C | 15 | 241 | 68115 | 137.37 | 1748 | 1805 | 482.7 |
| C | 3 | 111 | 25760 | 49.62 | 1748 | 1805 | 482.7 |
| C | 3 | 79 | 18375 | 34.33 | 1748 | 1805 | 482.7 |
| D | 1 | 4 | 446190 | 870.0 | 1668 | 1721 | 510.9 |
| D | 13 | 200 | 242778 | 471.84 | 1668 | 1721 | 510.9 |
| D | 13 | 169 | 46935 | 88.5 | 1668 | 1721 | 510.9 |

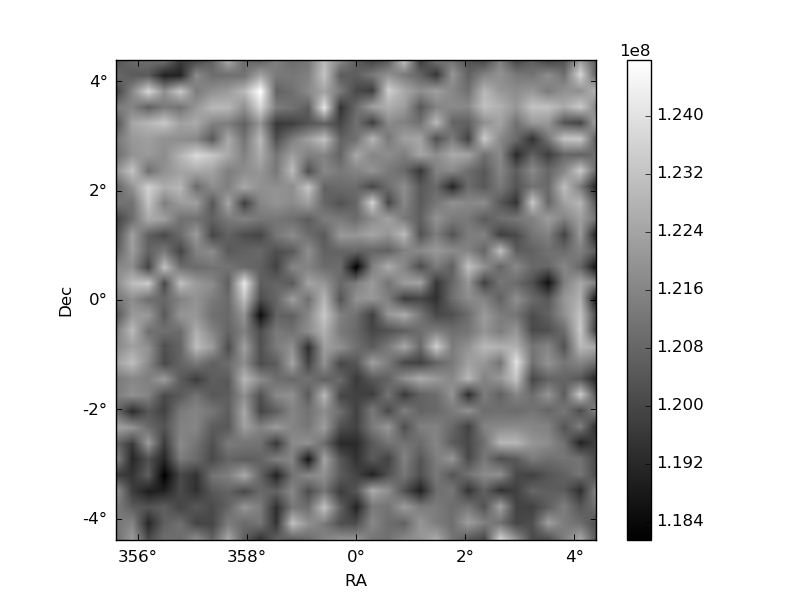

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

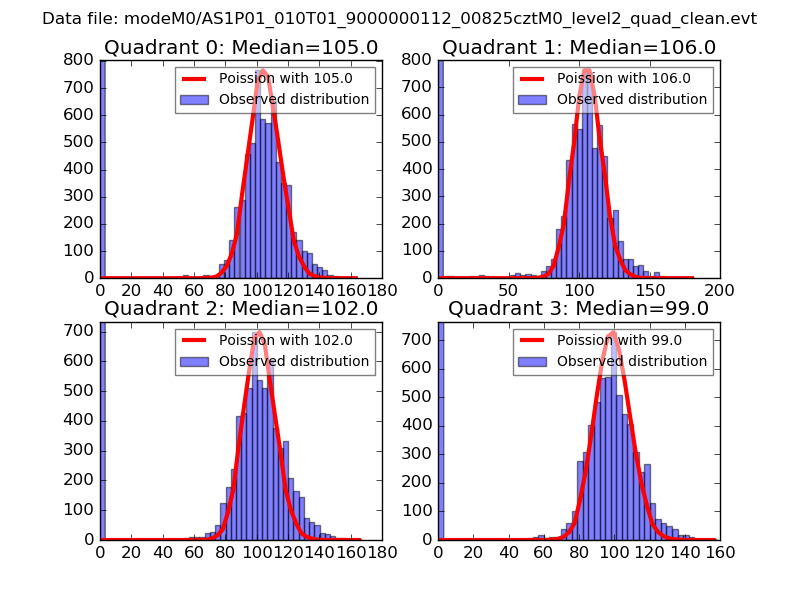

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

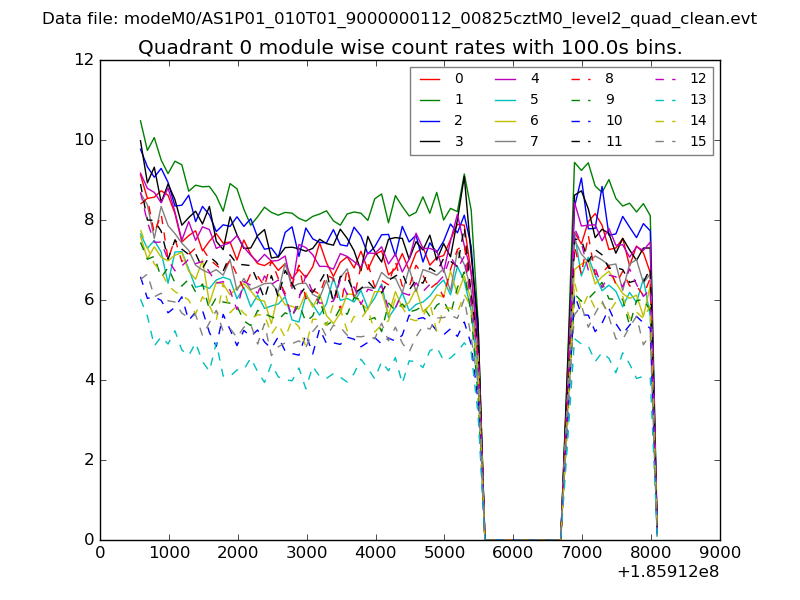

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

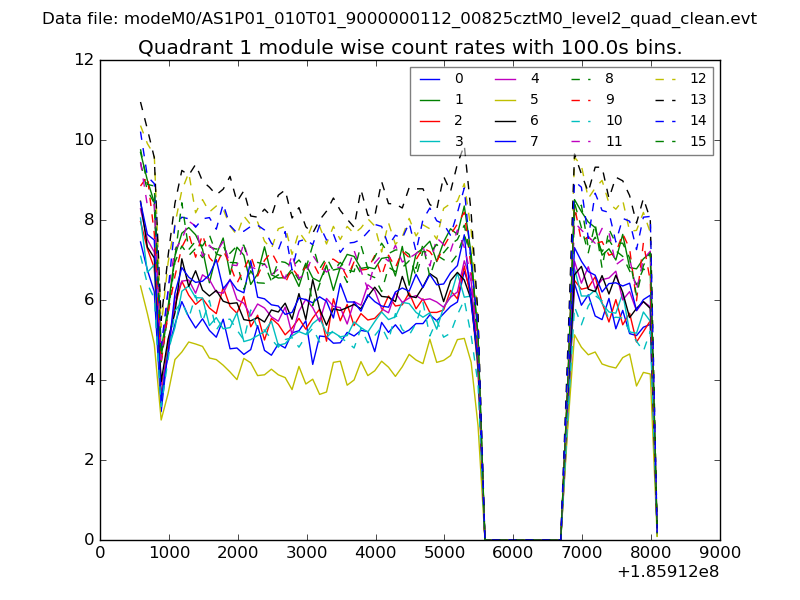

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

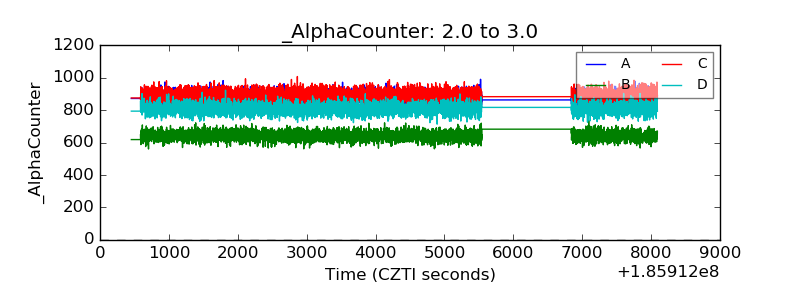

| Alpha Counter |  |
| _CPM_Rate |  |

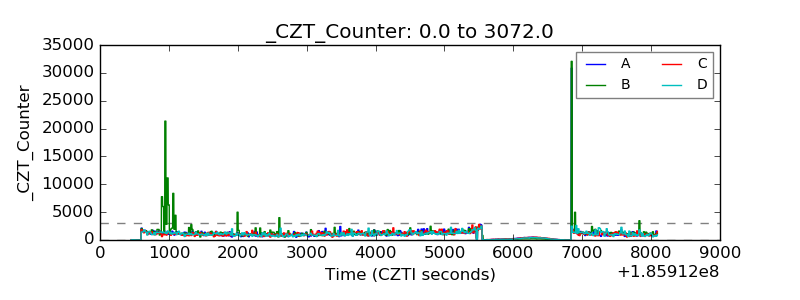

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

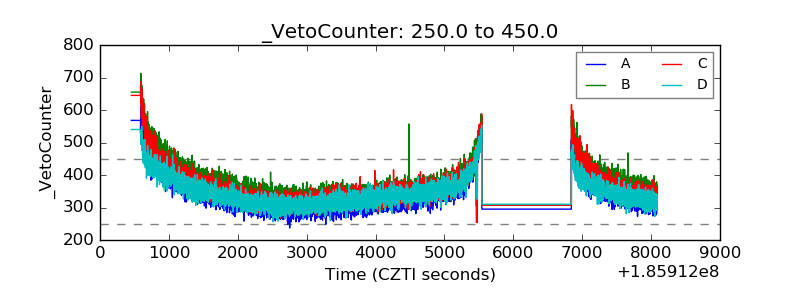

| Veto Counter |  |
