| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_010T01_9000000112_00826cztM0_level2.evt | modeM0/AS1P01_010T01_9000000112_00826cztM0_level2_quad_clean.evt |
| Size (bytes) | 975,142,080 | 97,335,360 |
| Size | 930.0 MB | 92.8 MB |
| Events in quadrant A | 7,123,371 | 638,029 |
| Events in quadrant B | 7,764,462 | 644,426 |
| Events in quadrant C | 7,334,660 | 622,379 |
| Events in quadrant D | 6,893,615 | 605,551 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25648 | 0 |
| B | 0 | 27489 | 0 |
| C | 0 | 26238 | 0 |
| D | 0 | 24975 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 4 | 0.063847% |
| B | 6265 | 40 | 0.638468% |
| C | 6264 | 15 | 0.239464% |
| D | 6264 | 20 | 0.319285% |

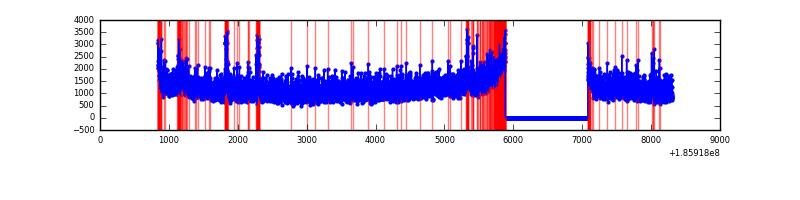

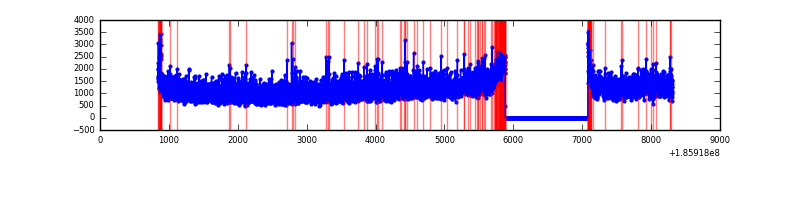

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7465 | 6266 | 142 | 142 | 1.90% | 2.27% |  |
| B | 7465 | 6265 | 292 | 292 | 3.91% | 4.66% |  |
| C | 7464 | 6265 | 159 | 159 | 2.13% | 2.54% |  |
| D | 7464 | 6265 | 148 | 148 | 1.98% | 2.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 7103 | 11.64 | 1855 | 1868 | 449.6 |
| A | 3 | 111 | 5665 | 8.44 | 1855 | 1868 | 449.6 |
| A | 15 | 233 | 5416 | 7.89 | 1855 | 1868 | 449.6 |
| B | 5 | 191 | 118357 | 254.56 | 1965 | 1975 | 457.2 |
| B | 7 | 221 | 70337 | 149.53 | 1965 | 1975 | 457.2 |
| B | 0 | 23 | 26072 | 52.71 | 1965 | 1975 | 457.2 |
| C | 15 | 241 | 389078 | 794.53 | 1763 | 1825 | 487.4 |
| C | 3 | 111 | 23878 | 45.25 | 1763 | 1825 | 487.4 |
| C | 3 | 79 | 15220 | 27.48 | 1763 | 1825 | 487.4 |
| D | 1 | 4 | 207529 | 393.9 | 1689 | 1748 | 522.4 |
| D | 13 | 200 | 147494 | 278.99 | 1689 | 1748 | 522.4 |
| D | 2 | 225 | 35481 | 64.57 | 1689 | 1748 | 522.4 |

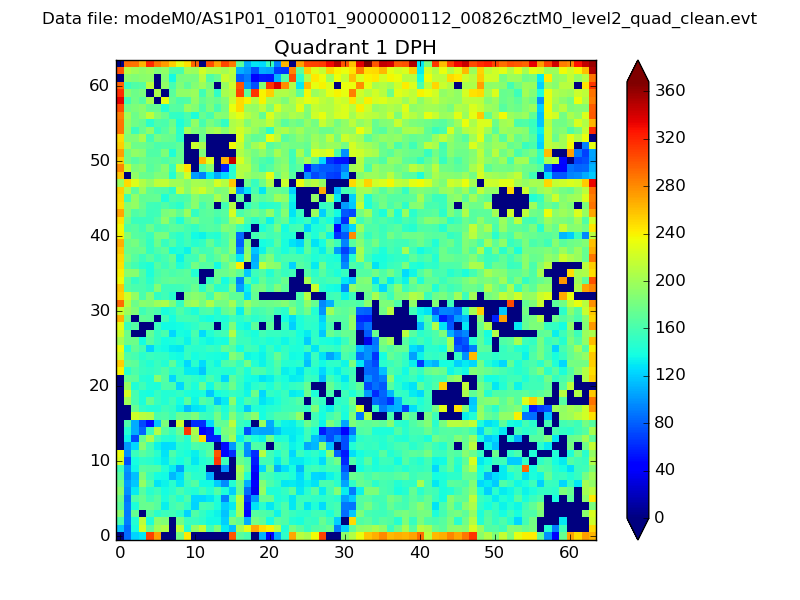

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

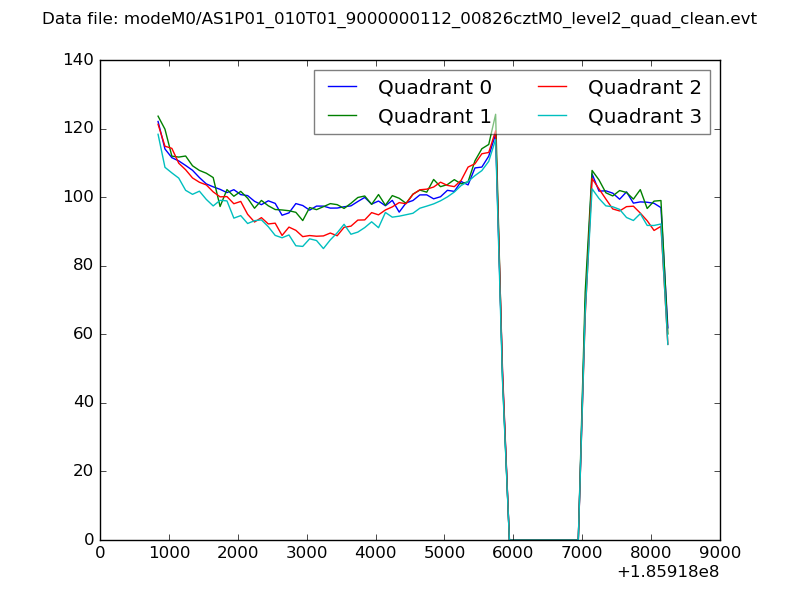

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

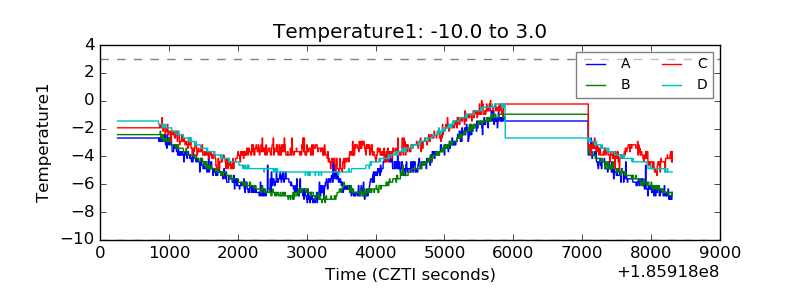

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

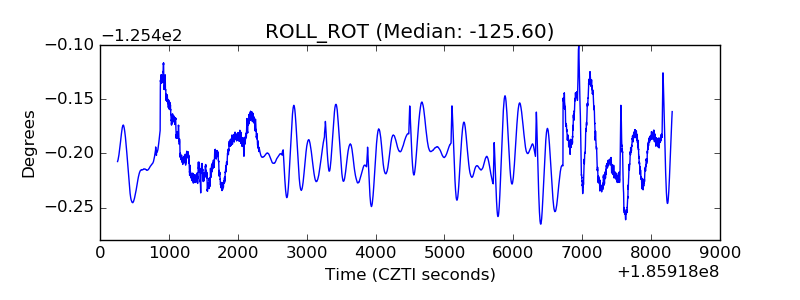

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
