| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_165T02_9000000120_00856cztM0_level2.evt | modeM0/AS1P01_165T02_9000000120_00856cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,103,630,400 | 81,544,320 |
| Size | 1.0 GB | 77.8 MB |
| Events in quadrant A | 8,193,833 | 505,824 |
| Events in quadrant B | 8,914,334 | 500,461 |
| Events in quadrant C | 8,103,838 | 494,945 |
| Events in quadrant D | 7,755,494 | 488,684 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29201 | 0 |
| B | 0 | 31384 | 0 |
| C | 0 | 28986 | 0 |
| D | 0 | 28023 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6878 | 20 | 0.290782% |
| B | 6879 | 71 | 1.032127% |
| C | 6879 | 26 | 0.377962% |
| D | 6879 | 66 | 0.959442% |

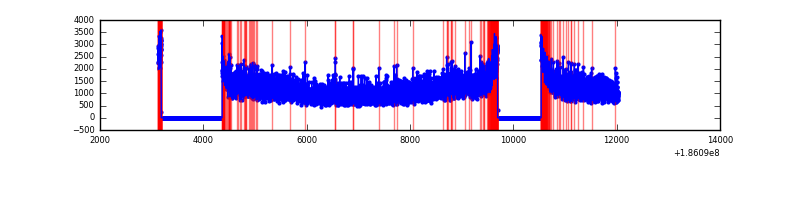

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8903 | 6880 | 306 | 306 | 3.44% | 4.45% |  |
| B | 8904 | 6880 | 503 | 503 | 5.65% | 7.31% |  |
| C | 8904 | 6881 | 329 | 329 | 3.69% | 4.78% |  |
| D | 8904 | 6881 | 351 | 351 | 3.94% | 5.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 79 | 43597 | 80.35 | 2122 | 2140 | 516.0 |
| A | 12 | 243 | 9533 | 14.33 | 2122 | 2140 | 516.0 |
| A | 11 | 79 | 9060 | 13.41 | 2122 | 2140 | 516.0 |
| B | 0 | 220 | 145524 | 271.27 | 2247 | 2260 | 528.1 |
| B | 0 | 184 | 76334 | 140.26 | 2247 | 2260 | 528.1 |
| B | 4 | 222 | 30275 | 53.05 | 2247 | 2260 | 528.1 |
| C | 9 | 83 | 57847 | 97.54 | 2042 | 2116 | 571.3 |
| C | 3 | 111 | 23607 | 37.61 | 2042 | 2116 | 571.3 |
| C | 15 | 241 | 20592 | 32.34 | 2042 | 2116 | 571.3 |
| D | 2 | 16 | 123388 | 199.87 | 1957 | 2025 | 607.2 |
| D | 7 | 207 | 109106 | 176.35 | 1957 | 2025 | 607.2 |
| D | 2 | 63 | 71761 | 114.85 | 1957 | 2025 | 607.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

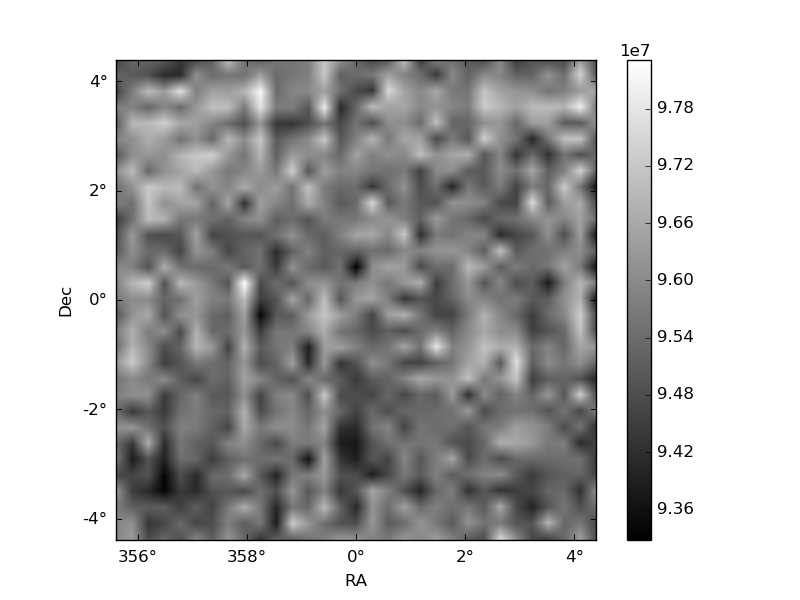

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

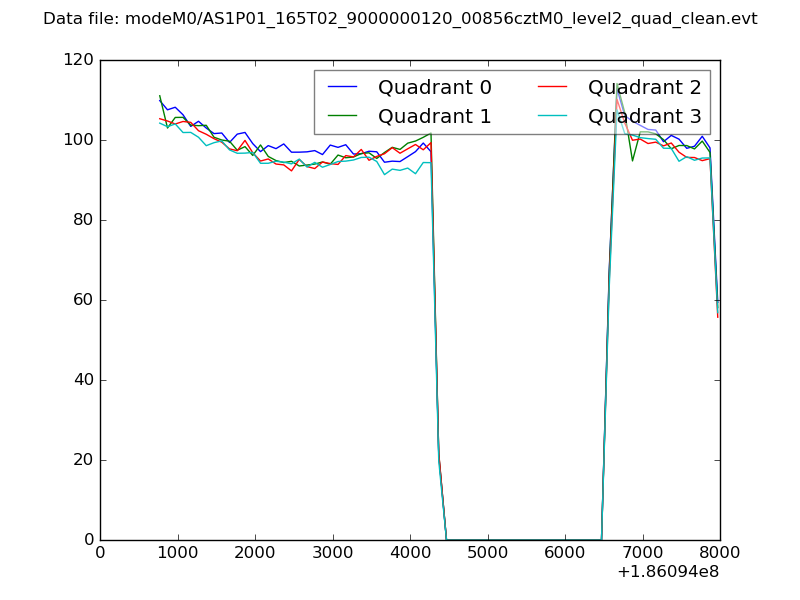

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

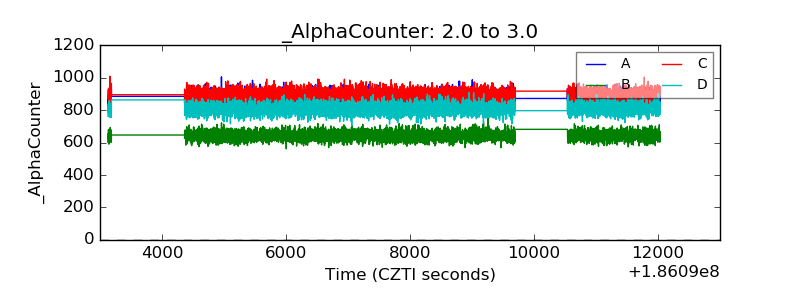

| Alpha Counter |  |

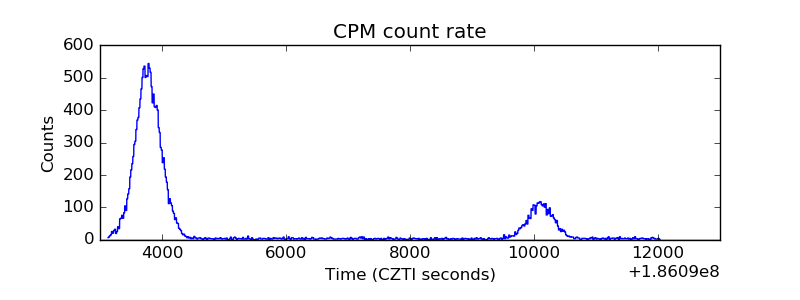

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

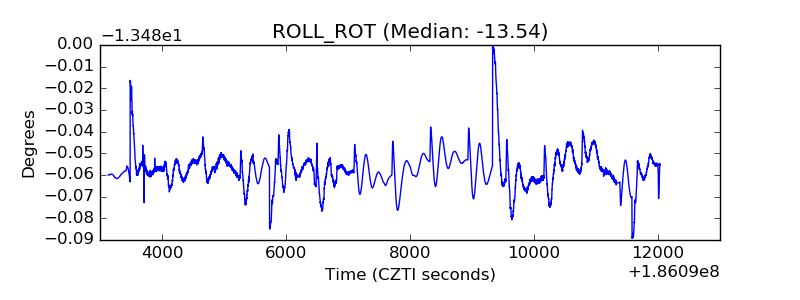

| _ROLL_ROT |  |

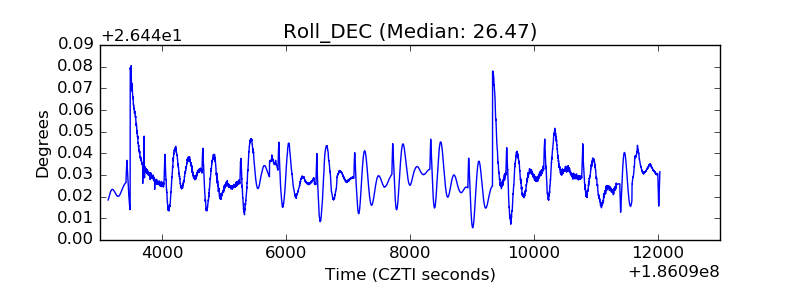

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
