| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_156T01_9000000122_00862cztM0_level2.evt | modeM0/AS1P01_156T01_9000000122_00862cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,150,398,720 | 62,709,120 |
| Size | 1.1 GB | 59.8 MB |
| Events in quadrant A | 8,458,312 | 360,428 |
| Events in quadrant B | 9,359,640 | 357,352 |
| Events in quadrant C | 8,214,148 | 356,769 |
| Events in quadrant D | 8,350,629 | 342,909 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30003 | 0 |
| B | 0 | 32754 | 0 |
| C | 0 | 29329 | 0 |
| D | 0 | 29705 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6899 | 36 | 0.521815% |
| B | 6898 | 191 | 2.768919% |
| C | 6898 | 42 | 0.608872% |
| D | 6898 | 166 | 2.406495% |

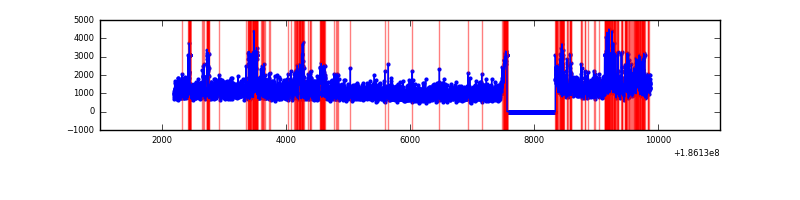

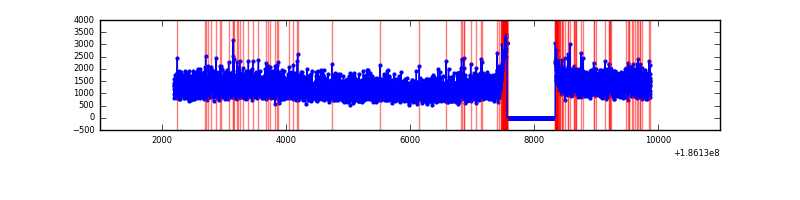

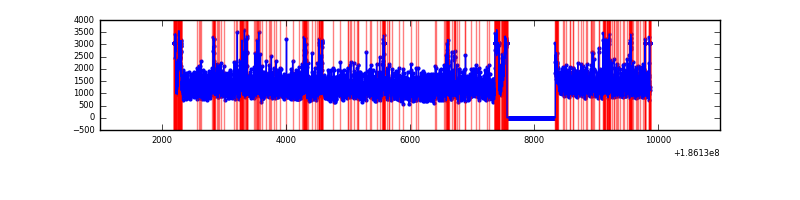

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6899 | 172 | 172 | 2.24% | 2.49% |  |
| B | 7678 | 6898 | 506 | 506 | 6.59% | 7.34% |  |
| C | 7678 | 6898 | 168 | 168 | 2.19% | 2.44% |  |
| D | 7678 | 6898 | 422 | 422 | 5.50% | 6.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 8839 | 12.42 | 2202 | 2222 | 532.7 |
| A | 3 | 80 | 7893 | 10.65 | 2202 | 2222 | 532.7 |
| A | 3 | 111 | 6747 | 8.49 | 2202 | 2222 | 532.7 |
| B | 0 | 184 | 438367 | 810.45 | 2247 | 2258 | 538.1 |
| B | 15 | 22 | 154417 | 282.77 | 2247 | 2258 | 538.1 |
| B | 0 | 220 | 95614 | 173.49 | 2247 | 2258 | 538.1 |
| C | 14 | 238 | 27007 | 43.12 | 2063 | 2138 | 576.8 |
| C | 3 | 111 | 26626 | 42.46 | 2063 | 2138 | 576.8 |
| C | 10 | 19 | 26309 | 41.91 | 2063 | 2138 | 576.8 |
| D | 12 | 22 | 225386 | 360.29 | 2086 | 2115 | 619.7 |
| D | 2 | 16 | 92894 | 146.49 | 2086 | 2115 | 619.7 |
| D | 10 | 85 | 62241 | 97.02 | 2086 | 2115 | 619.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

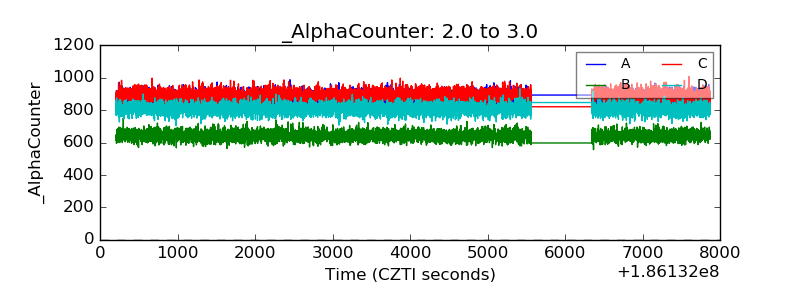

| Alpha Counter |  |
| _CPM_Rate |  |

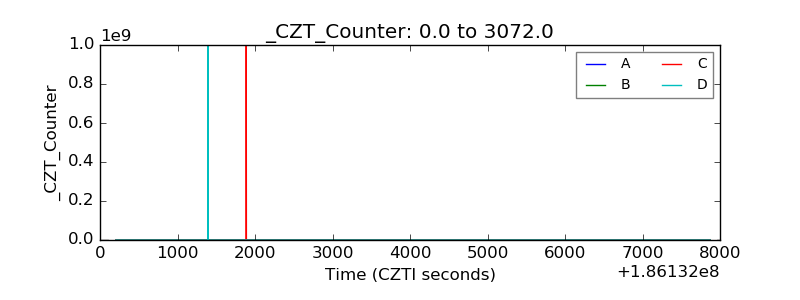

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

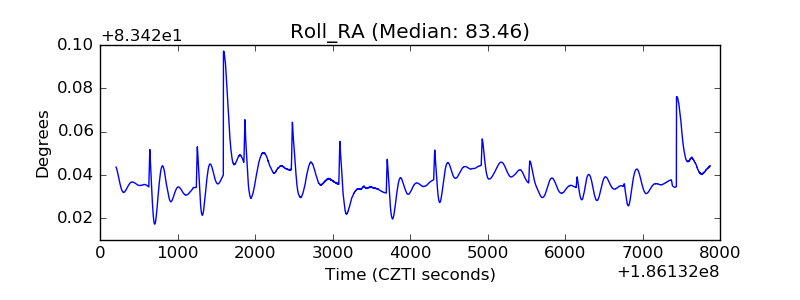

| _Roll_RA |  |
| Veto Counter |  |
