| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T02_9000000124_00866cztM0_level2.evt | modeM0/AS1P01_161T02_9000000124_00866cztM0_level2_quad_clean.evt |
| Size (bytes) | 952,280,640 | 83,280,960 |
| Size | 908.2 MB | 79.4 MB |
| Events in quadrant A | 7,140,157 | 536,960 |
| Events in quadrant B | 7,507,696 | 532,486 |
| Events in quadrant C | 6,952,916 | 520,913 |
| Events in quadrant D | 6,839,116 | 510,792 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25451 | 0 |
| B | 0 | 26574 | 0 |
| C | 0 | 24964 | 0 |
| D | 0 | 24638 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6028 | 24 | 0.398142% |
| B | 6028 | 26 | 0.431321% |
| C | 6028 | 11 | 0.182482% |
| D | 6028 | 26 | 0.431321% |

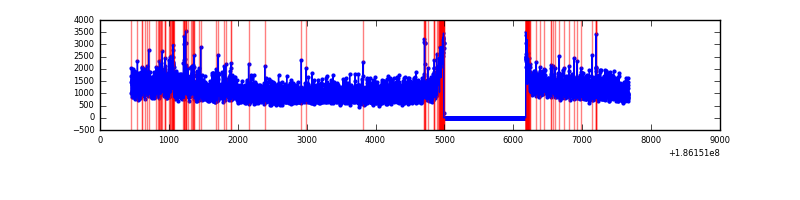

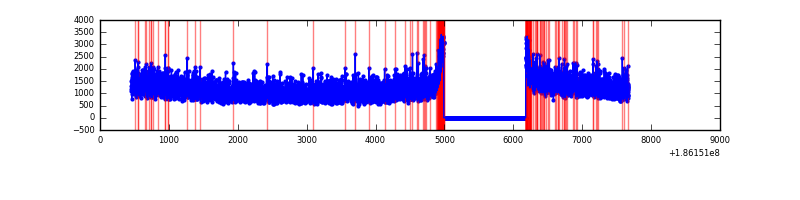

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7218 | 6028 | 172 | 172 | 2.38% | 2.85% |  |
| B | 7218 | 6029 | 201 | 201 | 2.78% | 3.33% |  |
| C | 7218 | 6028 | 140 | 140 | 1.94% | 2.32% |  |
| D | 7218 | 6029 | 173 | 173 | 2.40% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 7525 | 12.76 | 1854 | 1863 | 443.7 |
| A | 0 | 214 | 7341 | 12.35 | 1854 | 1863 | 443.7 |
| A | 3 | 80 | 7179 | 11.98 | 1854 | 1863 | 443.7 |
| B | 0 | 220 | 109001 | 240.32 | 1904 | 1912 | 445.6 |
| B | 15 | 255 | 64381 | 140.19 | 1904 | 1912 | 445.6 |
| B | 15 | 22 | 26396 | 54.95 | 1904 | 1912 | 445.6 |
| C | 3 | 111 | 26543 | 50.69 | 1757 | 1817 | 487.8 |
| C | 3 | 79 | 22018 | 41.41 | 1757 | 1817 | 487.8 |
| C | 15 | 241 | 13969 | 24.91 | 1757 | 1817 | 487.8 |
| D | 13 | 169 | 177986 | 332.55 | 1723 | 1784 | 529.9 |
| D | 12 | 22 | 94405 | 174.8 | 1723 | 1784 | 529.9 |
| D | 12 | 188 | 33953 | 60.71 | 1723 | 1784 | 529.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

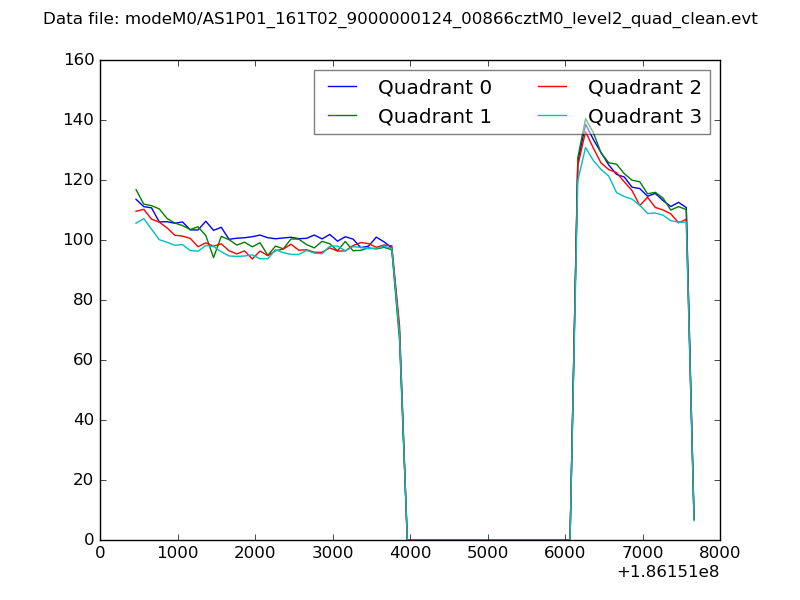

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

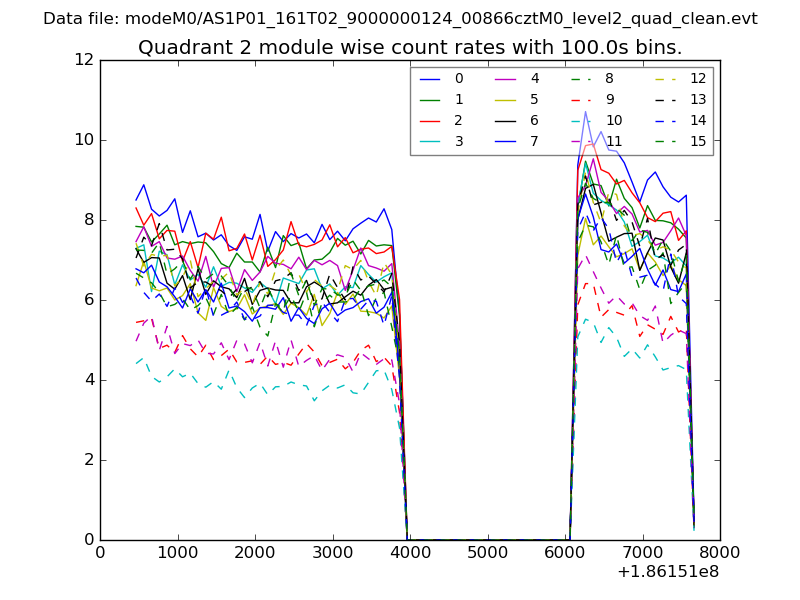

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

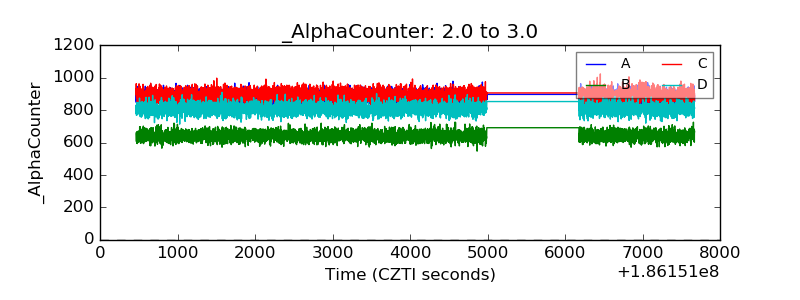

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

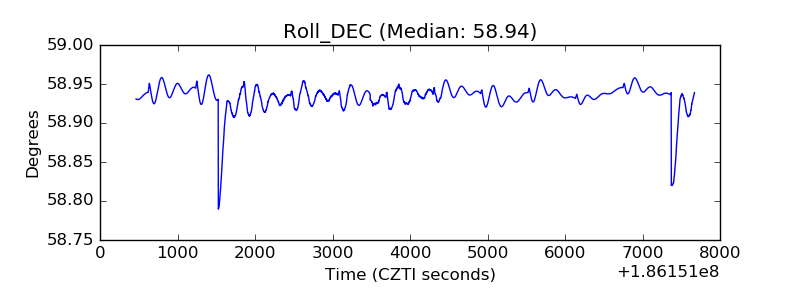

| _Roll_DEC |  |
| _Roll_RA |  |

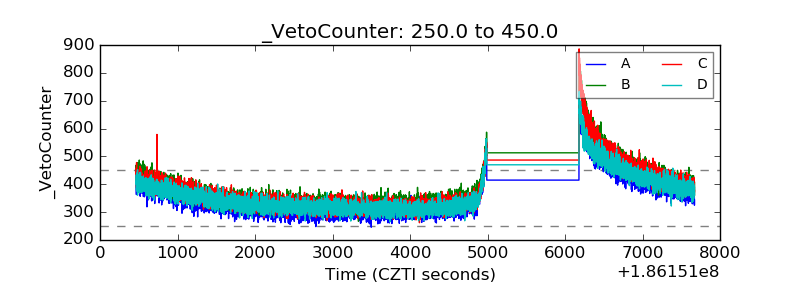

| Veto Counter |  |
