| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T02_9000000124_00868cztM0_level2.evt | modeM0/AS1P01_161T02_9000000124_00868cztM0_level2_quad_clean.evt |
| Size (bytes) | 988,692,480 | 79,208,640 |
| Size | 942.9 MB | 75.5 MB |
| Events in quadrant A | 7,203,920 | 503,146 |
| Events in quadrant B | 7,624,957 | 505,187 |
| Events in quadrant C | 7,156,276 | 498,117 |
| Events in quadrant D | 7,553,259 | 466,430 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25732 | 0 |
| B | 0 | 27005 | 0 |
| C | 0 | 25588 | 0 |
| D | 0 | 26817 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6094 | 9 | 0.147686% |
| B | 6094 | 11 | 0.180505% |
| C | 6095 | 13 | 0.213290% |
| D | 6095 | 241 | 3.954061% |

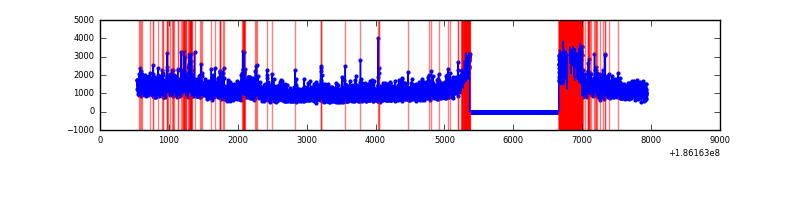

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7389 | 6095 | 221 | 221 | 2.99% | 3.63% |  |
| B | 7389 | 6095 | 239 | 239 | 3.23% | 3.92% |  |
| C | 7390 | 6095 | 152 | 152 | 2.06% | 2.49% |  |
| D | 7390 | 6095 | 458 | 458 | 6.20% | 7.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 14388 | 28.09 | 1872 | 1887 | 445.1 |
| A | 11 | 79 | 7646 | 12.94 | 1872 | 1887 | 445.1 |
| A | 3 | 111 | 5609 | 8.36 | 1872 | 1887 | 445.1 |
| B | 0 | 220 | 86983 | 188.0 | 1955 | 1961 | 452.3 |
| B | 8 | 38 | 45992 | 97.36 | 1955 | 1961 | 452.3 |
| B | 15 | 255 | 25827 | 52.77 | 1955 | 1961 | 452.3 |
| C | 3 | 111 | 26347 | 48.91 | 1815 | 1880 | 500.3 |
| C | 3 | 79 | 21375 | 38.97 | 1815 | 1880 | 500.3 |
| C | 15 | 241 | 15176 | 26.58 | 1815 | 1880 | 500.3 |
| D | 10 | 102 | 668430 | 1271.53 | 1715 | 1776 | 524.3 |
| D | 13 | 169 | 231116 | 437.43 | 1715 | 1776 | 524.3 |
| D | 12 | 188 | 153854 | 290.06 | 1715 | 1776 | 524.3 |

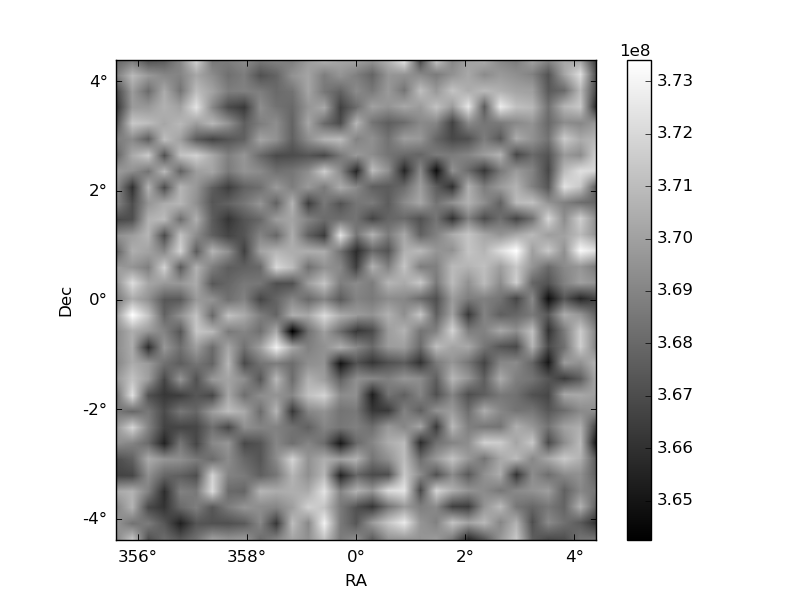

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

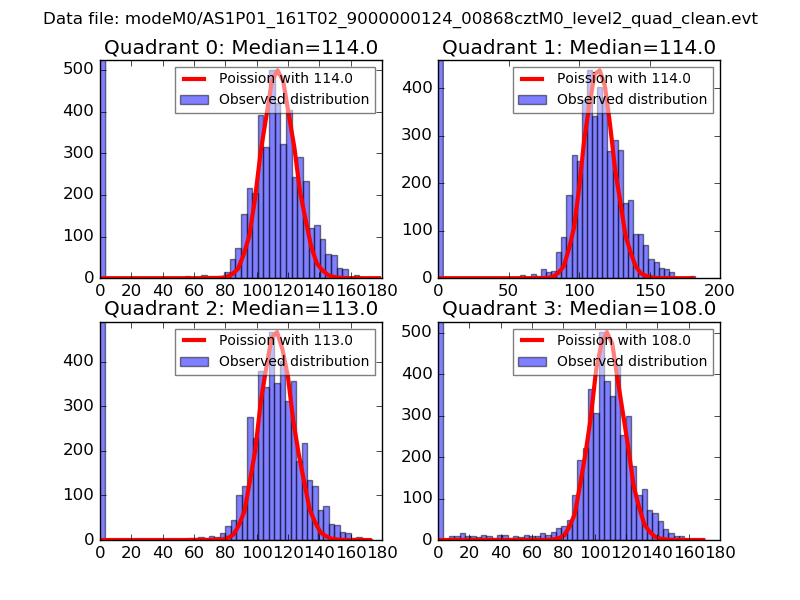

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

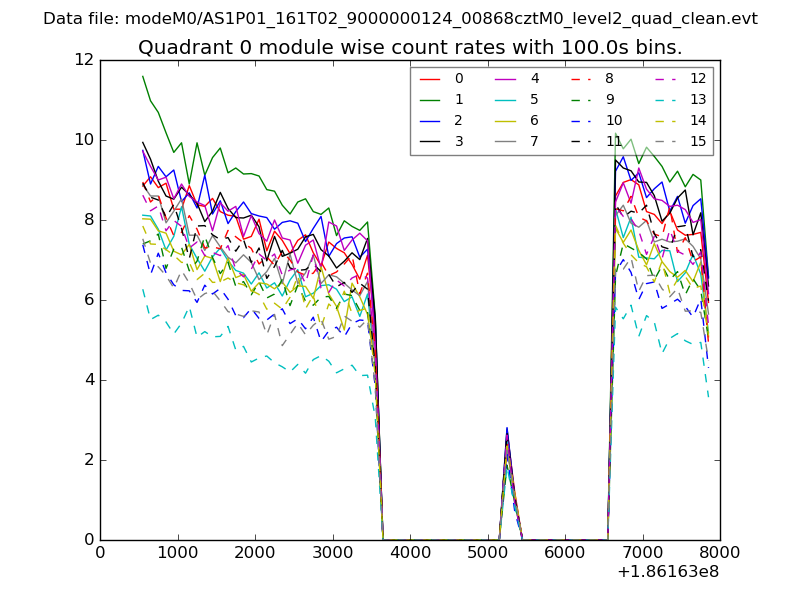

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

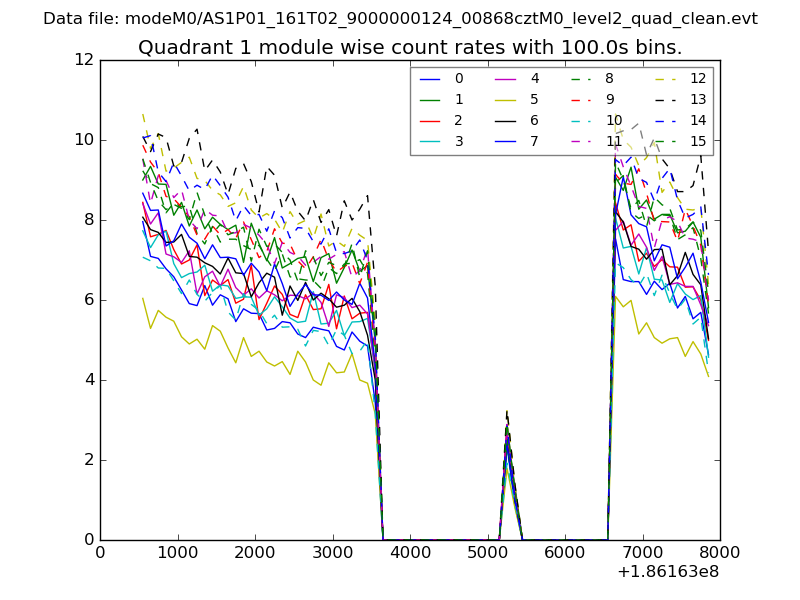

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

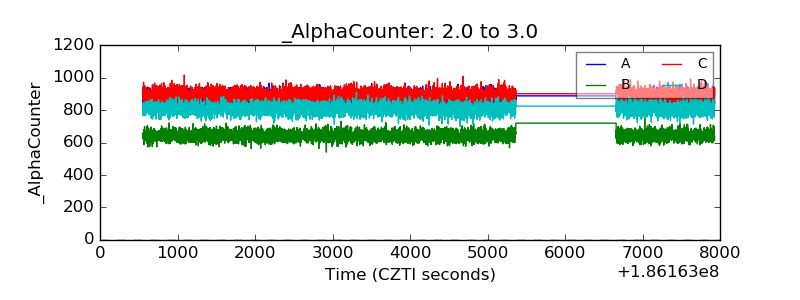

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

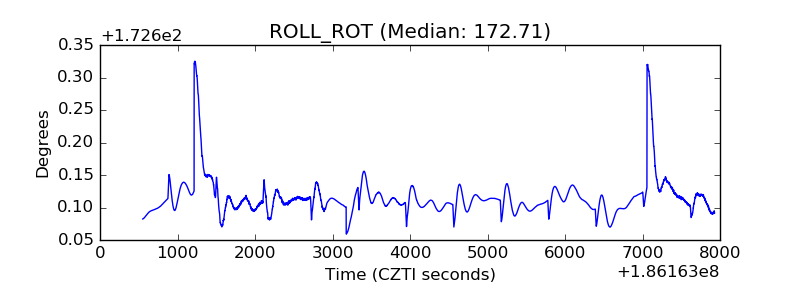

| _ROLL_ROT |  |

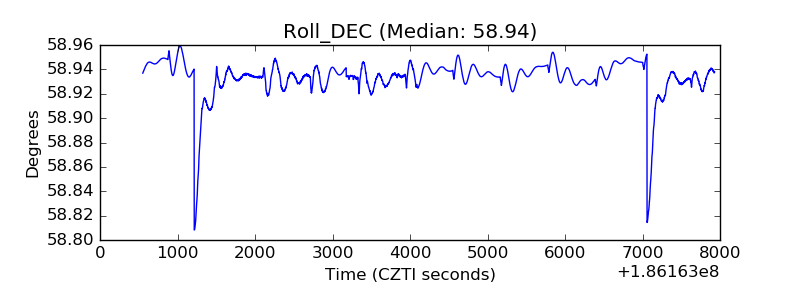

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
