| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_161T05_9000000180_00897cztM0_level2.evt | modeM0/AS1P01_161T05_9000000180_00897cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,042,292,160 | 69,071,040 |
| Size | 994.0 MB | 65.9 MB |
| Events in quadrant A | 6,909,985 | 435,974 |
| Events in quadrant B | 9,546,789 | 404,109 |
| Events in quadrant C | 7,772,014 | 427,985 |
| Events in quadrant D | 6,945,043 | 409,249 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24716 | 0 |
| B | 0 | 32618 | 0 |
| C | 0 | 27299 | 0 |
| D | 0 | 24899 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5923 | 32 | 0.540267% |
| B | 5924 | 630 | 10.634706% |
| C | 5924 | 51 | 0.860905% |
| D | 5924 | 136 | 2.295746% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

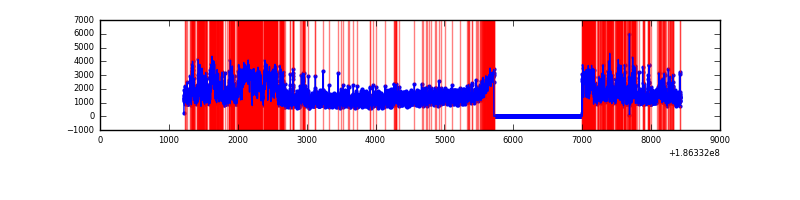

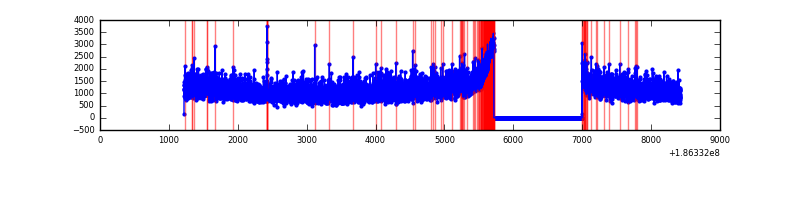

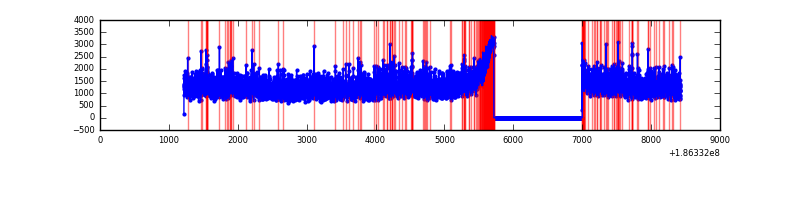

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7208 | 5924 | 194 | 194 | 2.69% | 3.27% |  |
| B | 7209 | 5925 | 1294 | 1294 | 17.95% | 21.84% |  |
| C | 7209 | 5925 | 283 | 283 | 3.93% | 4.78% |  |
| D | 7209 | 5925 | 333 | 333 | 4.62% | 5.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 67100 | 153.56 | 1780 | 1794 | 425.3 |
| A | 12 | 133 | 14603 | 30.12 | 1780 | 1794 | 425.3 |
| A | 11 | 79 | 6784 | 11.73 | 1780 | 1794 | 425.3 |
| B | 3 | 0 | 2115368 | 5030.82 | 1819 | 1829 | 420.1 |
| B | 8 | 38 | 198457 | 468.03 | 1819 | 1829 | 420.1 |
| B | 0 | 220 | 75106 | 174.42 | 1819 | 1829 | 420.1 |
| C | 9 | 83 | 860212 | 1782.2 | 1741 | 1807 | 481.7 |
| C | 3 | 111 | 29578 | 57.66 | 1741 | 1807 | 481.7 |
| C | 15 | 241 | 23580 | 45.2 | 1741 | 1807 | 481.7 |
| D | 7 | 143 | 422839 | 823.93 | 1669 | 1730 | 511.1 |
| D | 1 | 4 | 155070 | 300.02 | 1669 | 1730 | 511.1 |
| D | 13 | 169 | 46091 | 86.8 | 1669 | 1730 | 511.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

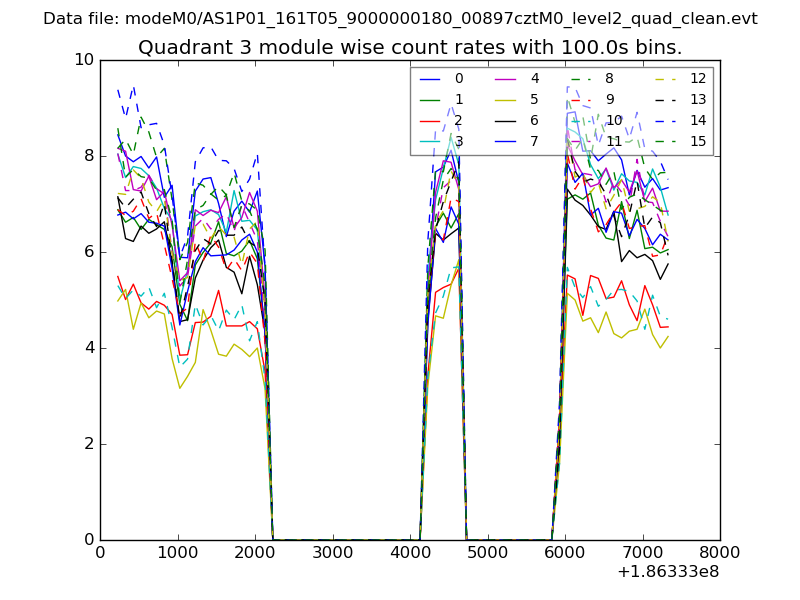

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

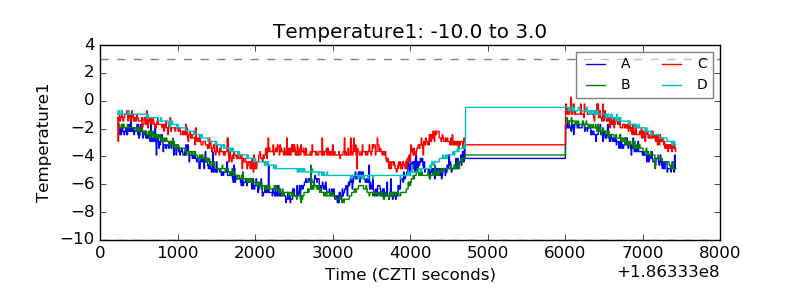

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

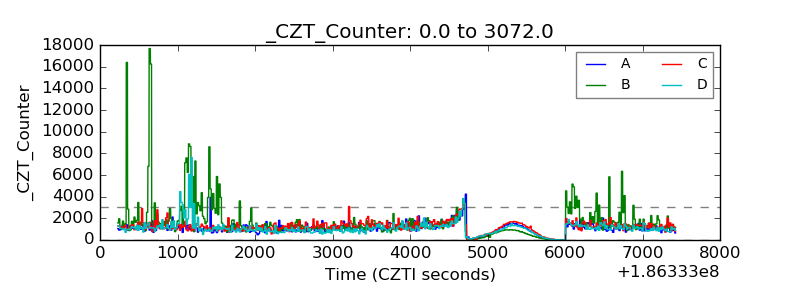

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
