| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_165T08_9000000182_00907cztM0_level2.evt | modeM0/AS1P01_165T08_9000000182_00907cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,083,306,240 | 90,463,680 |
| Size | 1.0 GB | 86.3 MB |
| Events in quadrant A | 7,167,618 | 606,764 |
| Events in quadrant B | 10,270,081 | 560,413 |
| Events in quadrant C | 8,191,429 | 576,064 |
| Events in quadrant D | 6,776,311 | 571,066 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25631 | 0 |
| B | 0 | 34895 | 0 |
| C | 0 | 28631 | 0 |
| D | 0 | 24436 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6084 | 25 | 0.410914% |
| B | 6084 | 768 | 12.623274% |
| C | 6084 | 19 | 0.312295% |
| D | 6084 | 28 | 0.460224% |

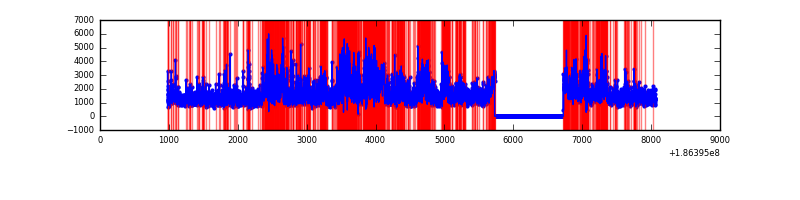

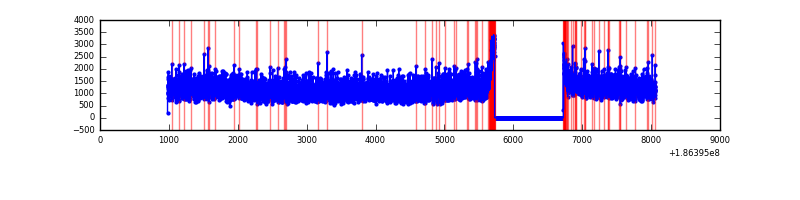

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7084 | 6085 | 144 | 144 | 2.03% | 2.37% |  |
| B | 7084 | 6085 | 1451 | 1451 | 20.48% | 23.85% |  |
| C | 7084 | 6085 | 683 | 683 | 9.64% | 11.22% |  |
| D | 7084 | 6085 | 133 | 133 | 1.88% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 48683 | 105.17 | 1852 | 1864 | 445.2 |
| A | 12 | 189 | 12305 | 23.45 | 1852 | 1864 | 445.2 |
| A | 11 | 79 | 6912 | 11.34 | 1852 | 1864 | 445.2 |
| B | 3 | 0 | 2932295 | 6844.3 | 1813 | 1822 | 428.2 |
| B | 15 | 8 | 130039 | 299.46 | 1813 | 1822 | 428.2 |
| B | 0 | 220 | 87822 | 200.86 | 1813 | 1822 | 428.2 |
| C | 9 | 83 | 1345407 | 2800.56 | 1727 | 1788 | 479.8 |
| C | 15 | 241 | 48375 | 97.1 | 1727 | 1788 | 479.8 |
| C | 3 | 111 | 21155 | 40.37 | 1727 | 1788 | 479.8 |
| D | 12 | 188 | 178123 | 339.54 | 1684 | 1748 | 519.4 |
| D | 2 | 16 | 94825 | 179.18 | 1684 | 1748 | 519.4 |
| D | 1 | 4 | 92722 | 175.14 | 1684 | 1748 | 519.4 |

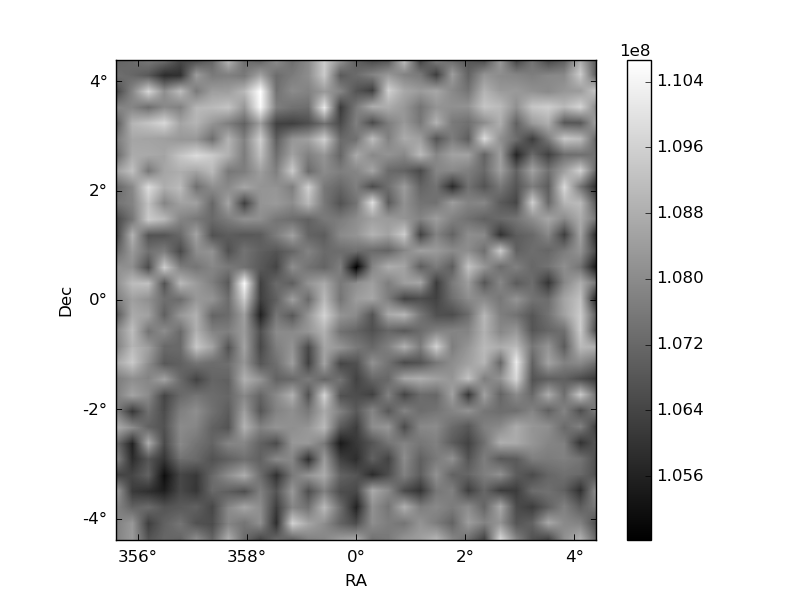

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

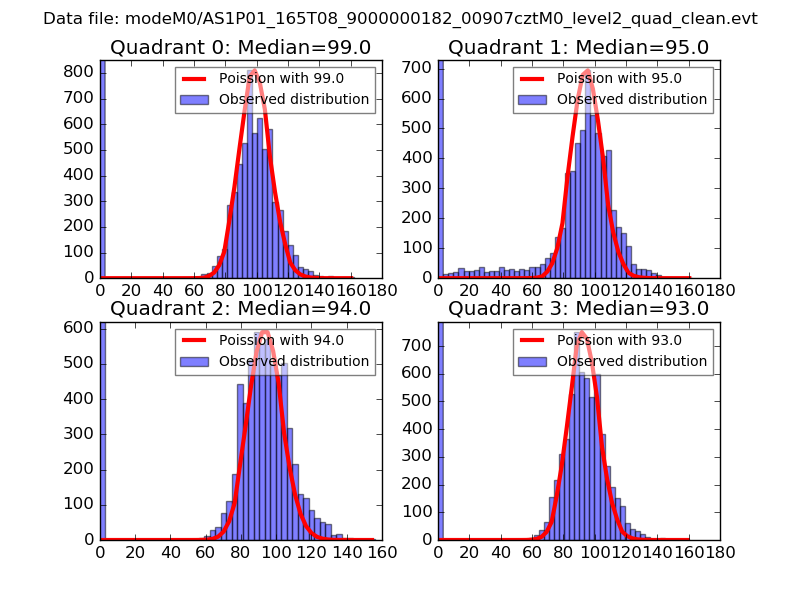

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

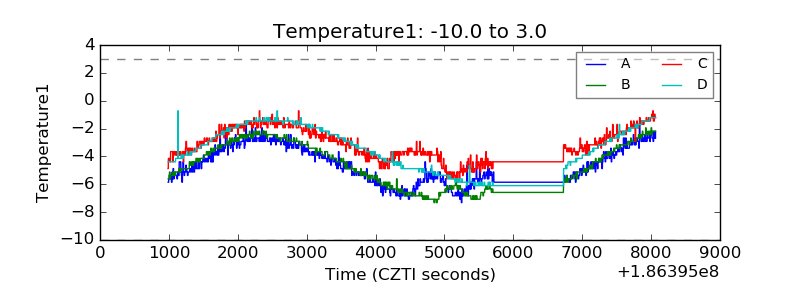

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

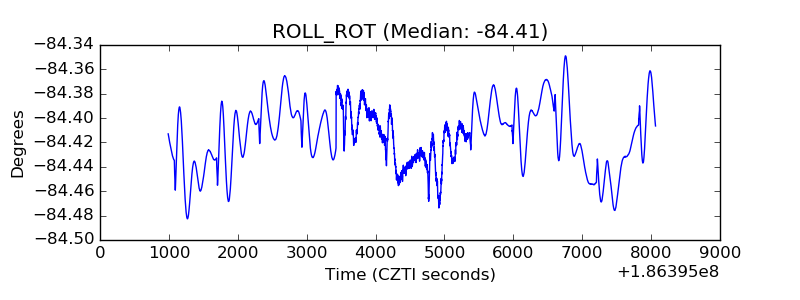

| _ROLL_ROT |  |

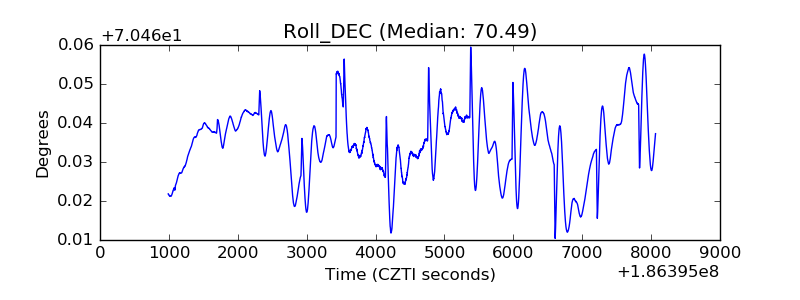

| _Roll_DEC |  |

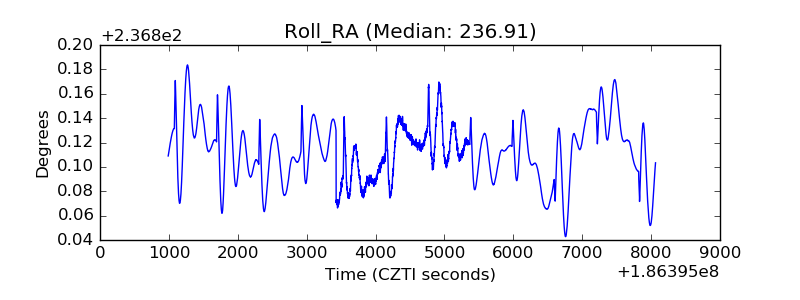

| _Roll_RA |  |
| Veto Counter |  |
