| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_163T03_9000000186_00921cztM0_level2.evt | modeM0/AS1P01_163T03_9000000186_00921cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,096,027,200 | 82,776,960 |
| Size | 1.0 GB | 78.9 MB |
| Events in quadrant A | 7,939,698 | 517,323 |
| Events in quadrant B | 8,976,496 | 515,375 |
| Events in quadrant C | 8,241,102 | 513,545 |
| Events in quadrant D | 7,604,788 | 505,955 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28205 | 0 |
| B | 0 | 31304 | 0 |
| C | 0 | 29145 | 0 |
| D | 0 | 27236 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6515 | 77 | 1.181888% |
| B | 6515 | 191 | 2.931696% |
| C | 6515 | 71 | 1.089793% |
| D | 6514 | 73 | 1.120663% |

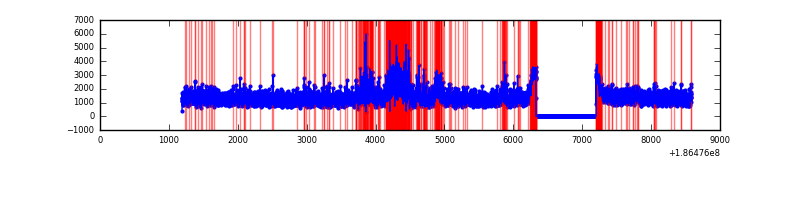

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 6516 | 209 | 209 | 2.83% | 3.21% |  |
| B | 7390 | 6516 | 565 | 565 | 7.65% | 8.67% |  |
| C | 7390 | 6516 | 235 | 235 | 3.18% | 3.61% |  |
| D | 7389 | 6515 | 204 | 204 | 2.76% | 3.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 17 | 103619 | 208.03 | 2036 | 2048 | 488.3 |
| A | 14 | 170 | 12600 | 21.61 | 2036 | 2048 | 488.3 |
| A | 11 | 79 | 7050 | 10.24 | 2036 | 2048 | 488.3 |
| B | 3 | 0 | 756842 | 1517.43 | 2103 | 2112 | 497.4 |
| B | 5 | 200 | 43495 | 83.2 | 2103 | 2112 | 497.4 |
| B | 15 | 22 | 33815 | 63.74 | 2103 | 2112 | 497.4 |
| C | 15 | 241 | 558838 | 1015.94 | 1954 | 2026 | 548.1 |
| C | 3 | 111 | 24464 | 40.94 | 1954 | 2026 | 548.1 |
| C | 3 | 79 | 15315 | 24.25 | 1954 | 2026 | 548.1 |
| D | 1 | 4 | 192654 | 319.28 | 1915 | 1981 | 597.2 |
| D | 12 | 188 | 157905 | 261.09 | 1915 | 1981 | 597.2 |
| D | 13 | 73 | 51115 | 82.27 | 1915 | 1981 | 597.2 |

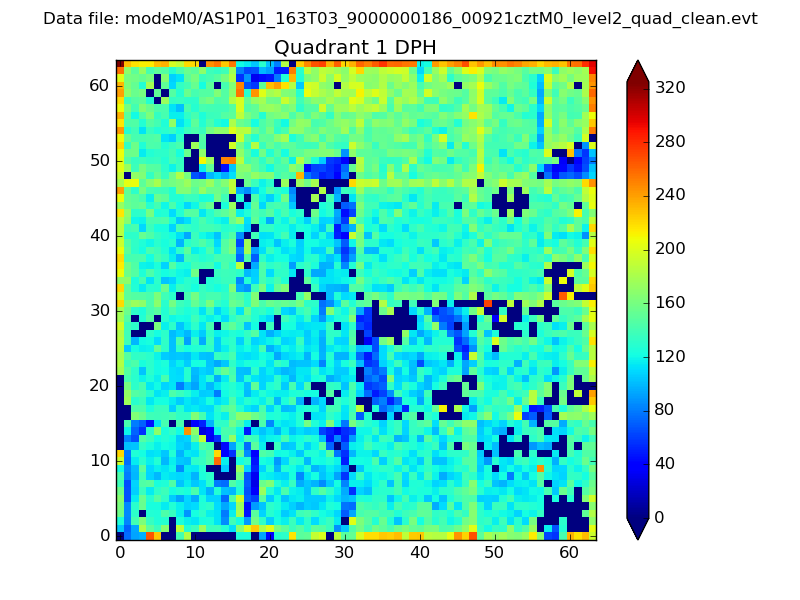

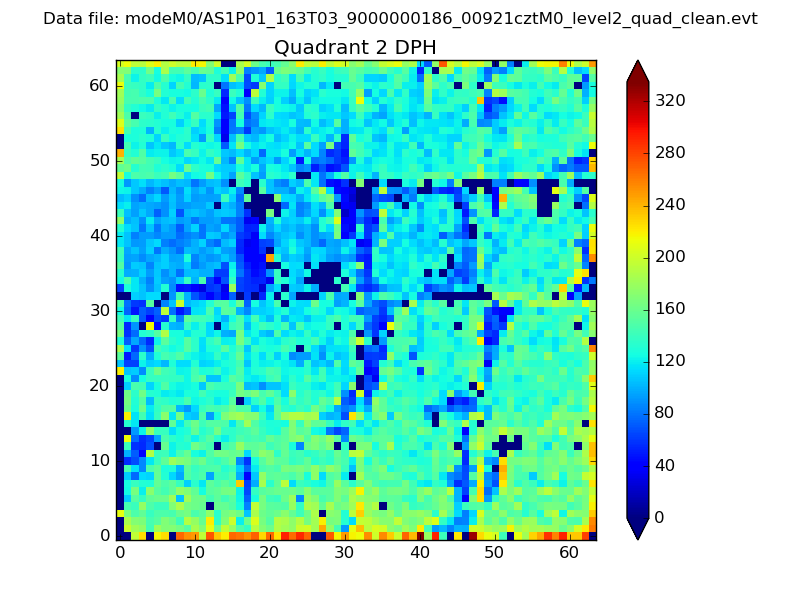

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

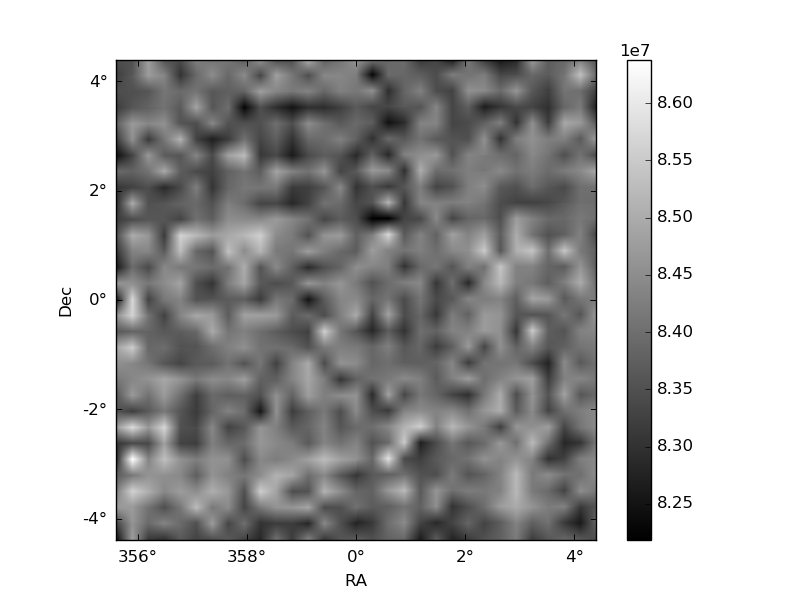

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

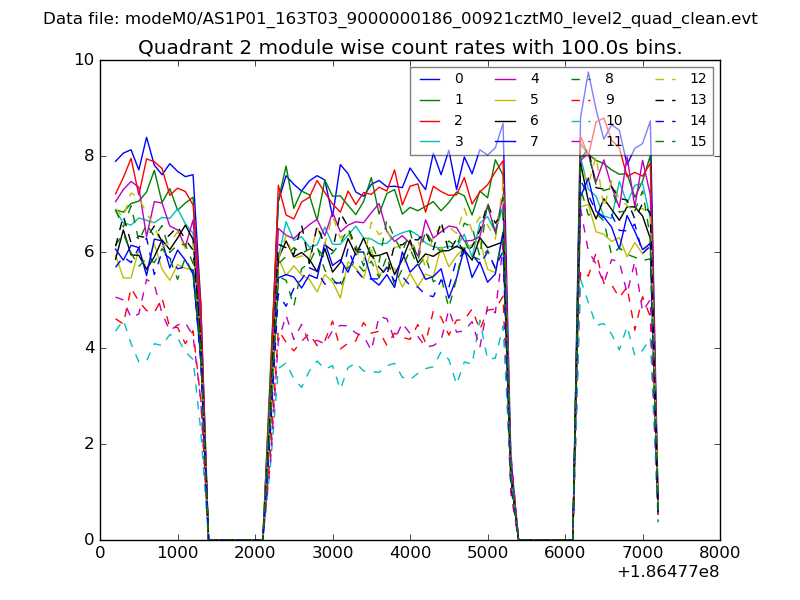

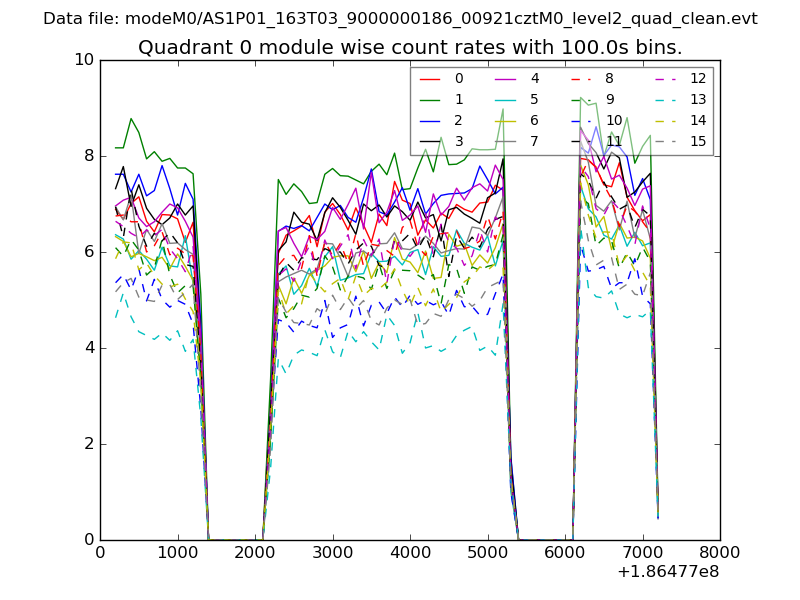

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

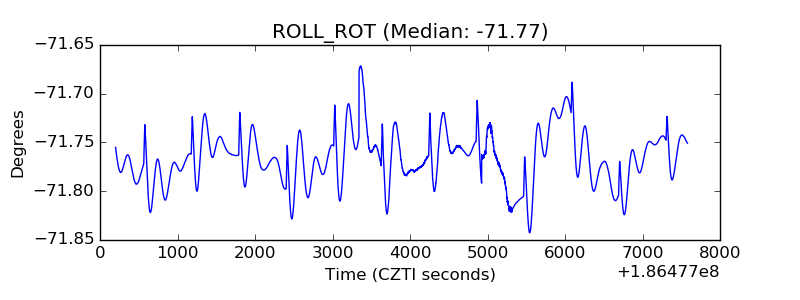

| _ROLL_ROT |  |

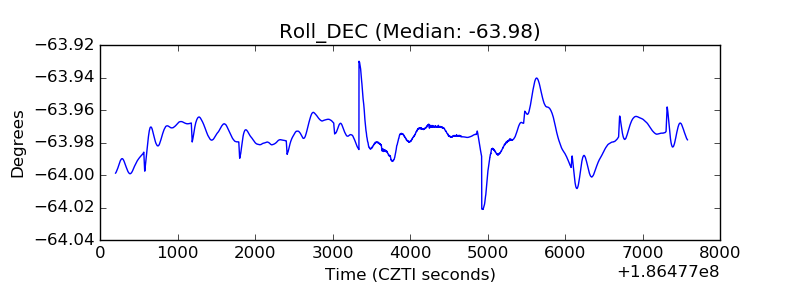

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
