| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_163T03_9000000186_00923cztM0_level2.evt | modeM0/AS1P01_163T03_9000000186_00923cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,001,623,680 | 73,321,920 |
| Size | 955.2 MB | 69.9 MB |
| Events in quadrant A | 7,481,289 | 451,491 |
| Events in quadrant B | 7,926,356 | 451,753 |
| Events in quadrant C | 7,478,891 | 447,344 |
| Events in quadrant D | 7,038,976 | 439,229 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26586 | 0 |
| B | 0 | 27934 | 0 |
| C | 0 | 26642 | 0 |
| D | 0 | 25300 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6162 | 64 | 1.038624% |
| B | 6162 | 104 | 1.687764% |
| C | 6162 | 67 | 1.087309% |
| D | 6162 | 60 | 0.973710% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7187 | 6163 | 201 | 201 | 2.80% | 3.26% |  |
| B | 7187 | 6163 | 275 | 275 | 3.83% | 4.46% |  |
| C | 7187 | 6163 | 205 | 205 | 2.85% | 3.33% |  |
| D | 7187 | 6163 | 194 | 194 | 2.70% | 3.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 21885 | 42.79 | 1941 | 1948 | 465.9 |
| A | 12 | 189 | 8282 | 13.6 | 1941 | 1948 | 465.9 |
| A | 11 | 79 | 8003 | 13.0 | 1941 | 1948 | 465.9 |
| B | 0 | 182 | 98409 | 204.2 | 1998 | 2003 | 472.1 |
| B | 5 | 191 | 78576 | 162.19 | 1998 | 2003 | 472.1 |
| B | 7 | 221 | 51639 | 105.13 | 1998 | 2003 | 472.1 |
| C | 15 | 241 | 264546 | 517.52 | 1831 | 1900 | 507.5 |
| C | 3 | 111 | 23133 | 41.84 | 1831 | 1900 | 507.5 |
| C | 3 | 79 | 15094 | 26.0 | 1831 | 1900 | 507.5 |
| D | 12 | 188 | 178775 | 319.06 | 1797 | 1859 | 554.5 |
| D | 1 | 4 | 64616 | 113.18 | 1797 | 1859 | 554.5 |
| D | 14 | 52 | 39910 | 68.62 | 1797 | 1859 | 554.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

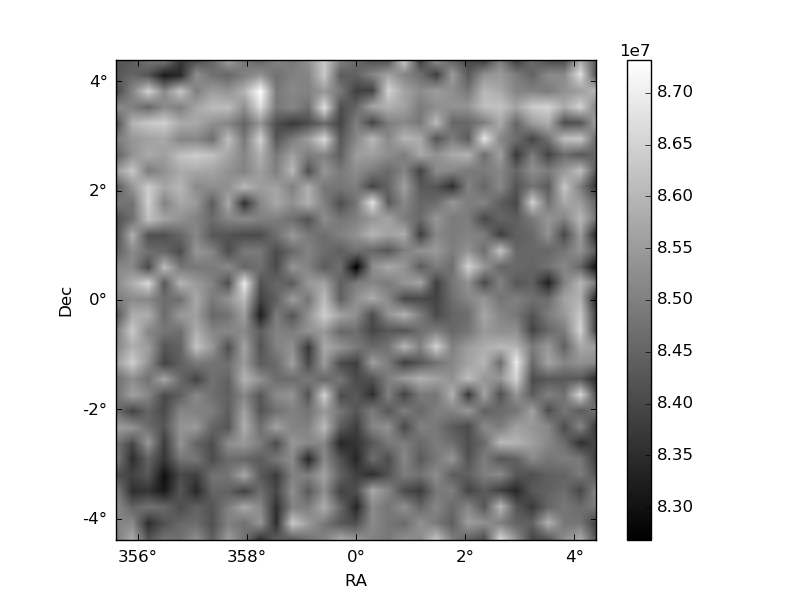

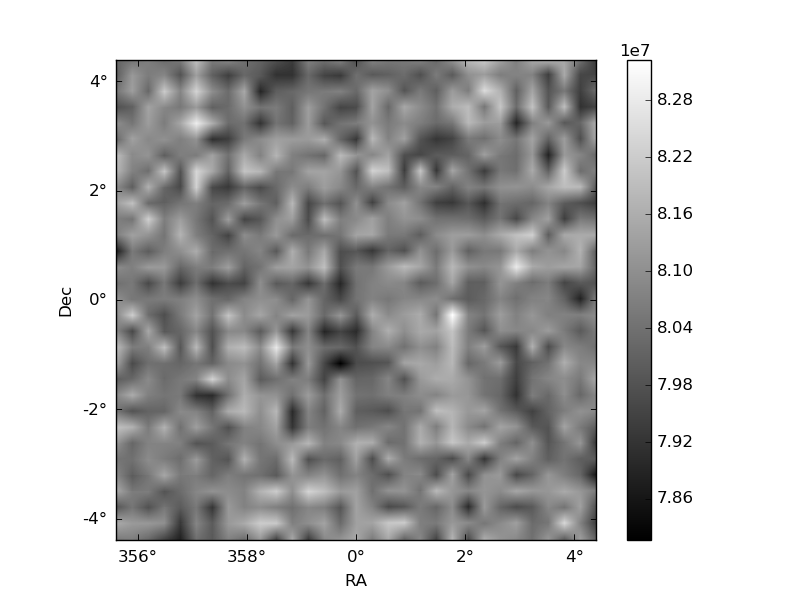

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

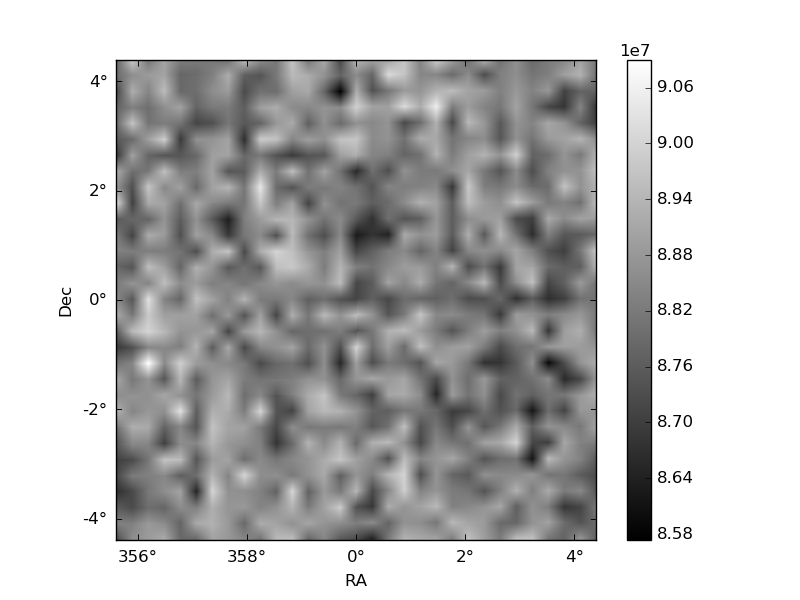

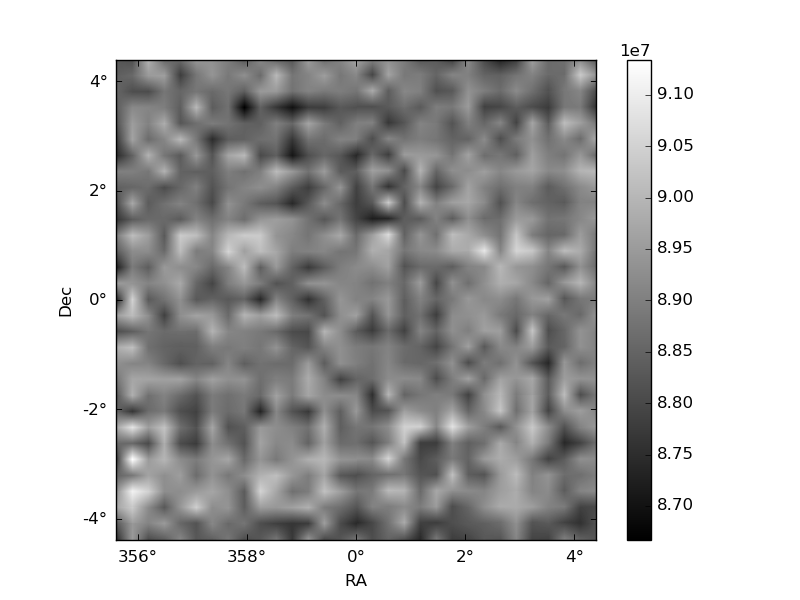

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

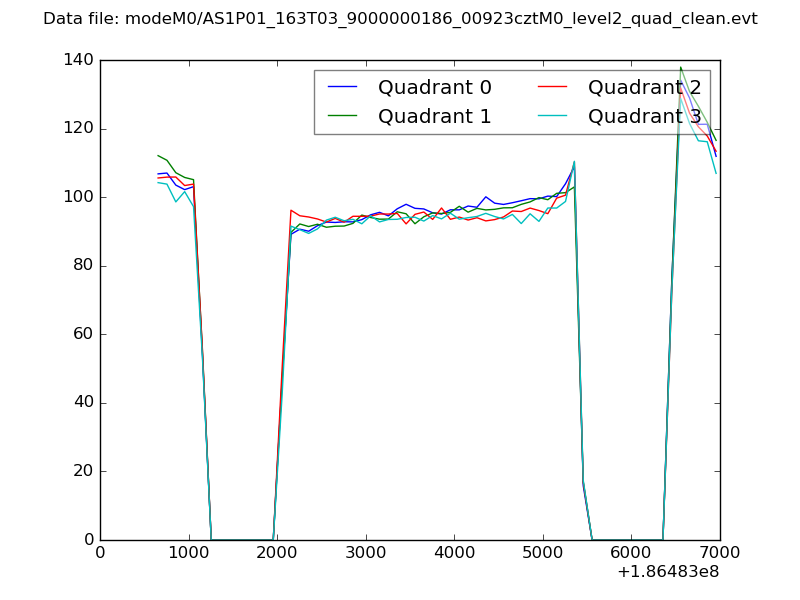

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

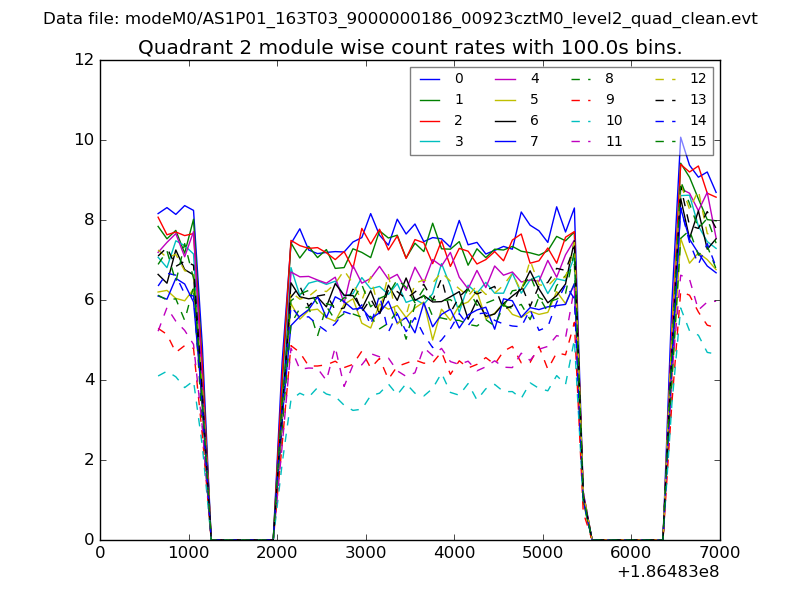

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

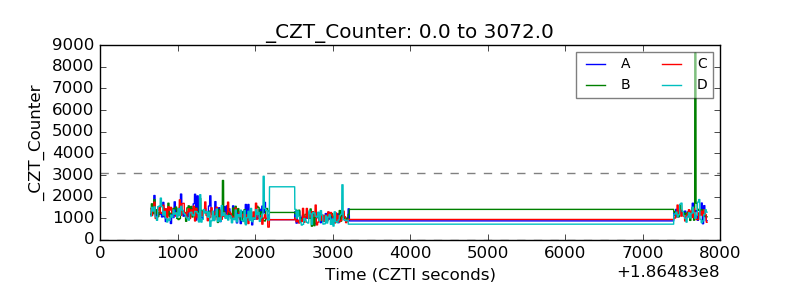

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

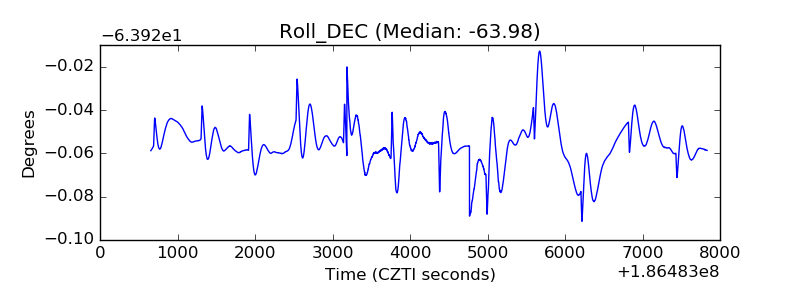

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
