| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T01_9000000188_00944cztM0_level2.evt | modeM0/AS1P01_998T01_9000000188_00944cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,227,931,200 | 109,811,520 |
| Size | 1.1 GB | 104.7 MB |
| Events in quadrant A | 8,911,644 | 723,075 |
| Events in quadrant B | 9,108,640 | 715,828 |
| Events in quadrant C | 8,992,722 | 705,036 |
| Events in quadrant D | 9,696,993 | 678,365 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31620 | 0 |
| B | 0 | 32196 | 0 |
| C | 0 | 31800 | 0 |
| D | 0 | 33923 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7232 | 6 | 0.082965% |
| B | 7232 | 30 | 0.414823% |
| C | 7232 | 20 | 0.276549% |
| D | 7231 | 252 | 3.484995% |

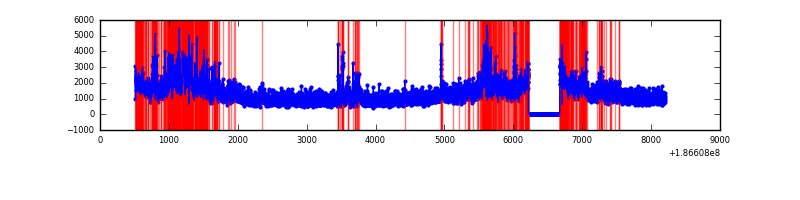

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 7233 | 269 | 269 | 3.50% | 3.72% |  |
| B | 7687 | 7233 | 369 | 369 | 4.80% | 5.10% |  |
| C | 7687 | 7233 | 329 | 329 | 4.28% | 4.55% |  |
| D | 7686 | 7232 | 903 | 903 | 11.75% | 12.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 170 | 446579 | 843.12 | 2201 | 2219 | 527.0 |
| A | 12 | 189 | 10753 | 16.19 | 2201 | 2219 | 527.0 |
| A | 11 | 79 | 8694 | 12.29 | 2201 | 2219 | 527.0 |
| B | 15 | 22 | 82637 | 147.62 | 2310 | 2319 | 544.1 |
| B | 5 | 191 | 50435 | 88.44 | 2310 | 2319 | 544.1 |
| B | 8 | 234 | 47497 | 83.04 | 2310 | 2319 | 544.1 |
| C | 15 | 241 | 383498 | 637.48 | 2138 | 2212 | 598.1 |
| C | 10 | 34 | 133703 | 219.84 | 2138 | 2212 | 598.1 |
| C | 9 | 144 | 76170 | 123.65 | 2138 | 2212 | 598.1 |
| D | 12 | 188 | 1287309 | 2064.76 | 2027 | 2097 | 622.5 |
| D | 1 | 4 | 633816 | 1014.89 | 2027 | 2097 | 622.5 |
| D | 13 | 252 | 179798 | 285.49 | 2027 | 2097 | 622.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

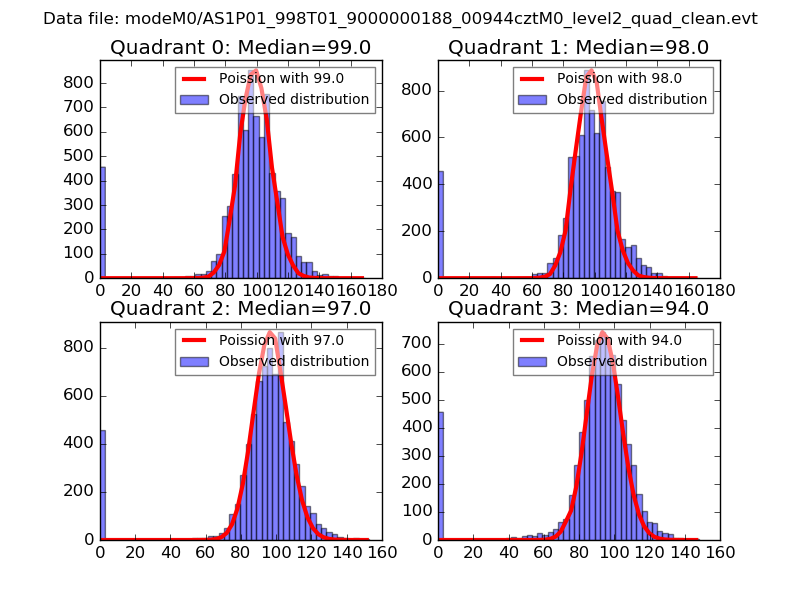

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

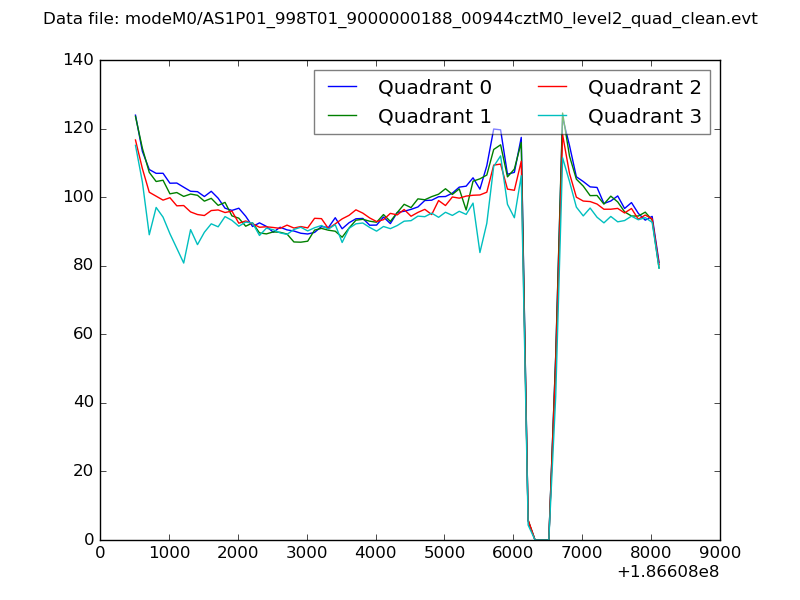

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

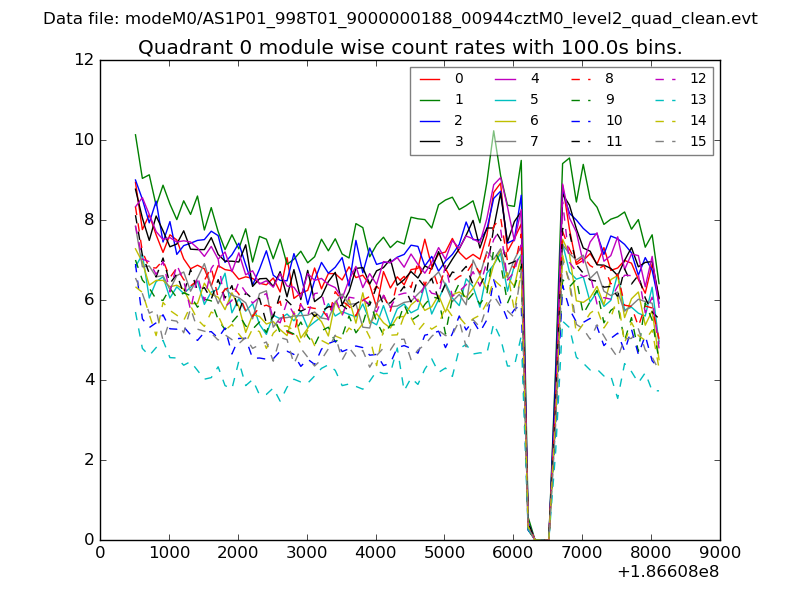

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

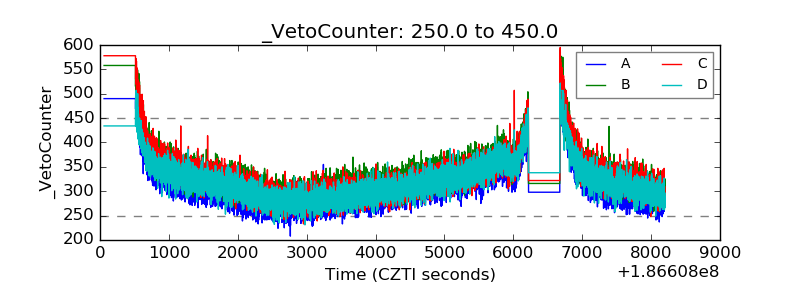

| Veto Counter |  |
