| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T01_9000000188_00953cztM0_level2.evt | modeM0/AS1P01_998T01_9000000188_00953cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,024,395,840 | 90,604,800 |
| Size | 976.9 MB | 86.4 MB |
| Events in quadrant A | 7,722,412 | 594,617 |
| Events in quadrant B | 7,279,333 | 606,079 |
| Events in quadrant C | 8,112,457 | 580,509 |
| Events in quadrant D | 7,527,433 | 558,568 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27120 | 0 |
| B | 0 | 25723 | 0 |
| C | 0 | 28159 | 0 |
| D | 0 | 26496 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5783 | 302 | 5.222203% |
| B | 5783 | 16 | 0.276673% |
| C | 5783 | 21 | 0.363133% |
| D | 5783 | 307 | 5.308663% |

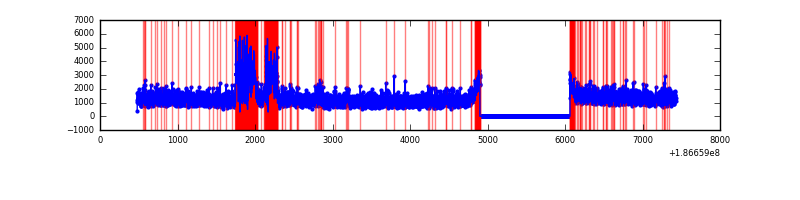

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6948 | 5784 | 529 | 529 | 7.61% | 9.15% |  |
| B | 6948 | 5784 | 203 | 203 | 2.92% | 3.51% |  |
| C | 6948 | 5784 | 311 | 311 | 4.48% | 5.38% |  |
| D | 6948 | 5784 | 624 | 624 | 8.98% | 10.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 170 | 1023565 | 2462.55 | 1744 | 1758 | 414.9 |
| A | 11 | 79 | 7452 | 13.72 | 1744 | 1758 | 414.9 |
| A | 15 | 233 | 5785 | 9.7 | 1744 | 1758 | 414.9 |
| B | 4 | 32 | 81162 | 186.37 | 1833 | 1839 | 425.6 |
| B | 5 | 249 | 59881 | 136.37 | 1833 | 1839 | 425.6 |
| B | 15 | 85 | 37887 | 84.69 | 1833 | 1839 | 425.6 |
| C | 10 | 34 | 1208620 | 2609.85 | 1673 | 1729 | 462.4 |
| C | 15 | 241 | 275328 | 591.65 | 1673 | 1729 | 462.4 |
| C | 3 | 79 | 31794 | 65.01 | 1673 | 1729 | 462.4 |
| D | 11 | 131 | 1216567 | 2456.39 | 1603 | 1659 | 494.6 |
| D | 1 | 4 | 206298 | 413.75 | 1603 | 1659 | 494.6 |
| D | 13 | 73 | 47075 | 91.83 | 1603 | 1659 | 494.6 |

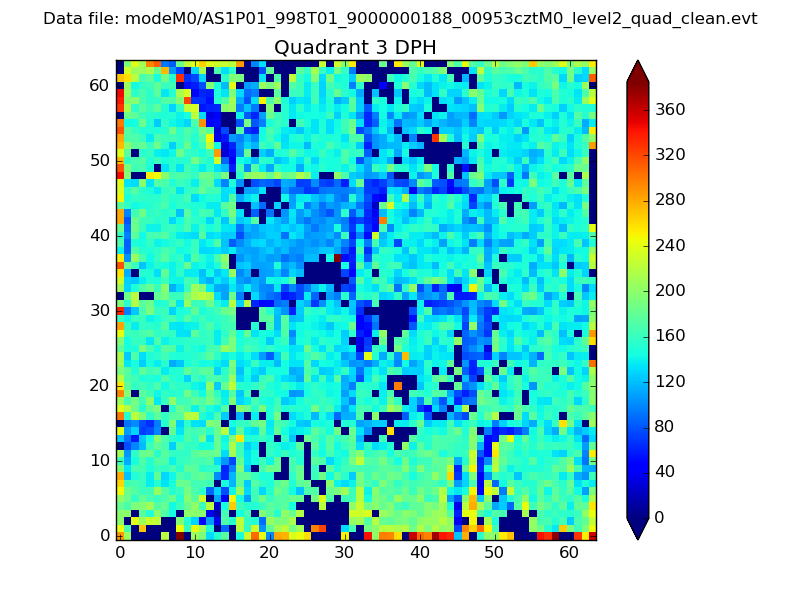

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

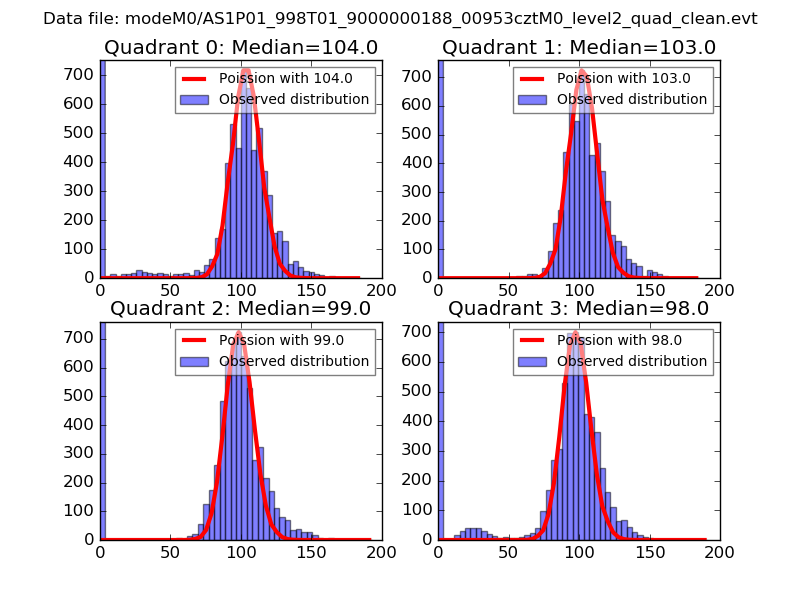

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

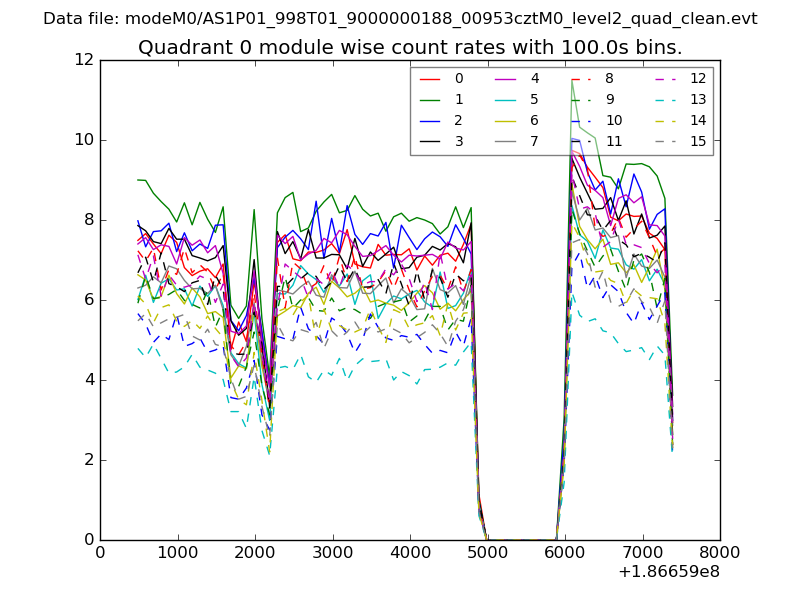

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

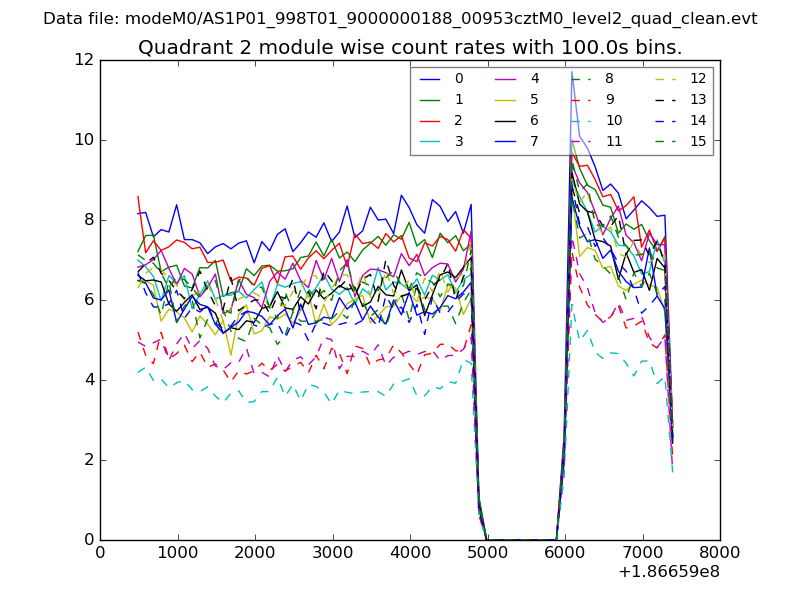

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

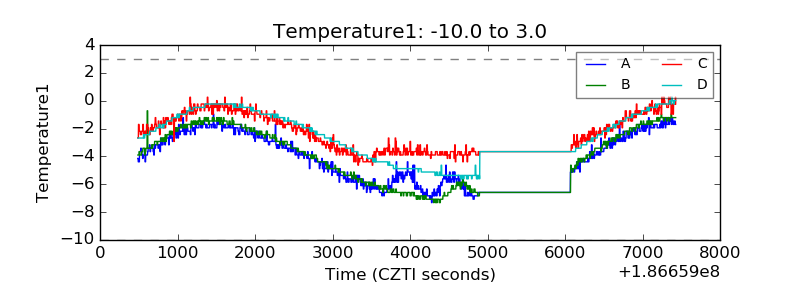

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

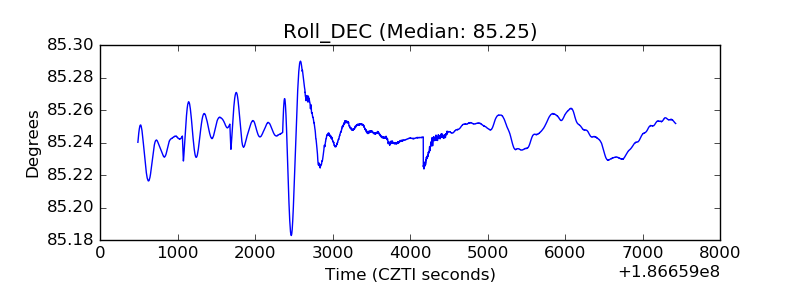

| _Roll_DEC |  |
| _Roll_RA |  |

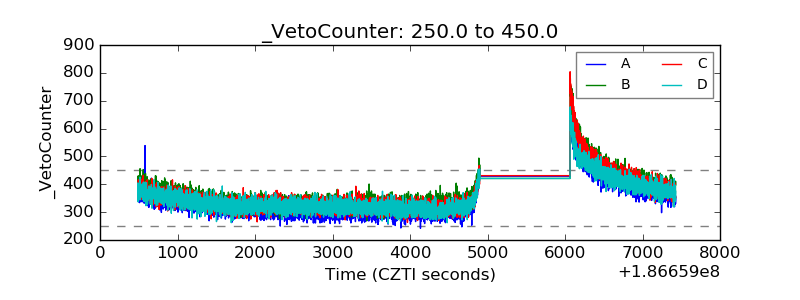

| Veto Counter |  |
