| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T01_9000000188_00956cztM0_level2.evt | modeM0/AS1P01_998T01_9000000188_00956cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,079,974,080 | 103,040,640 |
| Size | 1.0 GB | 98.3 MB |
| Events in quadrant A | 7,585,198 | 684,341 |
| Events in quadrant B | 8,292,476 | 679,384 |
| Events in quadrant C | 8,798,433 | 660,900 |
| Events in quadrant D | 7,608,793 | 650,929 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27095 | 0 |
| B | 0 | 29181 | 0 |
| C | 0 | 30632 | 0 |
| D | 0 | 27159 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6372 | 42 | 0.659134% |
| B | 6372 | 51 | 0.800377% |
| C | 6372 | 85 | 1.333961% |
| D | 6371 | 91 | 1.428347% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

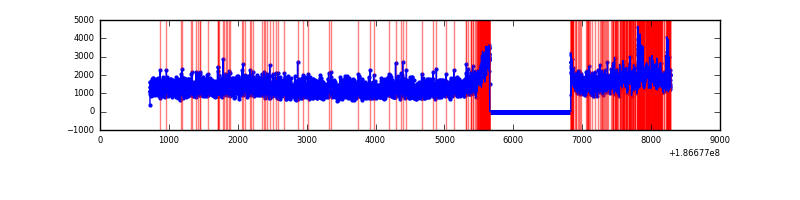

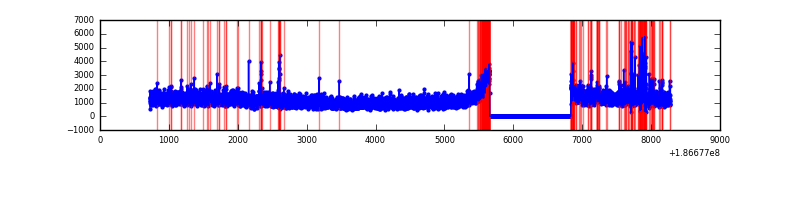

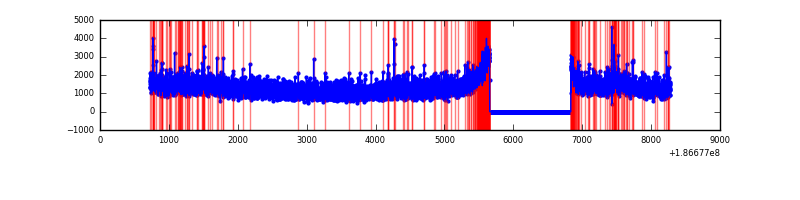

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 6373 | 240 | 240 | 3.18% | 3.77% |  |
| B | 7552 | 6373 | 347 | 347 | 4.59% | 5.44% |  |
| C | 7552 | 6373 | 510 | 510 | 6.75% | 8.00% |  |
| D | 7551 | 6372 | 274 | 274 | 3.63% | 4.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 7594 | 11.92 | 1973 | 1985 | 470.6 |
| A | 14 | 170 | 7053 | 10.77 | 1973 | 1985 | 470.6 |
| A | 3 | 111 | 5754 | 8.01 | 1973 | 1985 | 470.6 |
| B | 7 | 221 | 176520 | 367.06 | 2040 | 2045 | 475.3 |
| B | 0 | 220 | 102325 | 210.97 | 2040 | 2045 | 475.3 |
| B | 5 | 249 | 62712 | 127.63 | 2040 | 2045 | 475.3 |
| C | 10 | 34 | 856997 | 1629.92 | 1900 | 1966 | 524.6 |
| C | 15 | 241 | 307005 | 581.49 | 1900 | 1966 | 524.6 |
| C | 9 | 52 | 125995 | 236.43 | 1900 | 1966 | 524.6 |
| D | 1 | 4 | 364402 | 686.82 | 1881 | 1924 | 527.8 |
| D | 13 | 73 | 59444 | 108.99 | 1881 | 1924 | 527.8 |
| D | 13 | 252 | 46462 | 84.39 | 1881 | 1924 | 527.8 |

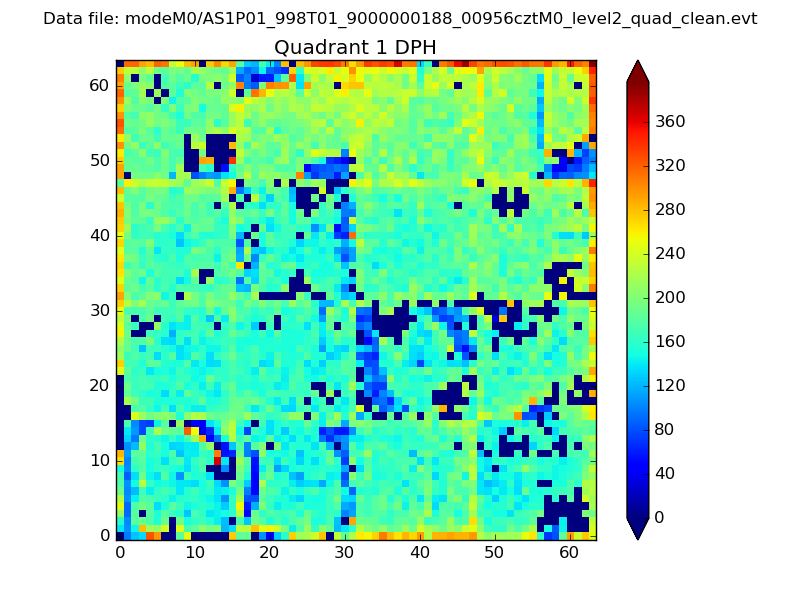

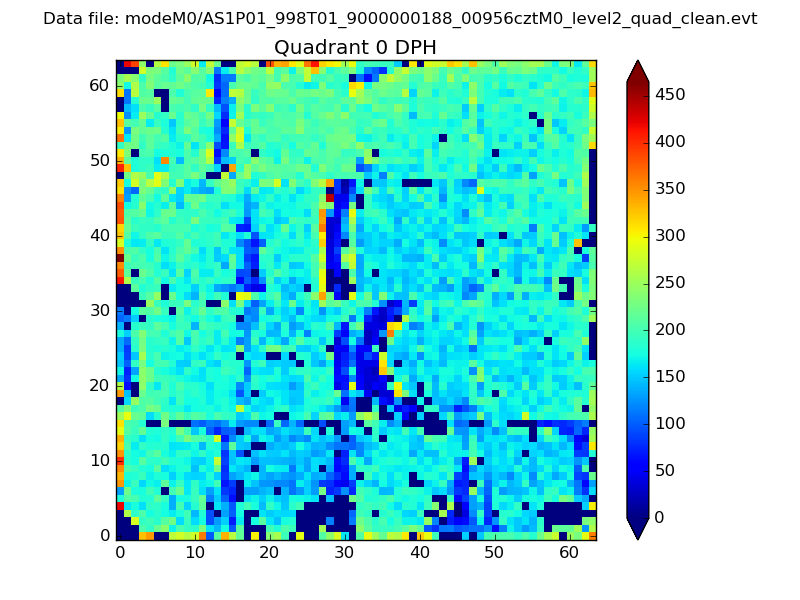

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

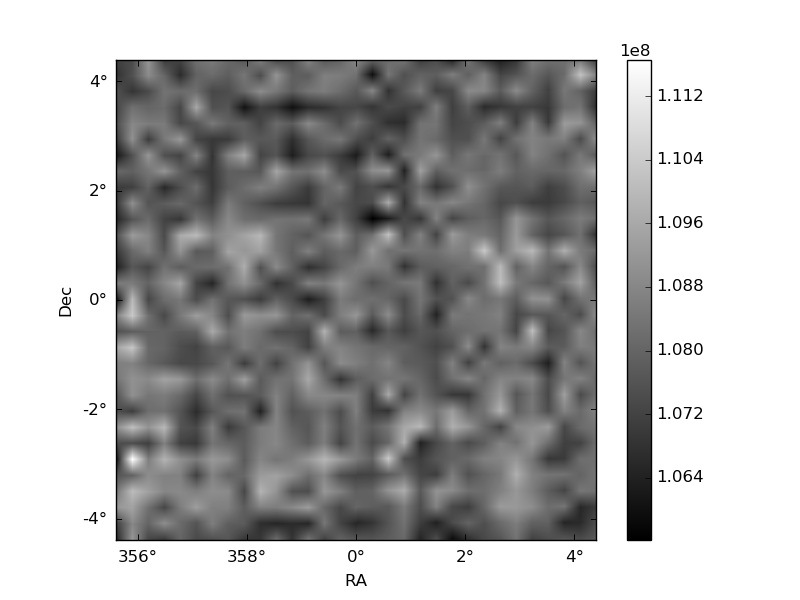

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

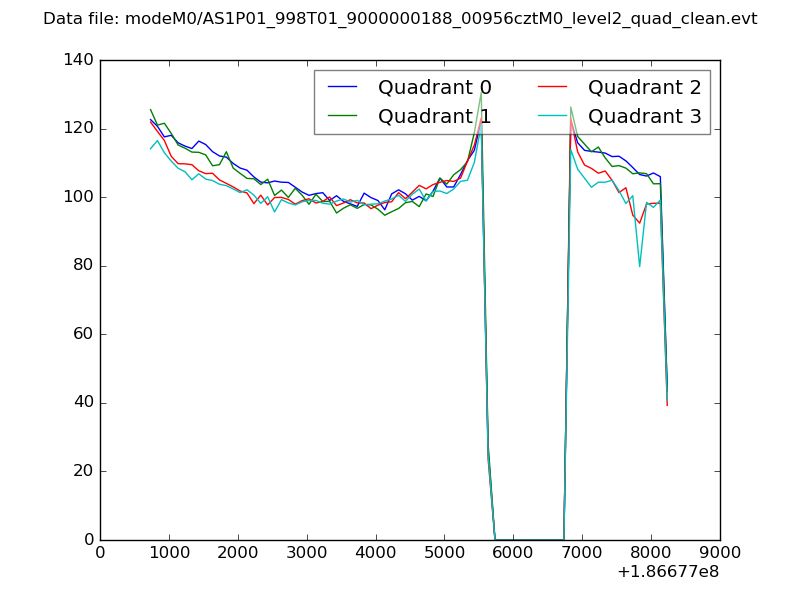

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

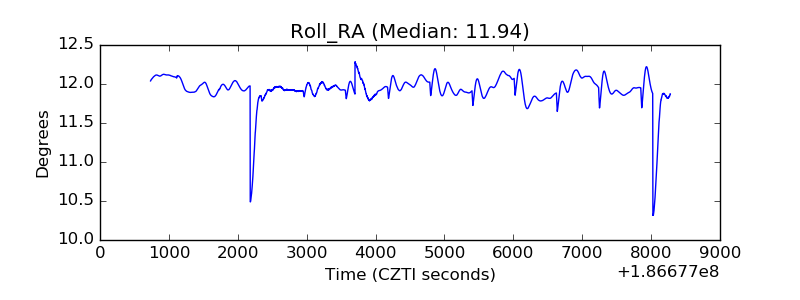

| _Roll_RA |  |
| Veto Counter |  |
