| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T01_9000000188_00961cztM0_level2.evt | modeM0/AS1P01_998T01_9000000188_00961cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,357,600,320 | 113,342,400 |
| Size | 1.3 GB | 108.1 MB |
| Events in quadrant A | 9,452,334 | 746,851 |
| Events in quadrant B | 9,684,242 | 747,118 |
| Events in quadrant C | 10,487,726 | 726,247 |
| Events in quadrant D | 10,991,454 | 685,699 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33478 | 0 |
| B | 0 | 34119 | 0 |
| C | 0 | 36509 | 0 |
| D | 0 | 38103 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7567 | 13 | 0.171799% |
| B | 7567 | 29 | 0.383243% |
| C | 7568 | 16 | 0.211416% |
| D | 7568 | 633 | 8.364165% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 7570 | 435 | 435 | 5.68% | 5.75% |  |
| B | 7662 | 7570 | 435 | 435 | 5.68% | 5.75% |  |
| C | 7663 | 7571 | 634 | 634 | 8.27% | 8.37% |  |
| D | 7663 | 7571 | 1306 | 1306 | 17.04% | 17.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 214 | 319519 | 560.05 | 2352 | 2371 | 566.3 |
| A | 15 | 233 | 81688 | 140.06 | 2352 | 2371 | 566.3 |
| A | 12 | 189 | 12481 | 17.85 | 2352 | 2371 | 566.3 |
| B | 5 | 249 | 63330 | 103.78 | 2478 | 2484 | 586.3 |
| B | 8 | 234 | 56593 | 92.29 | 2478 | 2484 | 586.3 |
| B | 0 | 153 | 32582 | 51.34 | 2478 | 2484 | 586.3 |
| C | 10 | 34 | 979622 | 1533.4 | 2285 | 2365 | 637.3 |
| C | 15 | 241 | 344731 | 537.2 | 2285 | 2365 | 637.3 |
| C | 1 | 192 | 165277 | 255.62 | 2285 | 2365 | 637.3 |
| D | 12 | 188 | 2420357 | 3718.04 | 2108 | 2181 | 650.4 |
| D | 10 | 85 | 312275 | 476.78 | 2108 | 2181 | 650.4 |
| D | 1 | 4 | 287636 | 438.9 | 2108 | 2181 | 650.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

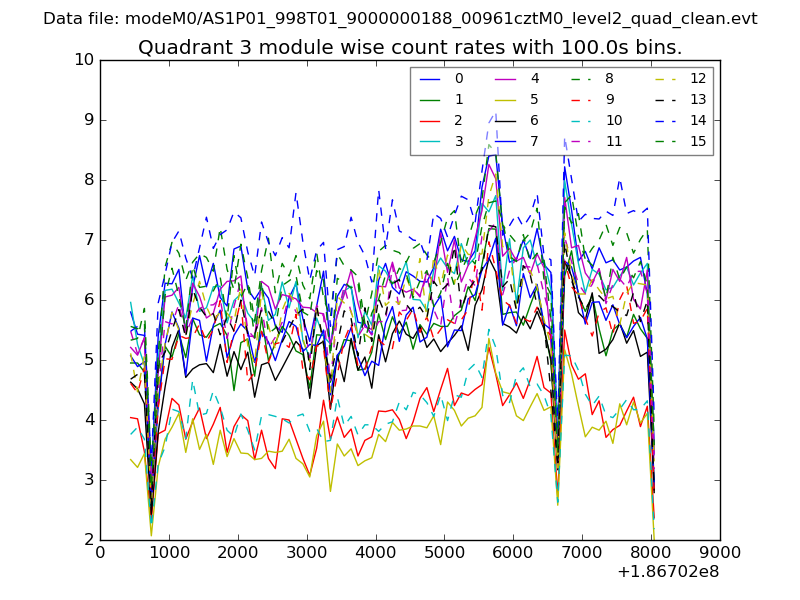

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

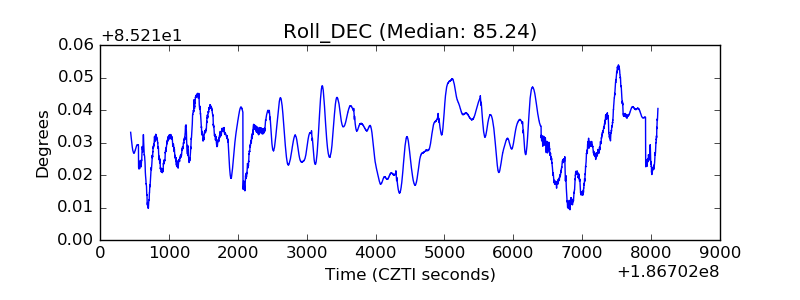

| _Roll_DEC |  |
| _Roll_RA |  |

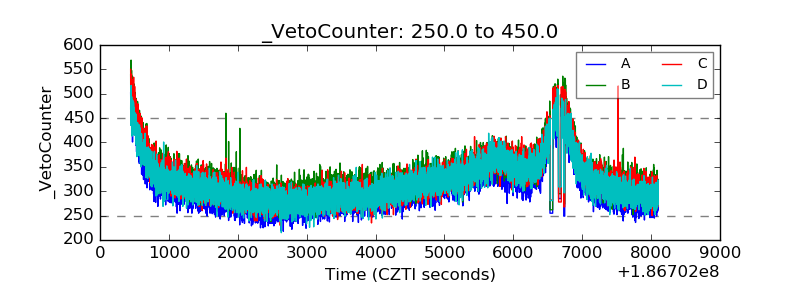

| Veto Counter |  |
