| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T01_9000000188_00987cztM0_level2.evt | modeM0/AS1P01_998T01_9000000188_00987cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,191,159,360 | 98,568,000 |
| Size | 1.1 GB | 94.0 MB |
| Events in quadrant A | 7,597,367 | 659,920 |
| Events in quadrant B | 8,202,650 | 656,459 |
| Events in quadrant C | 7,878,653 | 641,975 |
| Events in quadrant D | 11,956,937 | 563,671 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27293 | 0 |
| B | 0 | 29122 | 0 |
| C | 0 | 28106 | 0 |
| D | 0 | 40378 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6639 | 4 | 0.060250% |
| B | 6639 | 24 | 0.361500% |
| C | 6639 | 6 | 0.090375% |
| D | 6639 | 1105 | 16.644073% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7319 | 6640 | 142 | 142 | 1.94% | 2.14% |  |
| B | 7319 | 6640 | 291 | 291 | 3.98% | 4.38% |  |
| C | 7319 | 6640 | 178 | 178 | 2.43% | 2.68% |  |
| D | 7319 | 6640 | 2448 | 2448 | 33.45% | 36.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 7640 | 11.9 | 1978 | 1995 | 474.4 |
| A | 12 | 189 | 6475 | 9.44 | 1978 | 1995 | 474.4 |
| A | 3 | 111 | 5997 | 8.44 | 1978 | 1995 | 474.4 |
| B | 8 | 234 | 158866 | 323.42 | 2068 | 2077 | 484.8 |
| B | 7 | 221 | 68138 | 136.27 | 2068 | 2077 | 484.8 |
| B | 15 | 22 | 44382 | 87.26 | 2068 | 2077 | 484.8 |
| C | 15 | 241 | 311682 | 582.49 | 1914 | 1983 | 531.7 |
| C | 3 | 79 | 38596 | 68.86 | 1914 | 1983 | 531.7 |
| C | 3 | 111 | 36112 | 64.19 | 1914 | 1983 | 531.7 |
| D | 12 | 188 | 3840678 | 7240.1 | 1712 | 1778 | 530.2 |
| D | 1 | 4 | 1397538 | 2632.38 | 1712 | 1778 | 530.2 |
| D | 13 | 85 | 242008 | 453.07 | 1712 | 1778 | 530.2 |

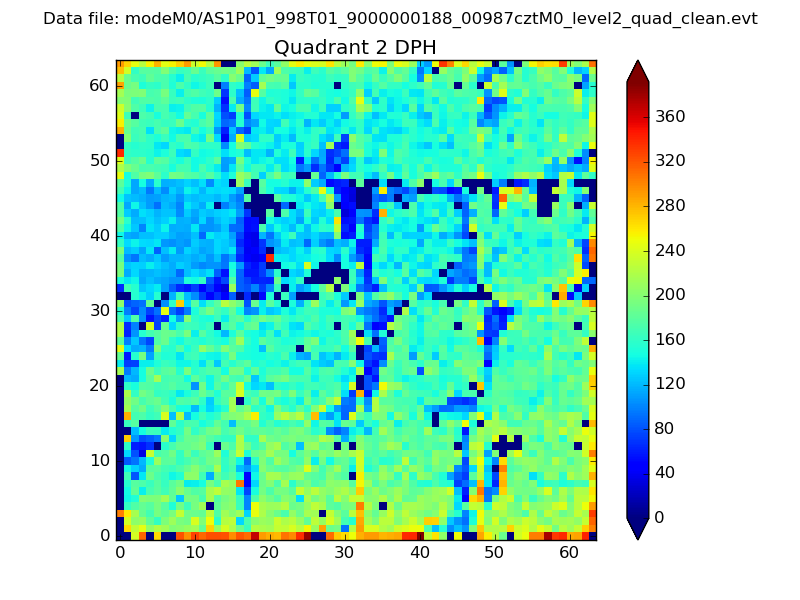

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

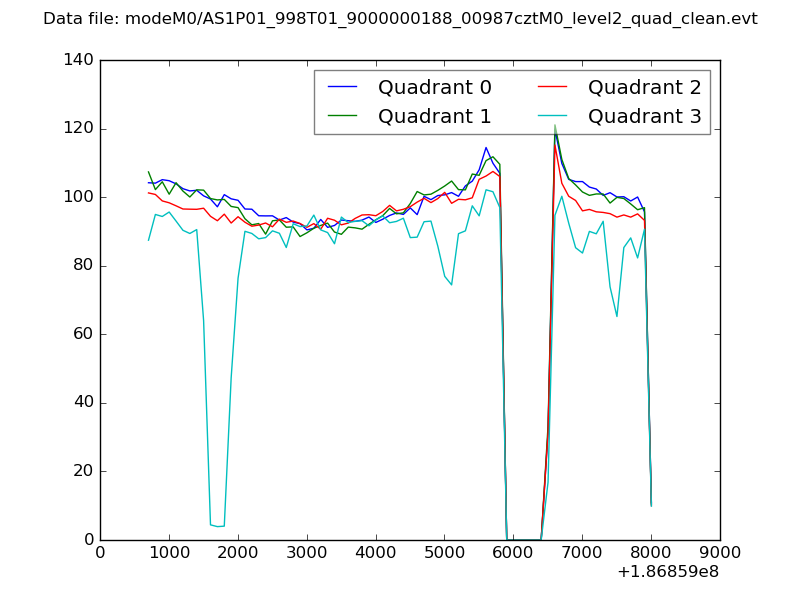

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

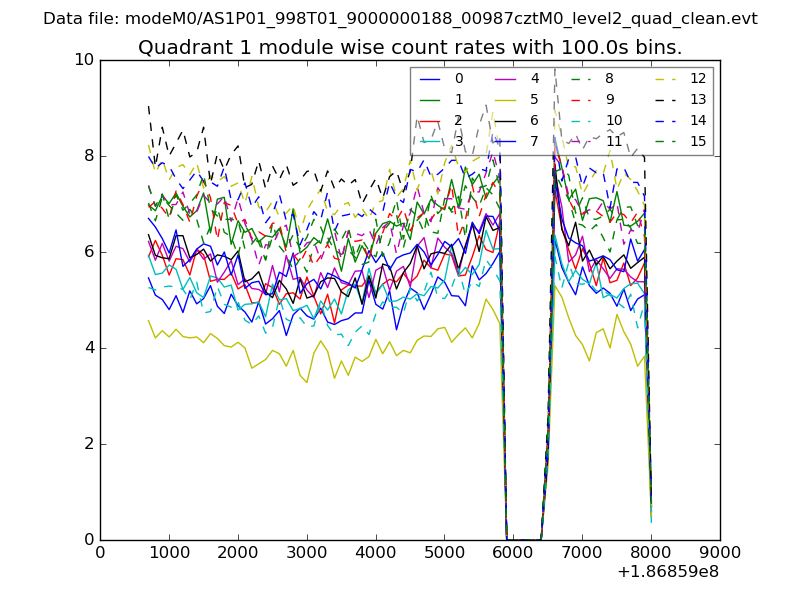

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

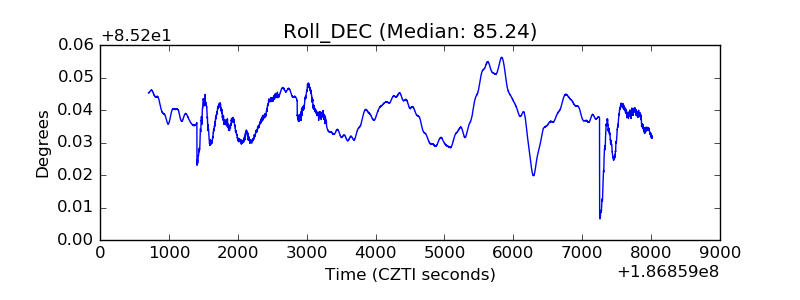

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

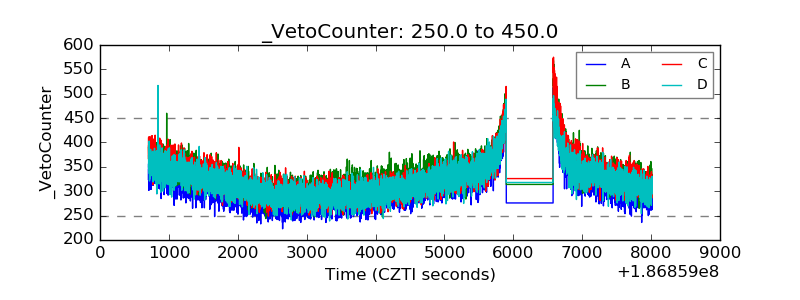

| Veto Counter |  |
