| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_00994cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_00994cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,004,005,440 | 102,329,280 |
| Size | 957.5 MB | 97.6 MB |
| Events in quadrant A | 7,302,870 | 679,364 |
| Events in quadrant B | 7,423,807 | 693,349 |
| Events in quadrant C | 6,976,989 | 665,253 |
| Events in quadrant D | 8,302,730 | 639,613 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26016 | 1 |
| B | 0 | 26350 | 1 |
| C | 0 | 25021 | 1 |
| D | 0 | 28997 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6039 | 56 | 0.927306% |
| B | 6039 | 19 | 0.314622% |
| C | 6039 | 2 | 0.033118% |
| D | 6039 | 232 | 3.841696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7049 | 6040 | 227 | 227 | 3.22% | 3.76% |  |
| B | 7049 | 6040 | 187 | 187 | 2.65% | 3.10% |  |
| C | 7049 | 6040 | 89 | 89 | 1.26% | 1.47% |  |
| D | 7049 | 6040 | 779 | 779 | 11.05% | 12.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 206882 | 462.06 | 1838 | 1853 | 443.7 |
| A | 15 | 127 | 27359 | 57.48 | 1838 | 1853 | 443.7 |
| A | 0 | 253 | 10944 | 20.49 | 1838 | 1853 | 443.7 |
| B | 5 | 249 | 100800 | 220.04 | 1900 | 1911 | 449.4 |
| B | 8 | 234 | 30549 | 63.72 | 1900 | 1911 | 449.4 |
| B | 15 | 22 | 26222 | 54.1 | 1900 | 1911 | 449.4 |
| C | 15 | 241 | 291029 | 612.03 | 1694 | 1753 | 472.7 |
| C | 3 | 111 | 25673 | 50.61 | 1694 | 1753 | 472.7 |
| C | 3 | 79 | 23175 | 45.32 | 1694 | 1753 | 472.7 |
| D | 12 | 188 | 1968079 | 3891.16 | 1653 | 1709 | 505.3 |
| D | 1 | 4 | 114109 | 222.42 | 1653 | 1709 | 505.3 |
| D | 13 | 170 | 16714 | 29.69 | 1653 | 1709 | 505.3 |

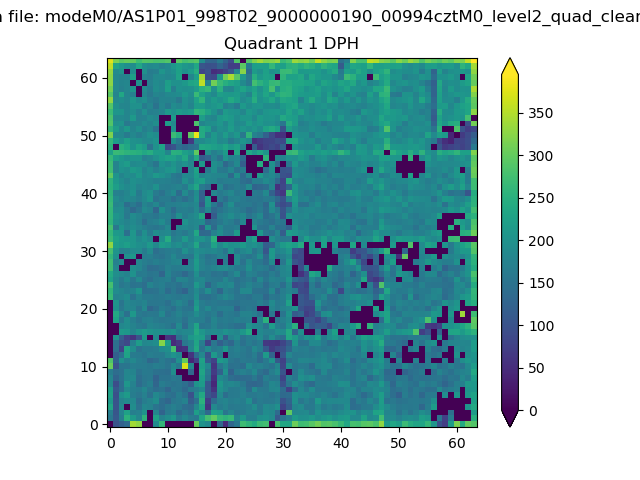

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

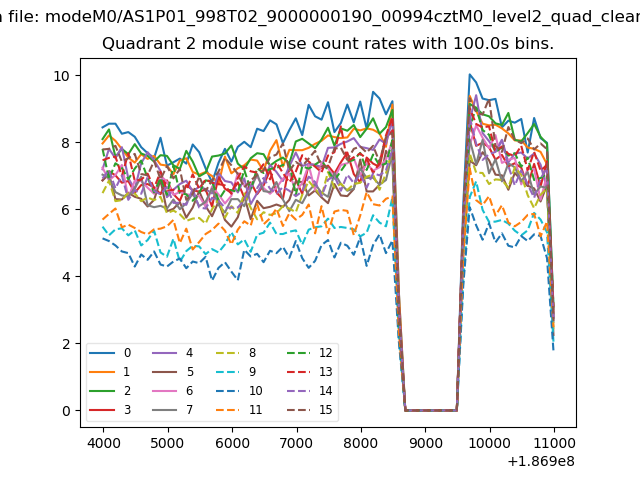

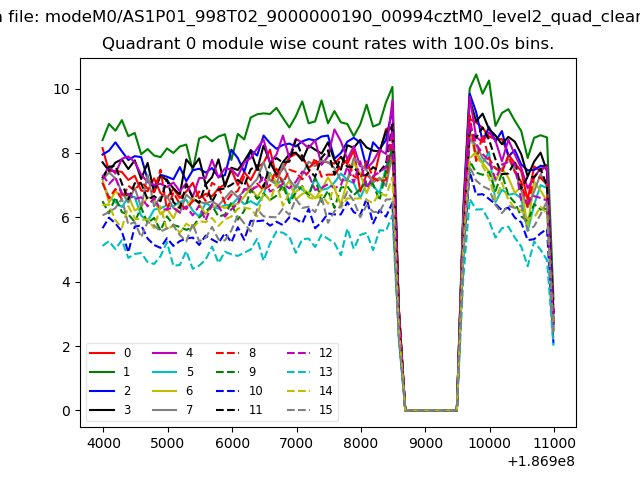

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

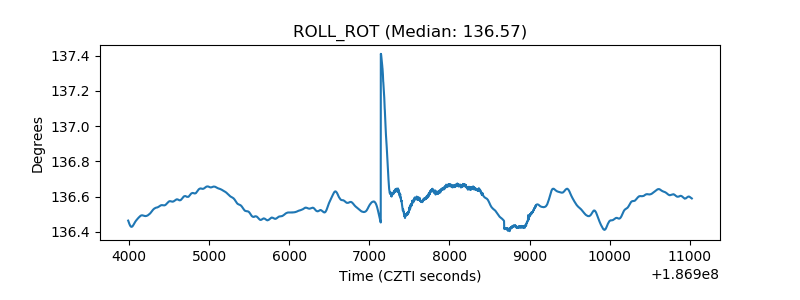

| _ROLL_ROT |  |
| _Roll_DEC |  |

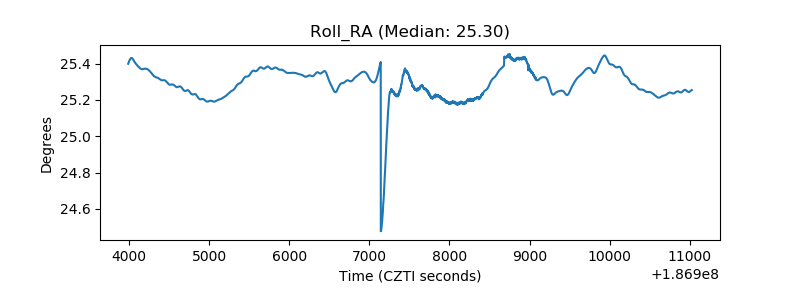

| _Roll_RA |  |

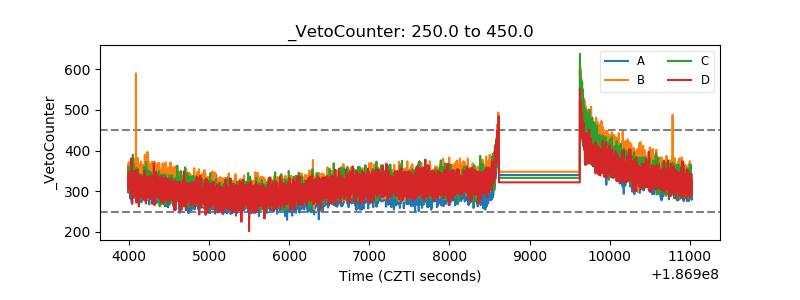

| Veto Counter |  |
