| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01001cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01001cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,032,220,800 | 109,621,440 |
| Size | 984.4 MB | 104.5 MB |
| Events in quadrant A | 7,364,650 | 729,541 |
| Events in quadrant B | 7,936,688 | 734,804 |
| Events in quadrant C | 7,694,604 | 713,087 |
| Events in quadrant D | 7,841,311 | 696,975 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26454 | 6 |
| B | 0 | 28146 | 1 |
| C | 0 | 27393 | 1 |
| D | 0 | 27843 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 11 | 0.172252% |
| B | 6387 | 56 | 0.876781% |
| C | 6387 | 30 | 0.469704% |
| D | 6387 | 49 | 0.767183% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7181 | 6387 | 209 | 209 | 2.91% | 3.27% |  |
| B | 7182 | 6388 | 325 | 325 | 4.53% | 5.09% |  |
| C | 7182 | 6388 | 232 | 232 | 3.23% | 3.63% |  |
| D | 7182 | 6388 | 407 | 407 | 5.67% | 6.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 29208 | 59.58 | 1908 | 1917 | 458.1 |
| A | 12 | 189 | 11590 | 21.12 | 1908 | 1917 | 458.1 |
| A | 11 | 79 | 9451 | 16.45 | 1908 | 1917 | 458.1 |
| B | 0 | 182 | 95746 | 199.54 | 2003 | 2007 | 469.8 |
| B | 7 | 221 | 59501 | 122.38 | 2003 | 2007 | 469.8 |
| B | 15 | 22 | 29497 | 58.52 | 2003 | 2007 | 469.8 |
| C | 15 | 241 | 325909 | 623.36 | 1866 | 1934 | 519.7 |
| C | 3 | 79 | 36748 | 66.99 | 1866 | 1934 | 519.7 |
| C | 3 | 111 | 30810 | 55.56 | 1866 | 1934 | 519.7 |
| D | 12 | 22 | 481166 | 856.79 | 1809 | 1878 | 559.4 |
| D | 1 | 4 | 396884 | 706.13 | 1809 | 1878 | 559.4 |
| D | 1 | 83 | 85031 | 148.65 | 1809 | 1878 | 559.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

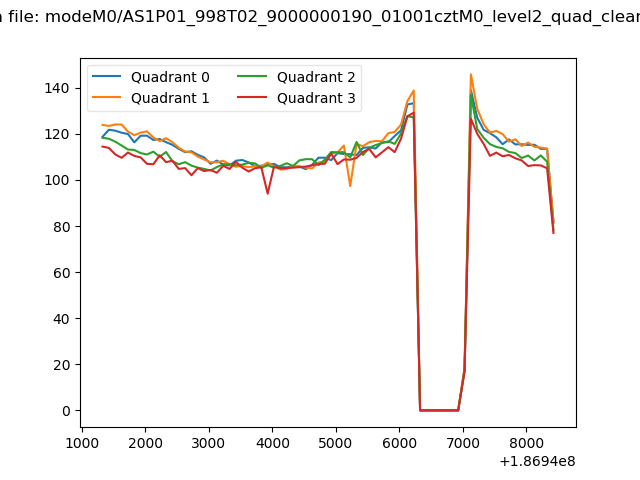

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

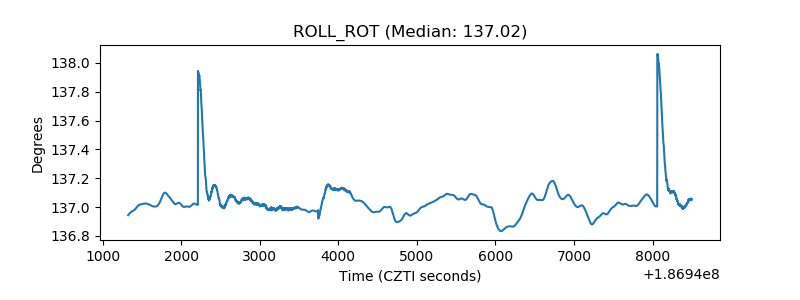

| _ROLL_ROT |  |
| _Roll_DEC |  |

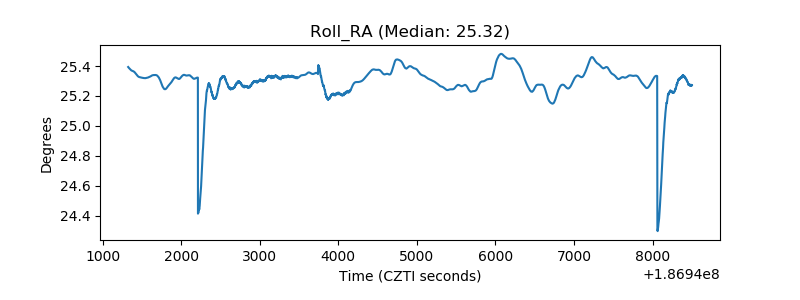

| _Roll_RA |  |
| Veto Counter |  |
